Product Description

Danfoss MBS3000 060G1125

The Danfoss MBS 3000 compact pressure transmitter is engineered for reliable pressure measurement in demanding industrial and hydraulic applications. Its robust design provides exceptional resistance to vibration, shock, and moisture, ensuring high performance even in harsh environments. This model is equipped with a 4-20 mA output signal and is designed to deliver stable and accurate readings, making it an ideal solution for controlling and monitoring pressure in pumps, compressors, and various hydraulic systems.

Technical Specifications:

  • Pressure Range: 0 – 160 bar

  • Output Signal: 4 – 20 mA

  • Pressure Connection: G 1/4 A (EN 837)

  • Electrical Connection: EN 175301-803-A, PG 9 Plug

  • Supply Voltage: 10 – 30 V DC

  • IP Rating: IP65

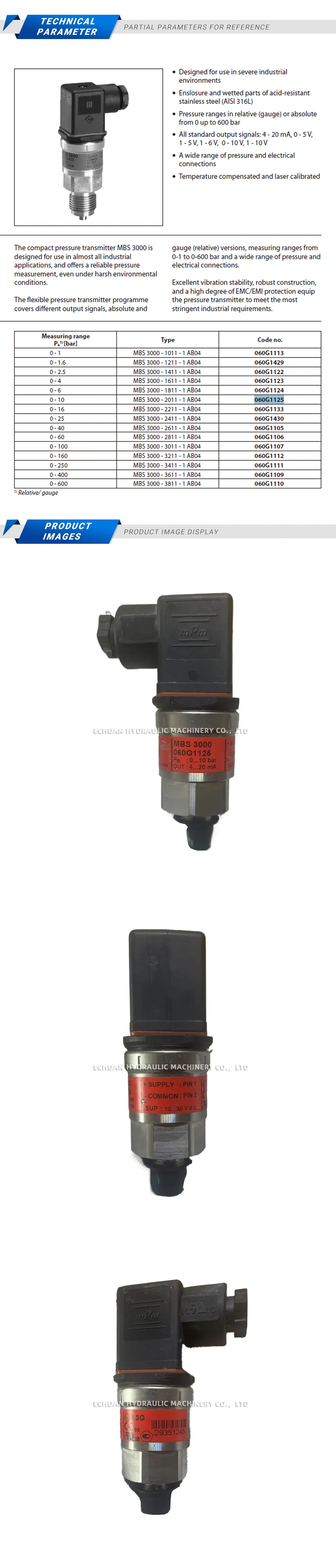

Danfoss MBS3000 060G1125 Description

Danfoss MBS3000 060G1125

Shop the Danfoss MBS 3000 compact pressure transmitter, model 060G1125. Features a 0-160 bar range, 4-20 mA output, and G 1/4 connection. Built for reliable performance in harsh industrial and hydraulic environments.
