Product Description

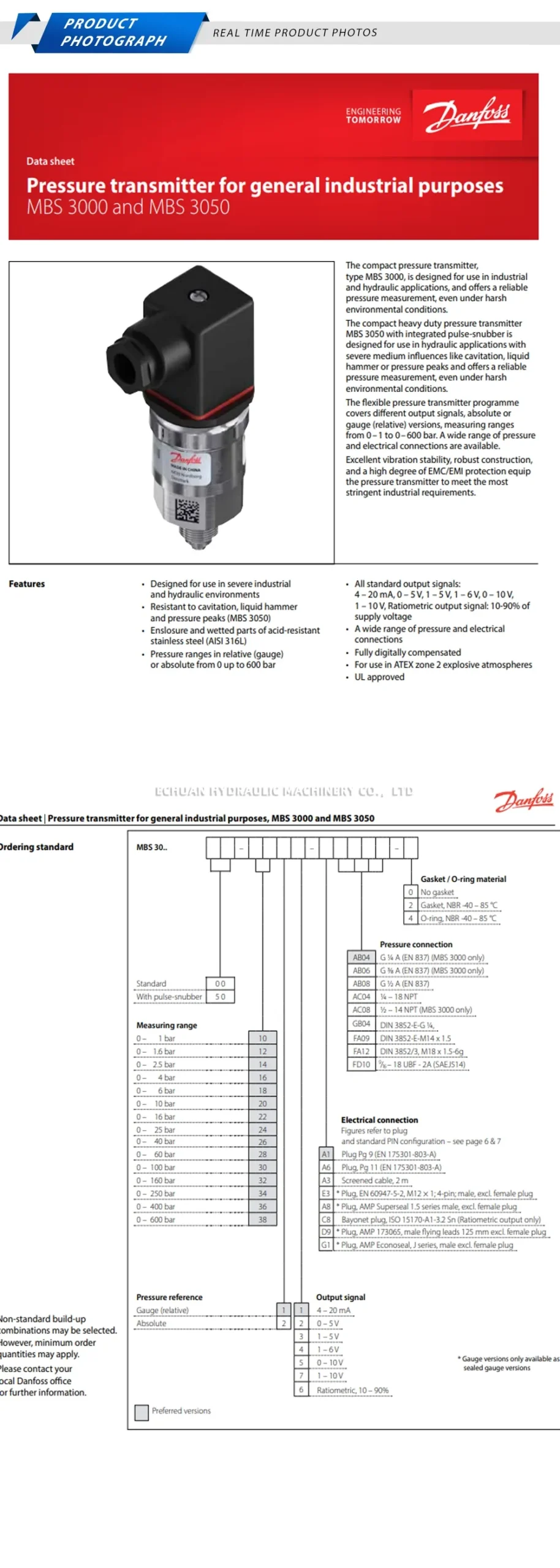

Danfoss MBS3050 060G3582

The Danfoss MBS 3050 is a compact, heavy-duty pressure transmitter designed for reliable performance in demanding hydraulic applications. It is engineered to withstand severe industrial environments characterized by cavitation, liquid hammer, and significant pressure peaks. This model features an integrated pulse-snubber, which provides a high degree of protection against these phenomena. The MBS 3050 offers a stable and accurate pressure measurement solution, making it ideal for use in hydraulic power units, pumps, compressors, and other industrial machinery where robustness and precision are critical.

Technical Specifications:

  • Pressure Range: 0 – 250 bar
  • Output Signal: 4 – 20 mA
  • Supply Voltage: 10 – 30 V DC
  • Pressure Connection Type: G 1/4 A (ISO 228-1)
  • Electrical Connection: DIN 43650-A Plug
  • Accuracy (Typical): +/- 0.8% FS
  • Overpressure Max: 1000 bar
  • Compensated Temperature Range: 0 to 80 °C
  • Response Time: < 4 ms
  • IP Rating: IP65

Danfoss MBS3050 060G3582

Model:Danfoss MBS3050 060G3582
