Product Description

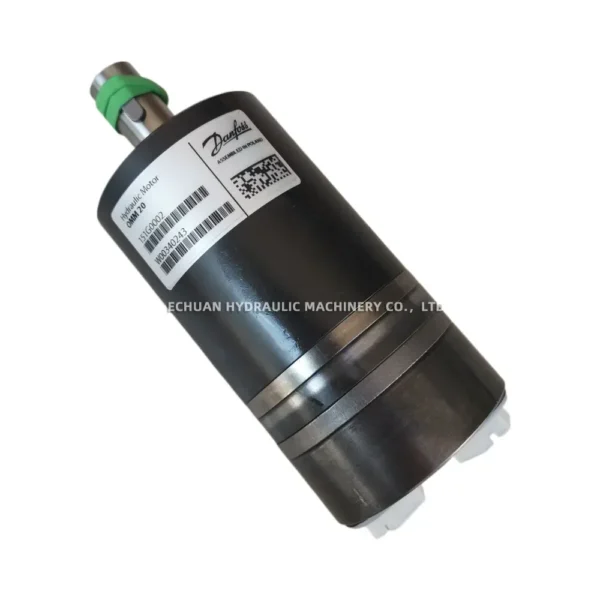

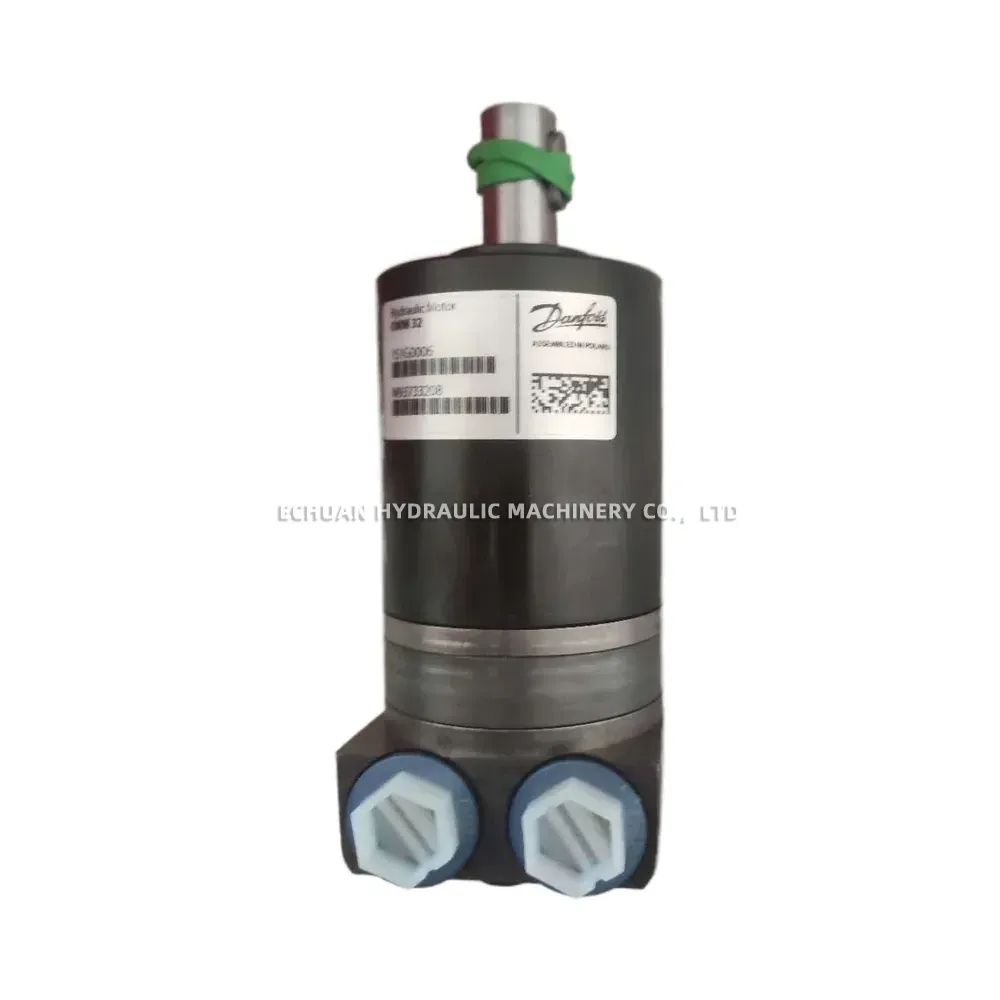

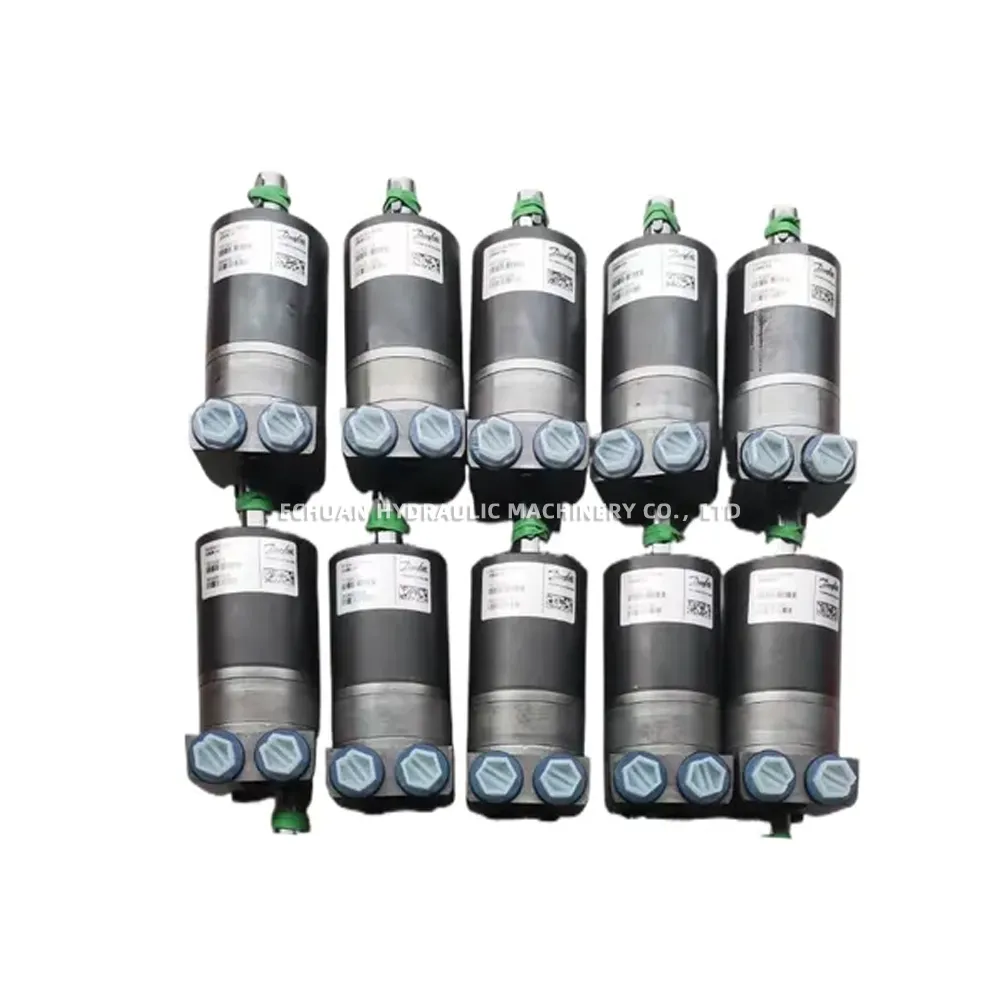

Danfoss OMM20 151G0002 Hydraulic Motor
The Danfoss OMM20 (151G0002) is a compact and lightweight orbital hydraulic motor designed for low-speed, high-torque applications. Part of the OMM series, it utilizes a gerotor gear set for efficient power transmission. Its small dimensions make it ideal for integration into space-constrained machinery such as light mobile equipment, sweepers, machine tools, and agricultural implements where reliable torque is needed at lower rotational speeds.
Technical Specifications:
- Displacement: 20 cm³/rev (1.22 in³/rev)
- Max Continuous Speed: 975 rpm
- Max Intermittent Speed: 1220 rpm
- Max Continuous Torque: 23 Nm (204 lb-in)
- Max Intermittent Torque: 28 Nm (248 lb-in)
- Max Continuous Pressure Drop: 100 bar (1450 psi)
- Max Intermittent Pressure Drop: 120 bar (1740 psi)
- Shaft Type: Ø16 mm Cylindrical with Woodruff key A4x4x16 DIN 6888
- Port Type: G 3/8 (BSP) Side Ports
- Mounting Flange: 3-bolt, Ø65 mm pilot diameter, Ø85 mm bolt circle
- Drain Port: None (Standard configuration)
- Rotation: Reversible
- Series: OMM
- Manufacturer Part Number: 151G0002
Danfoss OMM20 151G0002
Model:Danfoss OMM20 151G0002
| Brand | DANFOSS |
|---|---|
| Model | OMM20 151G0002 |
| Part No. | Danfoss OMM20 151G0002 |
| Category | Hydraulic motors |
| Link | https://www.echuan-hydraulic.com/product/danfoss-omm20-151g0002 |
