Product Description

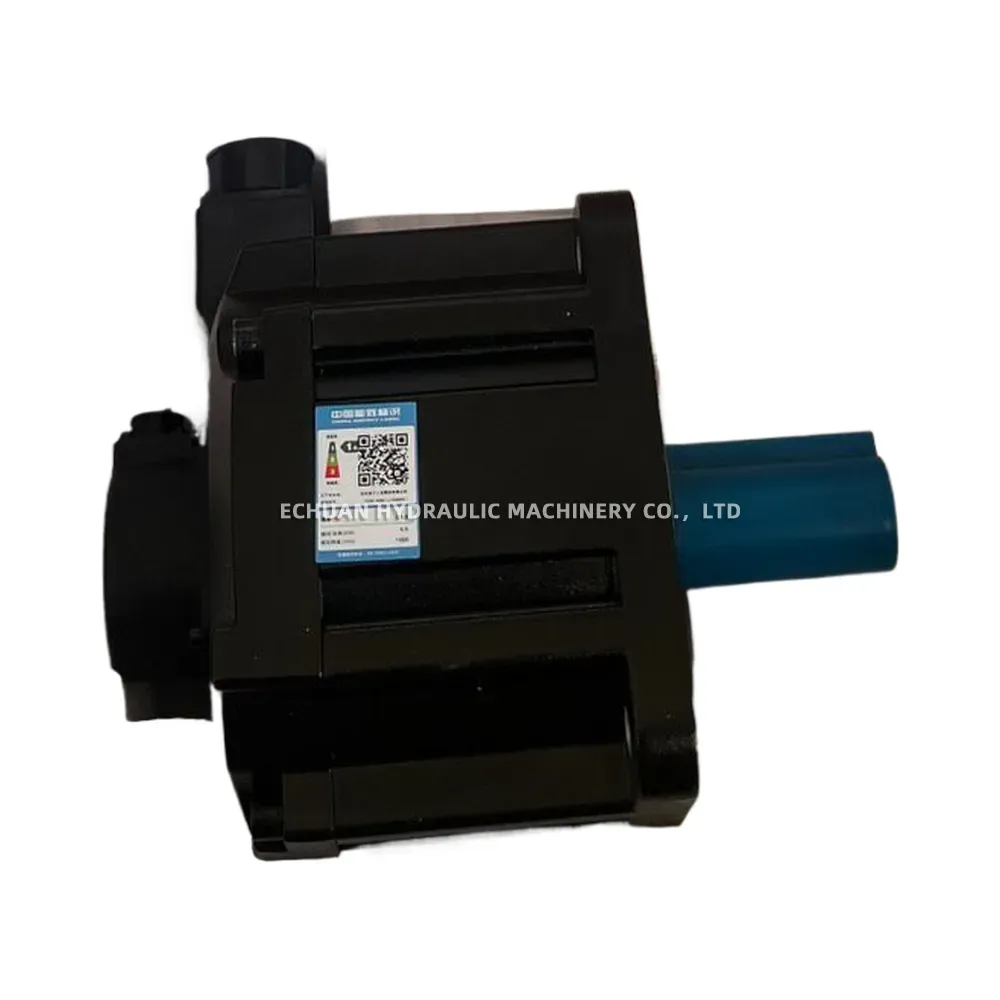

Delta ECM-B3M-L21845RS1 AC Servo Motor
The Delta ECM-B3M-L21845RS1 is a high-performance AC servo motor from the advanced ECM-B3M series, engineered to deliver exceptional precision and reliability for industrial automation applications. Manufactured by Delta Electronics, this robust motor features a 4.5 kW power output and provides a substantial continuous stall torque of 28.65 N.m. Operating at an input of 220VAC, it achieves a maximum speed of 1500 r/min, making it ideal for demanding tasks requiring both dynamic speed and heavy-duty power. With an impressive efficiency rating of 91.3% and an Insulation Class F rating, this servo motor ensures optimal energy usage, thermal stability, and long-lasting durability in rigorous manufacturing environments.
Technical Specifications:
- Brand: Delta
- Model: ECM-B3M-L21845RS1
- Input Voltage: 220 VAC
- Input Current: 13.3 A (Continuous Stall)
- Rated Power: 4.5 kW
- Rated Torque: 28.65 N.m
- Maximum Speed: 1500 r/min
- Efficiency: 91.3%
- Insulation Class: F
Delta ECM-B3M-L21845RS1 AC Servo Motor
Optimize your industrial automation systems with the Delta ECM-B3M-L21845RS1 AC Servo Motor. Delivering 4.5 kW of power, 28.65 N.m torque, and a max speed of 1500 RPM, this highly efficient (91.3%) 220VAC motor ensures precise and reliable performance for heavy-duty applications.
