Product Description

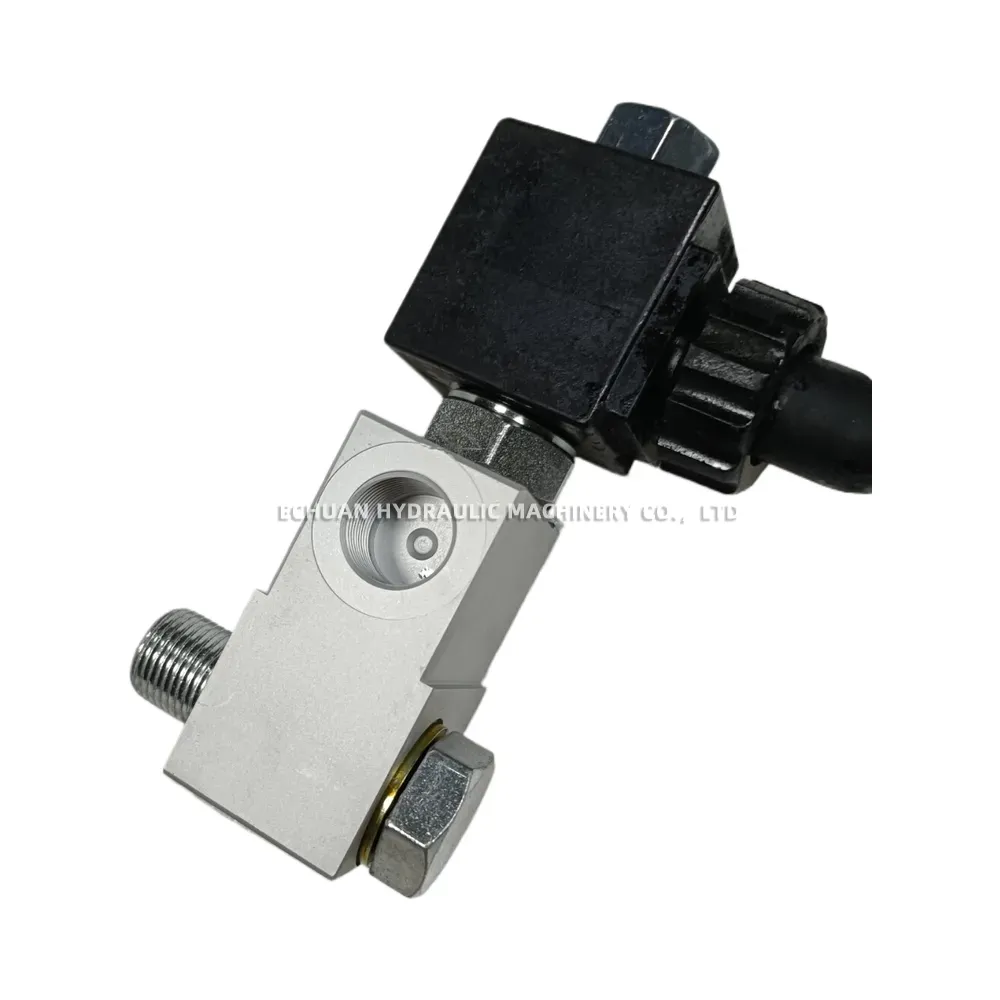

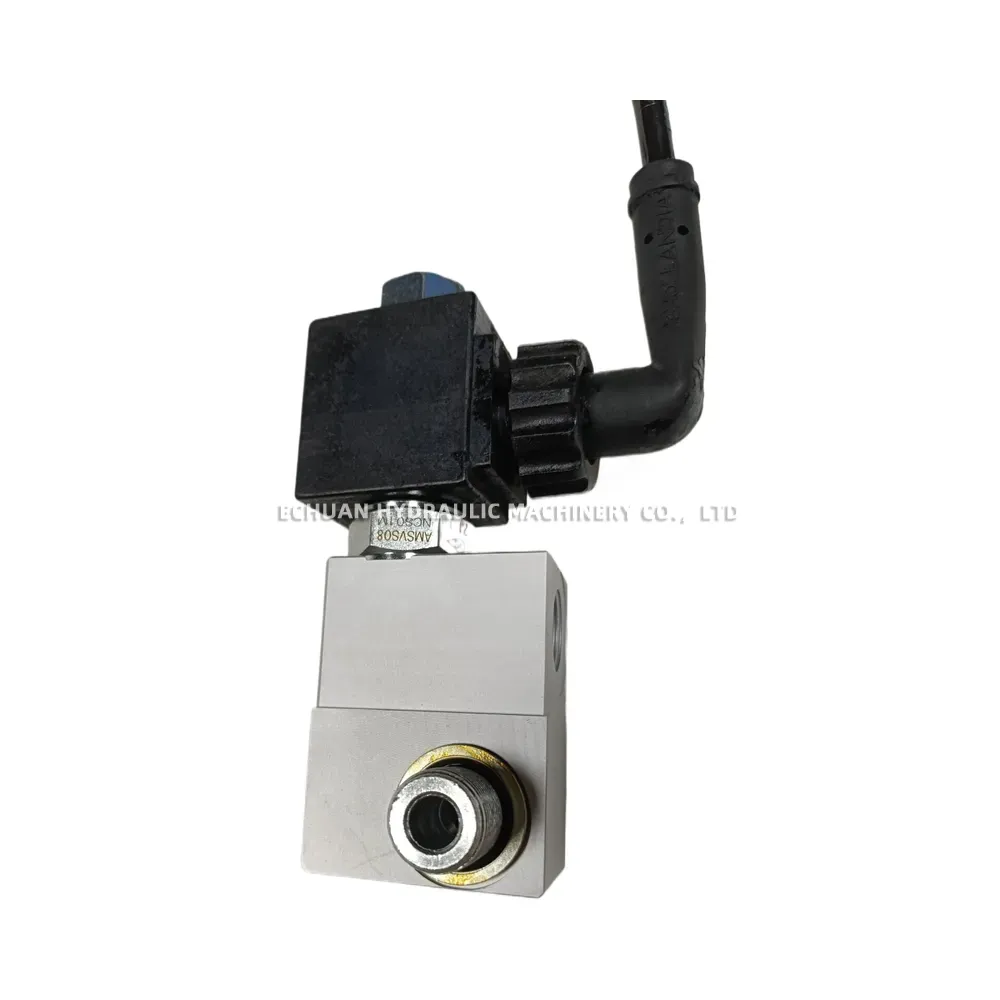

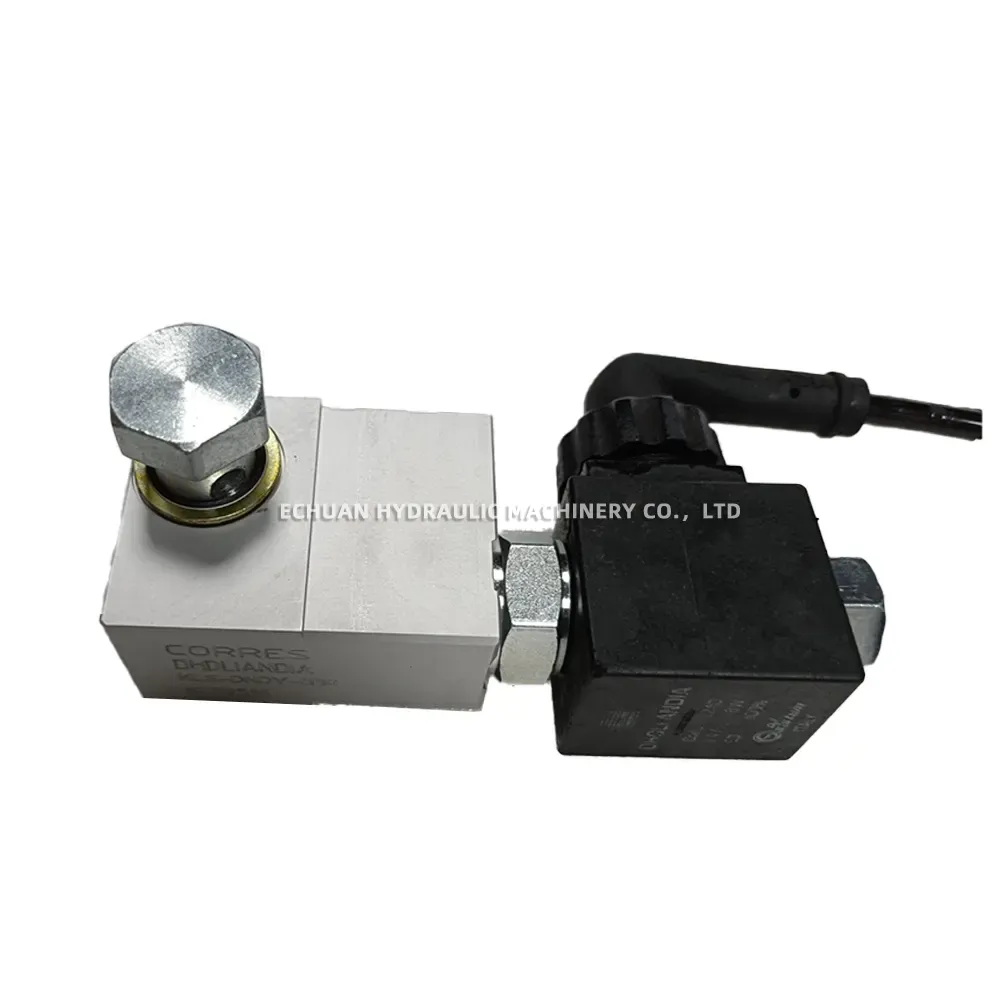

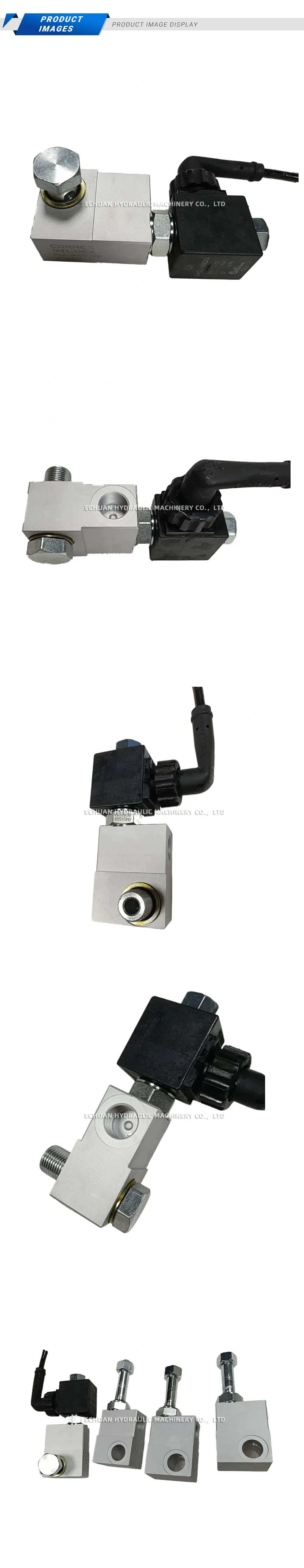

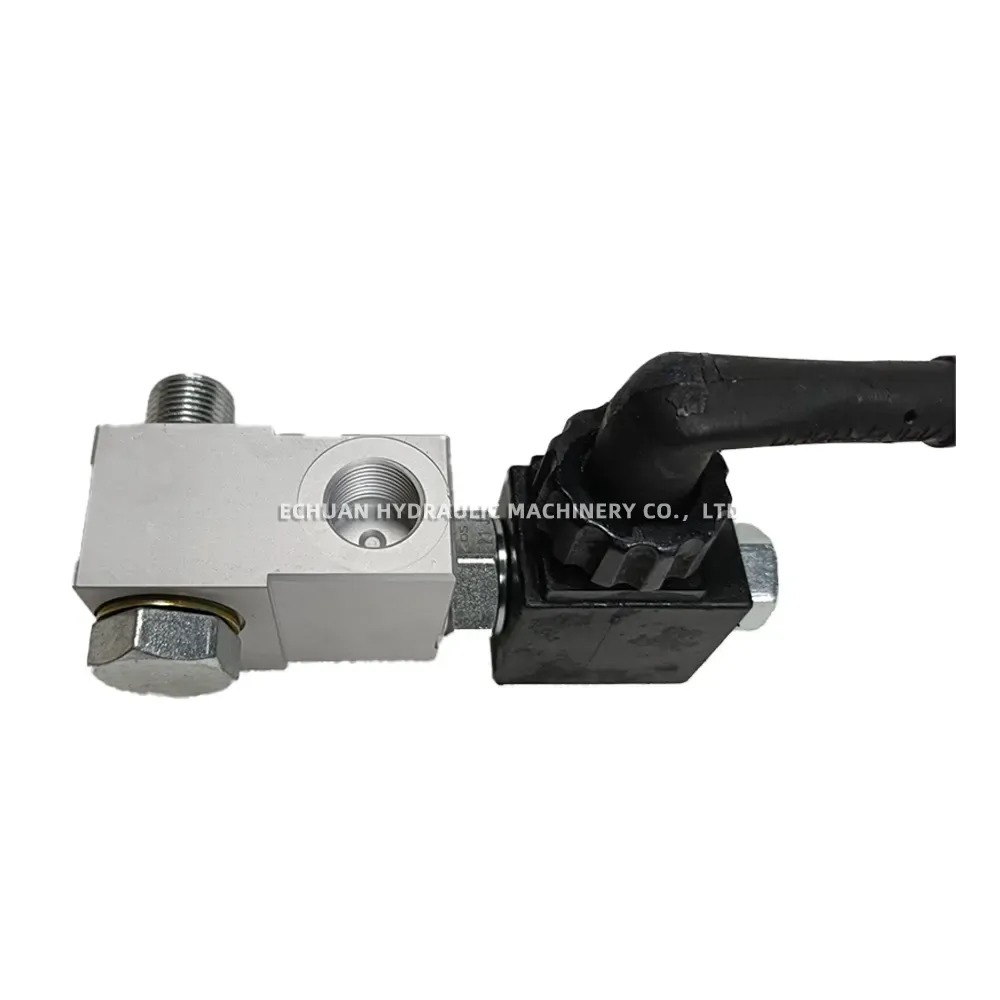

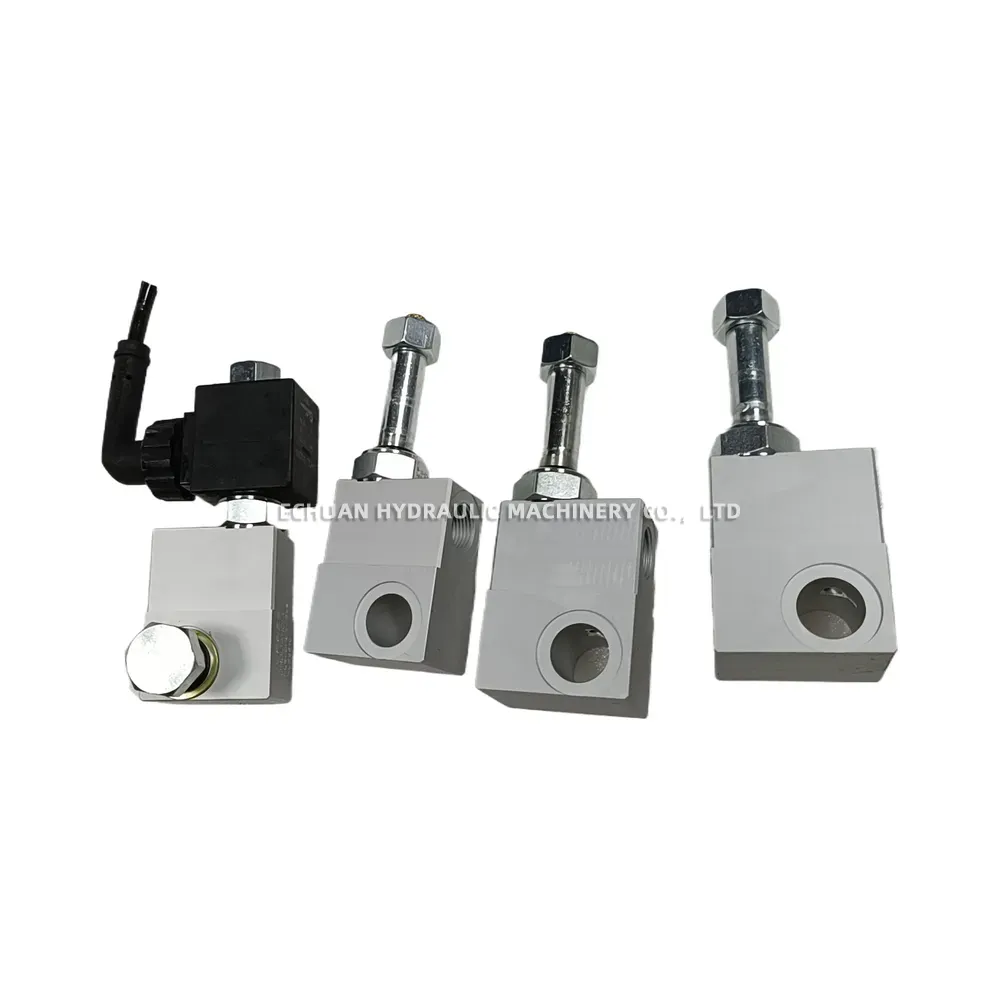

DHDLANDIA KLS-DNDY-G38 / KLS2510 Hydraulic Solenoid Valve
The DHDLANDIA KLS-DNDY-G38 / KLS2510 is a premium-grade hydraulic solenoid shut-off and lock valve specifically engineered for vehicle tail-lift cylinders. Constructed with a highly durable aluminum alloy valve body and standard G3/8 threaded ports, this normally closed electromagnetic valve provides superior load holding and safety for hydraulic circuits. It features an integrated 24VDC solenoid coil that operates at 8W with a 100% ED duty cycle, ensuring reliable and continuous operation under demanding conditions. Complete with a molded cable plug and a secure hex plug, this valve is the perfect solution for maintaining, repairing, or upgrading commercial vehicle tail-lift systems and hydraulic locking circuits.
Technical Specifications:
- Brand: DHDLANDIA
- Model: KLS-DNDY-G38 / KLS2510 (Cross-Reference: AMSVS08 NCS01M)
- Valve Type: Normally Closed (NC) Electromagnetic Lock / Shut-off Valve
- Body Material: Aluminum Alloy
- Port Thread Size: G3/8 (includes hex plug)
- Coil Voltage: 24V DC
- Coil Power: 8W
- Duty Cycle: ED 100% (Continuous rating)
- Electrical Connection: Integrated DC solenoid coil with molded cable plug
- Application: Vehicle tail-lift hydraulic cylinders and load-holding circuits
DHDLANDIA KLS-DNDY-G38 / KLS2510 Hydraulic Solenoid Valve (Electromagnetic Lock Valve)
Secure your commercial vehicle’s tail-lift system with the DHDLANDIA KLS-DNDY-G38 / KLS2510 Hydraulic Solenoid Valve. This normally closed 24VDC electromagnetic lock valve features a durable aluminum body, G3/8 threaded ports, and an 8W continuous duty coil for reliable, leak-free hydraulic cylinder control.
| Brand | DHDLANDIA |
|---|---|
| Model | KLS-DNDY-G38 / KLS2510 |
| Part No. | 985767903366 |
| Category | Hydraulic valves |
