Product Description

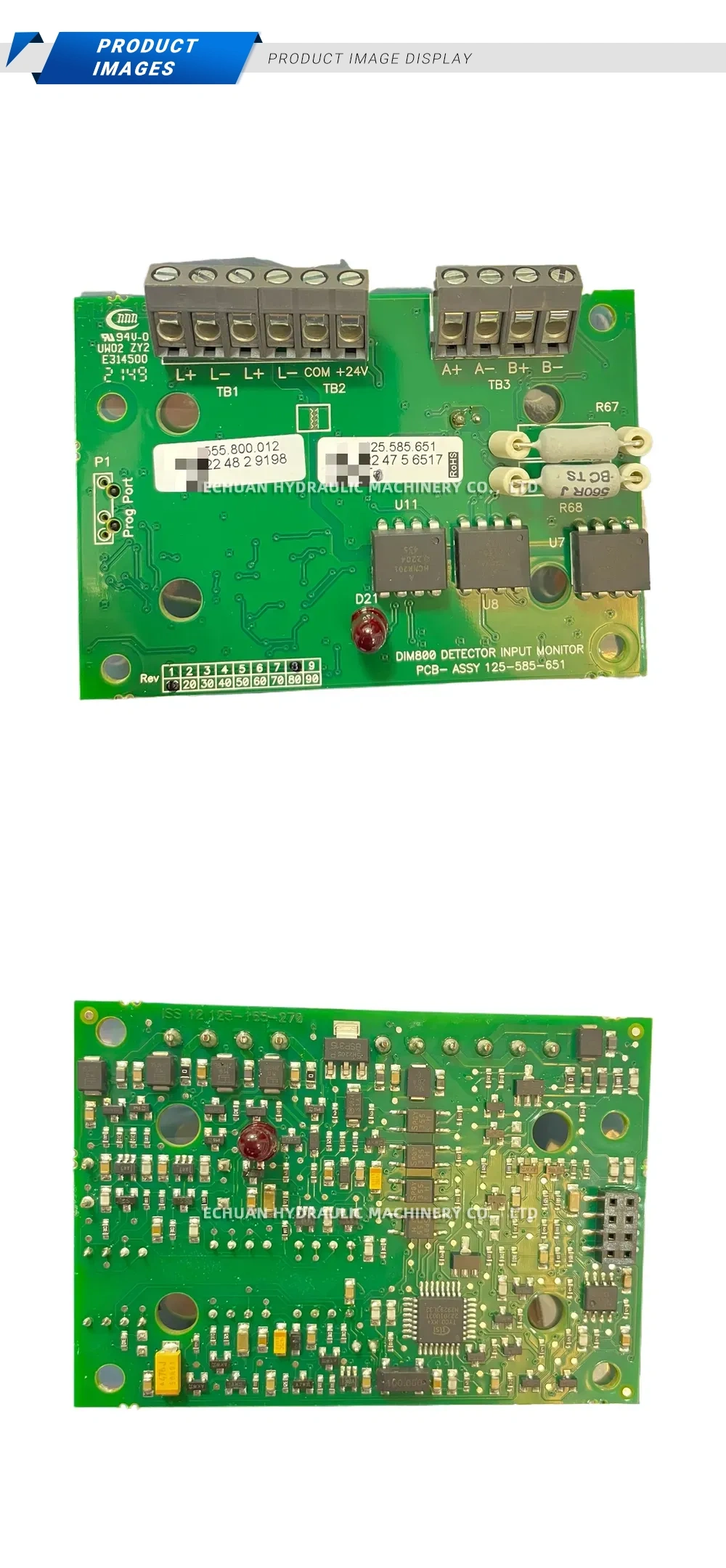

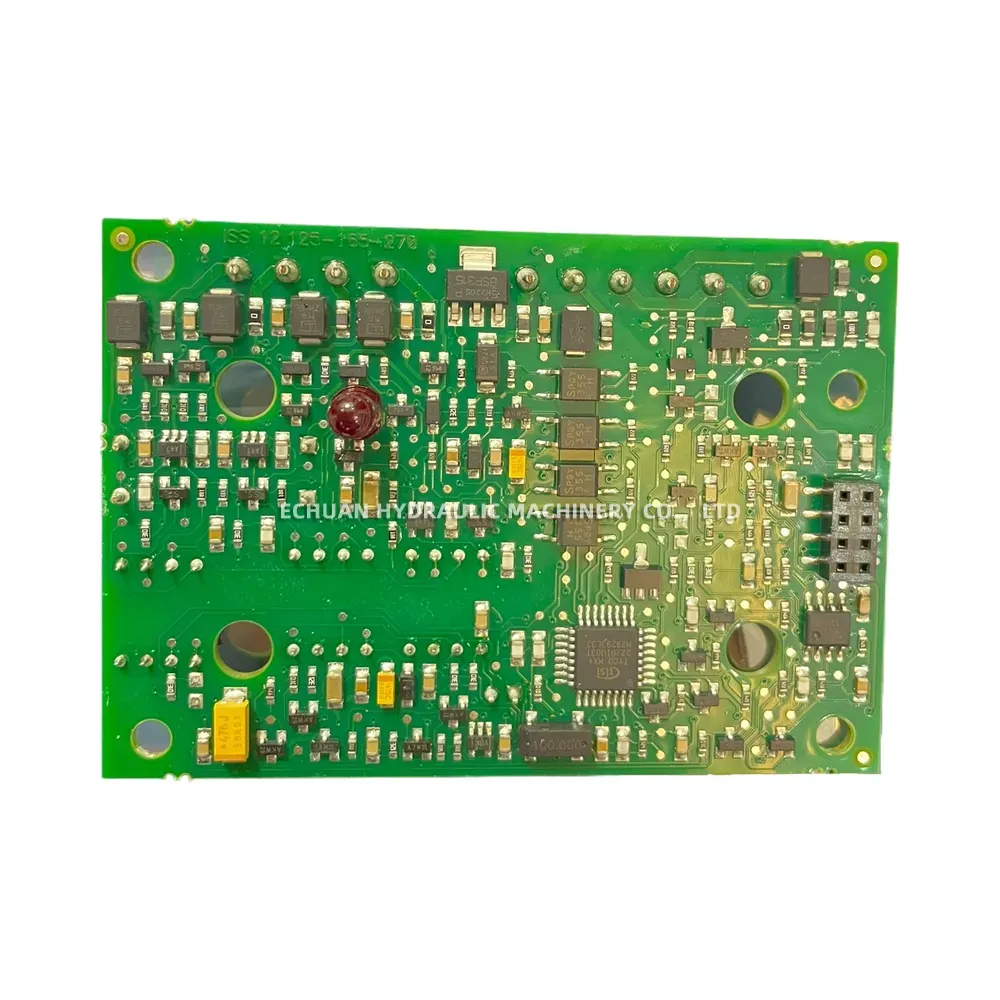

Notifier DIM800 Detector Input Monitor PCB Assembly
The Notifier DIM800 is a genuine Detector Input Monitor Printed Circuit Board (PCB) assembly, designed to integrate a zone of conventional two-wire or four-wire smoke detectors into a Notifier intelligent/addressable fire alarm system. As a critical component, this module reliably monitors the status of the connected detector zone, reporting alarm or fault conditions directly to the fire alarm control panel via the Signaling Line Circuit (SLC). This board, identified by assembly number 125-585-651, features clearly marked screw terminals for easy installation of power, SLC, and detector loop wiring, along with an on-board status LED for quick diagnostics.
Technical Specifications:
- Model: DIM800 Detector Input Monitor
- PCB Assembly Number: 125-585-651

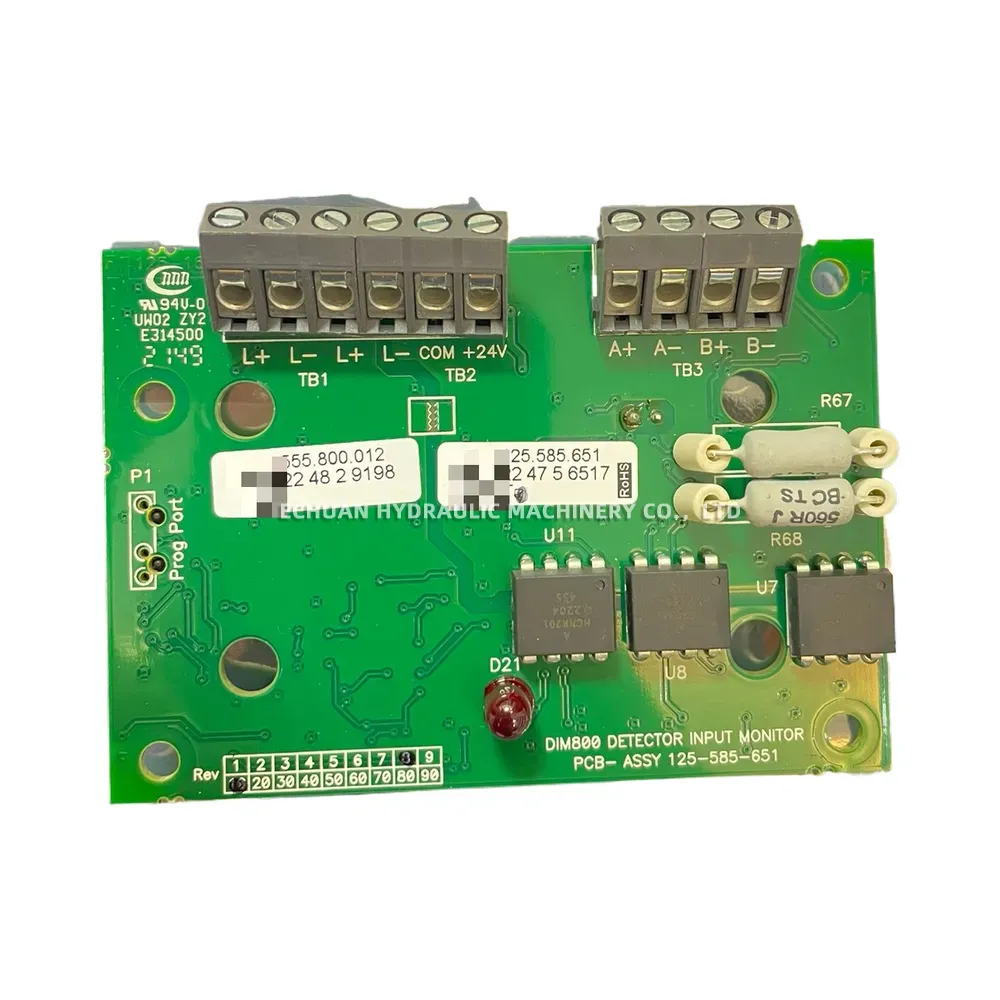

- Connections: Screw terminal blocks for SLC (A+, A-, B+, B-), Detector Loop (L+, L-), and External Power (COM, +24V)
- Certifications: UL Recognized Component (E314500), PCB Flammability Rating 94V-0
DIM800 Detector Input Monitor PCB Assembly
Genuine Notifier DIM800 Detector Input Monitor PCB Assembly (125-585-651). A reliable interface module for connecting conventional smoke detector zones to Notifier intelligent fire alarm systems.
