Product Description

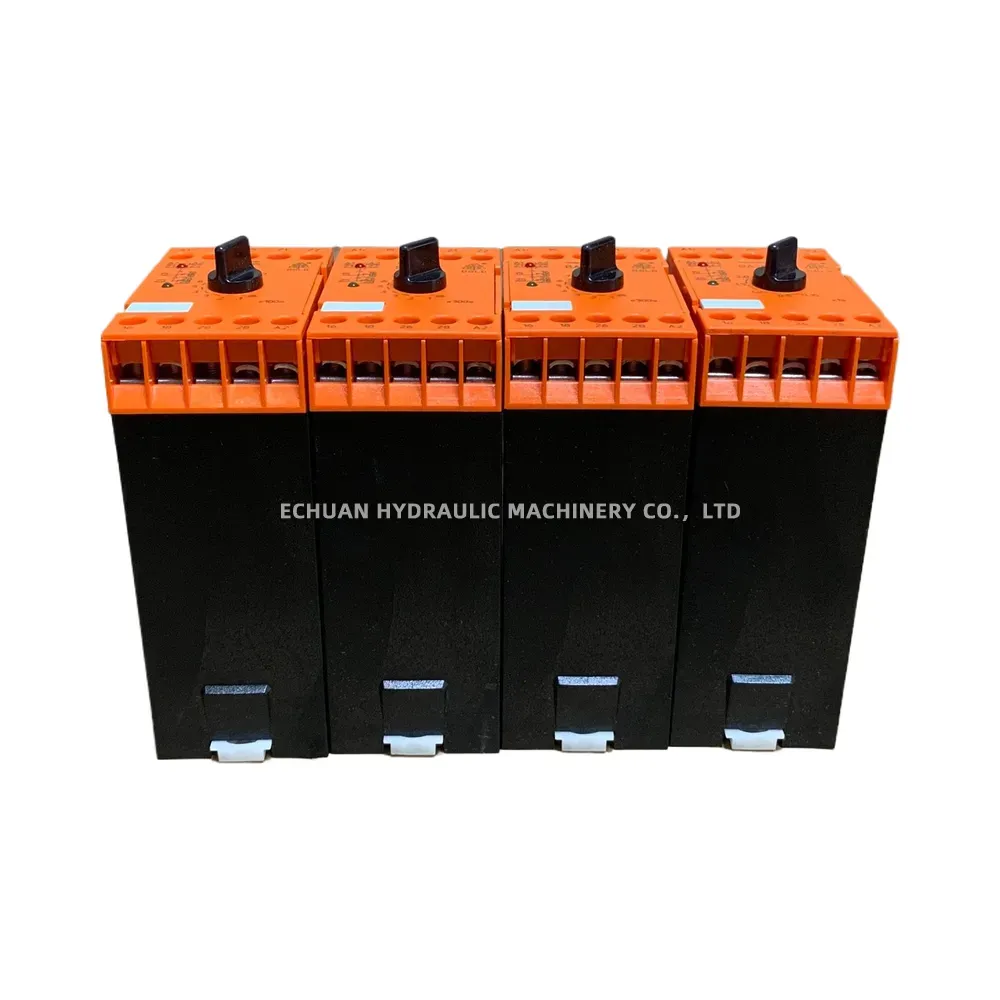

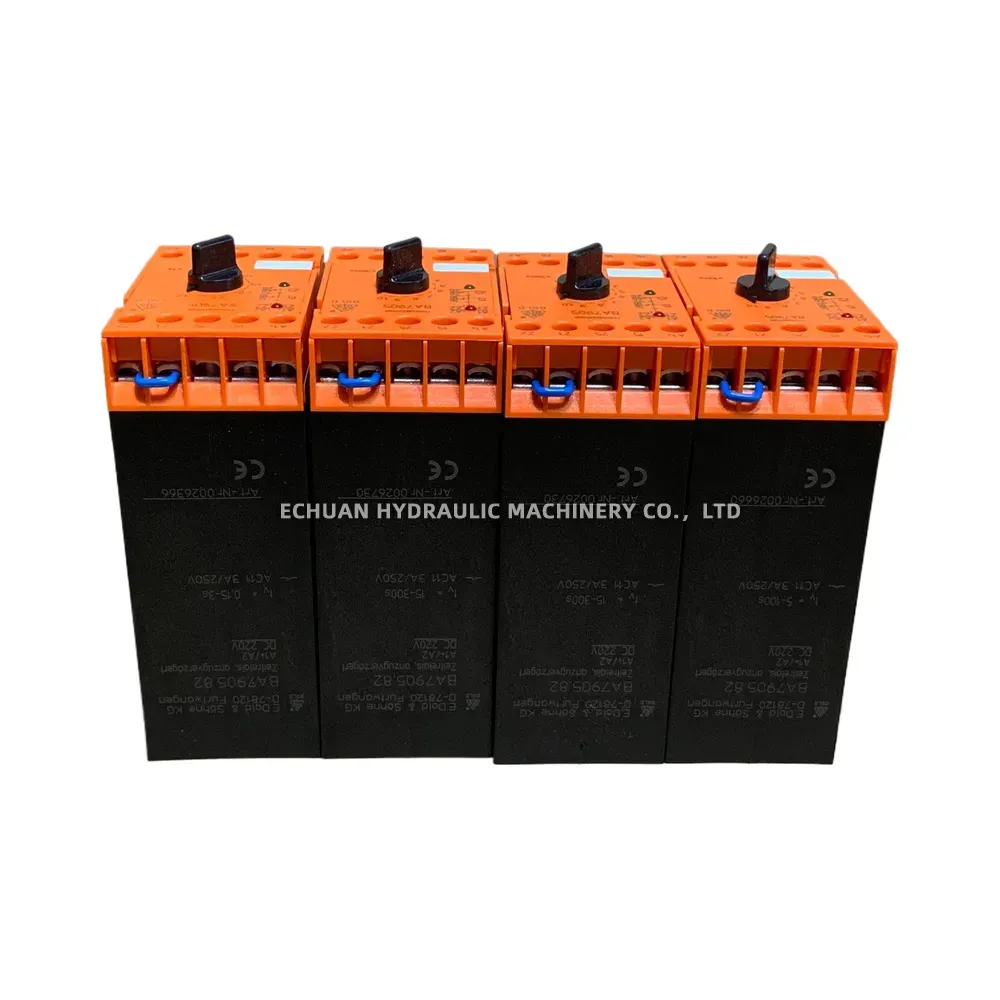

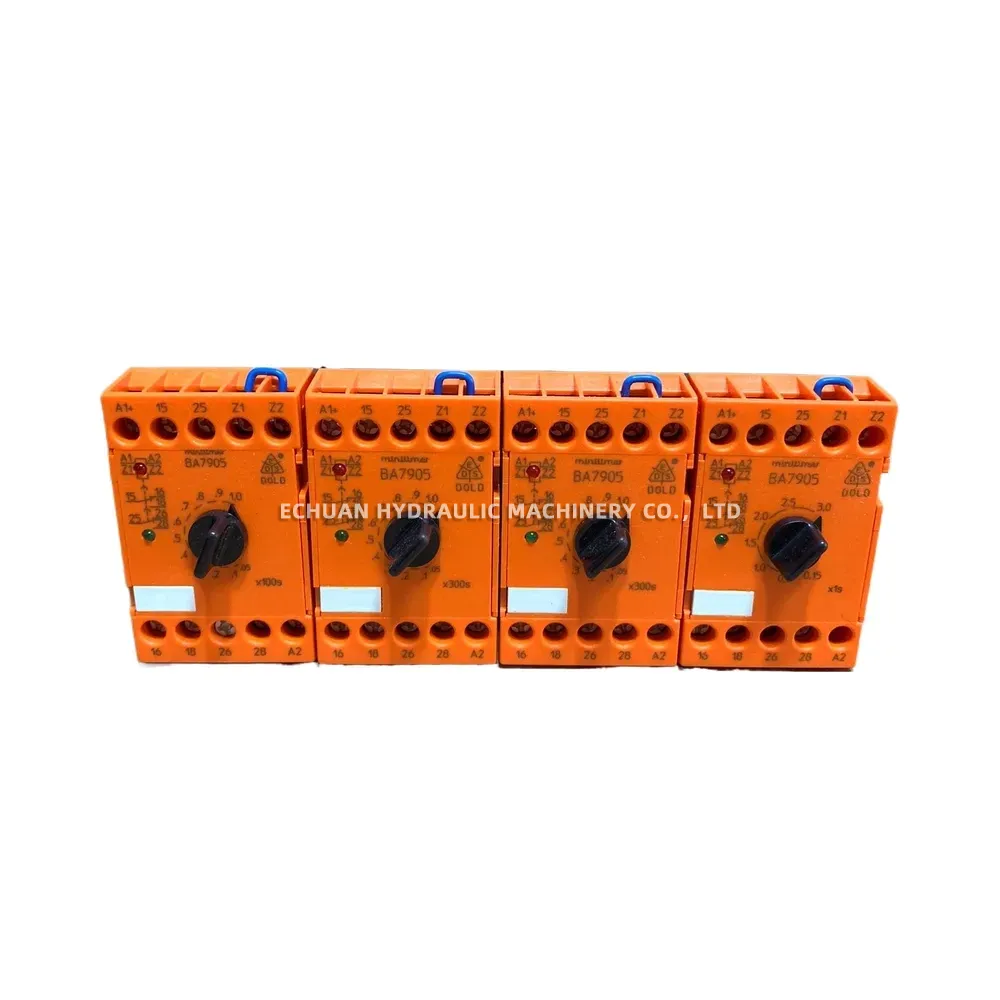

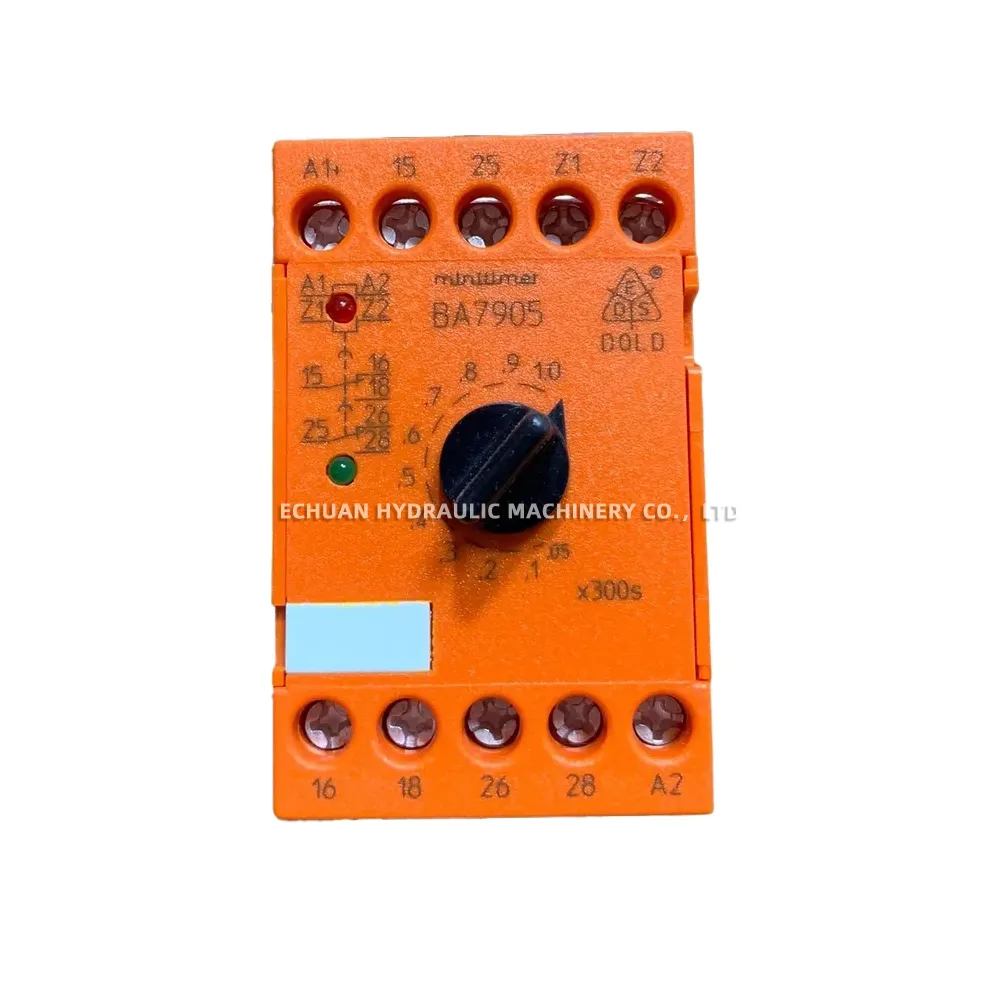

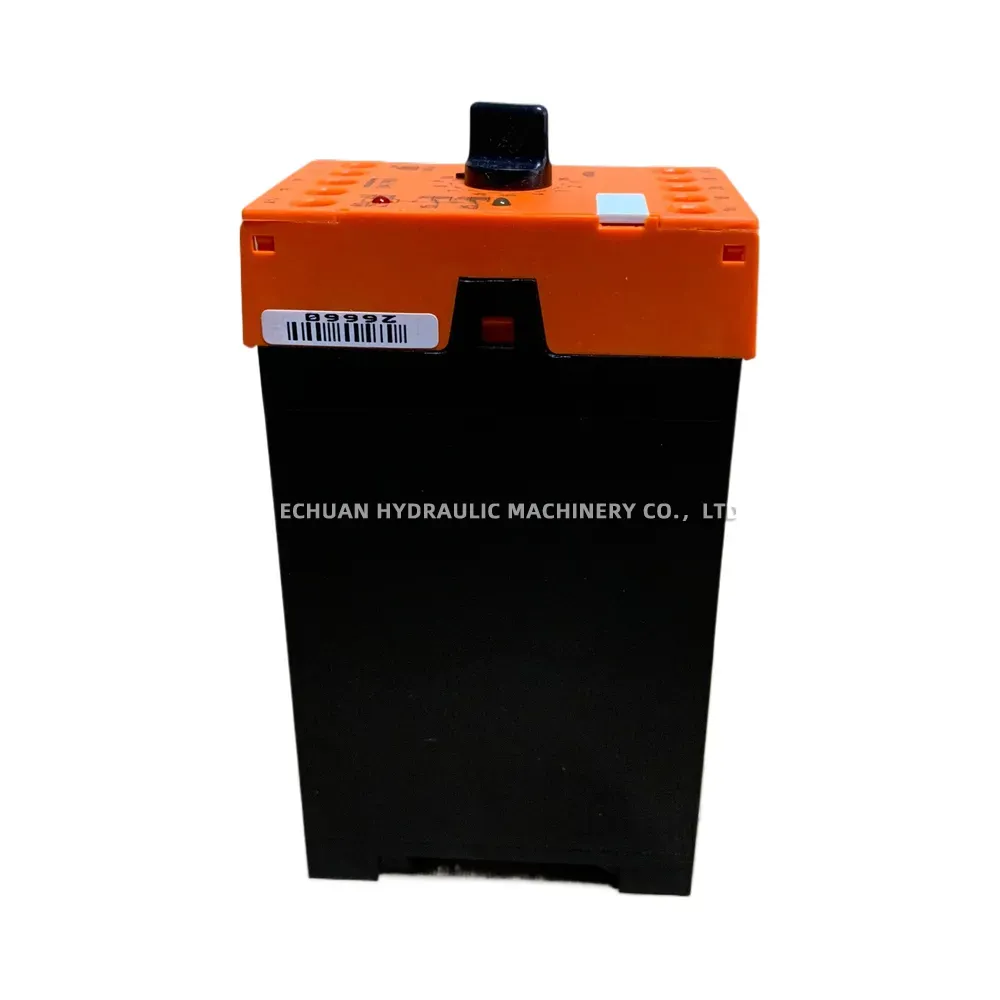

Dold BA7905
The Dold BA7905 is a versatile and reliable standstill and rotation monitor designed for safety-critical applications in industrial machinery. It effectively monitors the speed of motors and drives, ensuring that access to hazardous areas is only granted when the machine has come to a complete stop. This safety relay can also be configured to detect overspeed or underspeed conditions, providing comprehensive protection for both personnel and equipment. Its compact design and compatibility with various sensor types (like PNP, NPN, or contacts) make it a flexible solution for integration into new or existing safety circuits, compliant with high safety standards such as EN ISO 13849-1.
Technical Specifications:
- Function: Standstill and Rotation Monitor
- Nominal Voltage: Available in AC/DC 24 V and AC 230 V versions
- Measuring Range: Adjustable frequency ranges, typically 0.1 … 10 Hz or 1 … 100 Hz
- Output Contacts: Typically 2 NO (Normally Open), 1 NC (Normally Closed) safety contacts
- Overall Width: 45 mm
- Safety Standards: Can be used in applications up to PL e / Cat. 4 according to EN ISO 13849-1

Dold BA7905
The Dold BA7905 is a compact safety relay designed for standstill and rotation monitoring in industrial machinery. It ensures safe operation by detecting zero speed, overspeed, or underspeed conditions, making it ideal for access control and process monitoring.
