Product Description

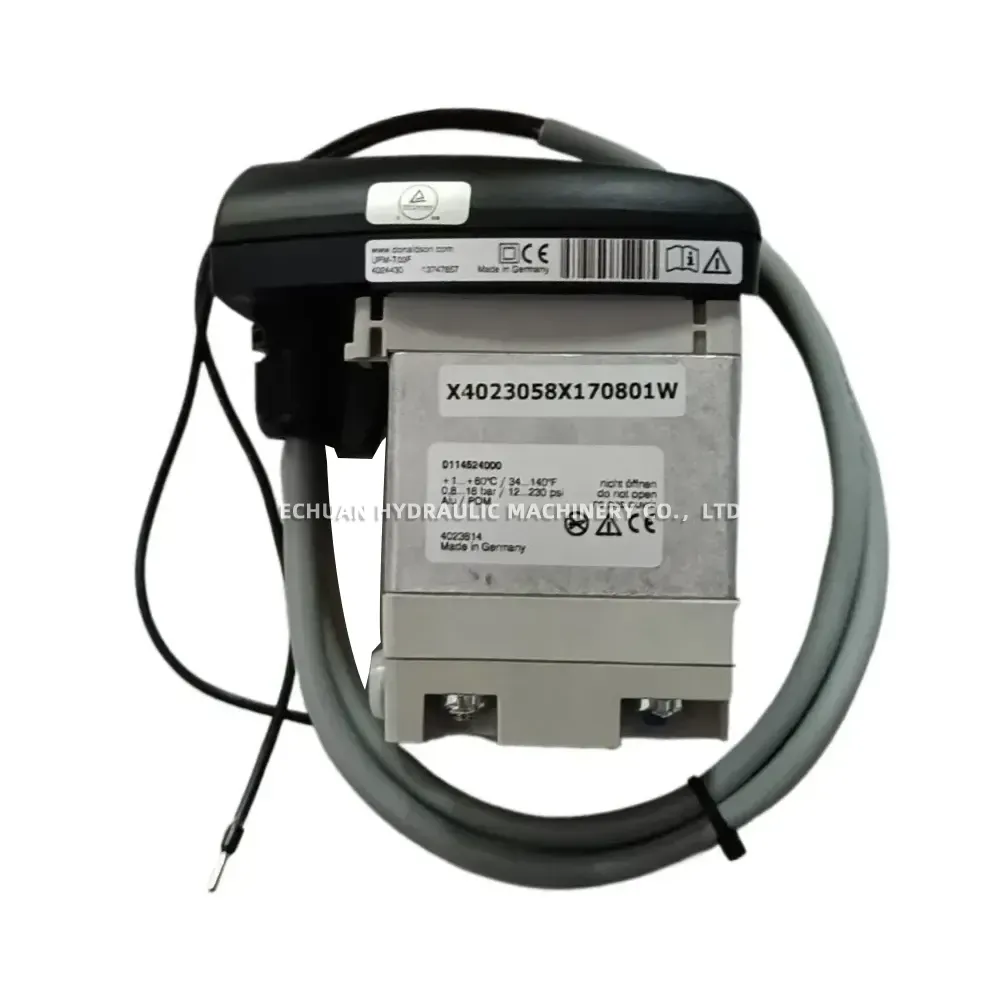

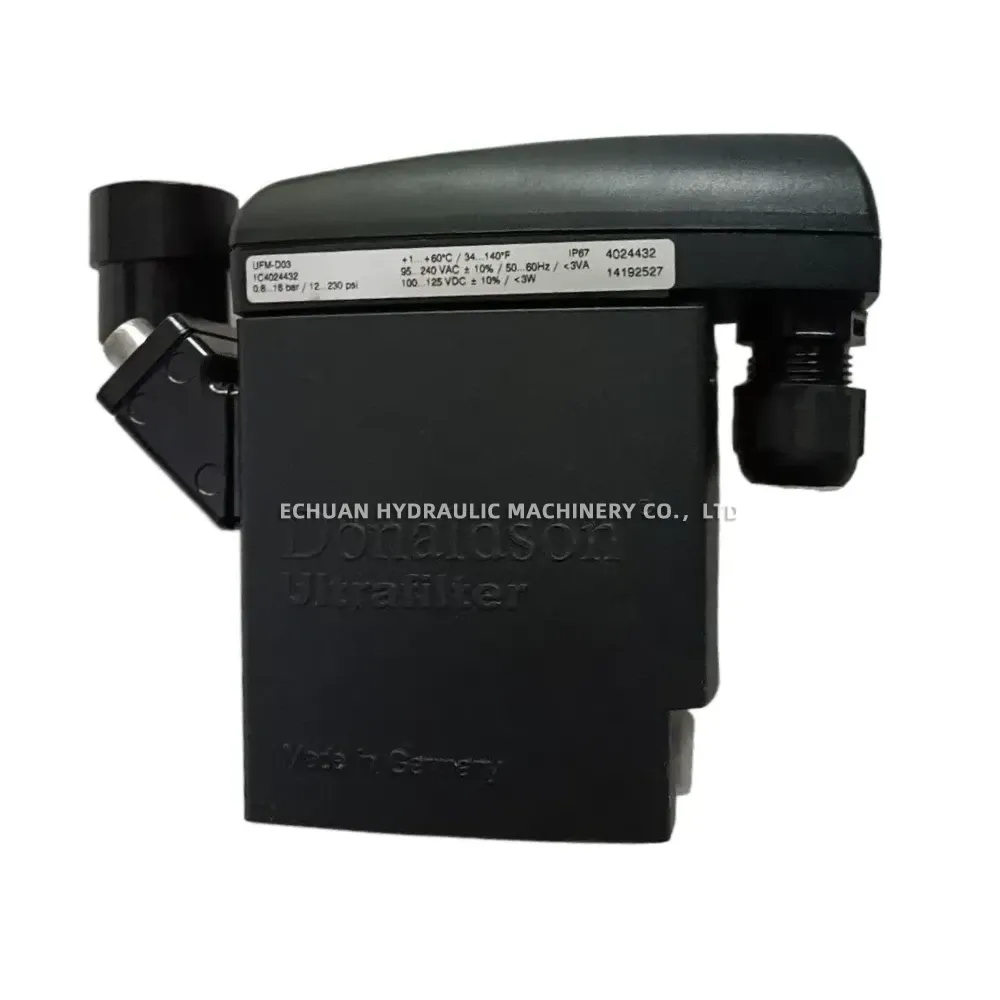

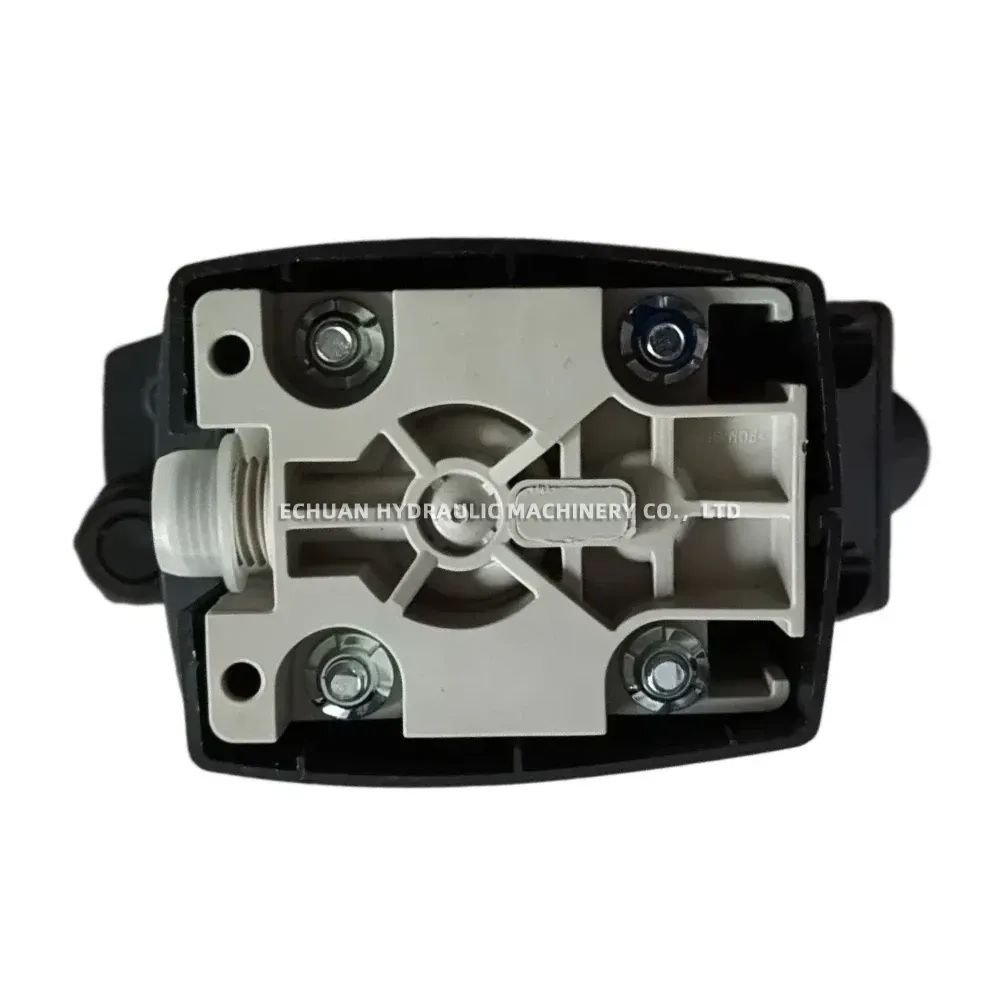

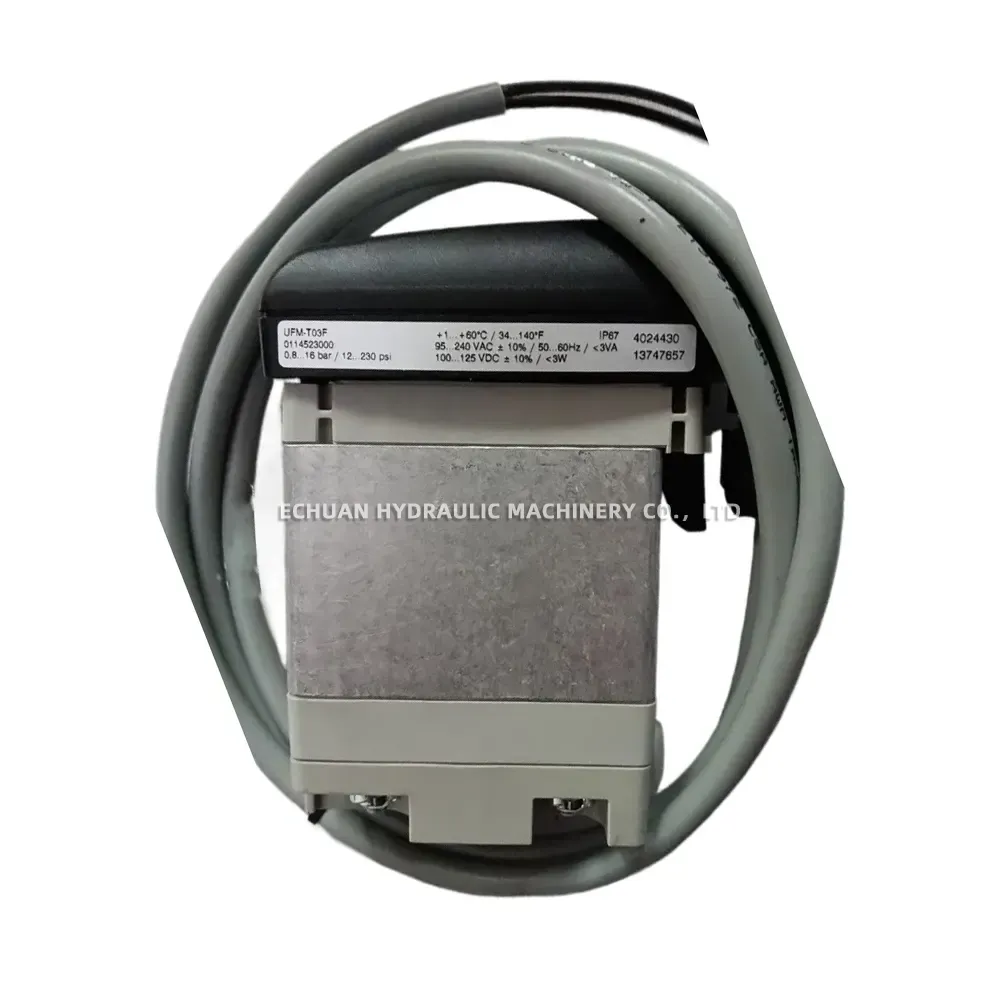

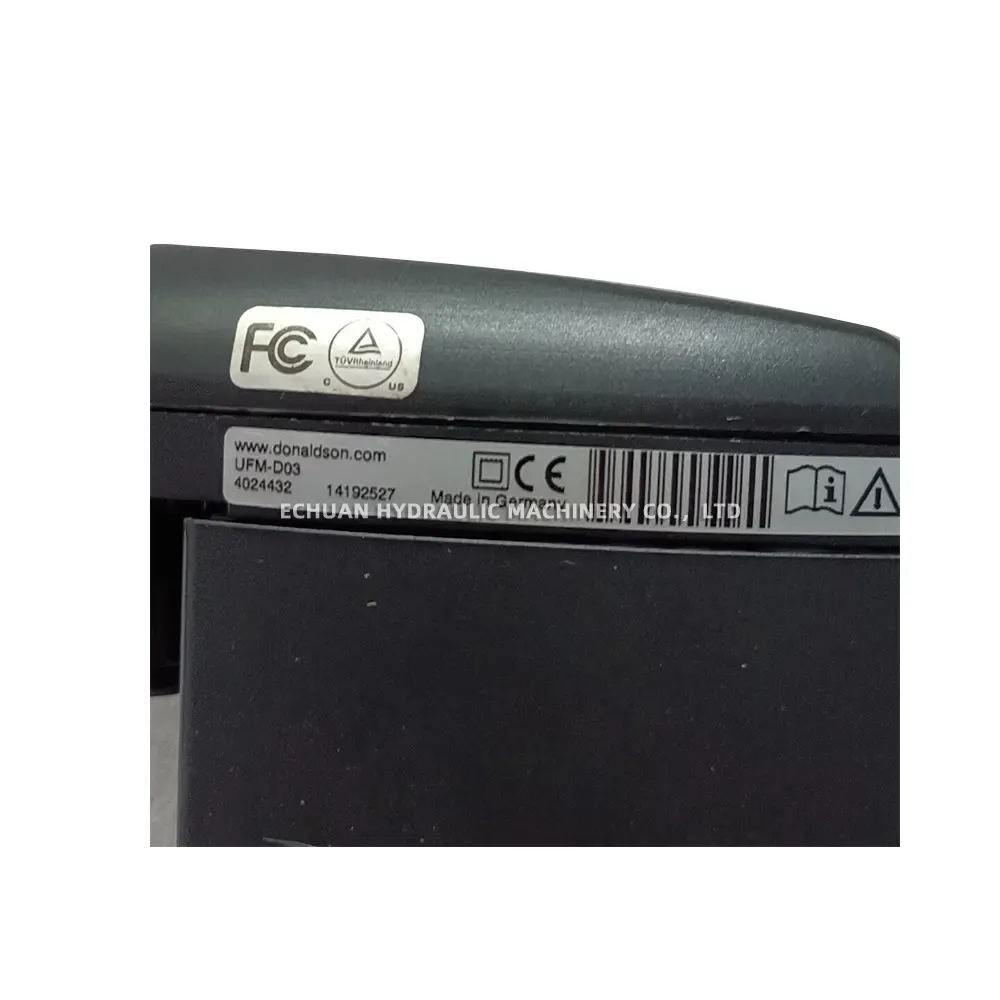

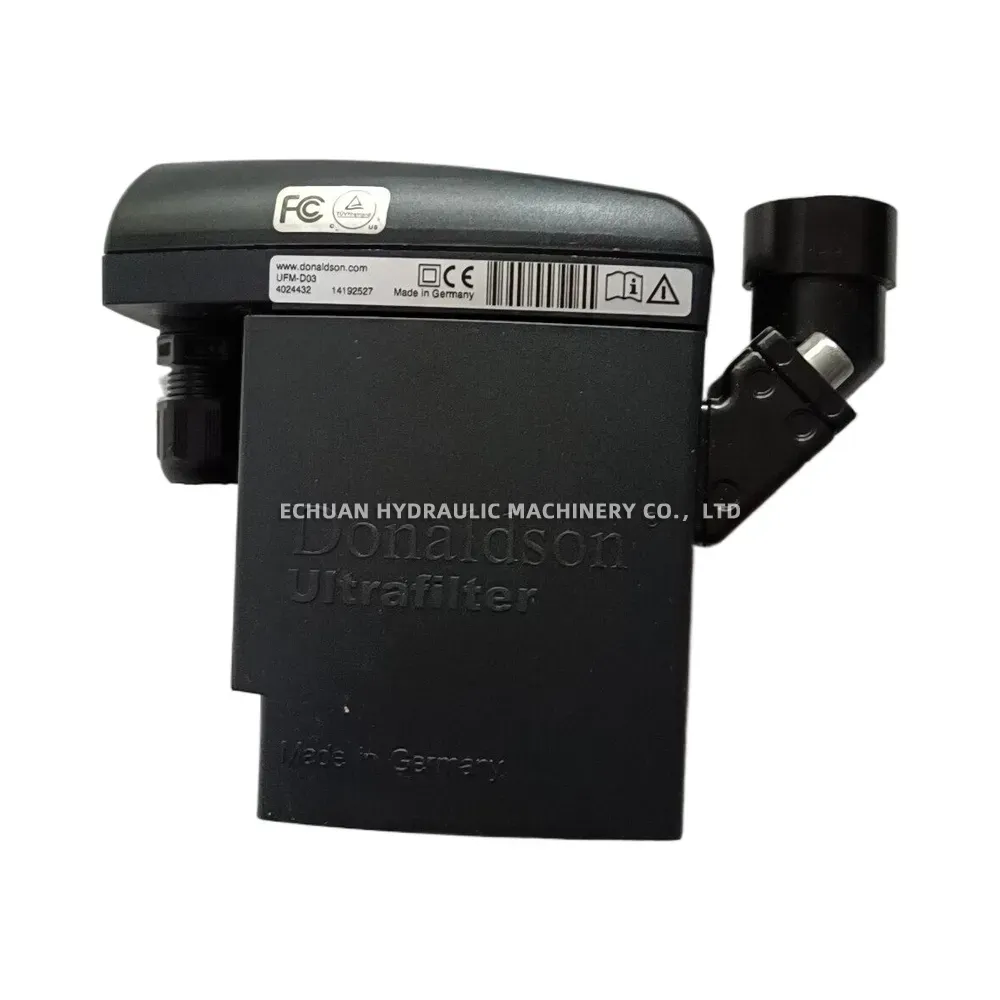

Donaldson UFM-D03 Electronic Condensate Drain

The Donaldson UFM-D03 is a high-performance electronic condensate drain engineered for the reliable and automatic removal of moisture from compressed air systems. Its intelligent level-controlled design ensures zero air loss during the discharge cycle, significantly improving energy efficiency and reducing operational costs. Built in Germany to the highest standards, the UFM-D03 features a robust IP67-rated housing, making it suitable for a wide range of industrial environments. This drain operates across a broad pressure and voltage range, offering versatile and dependable performance to protect your downstream equipment from condensate damage.

Technical Specifications:

  • Operating Pressure: 0.8…16 bar (12…230 psi)

  • Temperature Range: +1…+60°C (34…140°F)

  • Voltage: 95…240 VAC ± 10% (50…60Hz) / 100…125 VDC ± 10%

  • Power Consumption: <3VA / <3W

  • Protection Class: IP67

  • Country of Origin: Germany

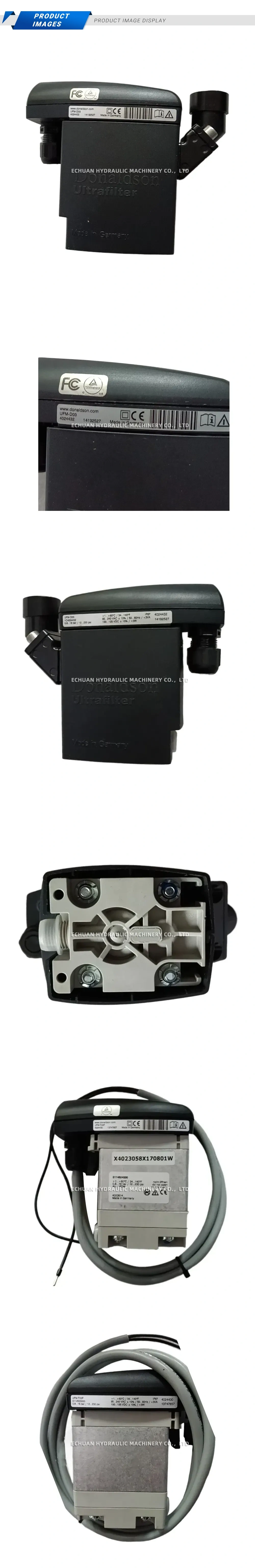

Donaldson UFM-D03 Electronic Condensate Drain Description

Donaldson UFM-D03 Electronic Condensate Drain

Purchase the Donaldson UFM-D03, a reliable and energy-efficient electronic condensate drain for compressed air systems. Features zero air loss operation and an IP67 rating.
