Product Description

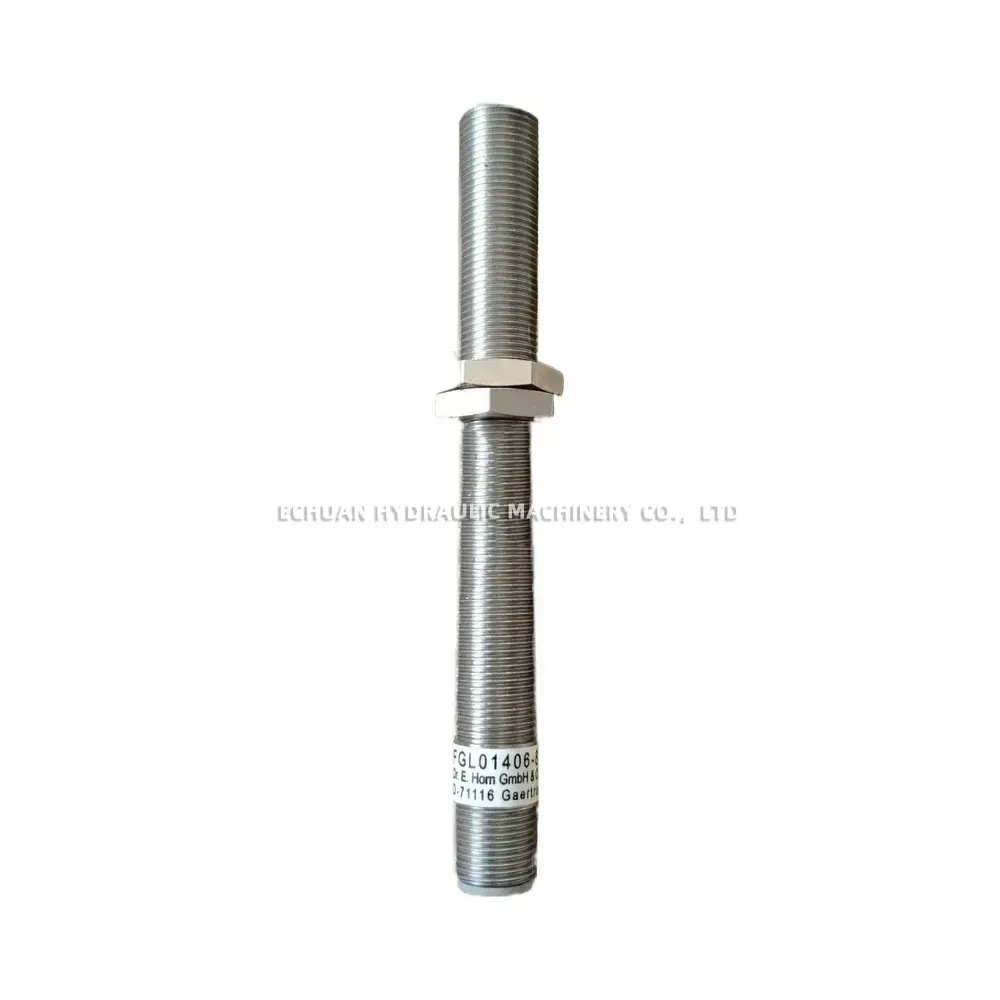

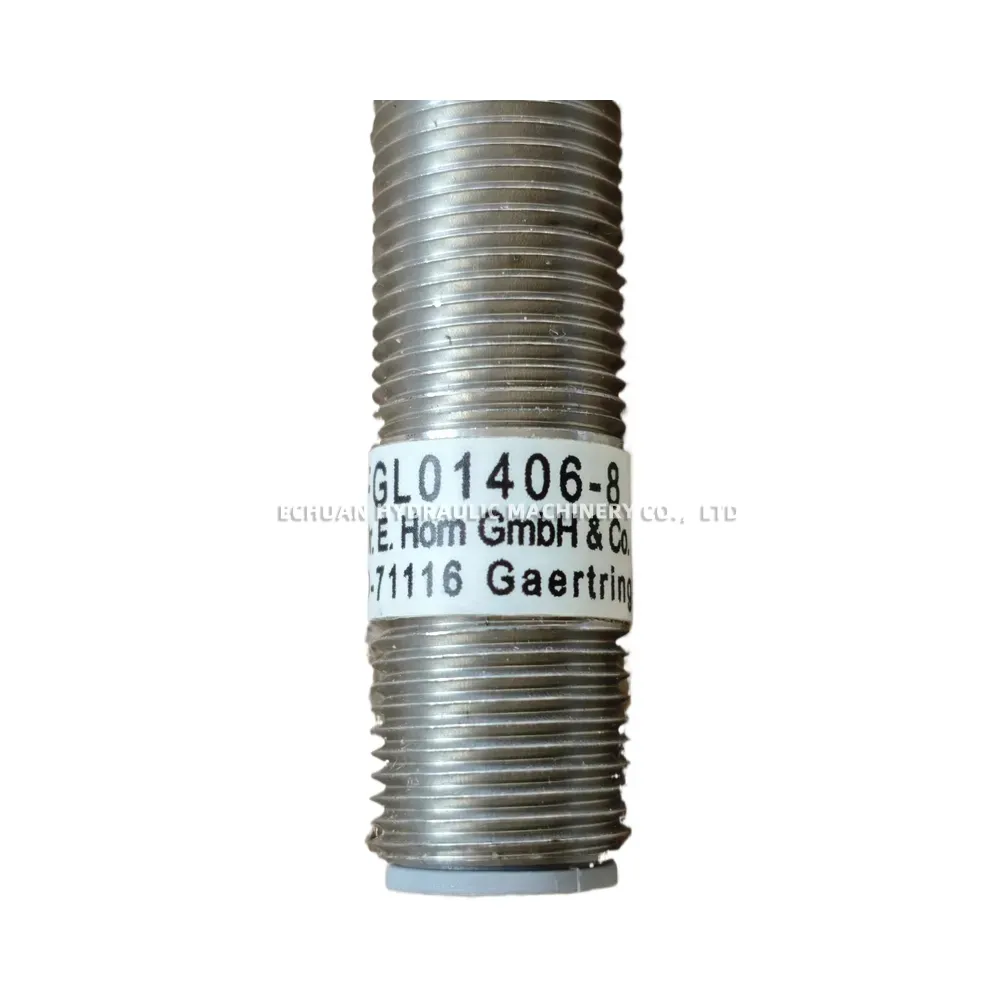

E. Horn FGL01406-8 (SE 90-1) Rotational Speed Sensor / Pick-up
The E. Horn FGL01406-8 (SE 90-1) is a high-precision inductive pick-up and rotational speed sensor specifically engineered for MAN Diesel L16/24 and L32/40 marine and industrial engines. Manufactured by E. Horn GmbH & Co. in Germany, this rugged sensor features a fully threaded steel housing equipped with two hex lock nuts, allowing for accurate and secure mounting adjustments. It utilizes a reliable 4-pin plug connector interface and operates efficiently within a frequency range of 0 to 20 kHz. Designed for rigorous engine environments, this component directly corresponds to MAN Diesel codes SE 90-1 and SE 90-2 (item no. 181, plate 50907-18), ensuring exact OEM compatibility and optimal instrumentation performance.
Technical Specifications:
- Brand: E. Horn GmbH & Co. (Gaertringen, Germany)
- Model: FGL01406-8 (SE 90-1)
- Sensor Type: Inductive Pick-up / Rotational Speed Sensor
- Engine Compatibility: MAN Diesel L16/24 and L32/40 engines
- Frequency Range: 0 – 20 kHz
- Housing: Fully threaded steel housing with two hex lock nuts

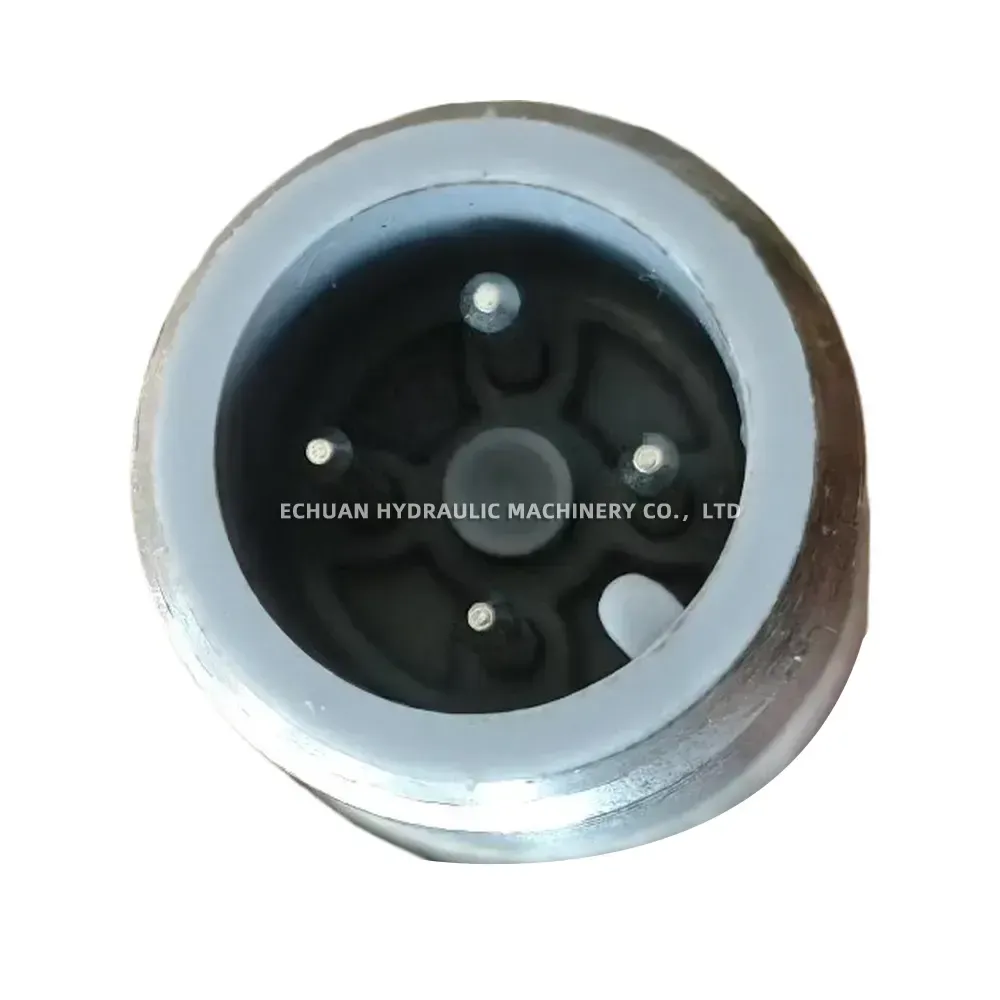

- Connection Interface: 4-pin plug connector
- Overall Length (L): 110 mm
- MAN Diesel Reference: SE 90-1 / SE 90-2, Item No. 181, Plate 50907-18 (Instruments)

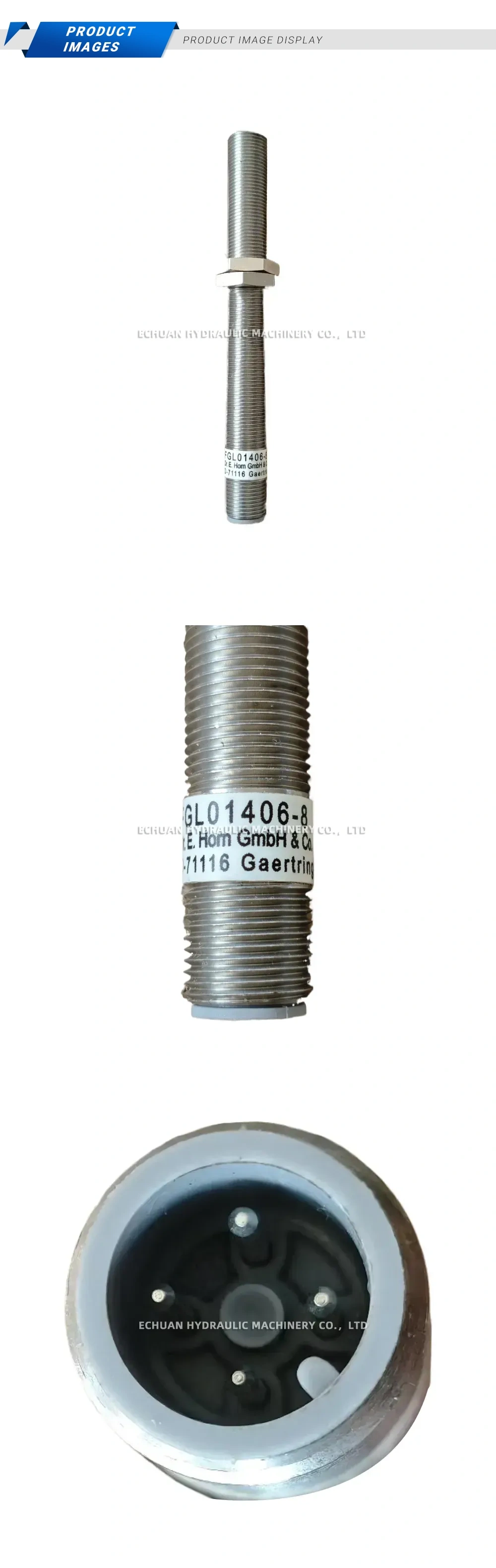

E. Horn FGL01406-8 (SE 90-1) Rotational Speed Sensor / Pick-up
Genuine E. Horn FGL01406-8 (SE 90-1) inductive rotational speed sensor designed for MAN Diesel L16/24 and L32/40 engines. Features a robust threaded steel housing, 4-pin connector, and a 0-20 kHz frequency range for precise marine engine instrumentation.
| Brand | E. Horn |
|---|---|
| Model | FGL01406-8 (SE 90-1) |
| Part No. | 974672842141 |
| Category | Electrical |
