Product Description

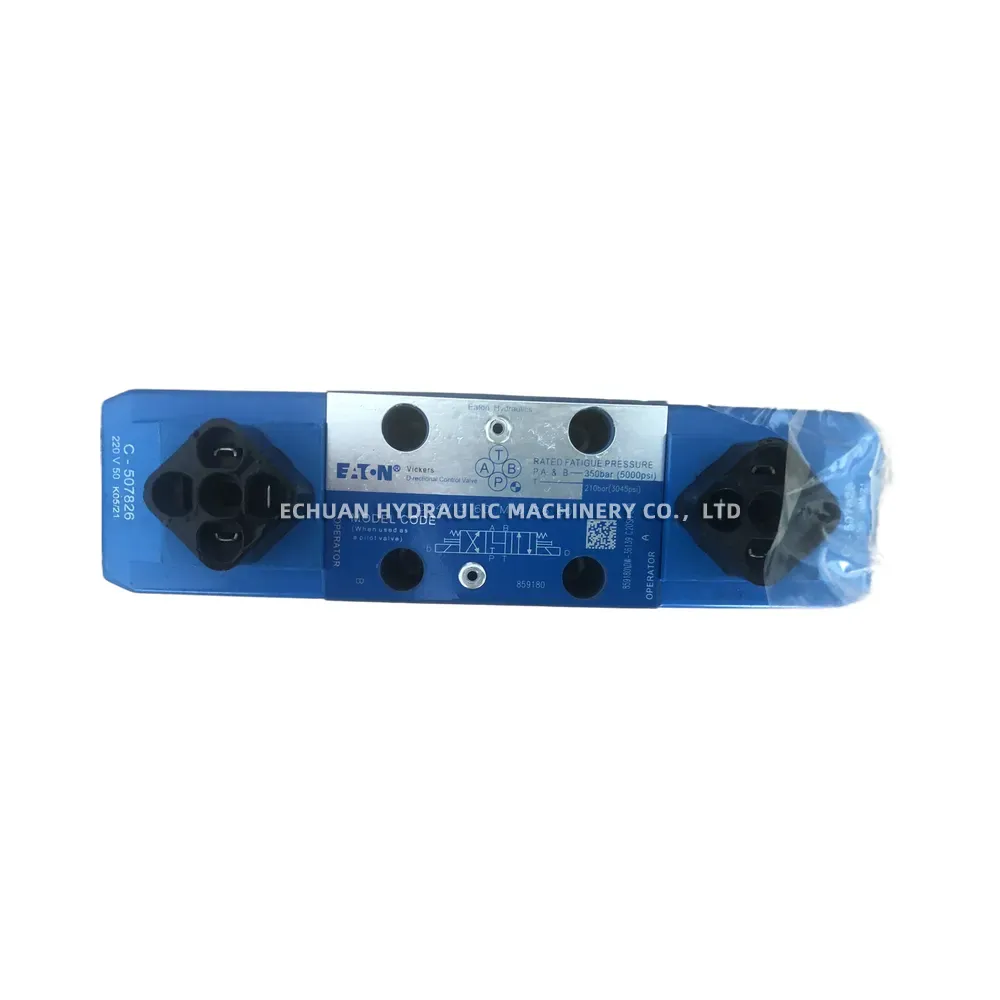

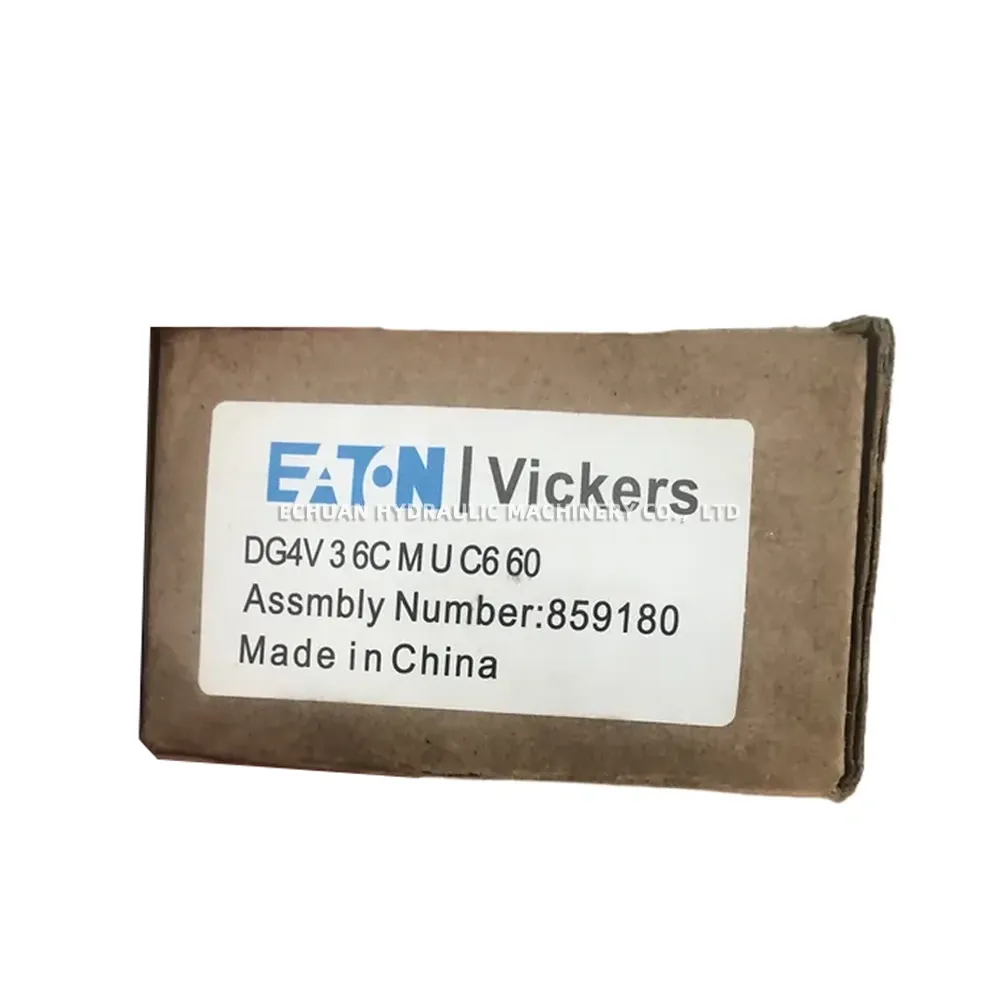

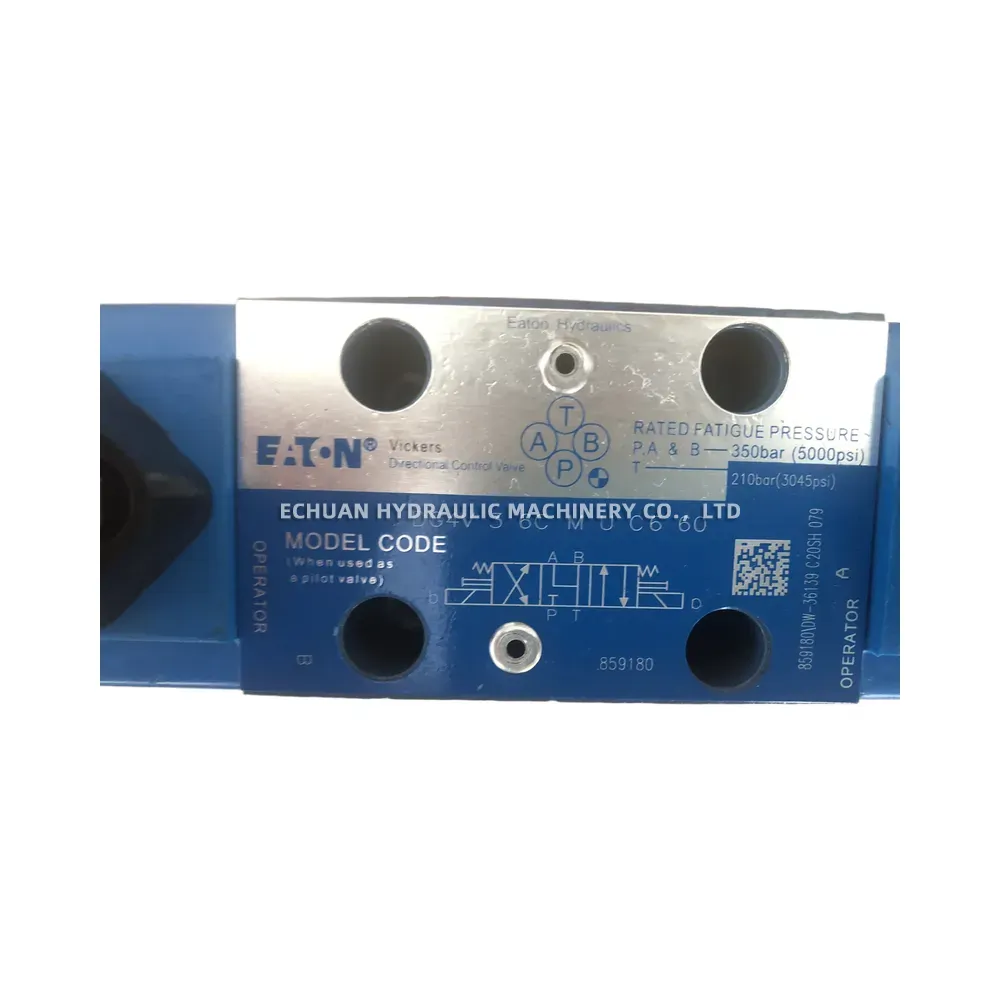

Eaton DG4V-3-6C-M-U-C6-60

The Eaton Vickers DG4V-3-6C-M-U-C6-60 is a high-performance direct-operated solenoid directional control valve. Designed for industrial hydraulic applications, this NG6 (D03) size valve provides reliable switching of hydraulic flow. It features a closed-center, spring-centered spool configuration (6C type) ensuring specific flow paths when energized and blocking flow when de-energized. This model is actuated by standard performance solenoids with 120V AC (60Hz) / 110V AC (50Hz) coils and utilizes a standard DIN 43650 electrical connector for easy integration. Its robust design and adherence to international mounting standards (ISO 4401-03) make it suitable for a wide range of machinery and automation systems requiring precise hydraulic control.

Technical Specifications:

  • Valve Type: Solenoid Operated Directional Control Valve
  • Series: DG4V-3
  • Actuation: Direct Operated
  • Size: NG6 (CETOP 3, NFPA D03)
  • Mounting Standard: ISO 4401-03-02-0-94
  • Spool Type: 6C (Closed center, spring centered)
  • Operator Type: M (Standard performance solenoid)
  • Coil Type: U (Standard AC/DC coil)
  • Electrical Connection: C6 (DIN 43650 / ISO 4400 / EN 175301-803 Form A with connector)
  • Coil Voltage: 60 (120V AC 60Hz / 110V AC 50Hz)
  • Maximum Operating Pressure (P, A, B ports): 350 bar (5000 psi)
  • Maximum Tank Line Pressure (T port): 210 bar (3000 psi)
  • Maximum Flow Rate: 80 L/min (21 US gpm)
  • Seal Material: Nitrile (Standard)

Eaton DG4V-3-6C-M-U-C6-60

Model:Eaton DG4V-3-6C-M-U-C6-60
