Product Description

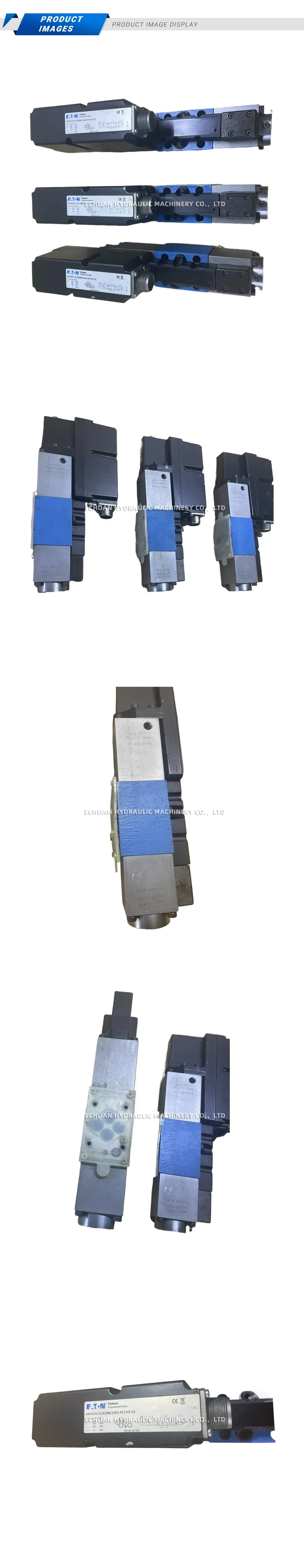

Eaton KBFDG4V-3-2C20N-Z-M1-PC7-H7-12
The Eaton KBFDG4V-3-2C20N-Z-M1-PC7-H7-12 is a high-performance, proportional directional control valve designed for precise hydraulic control in demanding industrial applications. This model features integrated on-board electronics (OBE) with a CANopen interface, allowing for seamless integration into modern machine control systems. Its robust construction ensures reliability and long service life, while the proportional control capability provides accurate and repeatable regulation of flow and direction. This valve is ideal for applications requiring sophisticated motion control, such as in plastics machinery, metal forming, and test equipment.
Technical Specifications:
- Model Series: KBFDG4V-3
- Valve Type: Proportional Directional Control Valve with On-Board Electronics
- Size: NG6 / D03 / CETOP 3
- Spool Type: 2C (3-position, spring-centered, all ports blocked)
- Rated Flow: 20 L/min (5.3 US gpm)
- Maximum Operating Pressure: 350 bar (5000 psi)
- Communication Interface: CANopen (M1 option)
- Electrical Connector: 7-pin connector (H7 option)
Eaton KBFDG4V-3-2C20N-Z-M1-PC7-H7-12
Eaton KBFDG4V-3-2C20N-Z-M1-PC7-H7-12, a high-performance NG6 proportional directional valve with 20 L/min flow, CANopen on-board electronics, and a 7-pin connector for precise industrial hydraulic control.
