Product Description

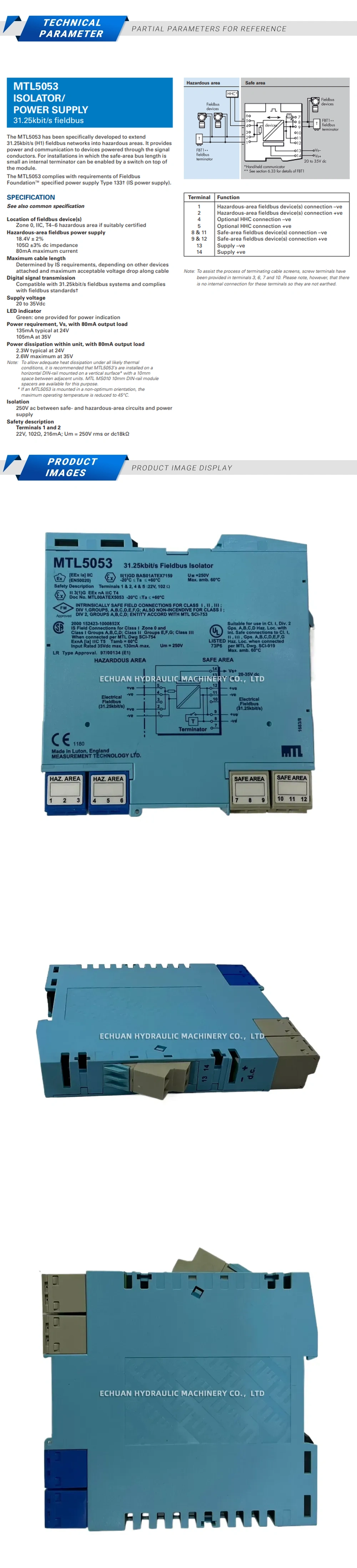

Eaton MTL5053 Digital Output / Pulse Isolator
The Eaton MTL5053 is a single-channel, intrinsically safe isolator designed to drive on/off devices such as solenoids, alarms, and LEDs located in hazardous areas. It functions by repeating a safe-area signal into the hazardous zone, providing a fully-floating, isolated DC supply for the device. This unit ensures the integrity and safety of control loops by preventing excessive energy from reaching the hazardous environment. Part of the MTL5000 series, the MTL5053 is a reliable solution for process control applications requiring intrinsic safety barriers for digital or pulse outputs.
Technical Specifications:
- Number of channels: One
- Location of load: Zone 0, IIC, T4–T6 hazardous area if suitably certified. Div. 1, Group A hazardous location
- Supply Voltage: 20 to 35V dc
- Hazardous-area output: Minimum 14V at 40mA
- Safety Integrity Level (SIL): SIL2 capable to IEC 61508
Eaton MTL5053
The Eaton MTL5053 is a single-channel, intrinsically safe digital output and pulse isolator for driving solenoids, alarms, and other devices in hazardous areas, ensuring safe and reliable operation.
| Brand | Eaton |
|---|---|
| Model | MTL5053 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/eaton-mtl5053 |
