Product Description

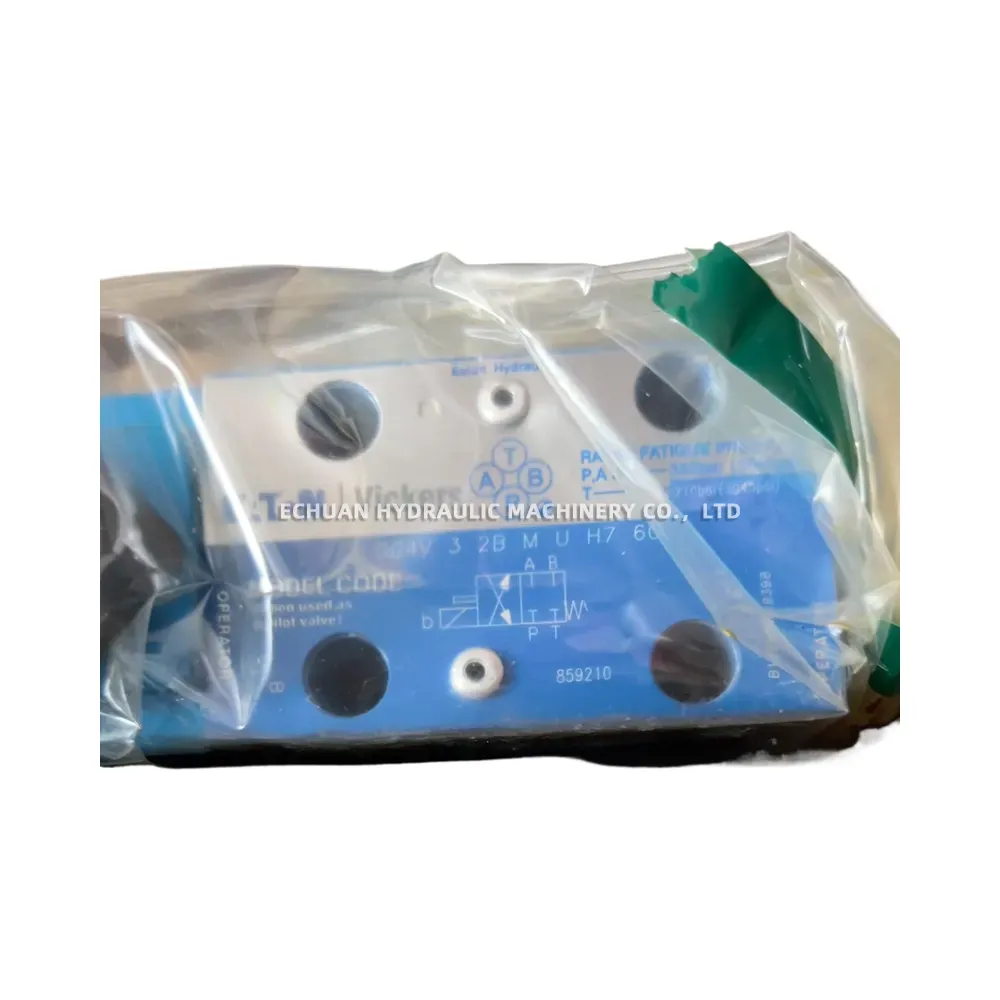

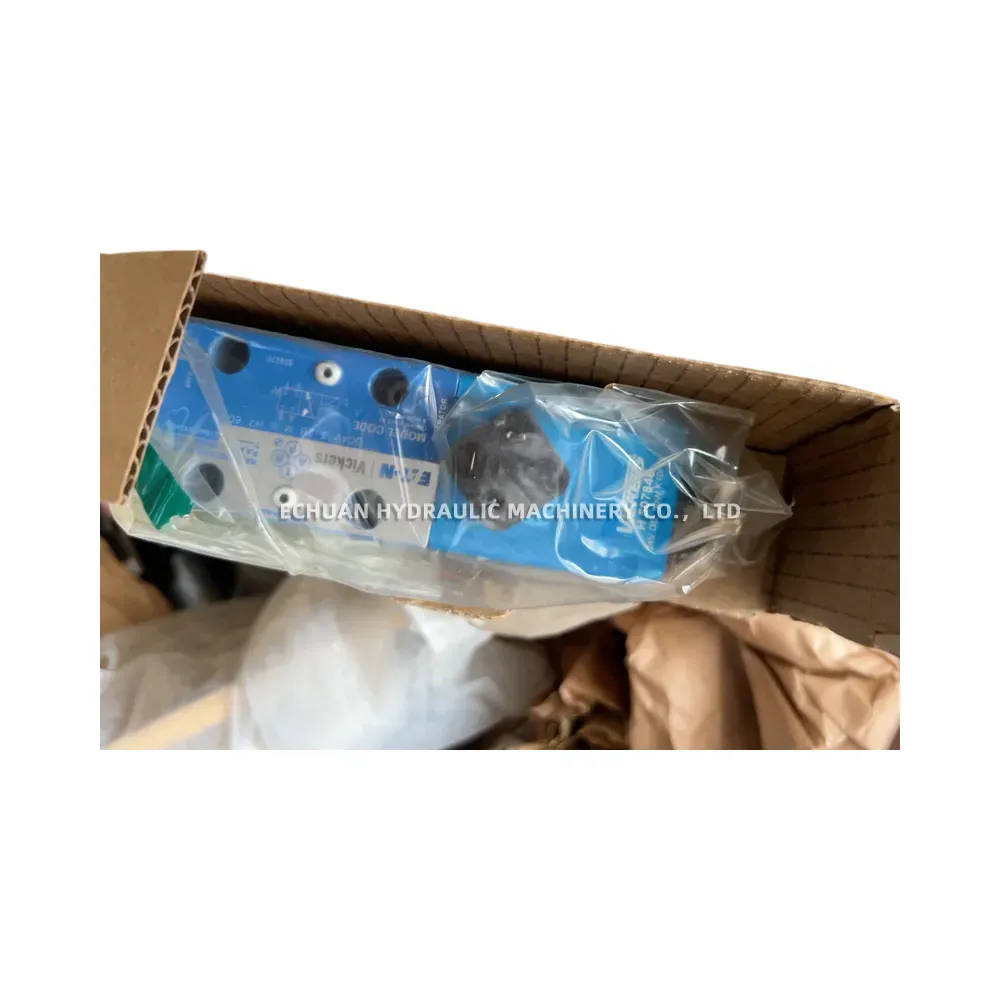

Eaton Vickers DG4V-3-2B-M-U-H7-60 Directional Control Valve
The Eaton Vickers DG4V-3-2B-M-U-H7-60 is a high-performance, direct-operated solenoid directional control valve designed for industrial and mobile hydraulic systems. It features a standard NFPA D03 (CETOP 3) mounting interface for easy installation and interchangeability. This 4-way, 3-position valve utilizes a tandem center, spring-centered spool (Type 2B), which unloads the pump by connecting the pressure port to the tank in the neutral position. Engineered for reliability and long service life, this valve provides precise control of fluid direction and is a trusted component for controlling cylinders and hydraulic motors in a wide variety of applications.
Technical Specifications:
- Model: DG4V-3-2B-M-U-H7-60
- Valve Type: Direct Operated Solenoid Directional Control Valve
- Mounting Interface: NFPA D03 / CETOP 3 / NG6
- Spool Configuration: 2B – Tandem Center, 3-Position, Spring-Centered
- Maximum Operating Pressure: P, A, B Ports: 350 bar (5000 psi) | T Port: 210 bar (3000 psi)
- Maximum Flow Rate: 80 L/min (21 US gpm)
- Solenoid Voltage: 24V DC
- Electrical Connection: DIN 43650 Connector
Eaton Vickers DG4V-3-2B-M-U-H7-60 Directional Control Valve
Purchase the Eaton Vickers DG4V-3-2B-M-U-H7-60, a 24V DC solenoid-operated directional control valve. This NFPA D03 / CETOP 3 valve features a 4-way, 3-position tandem center spool for reliable performance in industrial hydraulic systems.
