ELAU BT-4/ENC1 Industrial Motion Control Module

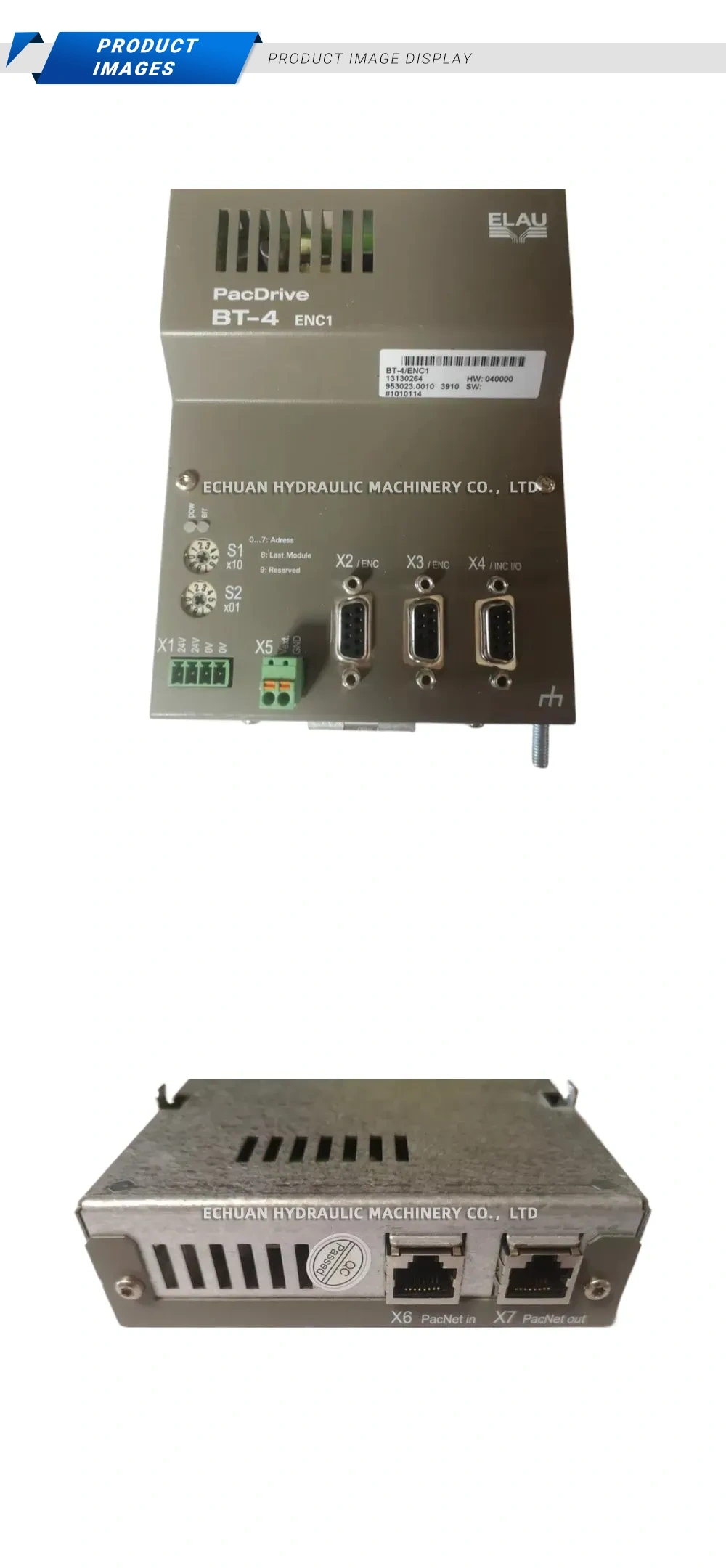

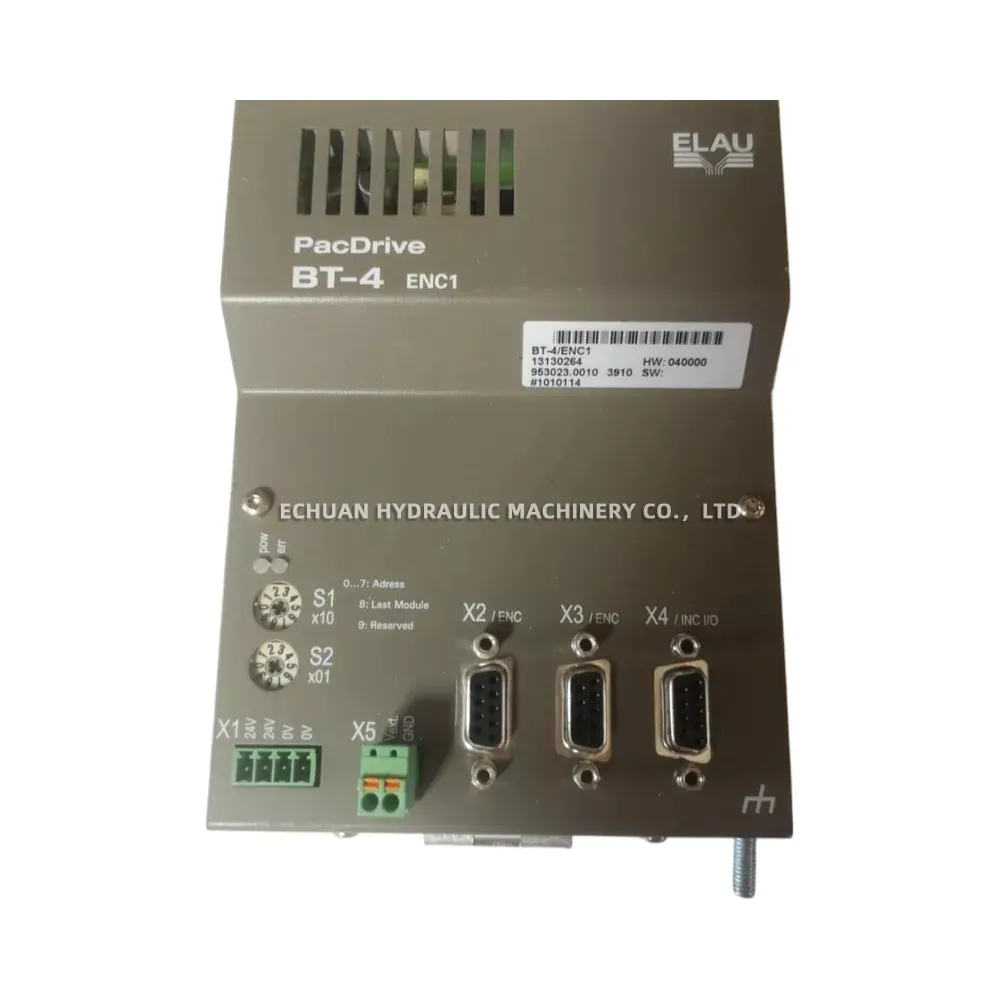

The ELAU PacDrive BT-4/ENC1 is a robust motion control module designed for demanding industrial automation applications. As a key component of the PacDrive system, it specializes in processing encoder signals and managing incremental I/O. The module is equipped with two D-sub connectors for encoder inputs (X2/ENC, X3/ENC) and one for incremental I/O (X4/INC I/O), allowing for precise position and speed feedback. Communication is handled via dual RJ45 PacNet ports (X6 In, X7 Out) for seamless integration into the control network. Module addressing is easily configured using the onboard rotary switches (S1, S2), and it operates on a standard 24V DC power supply, making it a versatile and reliable solution for complex motion control tasks.
Technical Specifications:
- Model: BT-4/ENC1
- Brand: ELAU (Schneider Electric)
- Part Number: 13130264
- Power Supply: 24V DC via X1 terminal
- Inputs: 2x Encoder Inputs (D-sub connectors X2, X3)
- I/O: 1x Incremental I/O Port (D-sub connector X4)

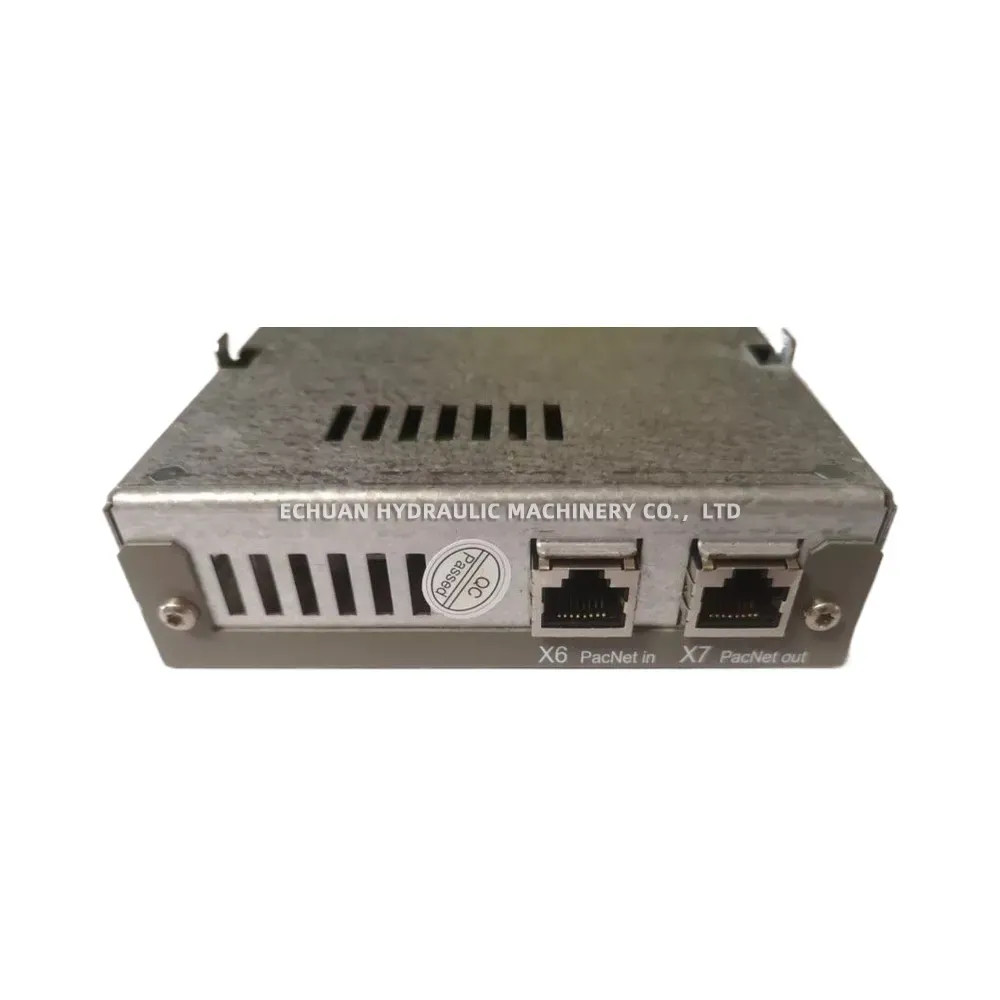

- Network Communication: Dual RJ45 PacNet Ports (X6 PacNet in, X7 PacNet out)
- Configuration: Rotary address switches (S1, S2) for module addressing
ELAU BT-4/ENC1 Industrial Motion Control Module
Shop the ELAU PacDrive BT-4/ENC1 (13130264) motion control module. This industrial-grade unit features dual encoder inputs, incremental I/O, and PacNet communication for precise automation control.
