Product Description

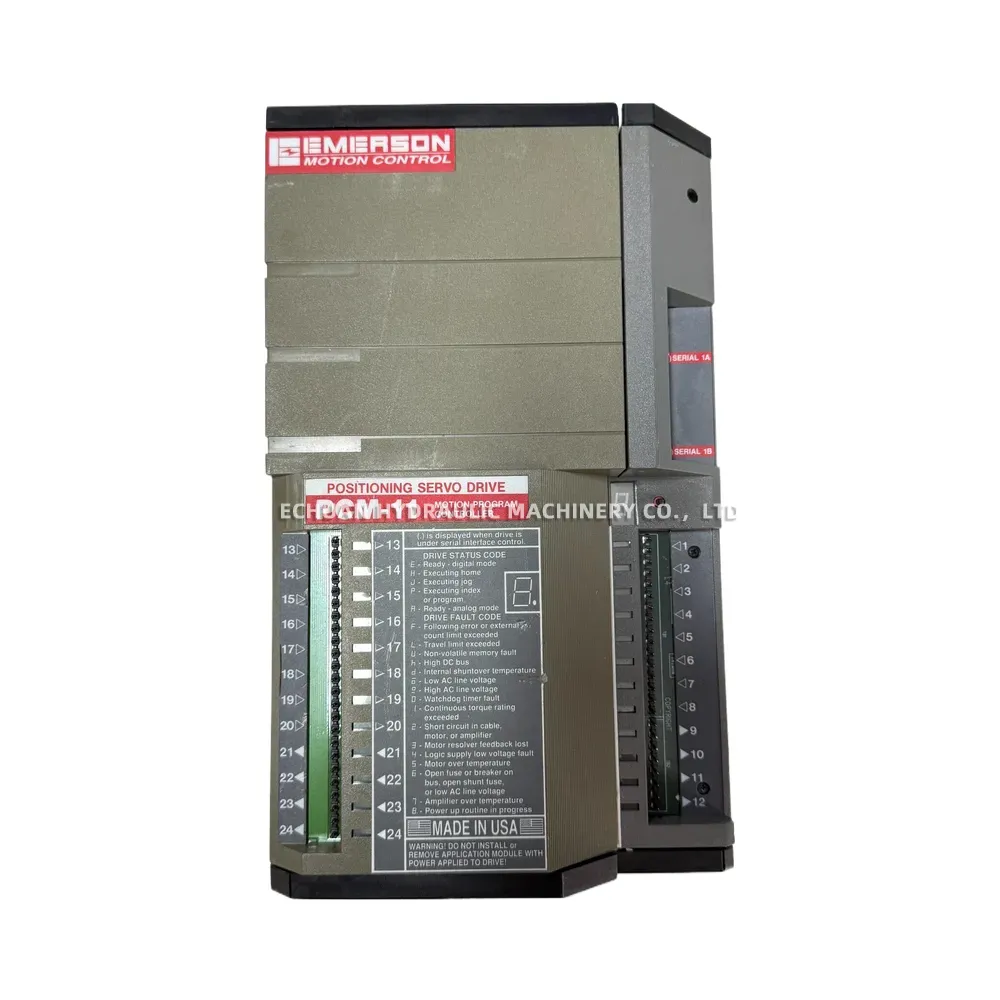

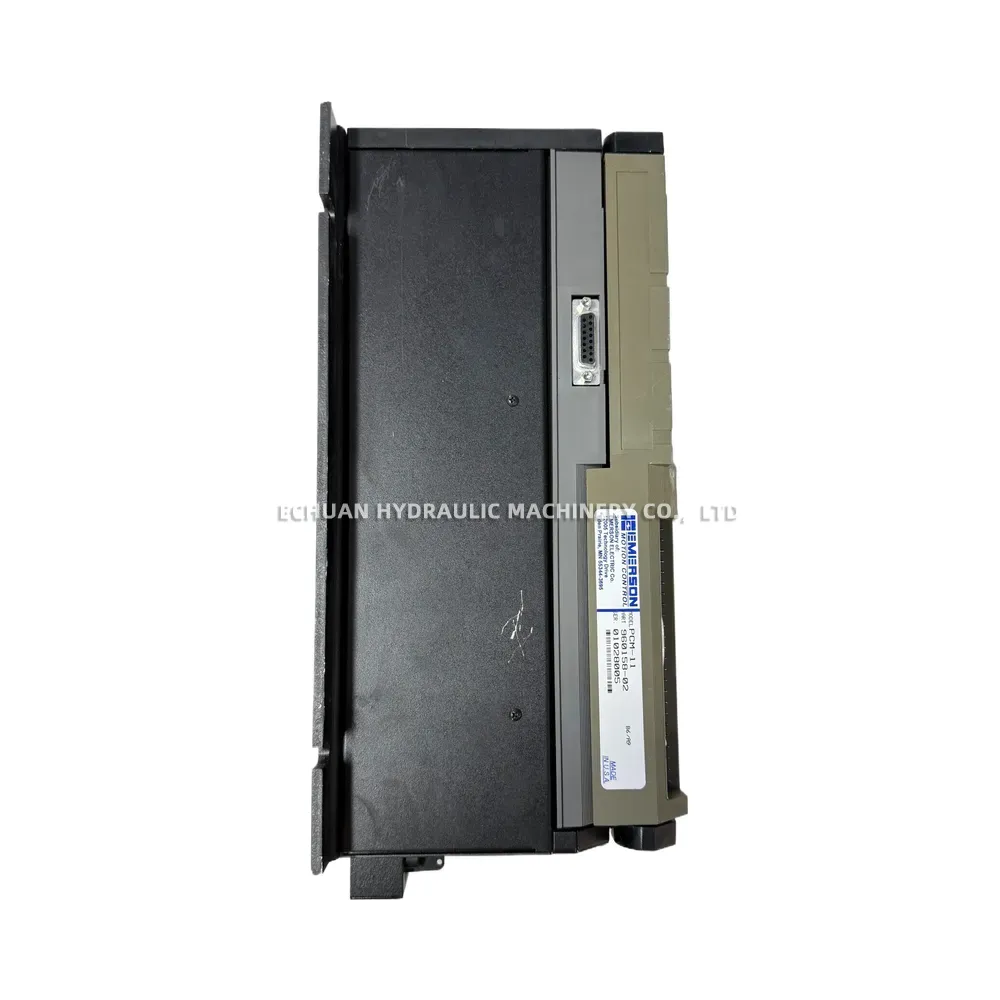

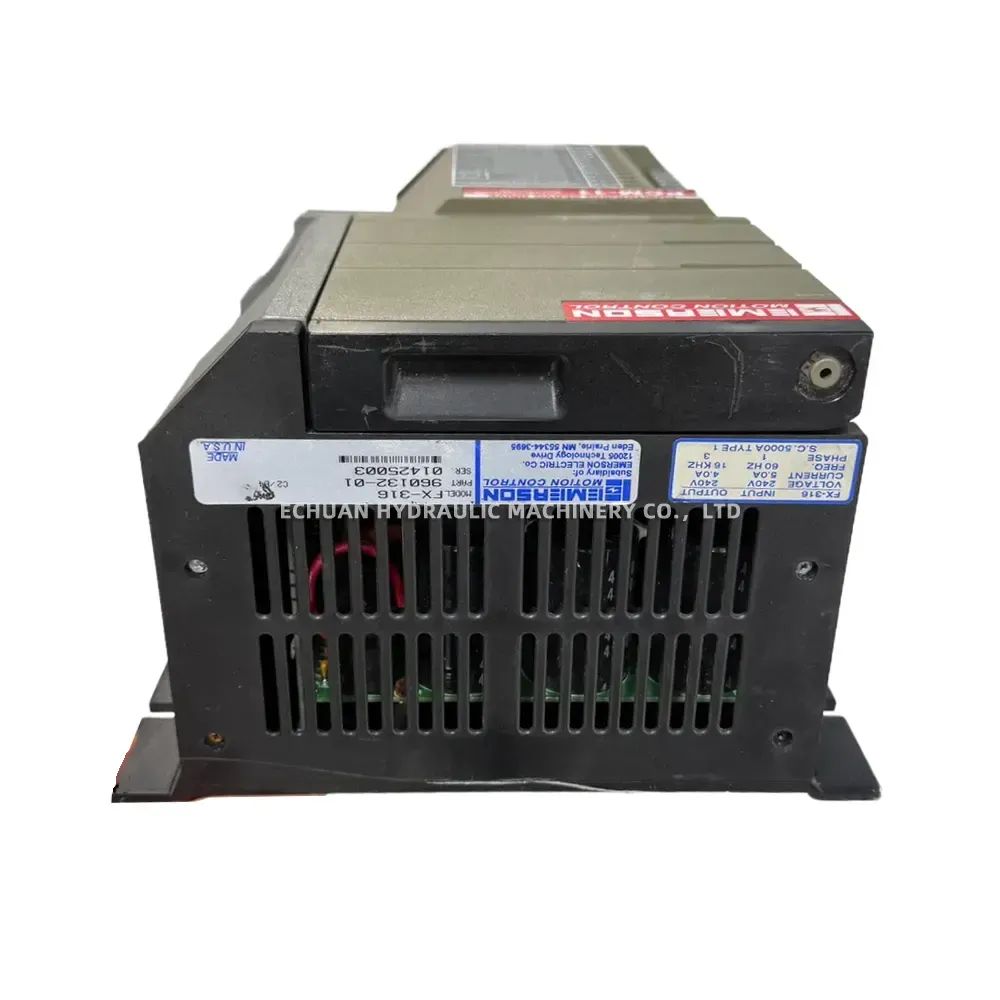

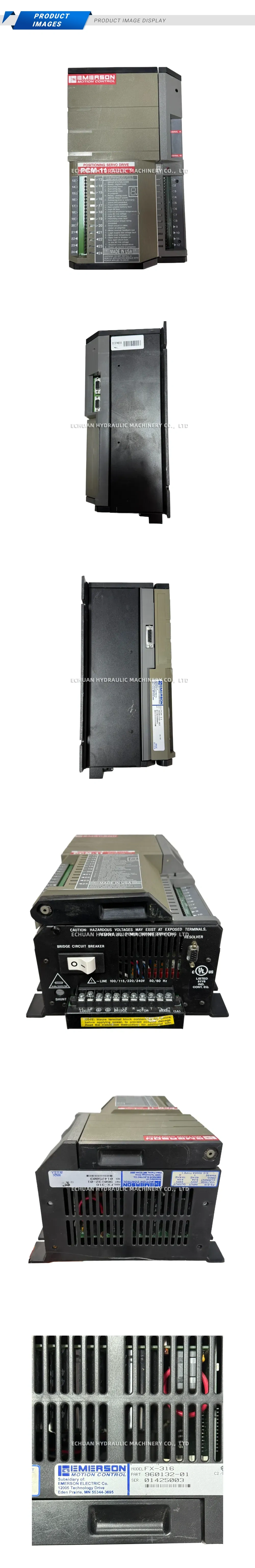

Emerson Motion Control PCM-11 / FX-316 Positioning Servo Drive

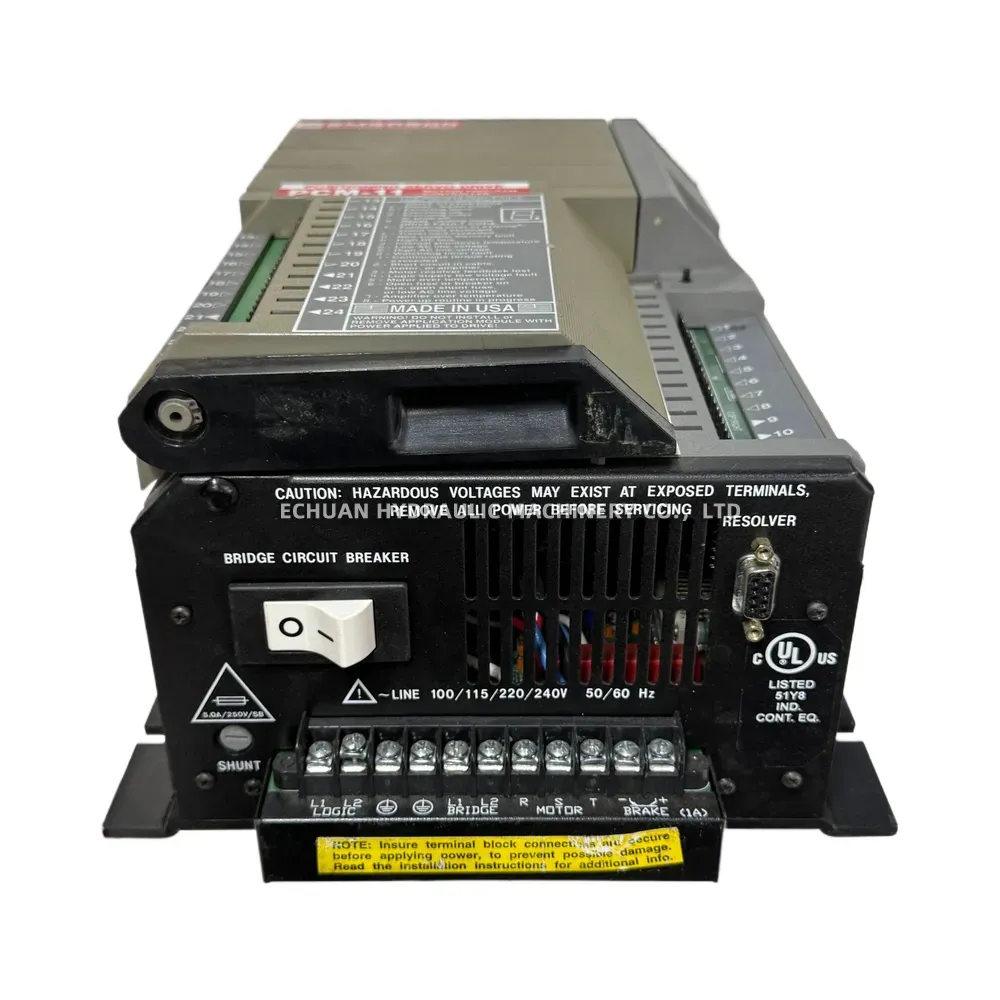

The Emerson Motion Control PCM-11 / FX-316 is a highly reliable positioning servo drive system designed for demanding industrial automation and motion control applications. This complete assembly combines the advanced PCM-11 Motion Program Controller module with the robust FX-316 servo drive base. It features versatile digital and analog modes, enabling precise execution of home, jog, index, and program functions to meet complex automation requirements. The system is equipped with comprehensive built-in drive status and fault code diagnostics, ensuring quick troubleshooting and minimized operational downtime. The FX-316 base unit supports flexible AC line inputs (100/115/220/240V at 50/60 Hz) and delivers a steady 240V, 5.0A output with a 16 kHz switching frequency. Additional industrial-grade features include a resolver feedback interface, bridge circuit breaker, secure logic and motor terminal blocks, and dual serial communication ports. Proudly made in the USA and cULus listed, this Emerson servo drive guarantees exceptional performance, safety, and longevity in your control environment.
Technical Specifications:
- Brand: Emerson Motion Control
- Model: PCM-11 / FX-316

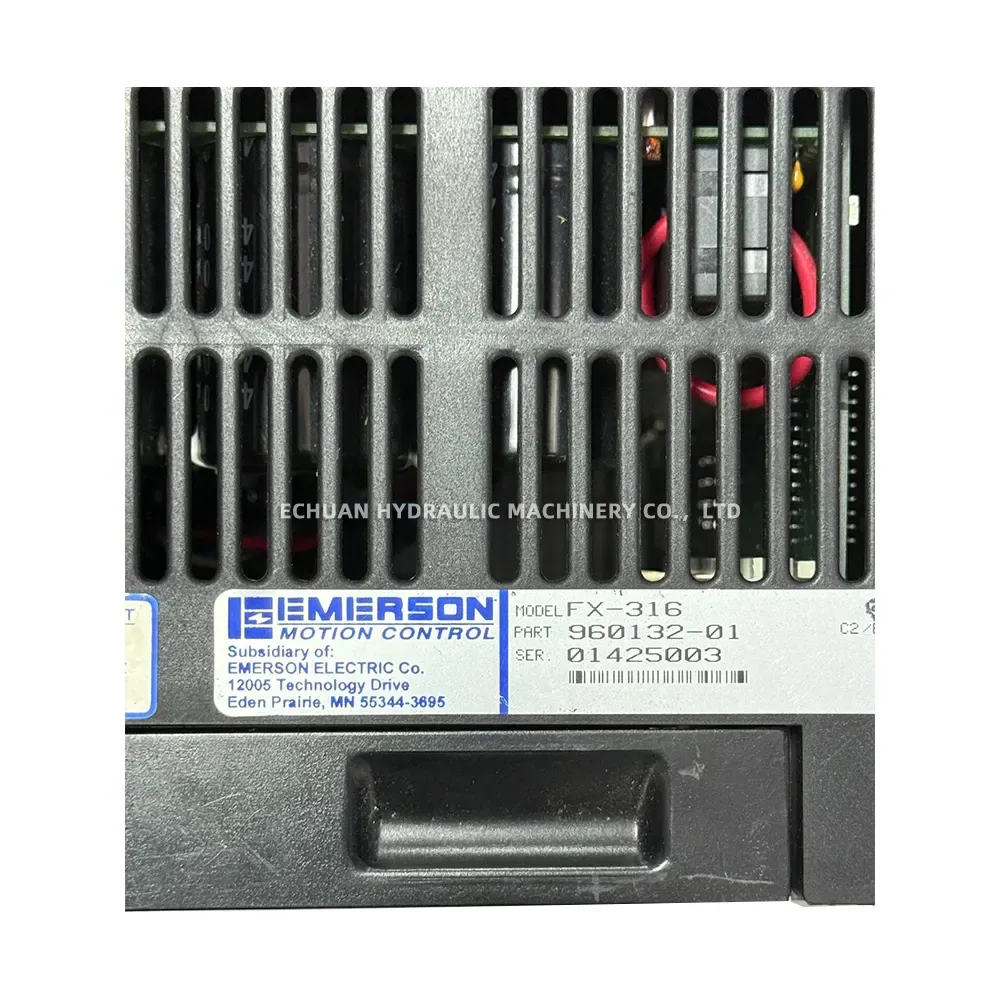

- Part Numbers: 960132-01 (FX-316 Base) / 9100158-02 (PCM-11 Module)
- AC Line Input: 100/115/220/240V AC, 50/60 Hz
- Output Voltage: 240V
- Output Current: 5.0A
- Output Frequency: 60Hz
- Phase: 1
- Switching Frequency: 16 kHz
- Short Circuit Rating: 5000A Type 1
- Feedback Type: Resolver

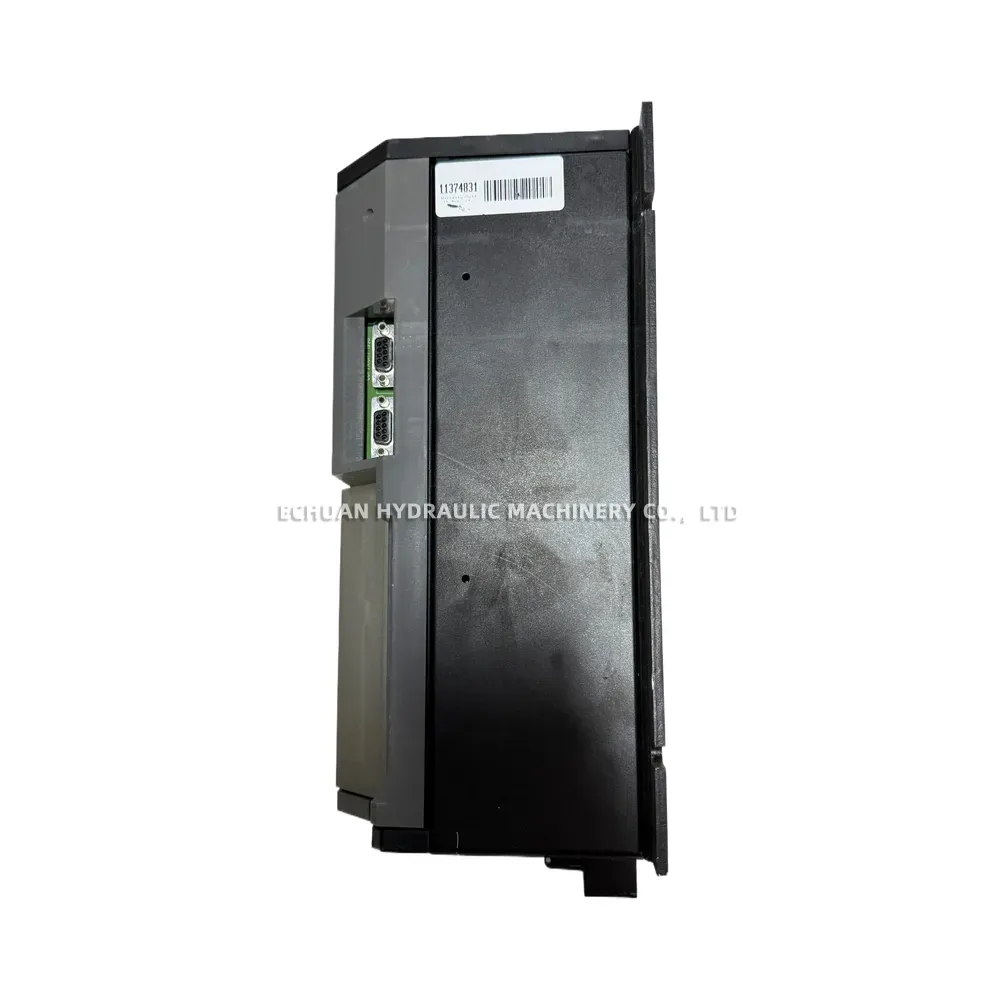

- Communication: Serial Ports (1A / 1B)
- Diagnostic Features: Integrated Drive Status Codes (E, H, J, P, R) and Fault Codes
- Certifications: cULus Listed (81Y8 IND. CONT. EQ.)
- Country of Origin: Made in USA
Emerson Motion Control PCM-11 / FX-316 Positioning Servo Drive with Motion Program Controller
Optimize your industrial automation with the Emerson Motion Control PCM-11 / FX-316 Positioning Servo Drive. Featuring a 240V 5.0A output, versatile digital/analog operation modes, resolver feedback, and advanced fault diagnostics, this UL-listed motion controller ensures precise, reliable, and safe performance for your heavy-duty machinery.
