Product Description
Endress+Hauser 50P15-EA0A9AA0A4AA

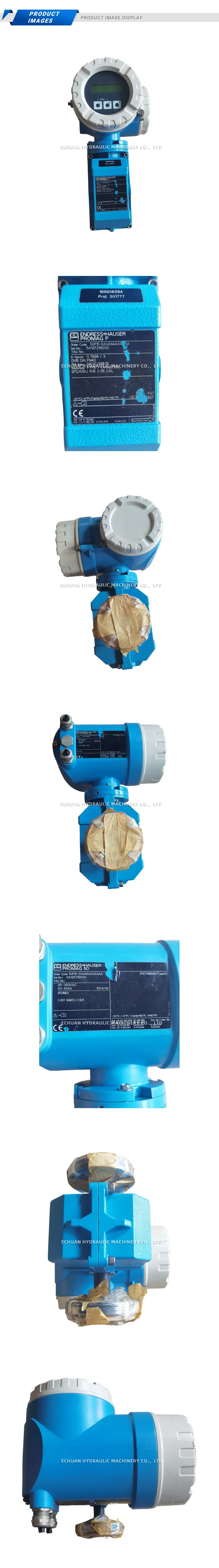

The Endress+Hauser Promag P 50 (50P15-EA0A9AA0A4AA) is a high-performance electromagnetic flowmeter designed for demanding applications in the chemical and process industries. Its compact, sensor-centric design offers seamless system integration and cost-effective operation. Featuring a robust PFA liner, it is exceptionally resistant to corrosive and aggressive liquids. This specific model is configured for non-hazardous areas and includes a wafer-style process connection, a 24V DC power supply, and versatile 4-20mA HART and pulse outputs for reliable communication and control. The intuitive 2-line display with push buttons allows for straightforward commissioning and on-site operation, making it an ideal solution for accurate volumetric flow measurement of conductive fluids.
Technical Specifications:
- Model: Promag P 50
- Nominal Diameter: DN 15 (1/2″)
- Process Connection: Wafer, ASME B16.5, Cl 150, 316L
- Liner Material: PFA
- Electrode Material: 1.4435/316L Stainless Steel
- Power Supply: 24V DC
- Output Signal: 4-20mA HART, Pulse/Frequency/Switch Output
- Housing: Compact, coated aluminum with IP66/67 protection

Endress+Hauser 50P15-EA0A9AA0A4AA
Endress+Hauser 50P15-EA0A9AA0A4AA Promag P 50 electromagnetic flowmeter, DN15 (1/2″), with PFA liner for chemical applications. Features 24V DC supply and 4-20mA HART output.
