Product Description

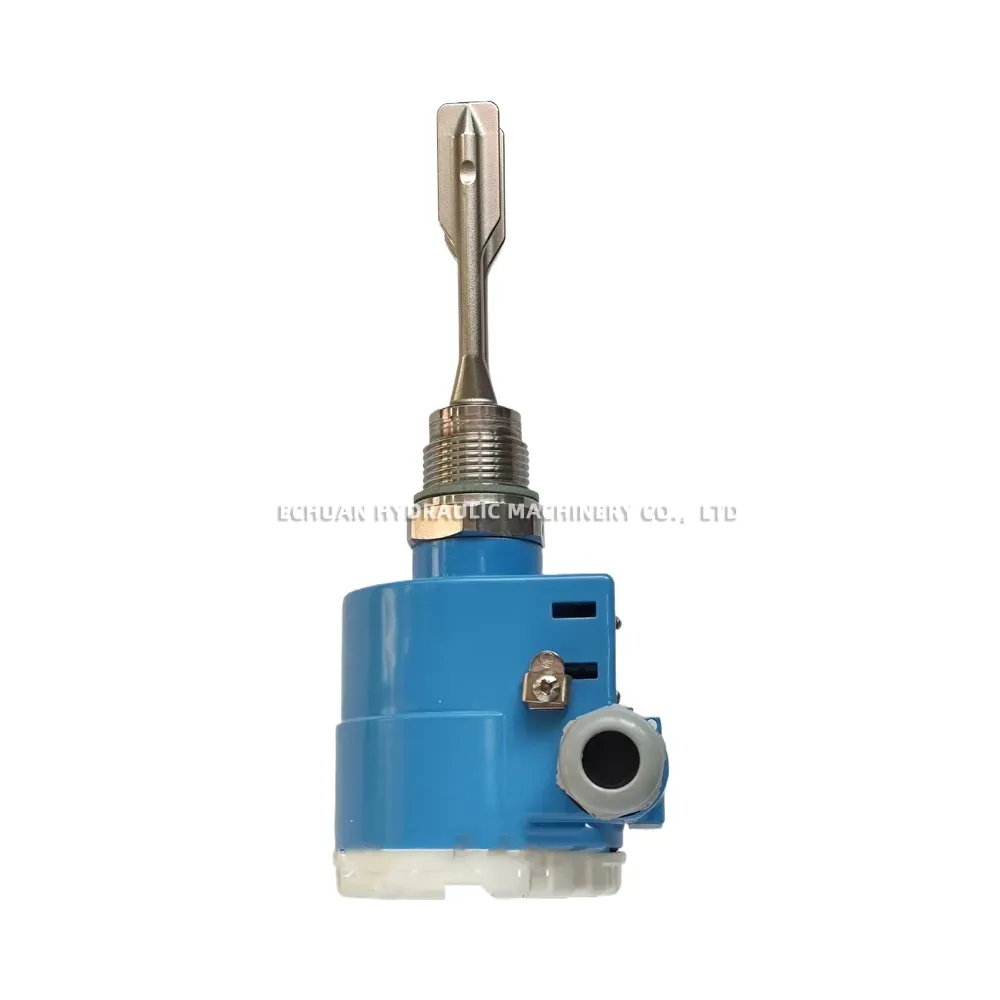

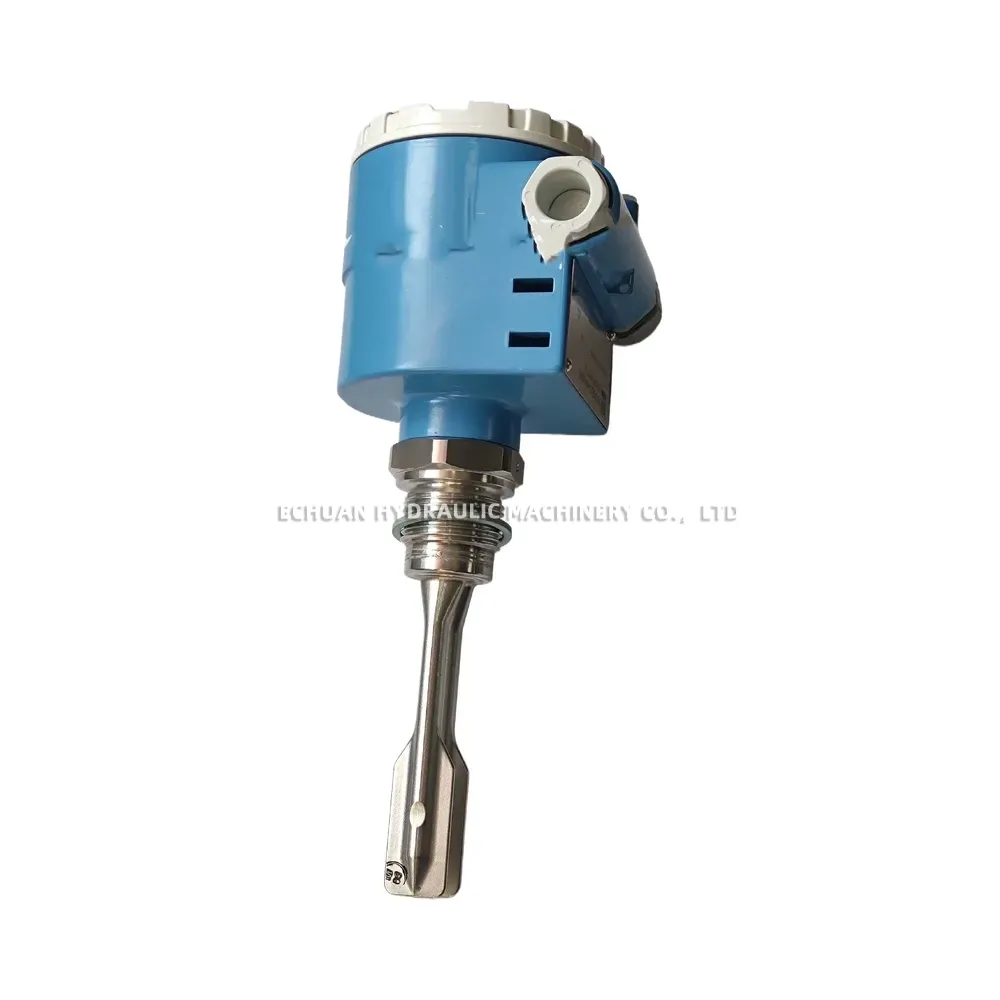

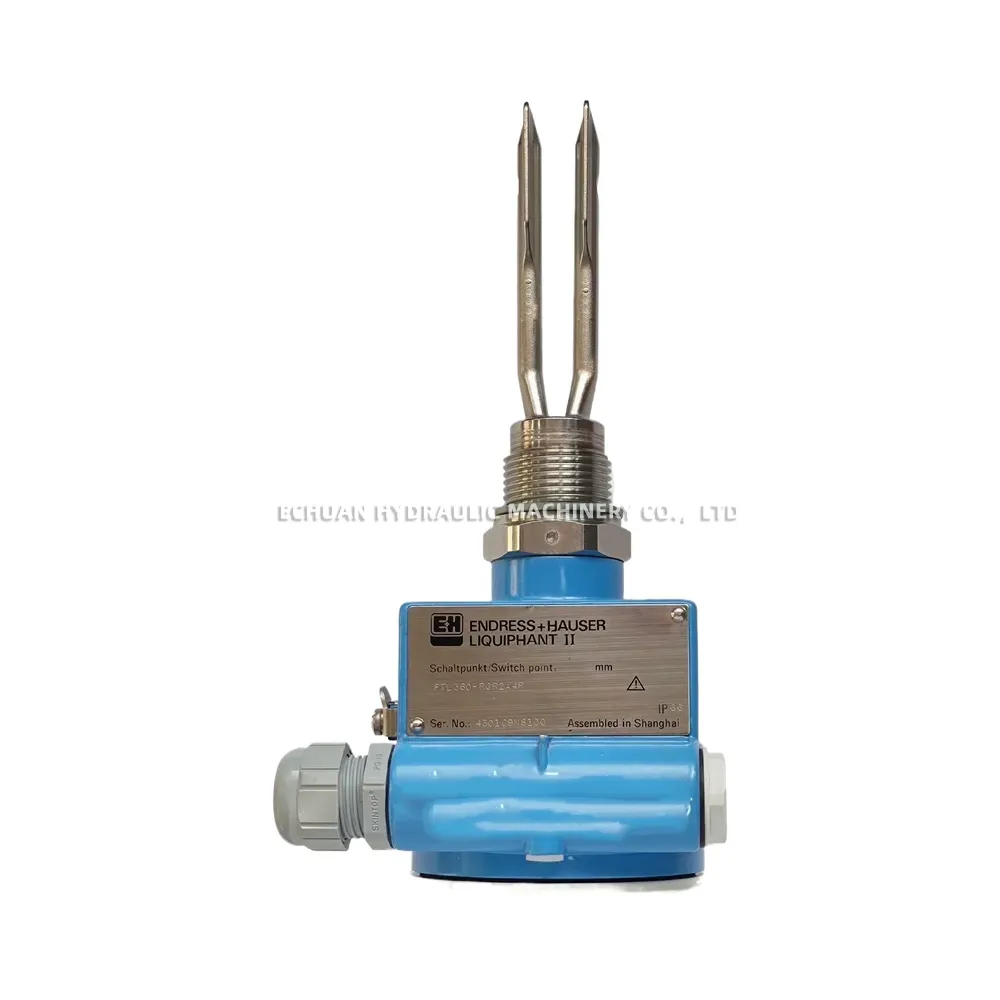

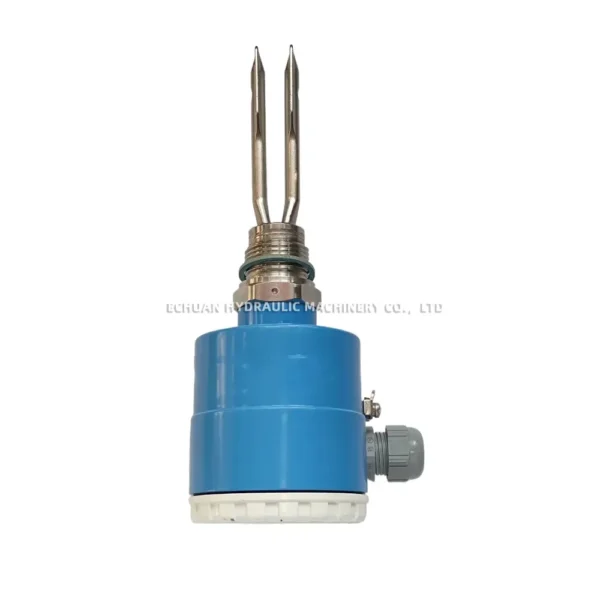

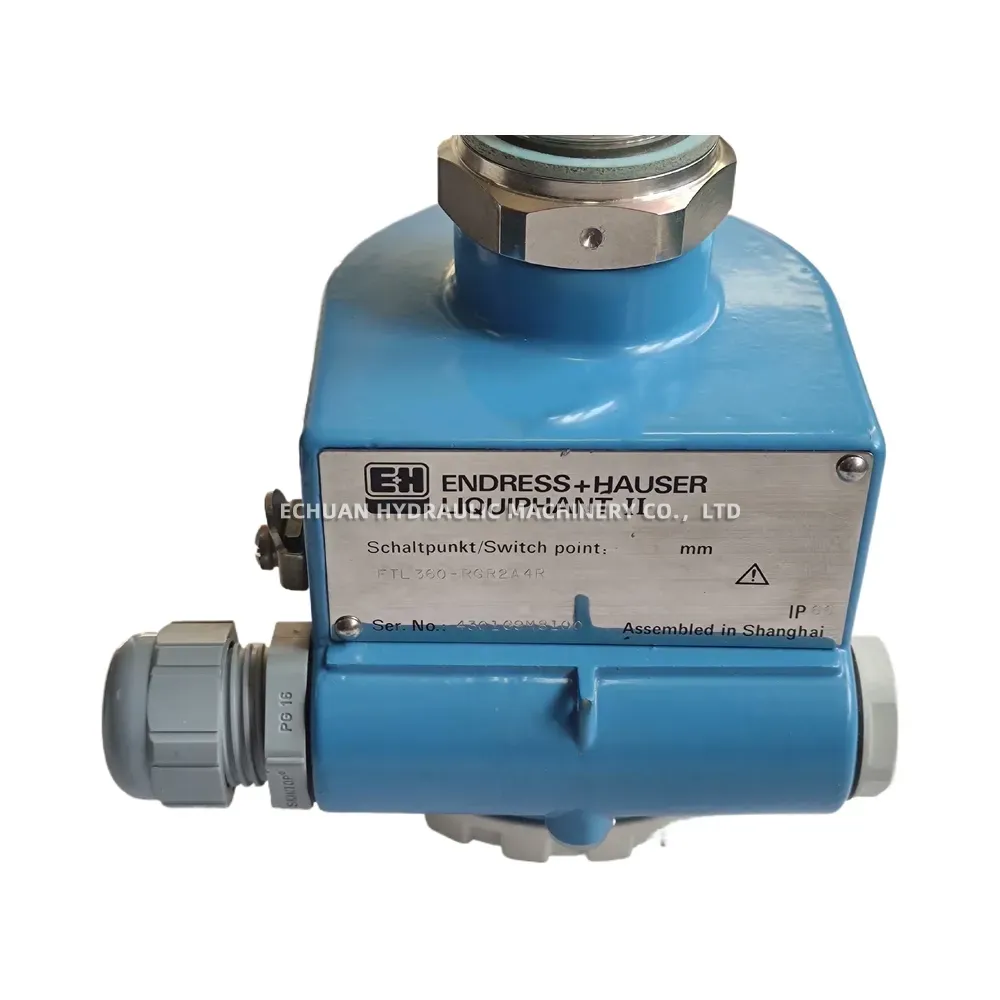

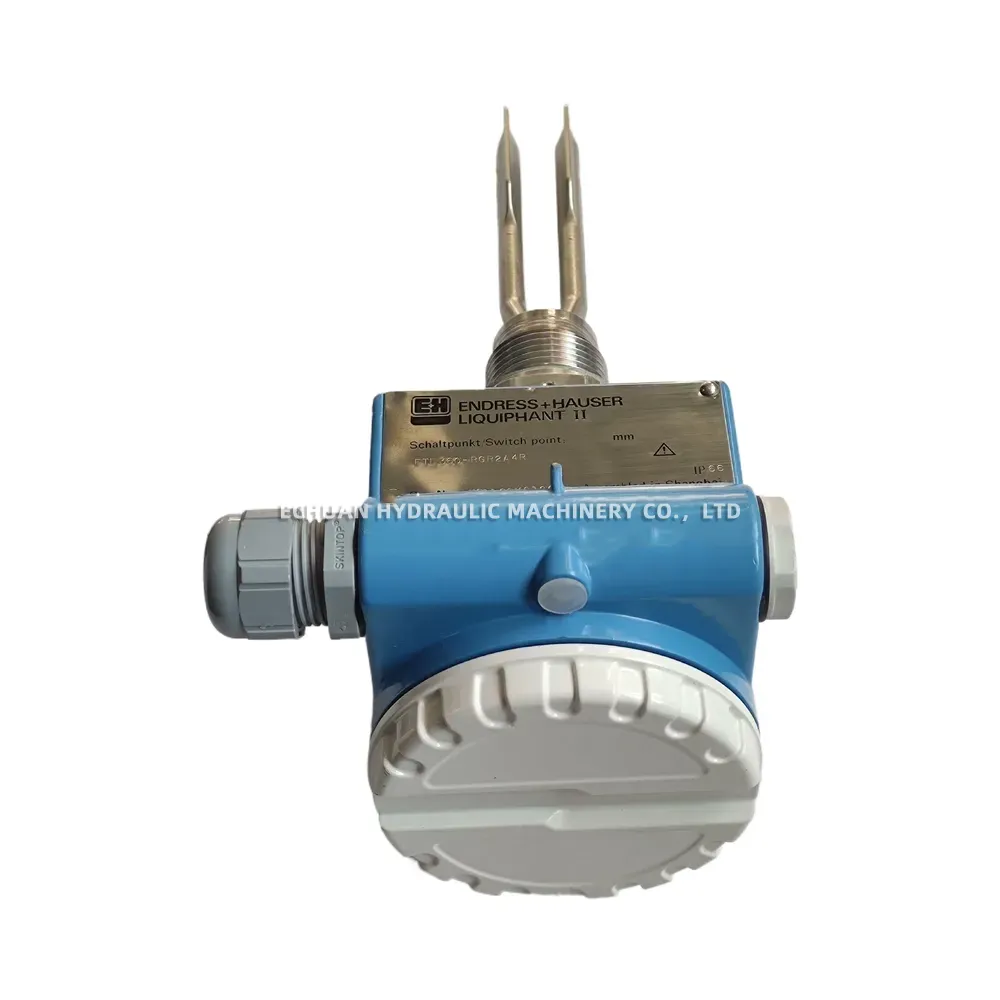

ENDRESS+HAUSER FTL360-RGR2A4R
The Endress+Hauser Liquiphant FTL360 is a compact vibrating point level switch specifically designed for liquids in hygienic applications, commonly found in the food and beverage industry. Its small size makes it ideal for installation in pipes, tanks, and mixing vessels where space is limited. The FTL360 provides reliable overfill prevention or pump dry-run protection, ensuring safe and efficient process operation. This particular model features a relay output and robust aluminum housing suitable for various industrial environments.
Technical Specifications:
- Product: Vibrating point level switch
- Series: Liquiphant FTL360
- Application: Point level detection in liquids (hygienic applications)
- Measurement Principle: Vibrating fork
- Process Connection: Thread ISO228 G1/2
- Wetted Parts Material: 316L Stainless Steel
- Output: Relay DPDT (Double Pole Double Throw), AC/DC 20…253V
- Electrical Connection: Cable gland M20
- Fork Type: Standard
- Process Temperature Range: -40 to +100°C (-40 to +212°F)
- Process Pressure Range: -1 to +40 bar (-14.5 to +580 psi)
- Housing Material: Aluminium, coated
- Ingress Protection: IP66/IP67, NEMA Type 4X/6P
ENDRESS+HAUSER FTL360-RGR2A4R
Model:ENDRESS+HAUSER FTL360-RGR2A4R
| Brand | Endress+Hauser |
|---|---|
| Model | FTL360-RGR2A4R |
| Part No. | ENDRESS+HAUSER FTL360-RGR2A4R |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/endresshauser-ftl360-rgr2a4r |
