Product Description

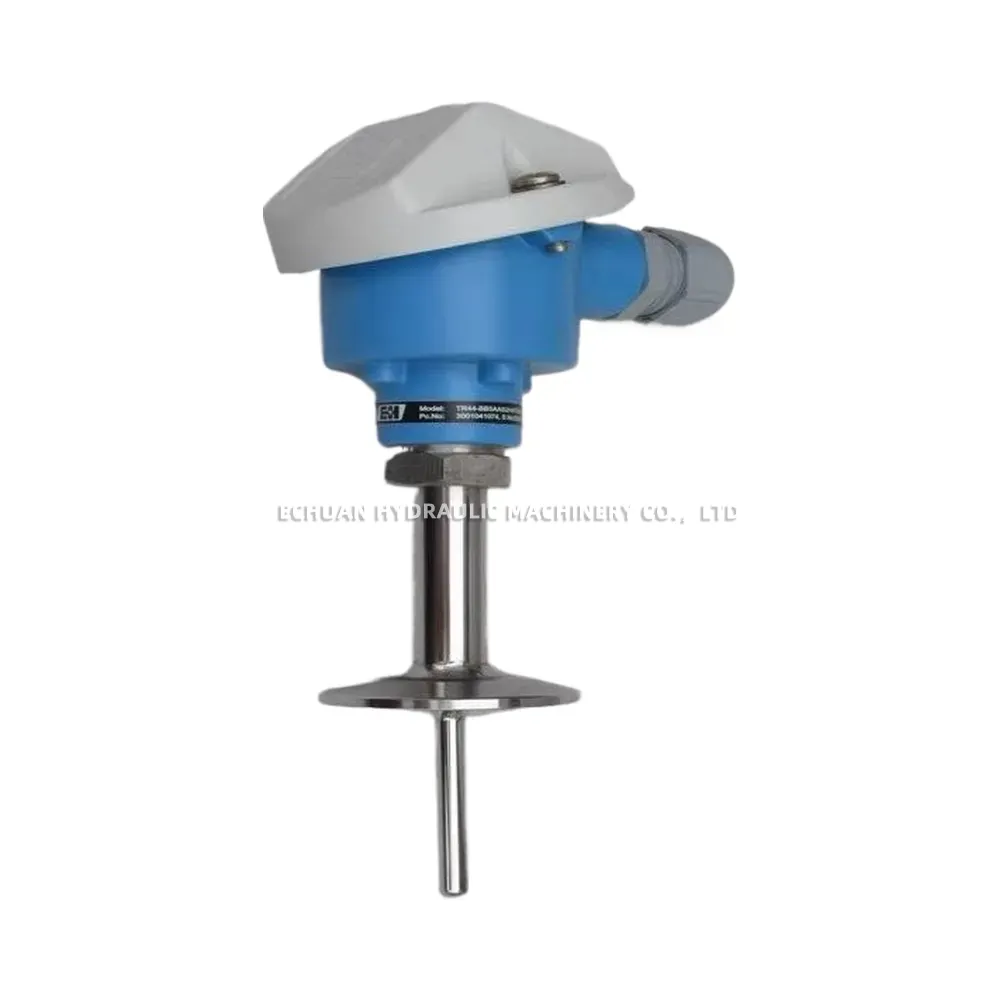

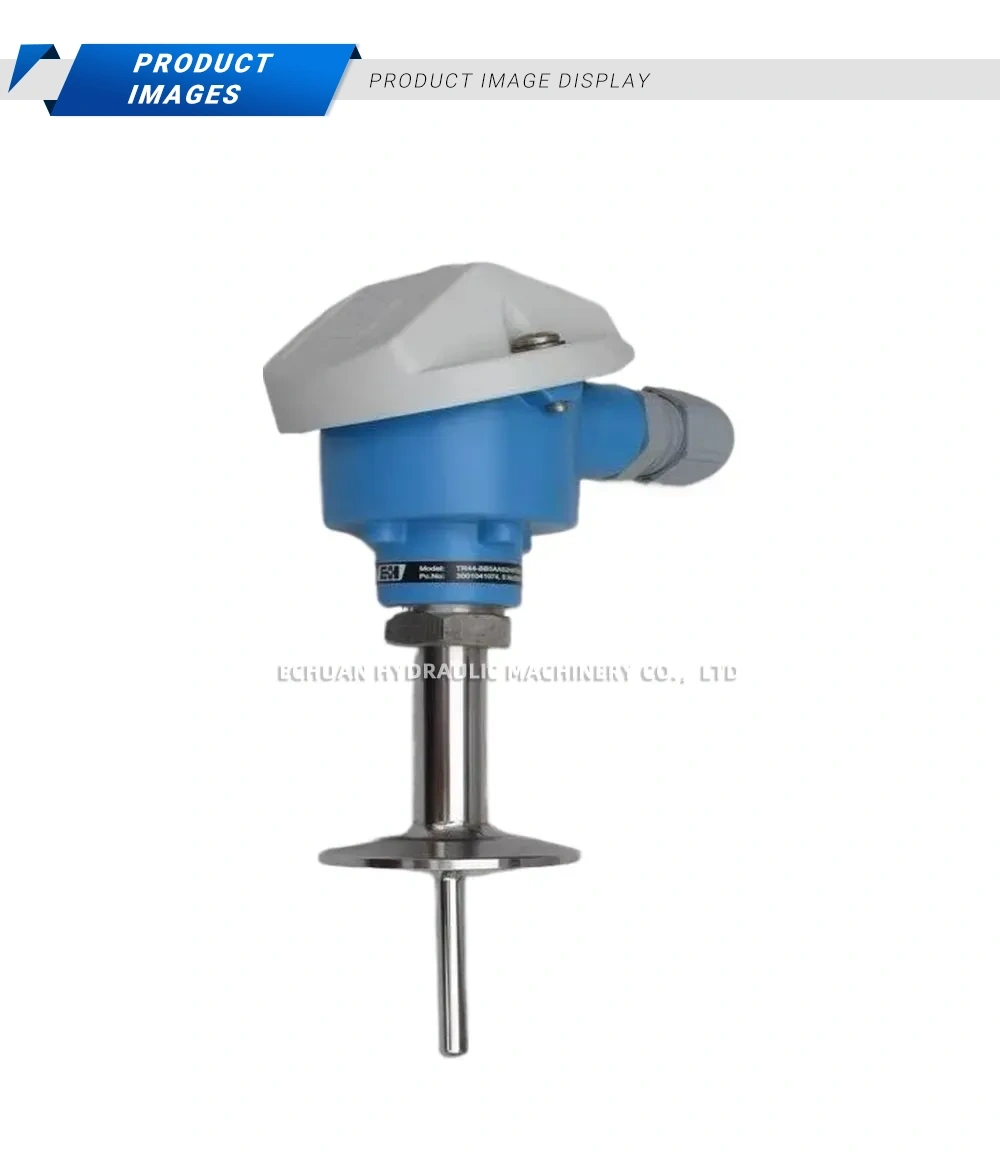

Endress+Hauser TR44-BB5AAS2HAT000 Resistance Thermometer
The Endress+Hauser Omnigrad T TR44-BB5AAS2HAT000 is a robust resistance thermometer engineered for precise and reliable temperature measurement in demanding industrial applications, particularly on pipes and tanks. Constructed from high-grade 316L stainless steel, this RTD sensor ensures excellent chemical resistance and durability. It features a compact 50mm insertion length and a hygienic clamp connection, making it ideal for processes in the food & beverage, pharmaceutical, and chemical industries. The sensor is housed in a durable blue aluminum head (TA30B) with an IP66/68 rating, offering superior protection against dust and water ingress. This model comes equipped with a TMT180 transmitter, providing a standardized output for easy integration into existing control systems.
Technical Specifications:
- Sensor Type: 1x Pt100 TF (thin-film) with 3-wire connection
- Measuring Range: -50°C to 200°C (-58°F to 392°F)
- Accuracy: Class A according to IEC 60751
- Process Connection: Clamp connection compatible with ISO 2852 (DN25 to DN51 / 1″ to 2″)
- Housing / Protection: TA30B Aluminum Head / IP66/68
- Insertion Length (L): 50 mm
Endress+Hauser TR44-BB5AAS2HAT000 Resistance Thermometer
Buy the Endress+Hauser TR44-BB5AAS2HAT000 resistance thermometer. A high-accuracy industrial Pt100 sensor with a 50mm probe, hygienic clamp connection, and IP68-rated housing for reliable process temperature measurement.
