Product Description

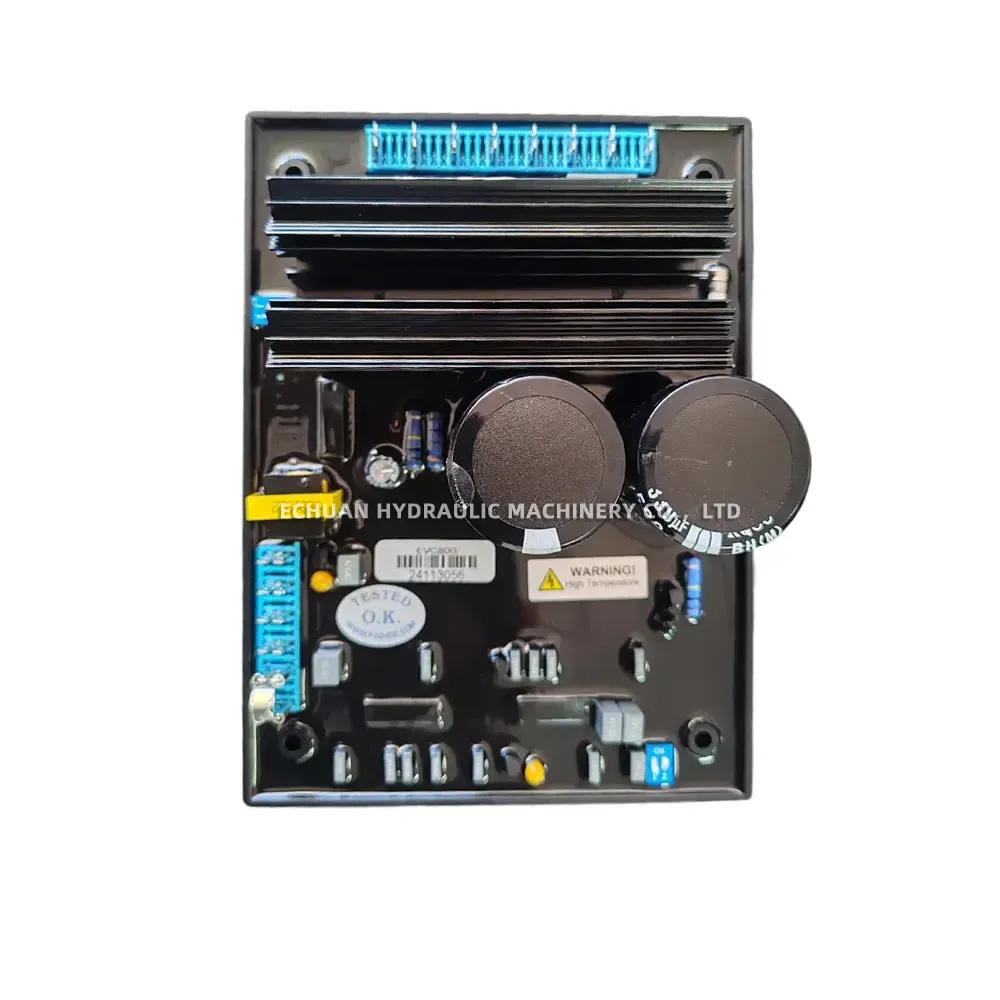

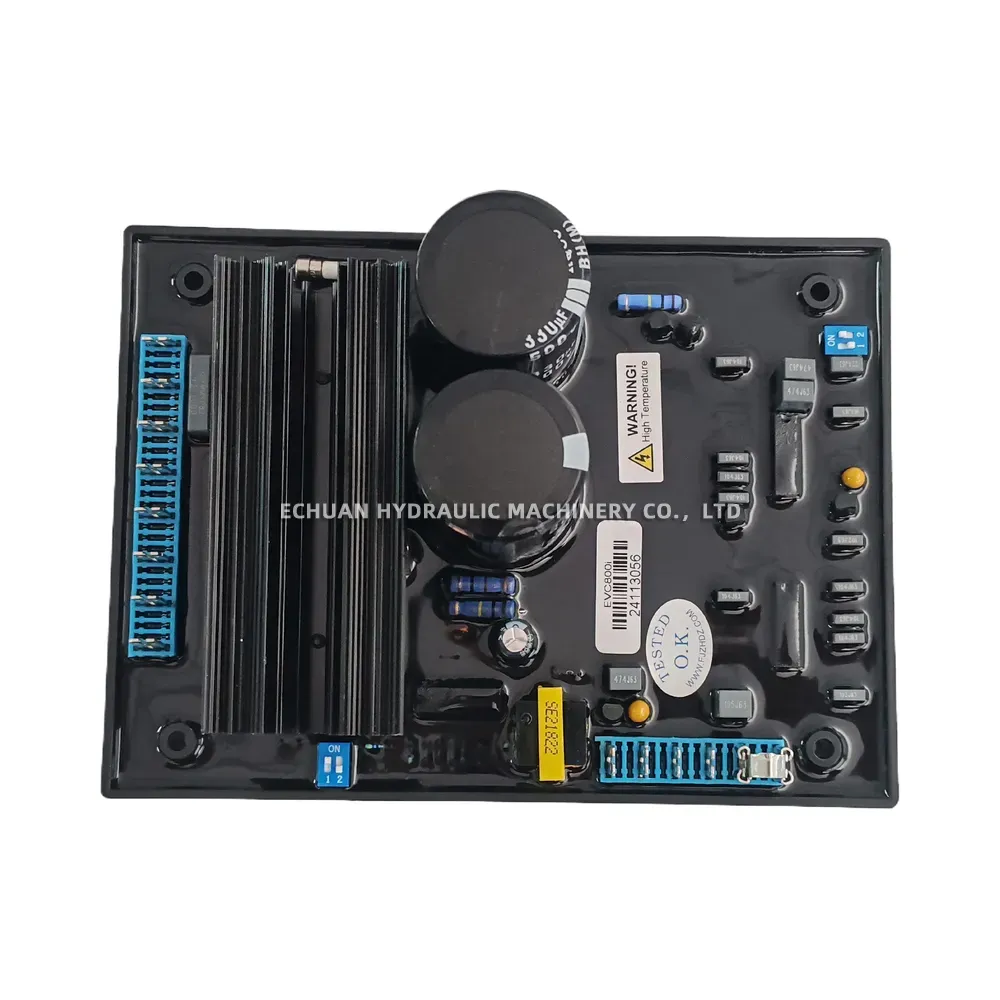

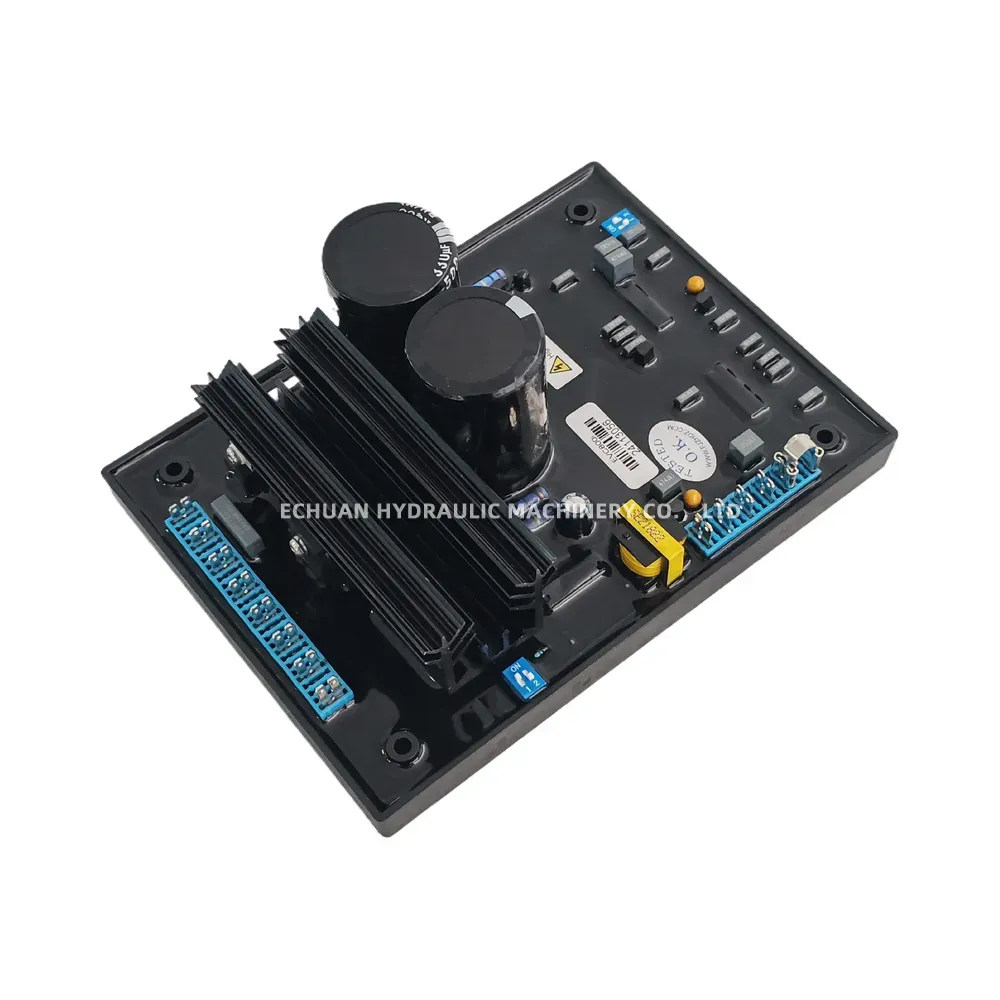

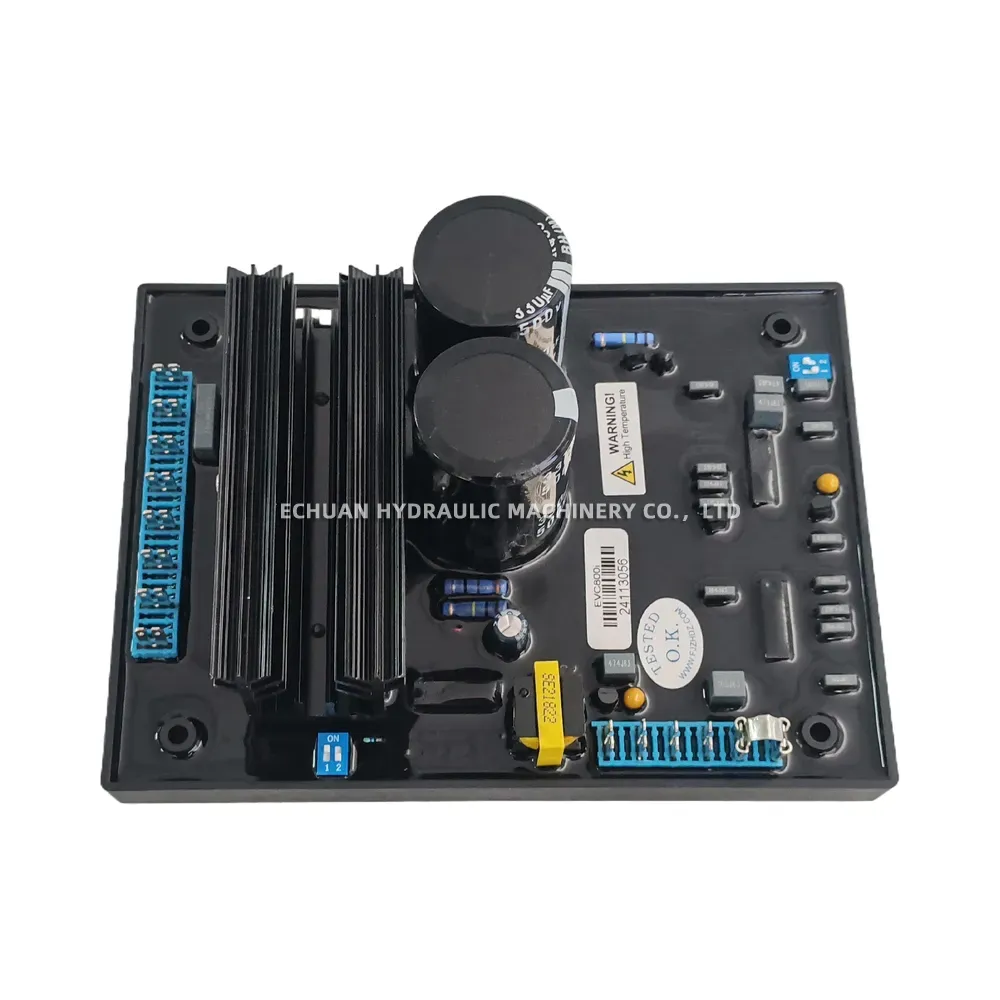

ENGGA EVC800i Automatic Voltage Regulator (AVR)
The ENGGA EVC800i is a premium three-phase Automatic Voltage Regulator (AVR) specifically engineered for industrial generator applications. Designed to ensure stable and reliable power output, this unit features highly flexible sensing inputs ranging from 110Vac to 480Vac, easily selectable via an onboard switch (SW1-2). It is fully compatible with Permanent Magnet Generator (PMG) systems, accepting 130-180Vac inputs across a broad 50-400Hz frequency range. Built for durability and sustained performance in demanding environments, the EVC800i is equipped with a large aluminum heatsink and high-capacity capacitors for superior thermal management. Additionally, operators can easily monitor system status in real-time using the integrated LED indicators for Droop, Trim, Under Frequency Roll Off (UFRO), Stability, and Voltage.
Technical Specifications:
- Brand: ENGGA
- Model: EVC800i
- Sensing Input (SW1-2 Off): 3-Phase, 320 to 480Vac
- Sensing Input (SW1-2 On): 3-Phase, 110 to 320Vac
- PMG Input: 130 to 180Vac, 3-Phase, 50 to 400Hz
- Power Input: 120Vac, 8A @ 130V, 3-Phase

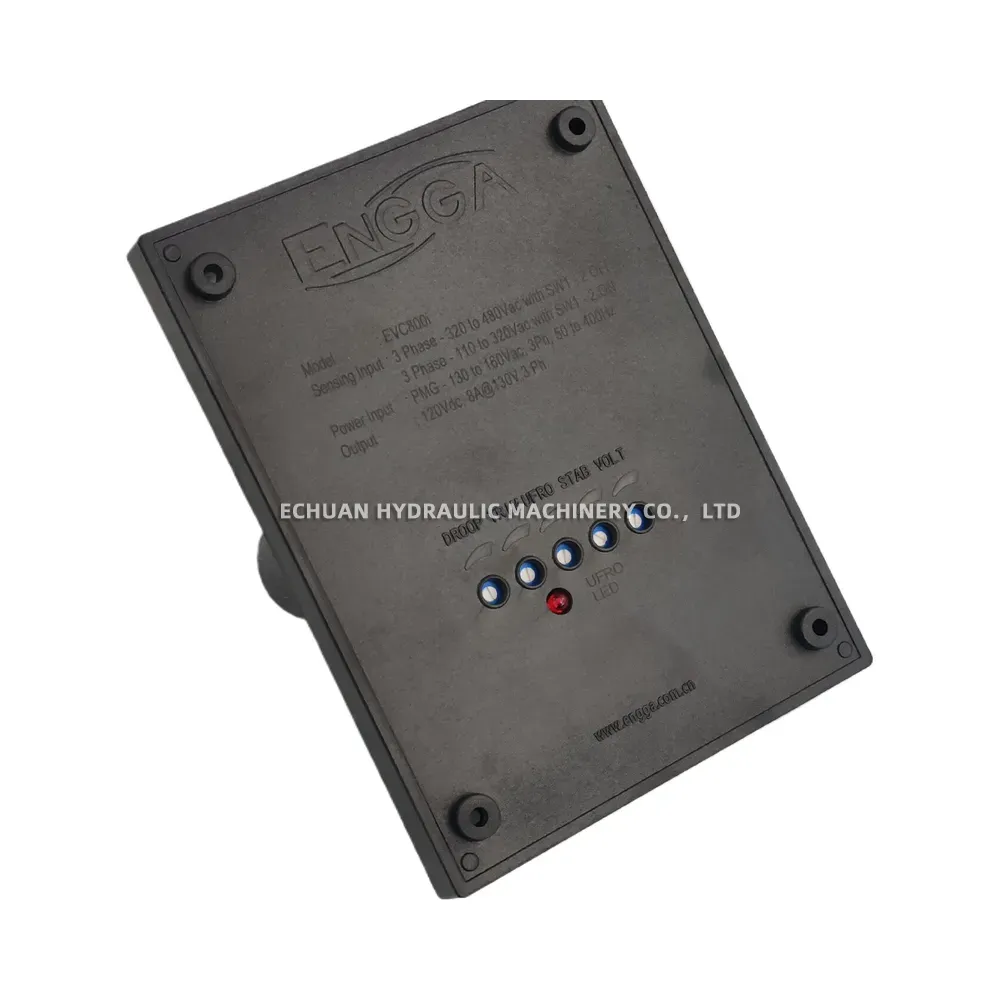

- Status Indicators: LEDs for Droop, Trim, UFRO, Stability, and Voltage
- Hardware Features: Integrated large heatsink and high-capacity capacitors for optimal cooling
ENGGA EVC800i Automatic Voltage Regulator (AVR)
Ensure stable power generation with the genuine ENGGA EVC800i Automatic Voltage Regulator. This robust 3-phase AVR features PMG compatibility, flexible 110-480Vac sensing inputs, and built-in LED diagnostics for precise voltage control and easy system monitoring.
