Product Description

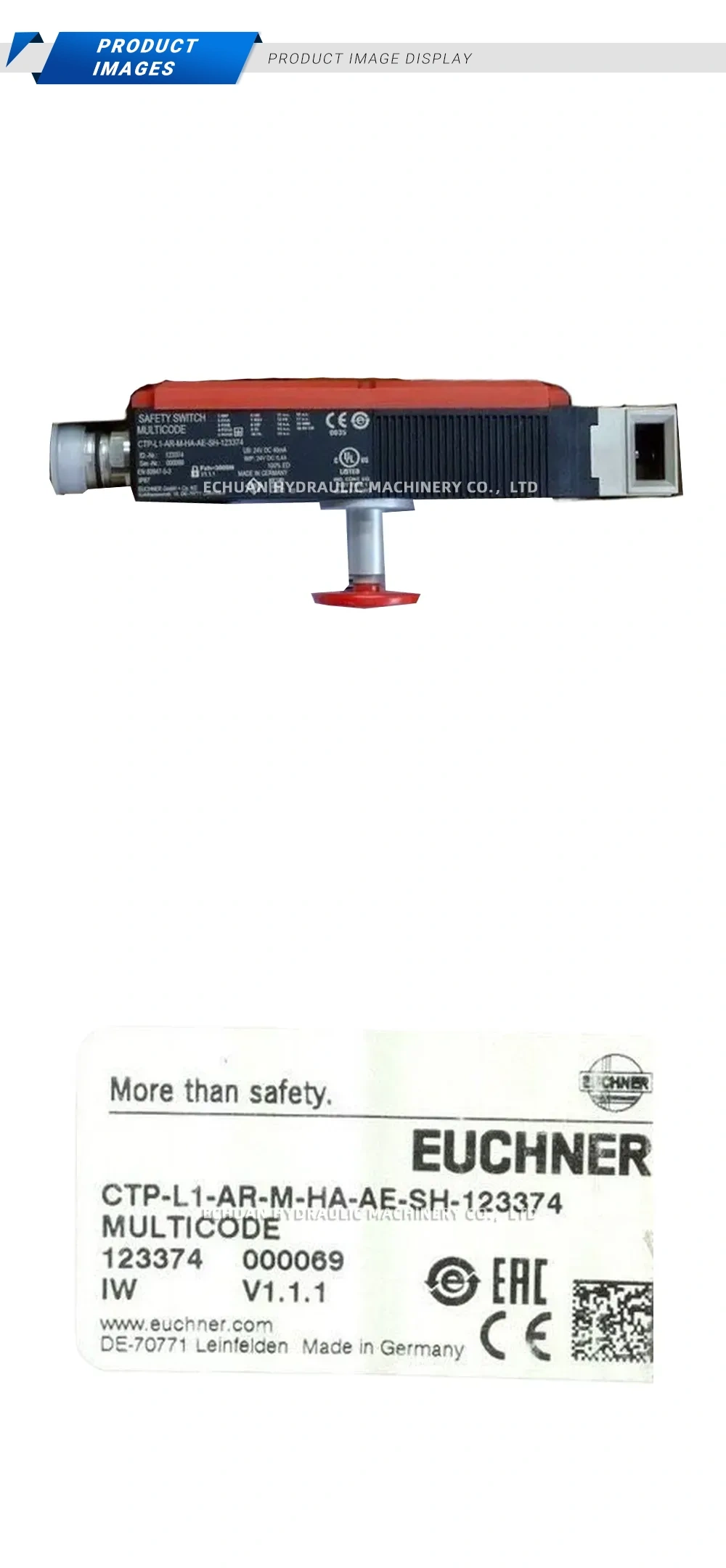

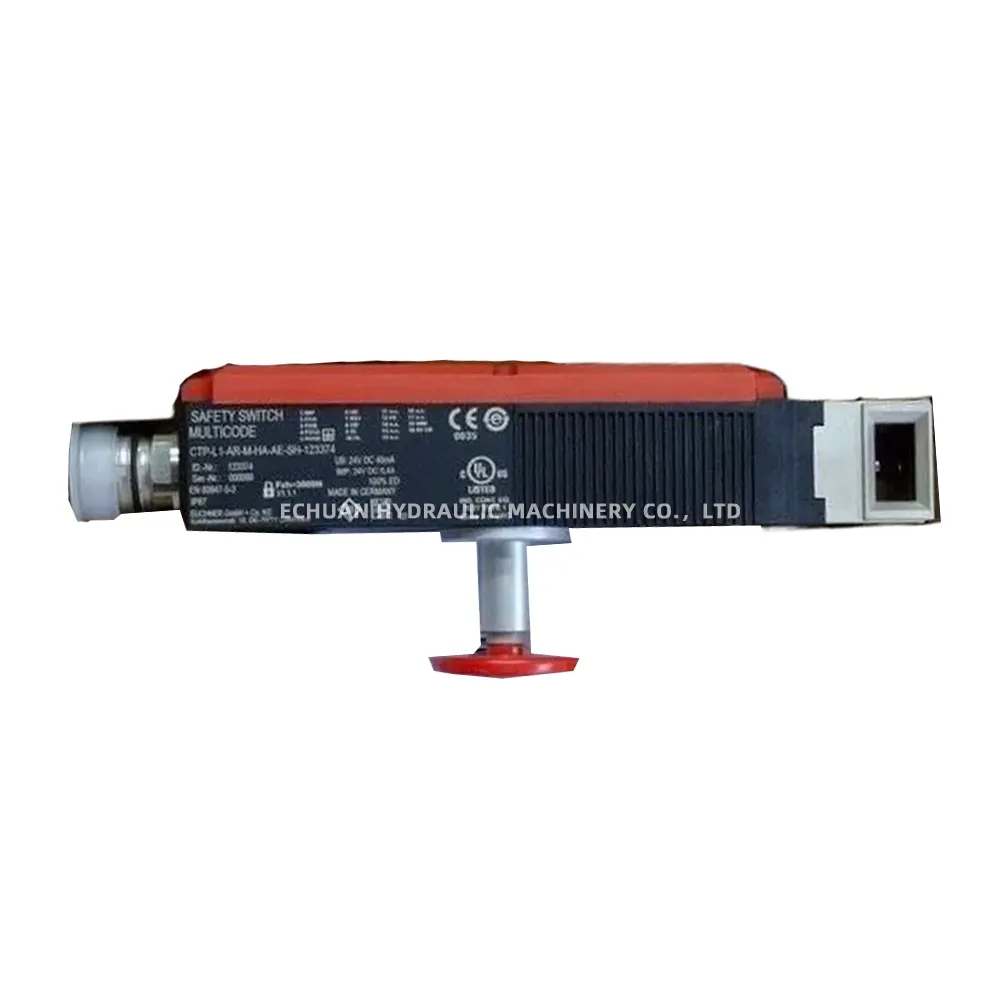

Euchner CTP-L1-AR-M-HA-AE-SH-123374 Safety Switch

The Euchner CTP-L1-AR-M-HA-AE-SH-123374 is a high-performance, transponder-coded safety switch designed for the most demanding industrial safety applications. Featuring a robust housing and a powerful guard locking force of 3900 N, it ensures that safety gates, covers, and flaps remain securely locked until hazardous machine movements have ceased. This switch utilizes Multicode technology, allowing for high coding levels to prevent tampering and ensure maximum operational safety. With its integrated escape release and auxiliary release features, the CTP-L1 provides a comprehensive safety solution that meets the highest standards, including PL e and Category 4 according to EN ISO 13849-1.

Technical Specifications:

  • Principle: Transponder-coded safety switch with guard locking (Power-to-unlock)

  • Coding: Multicode (can be re-taught)

  • Locking Force (Fmax): 3900 N

  • Safety Outputs: 2 x OSSD (semiconductor outputs), short-circuit proof

  • Connection: M12 plug connector, 8-pin

  • Safety Category: Up to Category 4 / PL e according to EN ISO 13849-1

  • IP Protection Rating: IP65, IP67, IP69

  • Special Features: Auxiliary release and escape release

Euchner CTP-L1-AR-M-HA-AE-SH-123374 Safety Switch Description

Euchner CTP-L1-AR-M-HA-AE-SH-123374 Safety Switch

Discover the Euchner CTP-L1-AR-M-HA-AE-SH-123374, a robust Multicode safety switch with 3900N guard locking force, OSSD outputs, and escape release for maximum machine safety in industrial environments (PL e).
