Product Description

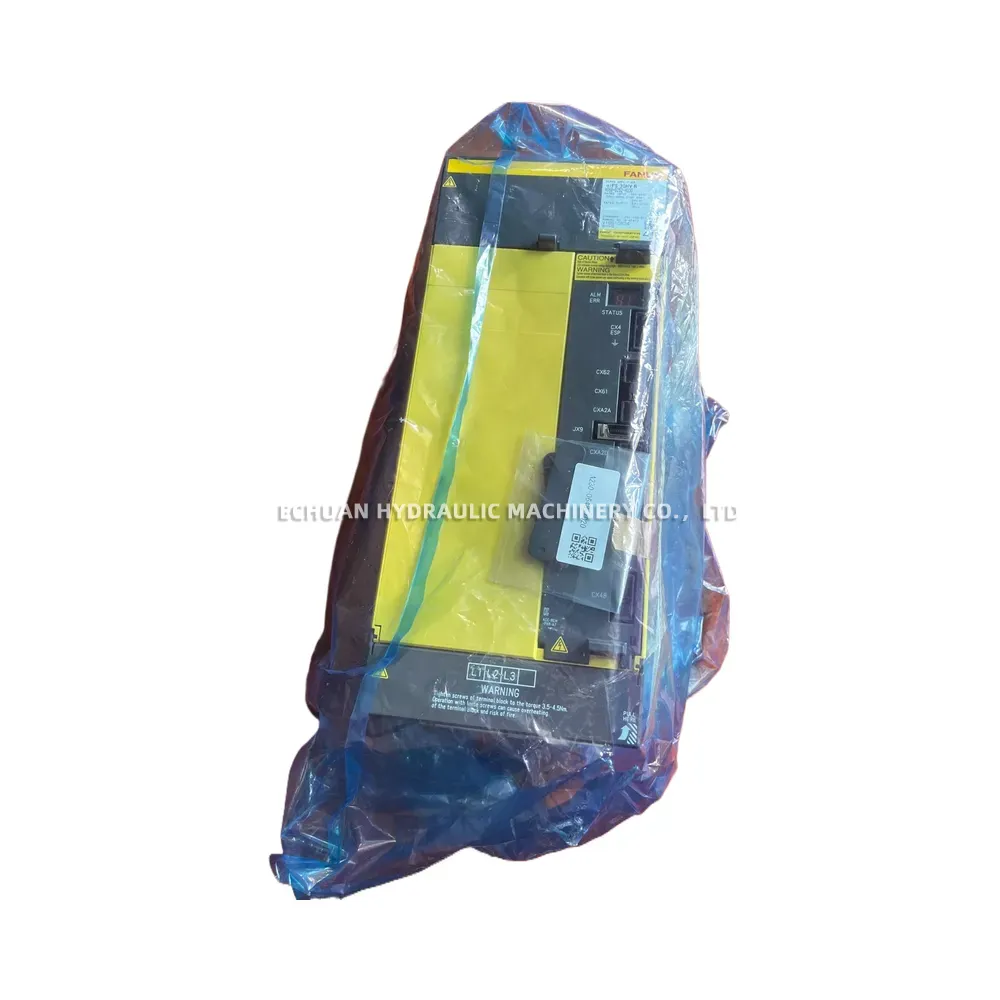

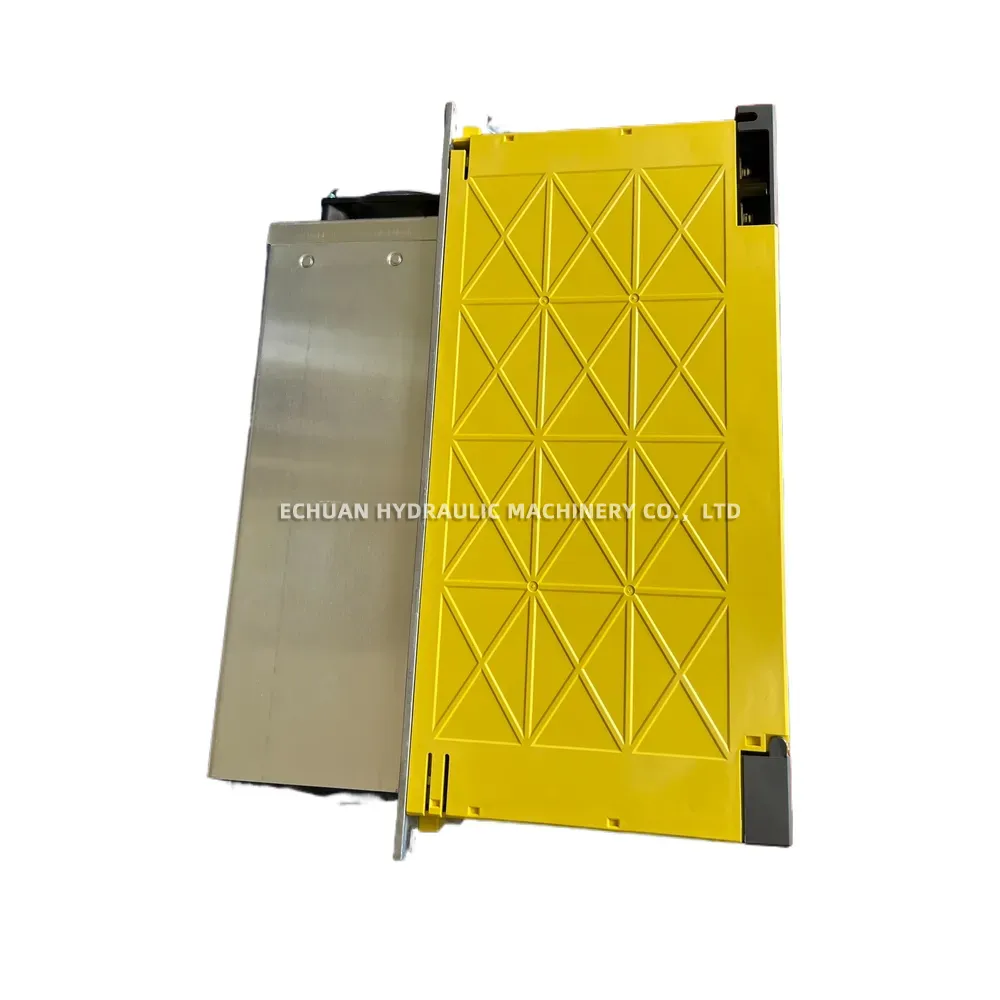

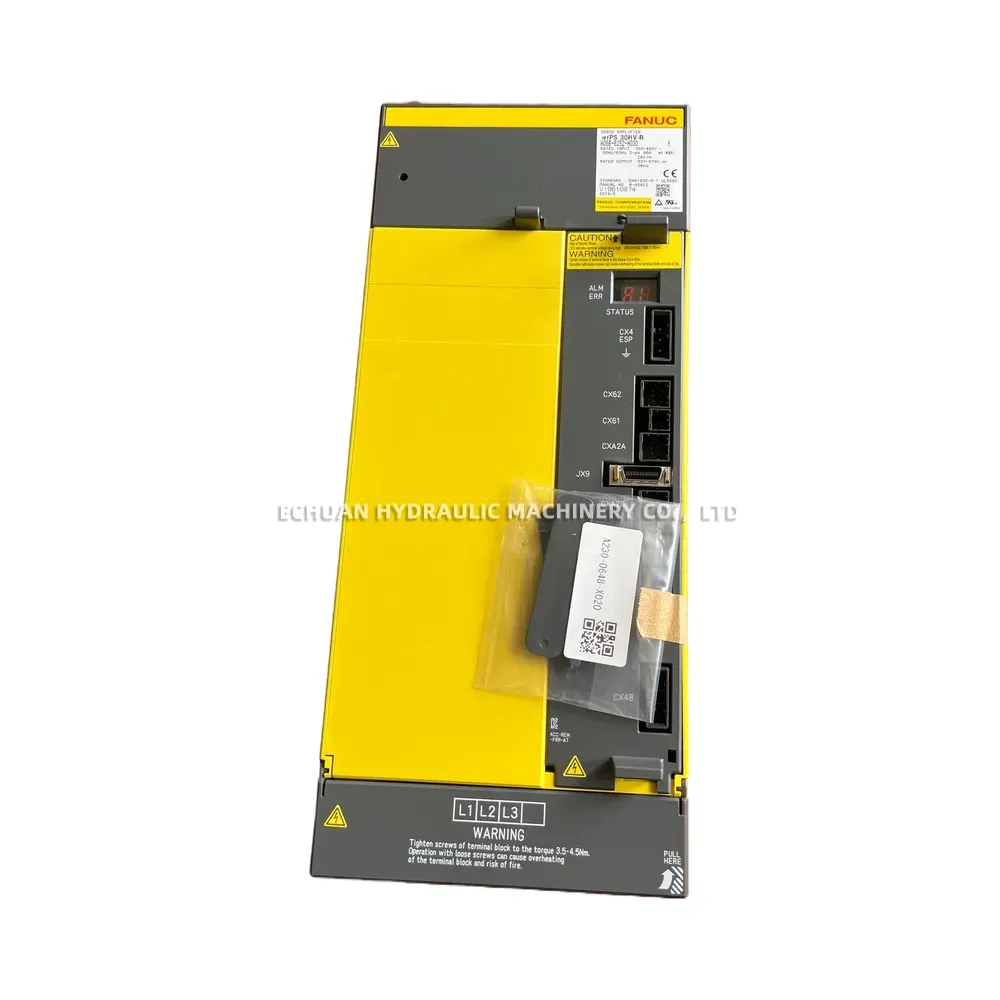

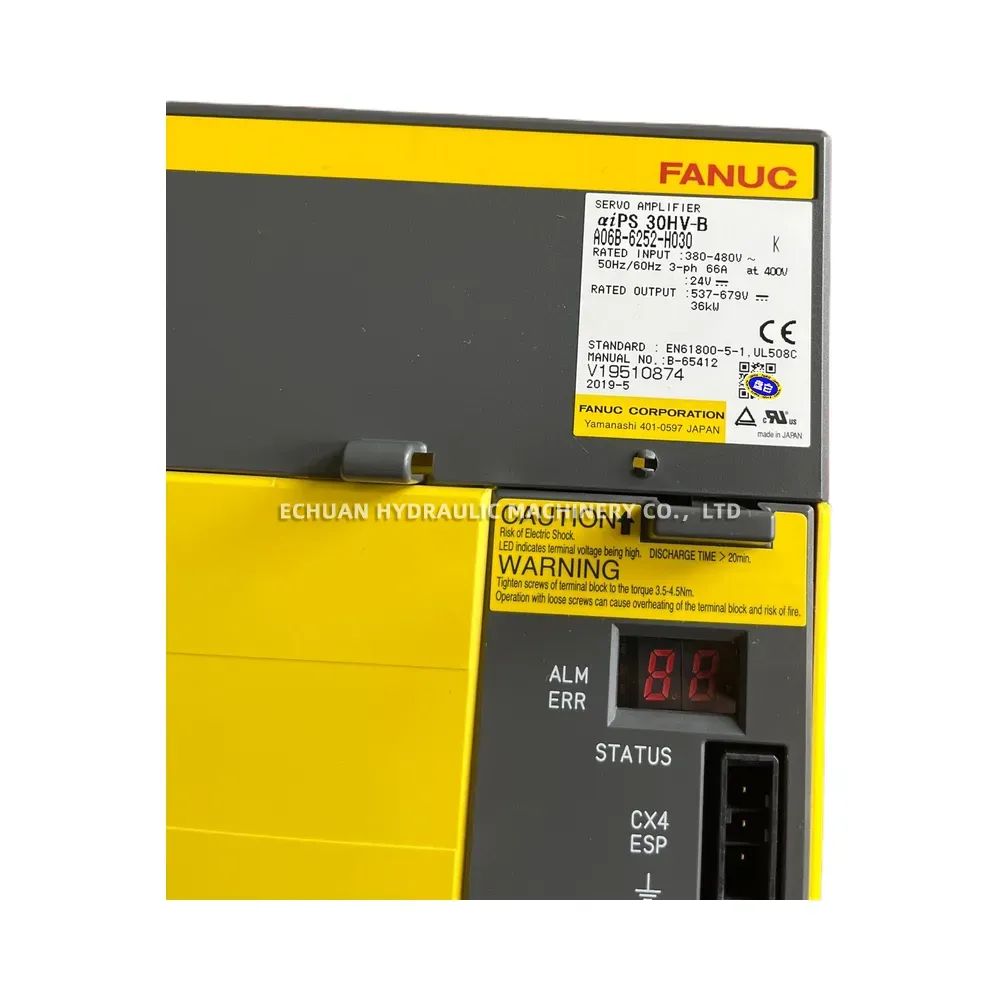

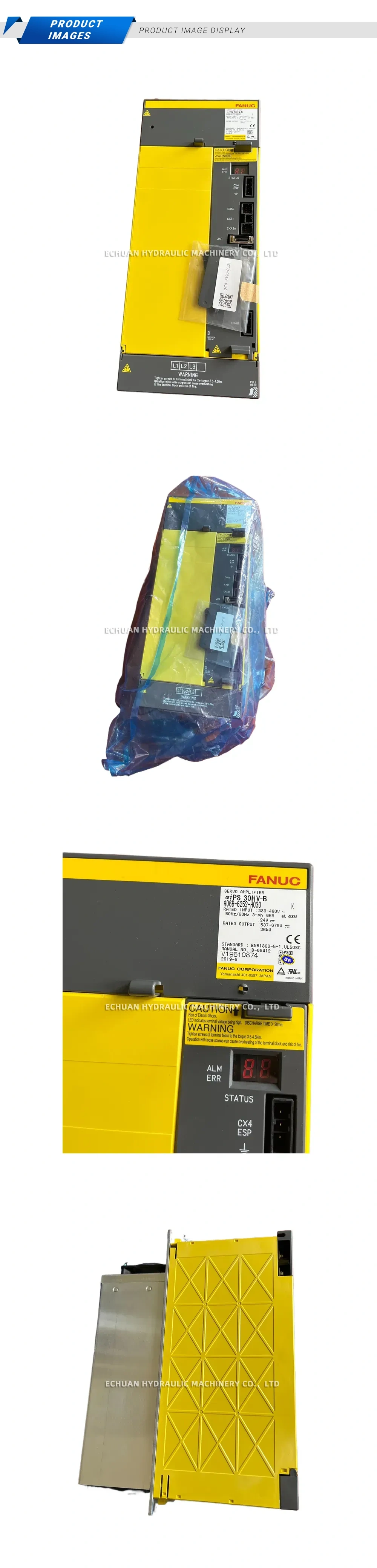

FANUC αiPS 30HV-B (A06B-6252-H030) Servo Amplifier
The FANUC αiPS 30HV-B (Part Number: A06B-6252-H030) is a high-performance 36kW Power Supply Module (PSM) engineered for FANUC Alpha i series CNC systems. Designed for 400V-class industrial environments, it accepts a 380-480V AC 3-phase input and delivers a highly stable 537-679V DC output to efficiently drive multiple servo and spindle motors. This robust amplifier module features a built-in digital status display for quick diagnostics and multiple connection interfaces (CX4, CX61, CX62, and CXA2A) for seamless integration into advanced automation networks. Manufactured in Japan and fully compliant with EN61800-5-1 and UL508C safety standards, the αiPS 30HV-B ensures maximum uptime, safety, and precision in heavy-duty machining applications.
Technical Specifications:
- Brand: FANUC
- Model: αiPS 30HV-B (Part Number: A06B-6252-H030)
- Rated Input: 380-480V AC, 50Hz/60Hz, 3-phase (66A at 400V)
- Control Voltage: 24V DC
- Rated Output: 537-679V DC, 36kW
- Interfaces: CX4, CX61, CX62, and CXA2A
- Compliance Standards: EN61800-5-1, UL508C
- Terminal Block Torque: 3.5 – 4.5 Nm
- Country of Origin: Made in Japan
FANUC αiPS 30HV-B (A06B-6252-H030) Servo Amplifier
Shop the genuine FANUC αiPS 30HV-B (A06B-6252-H030) Servo Amplifier Power Supply Module. Delivering 36kW of power with a 400V input, this reliable Alpha i series replacement part ensures peak CNC machine performance and precise motor control.
