Product Description

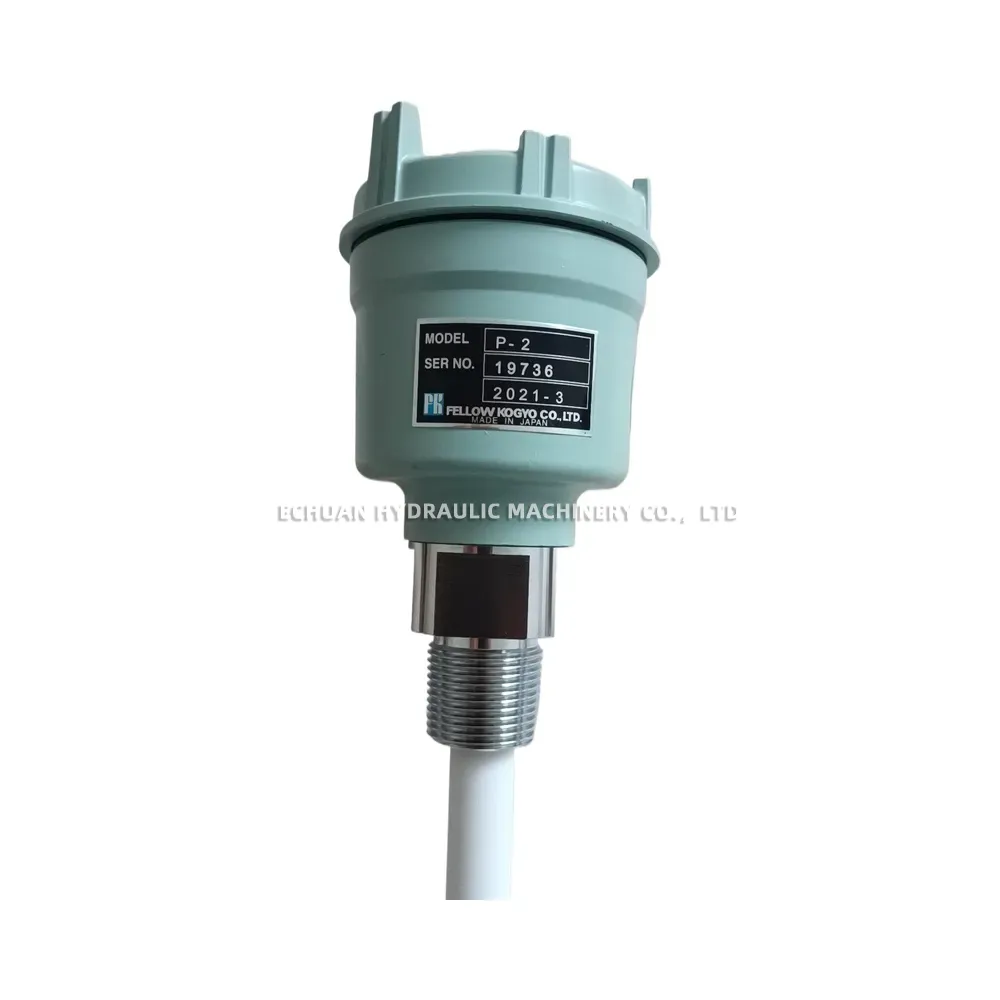

Fellow Kogyo P-2 Electrostatic Capacitance Level Switch

The Fellow Kogyo P-2 is a versatile and reliable electrostatic capacitance level switch designed for high-precision level detection in a wide range of industrial applications. Engineered for stability, it accurately senses the level of various substances, including liquids, powders, and granular materials, by detecting changes in capacitance between the probe and the tank wall. Its robust construction and high-sensitivity adjustment allow it to perform consistently even in challenging environments. The P-2 is an ideal solution for process control, offering dependable high or low-level alarms in silos, hoppers, and tanks.

Technical Specifications:

  • Power Supply: AC 100/110V or 200/220V 50/60Hz (DC24V optional)

  • Output: Relay contact 1c, AC250V 5A (resistive load)

  • Operating Temperature: -10 to +60°C (Amplifier); -20 to +80°C (Wetted Parts, Standard)

  • Process Pressure: Max. 0.98MPa (10 kgf/cm²)

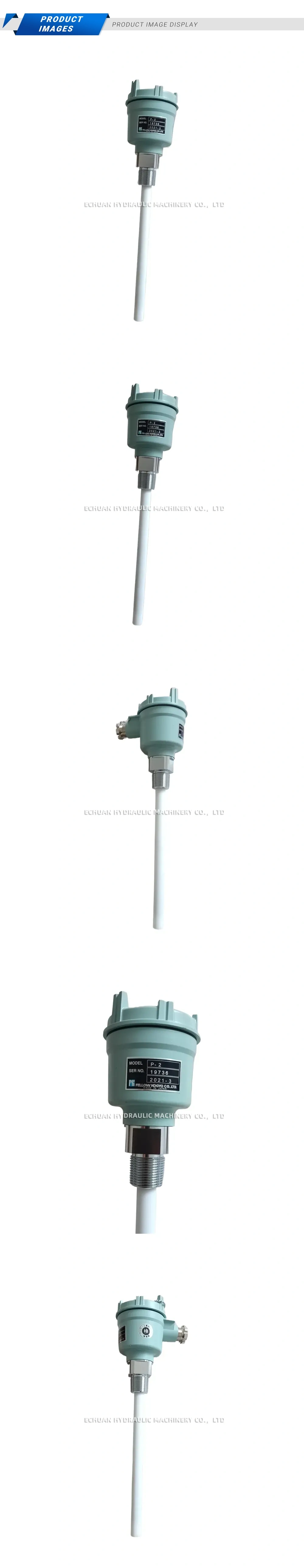

Fellow Kogyo P-2 Electrostatic Capacitance Level Switch Description

Fellow Kogyo P-2 Electrostatic Capacitance Level Switch

High-performance Fellow Kogyo P-2 capacitance level switch for reliable liquid and powder level detection. Features a robust design, relay output, and wide sensitivity adjustment for industrial process control.

BrandFELLOW KOGYO
ModelP-2
Part No.919813468904
CategoryOther products
