Product Description

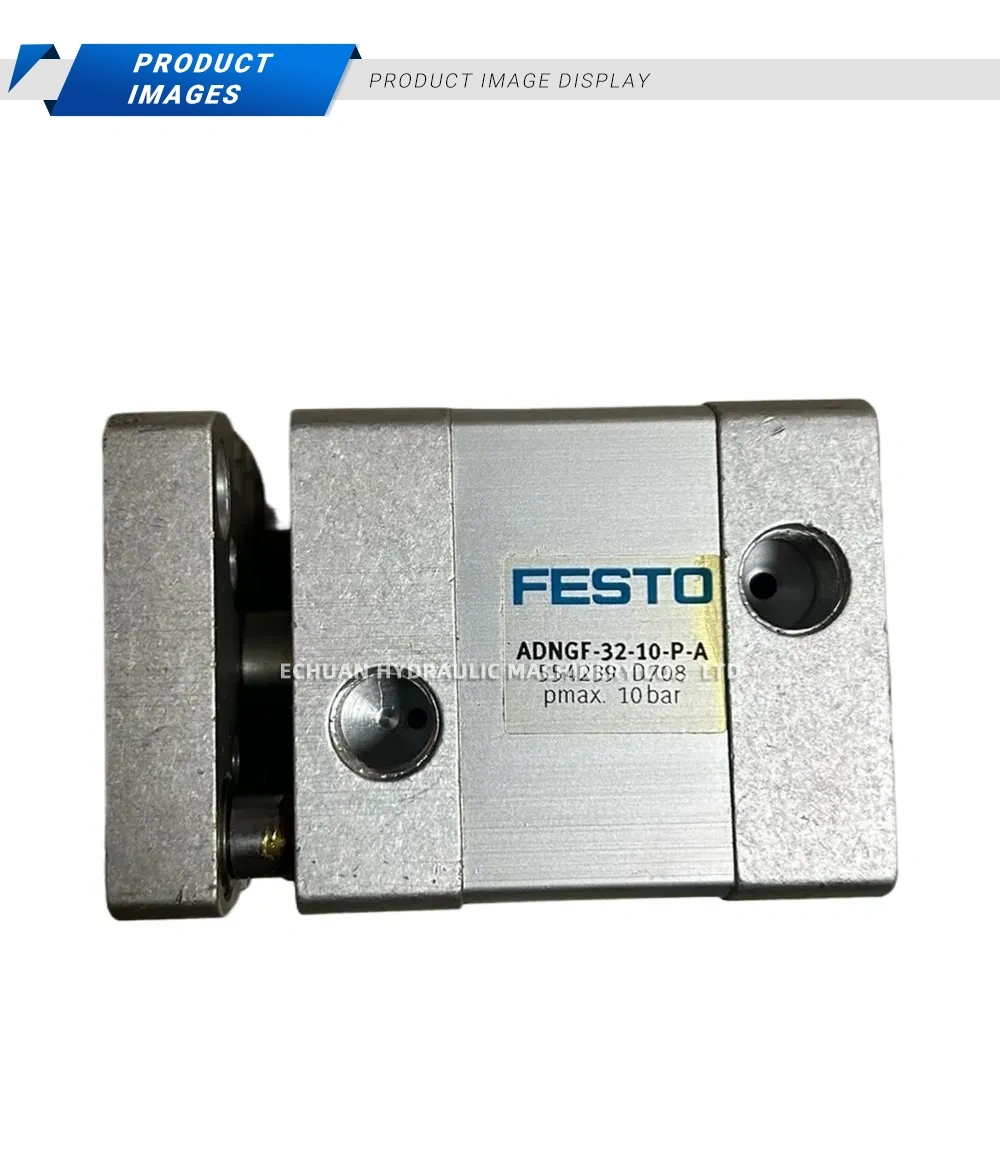

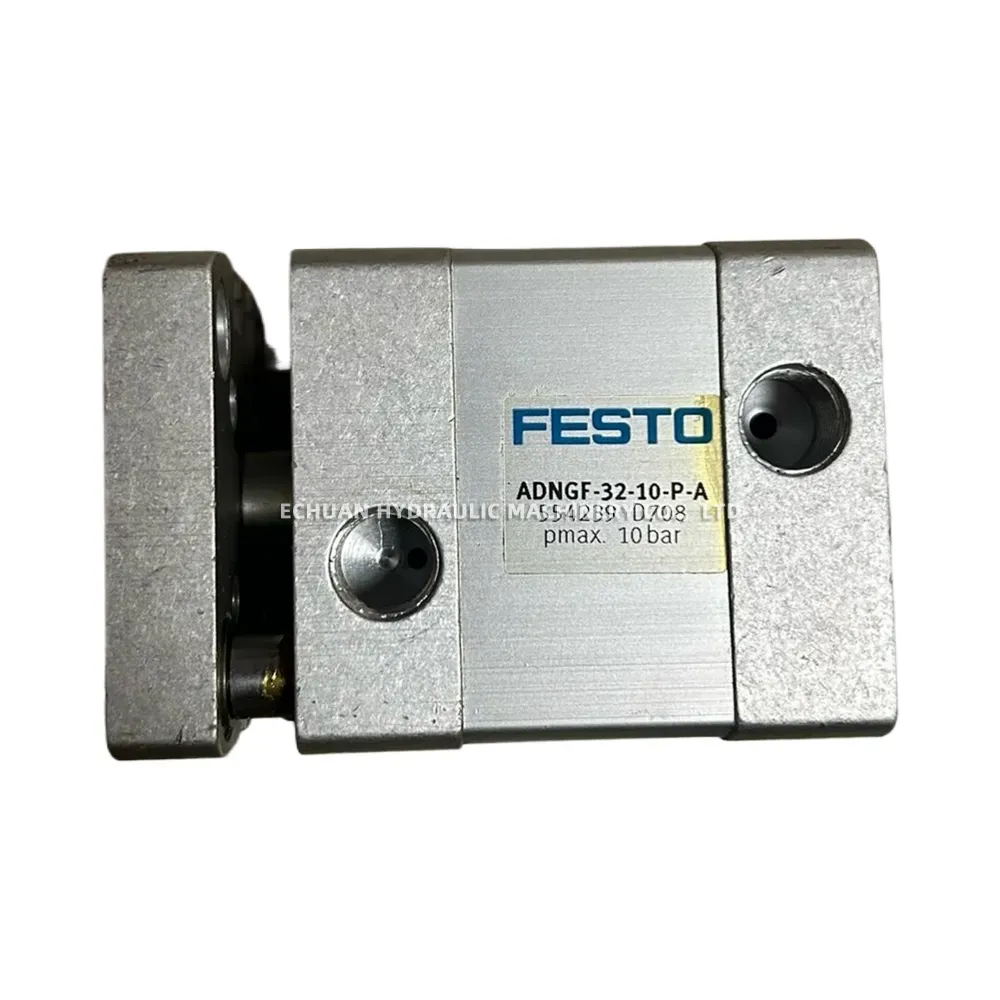

FESTO ADNGF-32-10-P-A Compact Cylinder
The FESTO ADNGF-32-10-P-A (Order Number: 554239) is a premium compact pneumatic cylinder designed for reliable performance in space-restricted industrial automation applications. As part of the ADNGF series, this double-acting cylinder features integrated guide rods that provide excellent resistance to torque and lateral forces, making it ideal for precision clamping, lifting, and stopping tasks. It features a 32 mm piston diameter and a 10 mm stroke length. The unit is equipped with flexible cushioning rings at both ends (“P”) to absorb impact energy and reduce operational noise, as well as an integrated magnet (“A”) for accurate position sensing using proximity sensors. Built to withstand demanding environments, it operates efficiently at a maximum pressure of 10 bar.
Technical Specifications:
- Brand: FESTO
- Model: ADNGF-32-10-P-A
- Order Number: 554239
- Piston Diameter: 32 mm
- Stroke Length: 10 mm
- Maximum Operating Pressure (pmax): 10 bar
- Mode of Operation: Double-acting
- Design Structure: Piston, piston rod, profile barrel, and guide rods
- Cushioning: Flexible cushioning rings/plates at both ends (P)
- Position Sensing: Integrated magnet for proximity sensors (A)
FESTO ADNGF-32-10-P-A Compact Cylinder
Buy the FESTO ADNGF-32-10-P-A (554239) compact guided pneumatic cylinder online. Featuring a 32mm bore, 10mm stroke, 10 bar max pressure, flexible cushioning, and position sensing. Perfect for high-precision, space-saving industrial automation and robotics applications.
| Brand | Festo |
|---|---|
| Model | ADNGF-32-10-P-A |
| Part No. | 1046454021446 |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/festo-adngf-32-10-p-a-compact-cylinder |
