Product Description

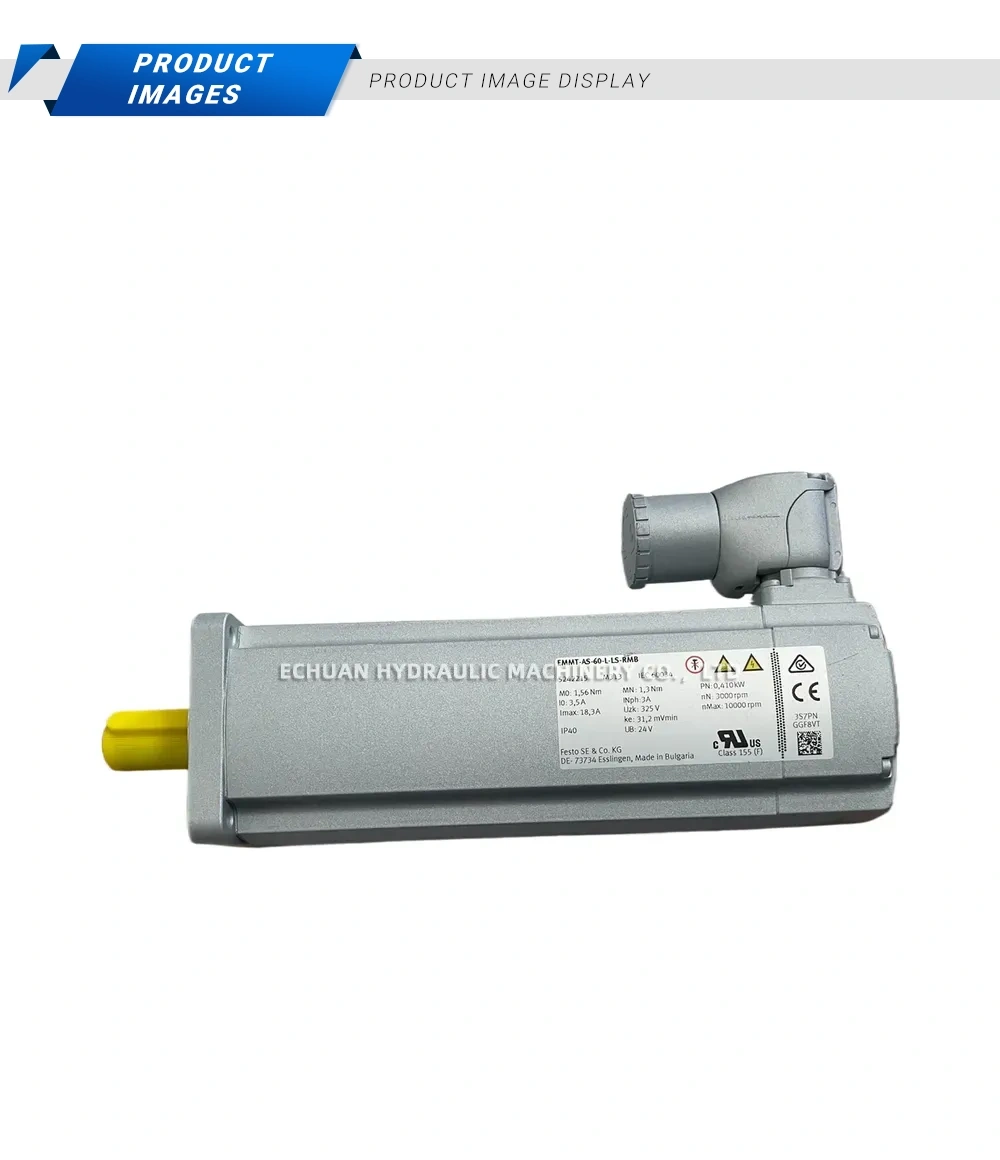

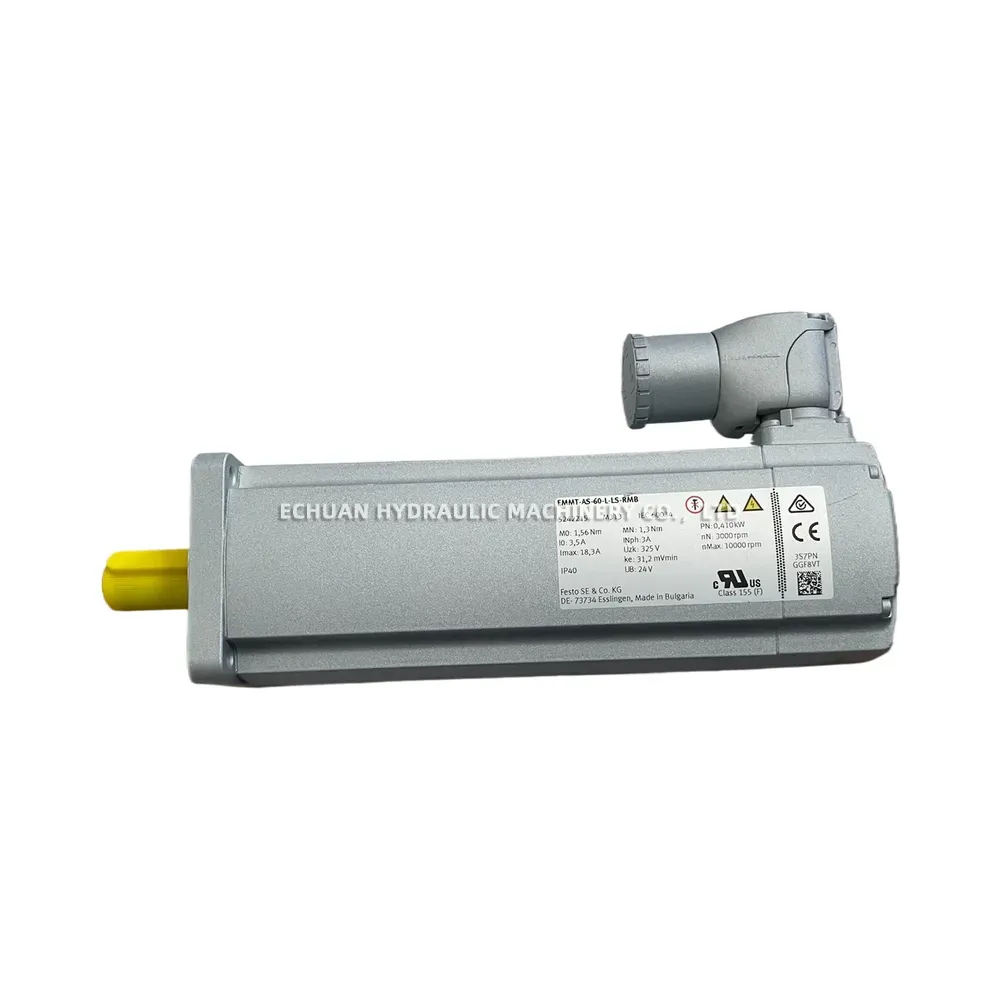

Festo EMMT-AS-60-L-LS-RMB Servo Motor
The Festo EMMT-AS-60-L-LS-RMB is a highly dynamic synchronous servo motor engineered for precise and efficient industrial automation. Belonging to the renowned EMMT-AS series, this motor delivers a rated power of 0.410 kW and a rated torque of 1.3 Nm, making it ideal for demanding positioning and motion control tasks. It operates at a nominal speed of 3000 rpm and can achieve maximum speeds up to 10000 rpm for high-speed applications. Manufactured to IEC 60034 standards with Class 155 (F) insulation, the EMMT-AS-60-L-LS-RMB ensures exceptional durability and thermal reliability. Featuring an IP40 protection rating and integrated encoder support, it seamlessly integrates into advanced drive systems, providing optimal performance for manufacturing, packaging, and robotics.
Technical Specifications:
- Brand: Festo
- Model: EMMT-AS-60-L-LS-RMB
- Part Number: 5242215
- Motor Type: Synchronous Servo Motor
- Rated Power (PN): 0.410 kW
- Rated Torque (MN): 1.3 Nm
- Stall Torque (M0): 1.56 Nm
- Rated Speed (nN): 3000 rpm
- Maximum Speed (nMax): 10000 rpm
- Rated Current (INph): 3.0 A
- Stall Current (I0): 3.5 A
- Maximum Current (Imax): 18.3 A
- DC Link Voltage (Uzk): 325 V
- Brake/Encoder Supply Voltage (UB): 24 V DC
- Voltage Constant (ke): 31.2 mVmin
- Protection Class: IP40
- Insulation Class: 155 (F)
- Standards/Certifications: IEC 60034, CE, cRUus
Festo EMMT-AS-60-L-LS-RMB Servo Motor
Shop the Festo EMMT-AS-60-L-LS-RMB (5242215) synchronous servo motor. Delivering 0.410 kW power, 1.3 Nm rated torque, and speeds up to 10000 rpm, this IP40-rated motor ensures precise and dynamic motion control for your industrial automation systems.
