Product Description
FESTO LOE-D-MAXI Oil Separator

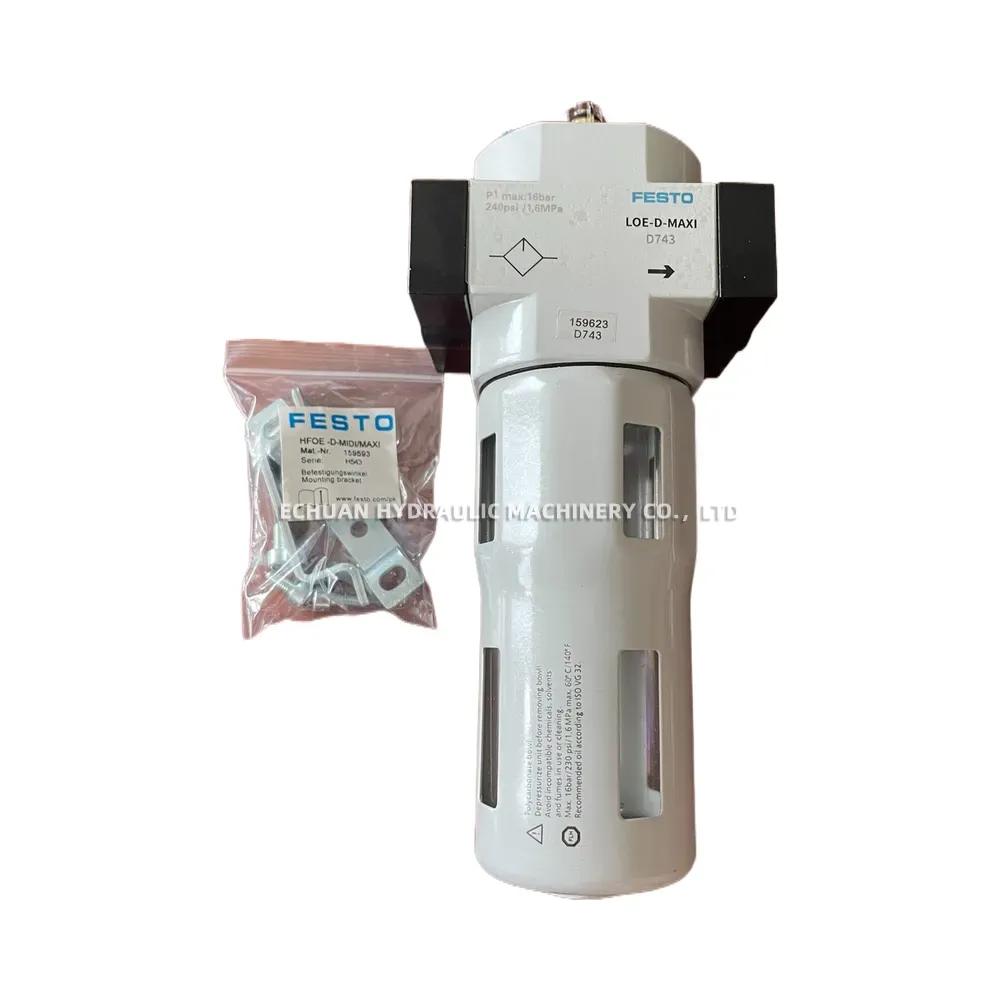

The FESTO LOE-D-MAXI (Part Number: 159623) is a high-performance proportional lubricator and oil delivery unit engineered for industrial compressed air systems. Built for durability and ease of maintenance, it features a robust polycarbonate bowl equipped with viewing windows, allowing operators to quickly monitor fluid levels. This unit is designed to withstand demanding environments with a maximum operating pressure of 16 bar (240 psi / 1.6 MPa) and a maximum operating temperature of 60°C (140°F). It utilizes standard ISO VG 32 recommended oil to ensure smooth pneumatic operations. For convenient and secure installation, the package includes the official FESTO HFOE-D-MIDI/MAXI mounting bracket (Part Number: 159593). Safety Note: Always depressurize the unit before removing the bowl and avoid impact or stress on the containers during operation and cleaning.
Technical Specifications:
- Brand / Model: FESTO LOE-D-MAXI (Part No. 159623)
- Maximum Operating Pressure (p1 max): 16 bar / 240 psi / 1.6 MPa
- Maximum Operating Temperature: 60°C / 140°F
- Bowl Material: Polycarbonate with viewing windows
- Recommended Lubricant: Oil according to ISO VG 32
- Included Accessories: Mounting bracket HFOE-D-MIDI/MAXI (Mat.-Nr.: 159593, Series: H543)
FESTO LOE-D-MAXI Oil Separator
Optimize your industrial compressed air system with the FESTO LOE-D-MAXI Oil Separator / Lubricator (159623). Operating at up to 16 bar (240 psi), this robust unit features a clear polycarbonate bowl and includes a heavy-duty mounting bracket for quick installation. Reliable, efficient, and built for ISO VG 32 oil.
