Product Description
Festo SPABT-B2-R18-2N-K1-SA Digital Pressure Sensor
The Festo SPABT-B2-R18-2N-K1-SA (Material Number: 15171570) is a highly reliable and precise digital pressure sensor designed for advanced pneumatic applications. Featuring a comprehensive measurement range of -101.0 to 101.0 kPa, this sensor ensures accurate monitoring of both vacuum and positive pressure levels. It operates efficiently on a DC 12-24V power supply and comes equipped with two NPN switching outputs (125mA) for versatile control system integration. The integrated digital display screen, along with intuitive Up, Set, and Down control buttons, allows for quick parameter configuration and real-time status monitoring. With its standardized 4-wire configuration and CE certification, this Festo pressure sensor delivers robust and consistent performance for demanding industrial automation environments.
Technical Specifications:
- Brand: Festo
- Model: SPABT-B2-R18-2N-K1-SA
- Material Number: 15171570
- Measurement Range: -101.0 to 101.0 kPa
- Operating Voltage: 12 – 24V DC
- Switching Outputs: 2 x NPN (125mA maximum)

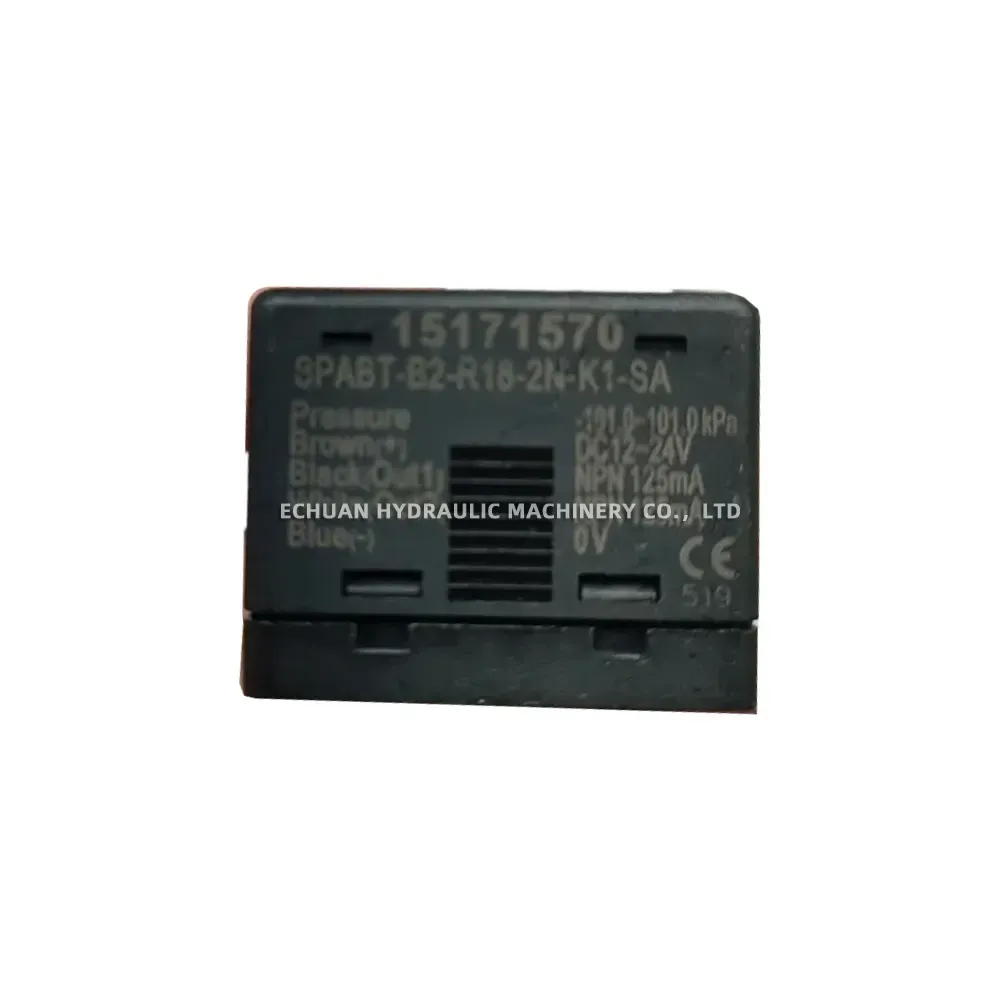

- Wiring Configuration: Brown (+), Black (Out1), White (Out2), Blue (-)

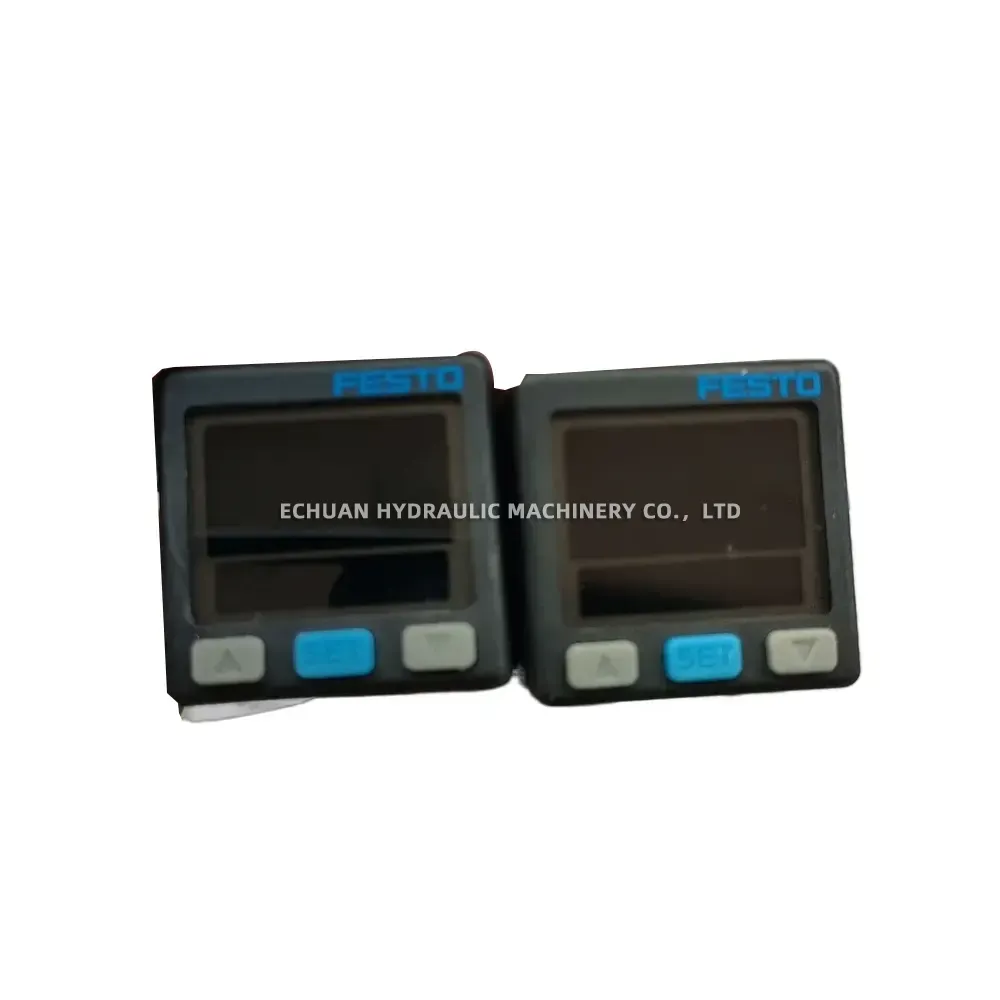

- Display & Interface: Digital screen with Up, Set, and Down control buttons
- Certifications: CE
Festo SPABT-B2-R18-2N-K1-SA Digital Pressure Sensor
Shop the Festo SPABT-B2-R18-2N-K1-SA (15171570) Digital Pressure Sensor. Offers a -101.0 to 101.0 kPa measurement range, 12-24V DC operation, dual NPN outputs, and a clear digital display for precise pneumatic system monitoring and automation control.
