Product Description

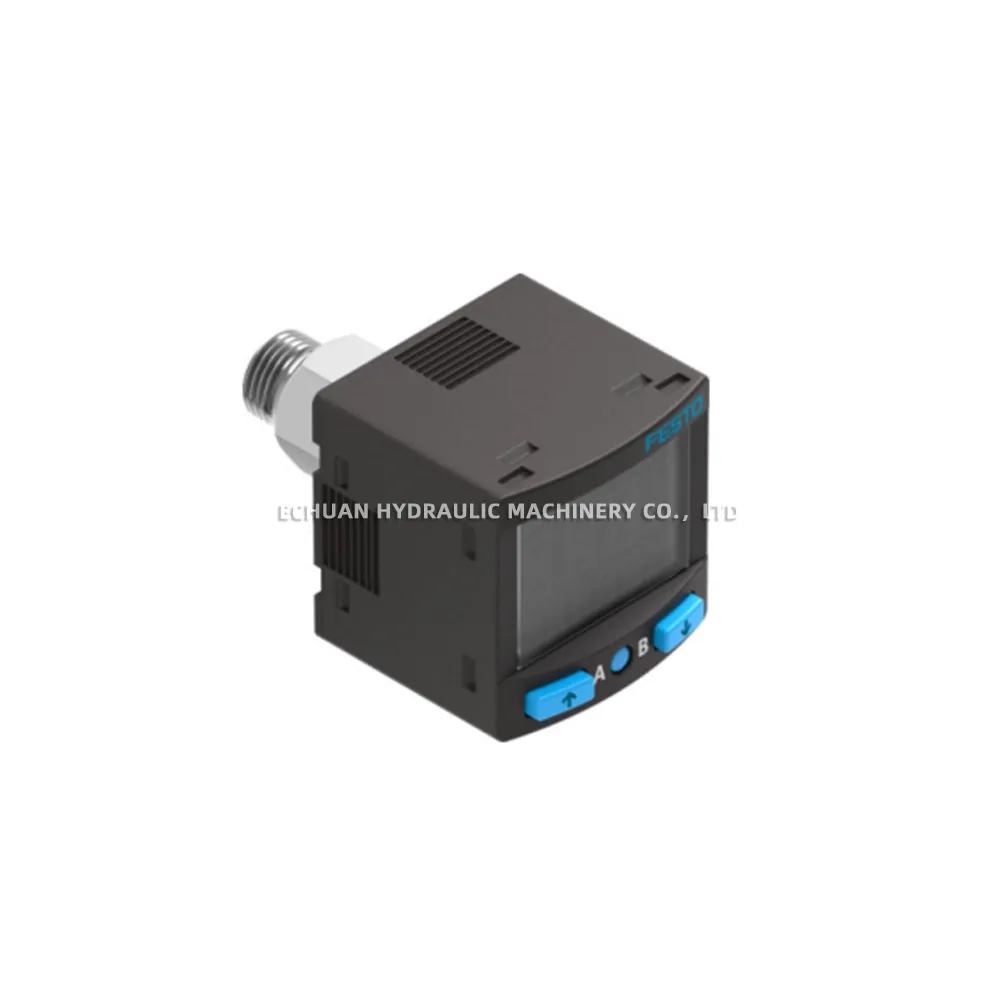

Festo SPAN-B11R-G18M-PNLK-PNVBA-L1 Pressure sensor
The Festo SPAN-B11R-G18M-PNLK-PNVBA-L1 is a compact and versatile pressure sensor designed for precise monitoring and control in pneumatic applications. It features a clear, backlit LCD display that shows the current pressure value and switching status, ensuring easy readability. With two programmable PNP switching outputs and a measuring range of -1 to 1 bar, this sensor offers high flexibility for various industrial automation tasks, including vacuum monitoring and pressure regulation. Its robust design and standard G1/8 process connection allow for quick and straightforward installation into new or existing systems.

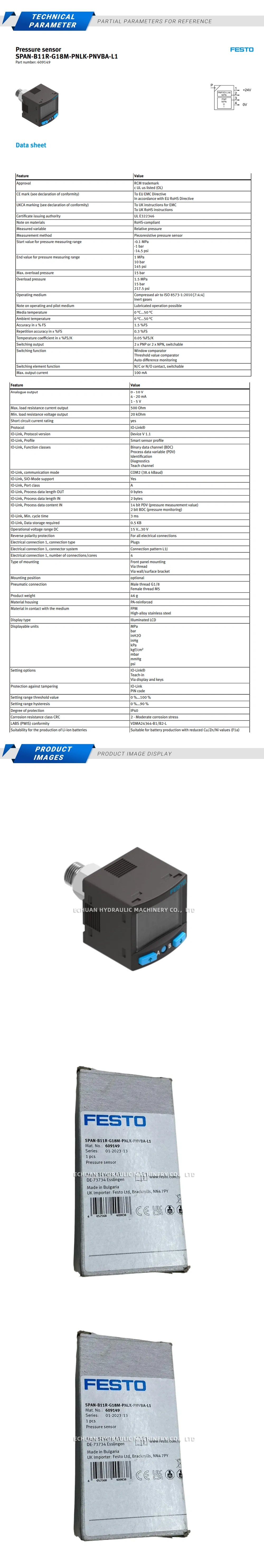

Technical Specifications:
- Measuring range: -1 … 1 bar
- Operating voltage DC: 15 V … 30 V
- Switching output: 2 x PNP, switchable (Normally Open / Normally Closed)
- Process connection: G1/8 male thread
- Electrical connection: M8x1, 4-pin plug, A-coded
Festo SPAN-B11R-G18M-PNLK-PNVBA-L1 Pressure sensor
Festo SPAN-B11R-G18M-PNLK-PNVBA-L1 digital pressure sensor with a -1 to 1 bar range, dual programmable PNP outputs, backlit LCD, and a G1/8 connection for reliable pneumatic system monitoring.
