Product Description
Festo VADMI-200-LS-P

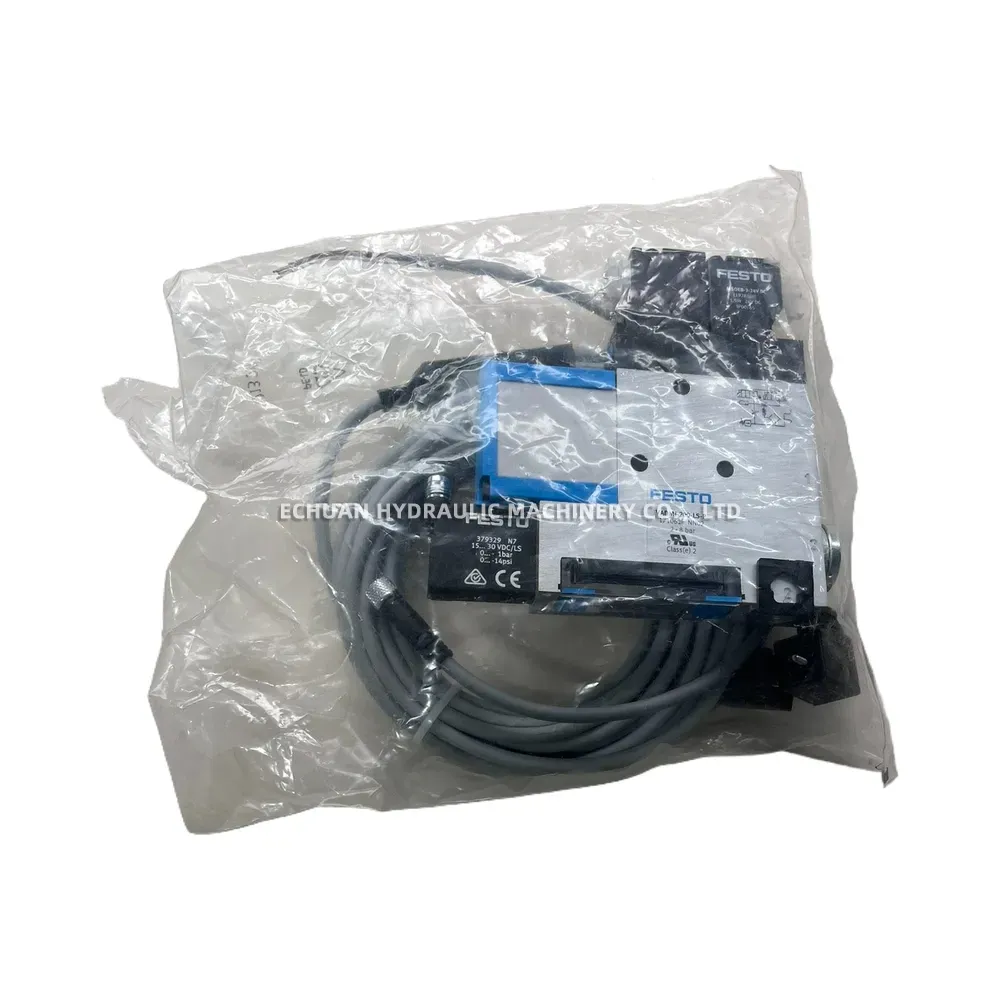

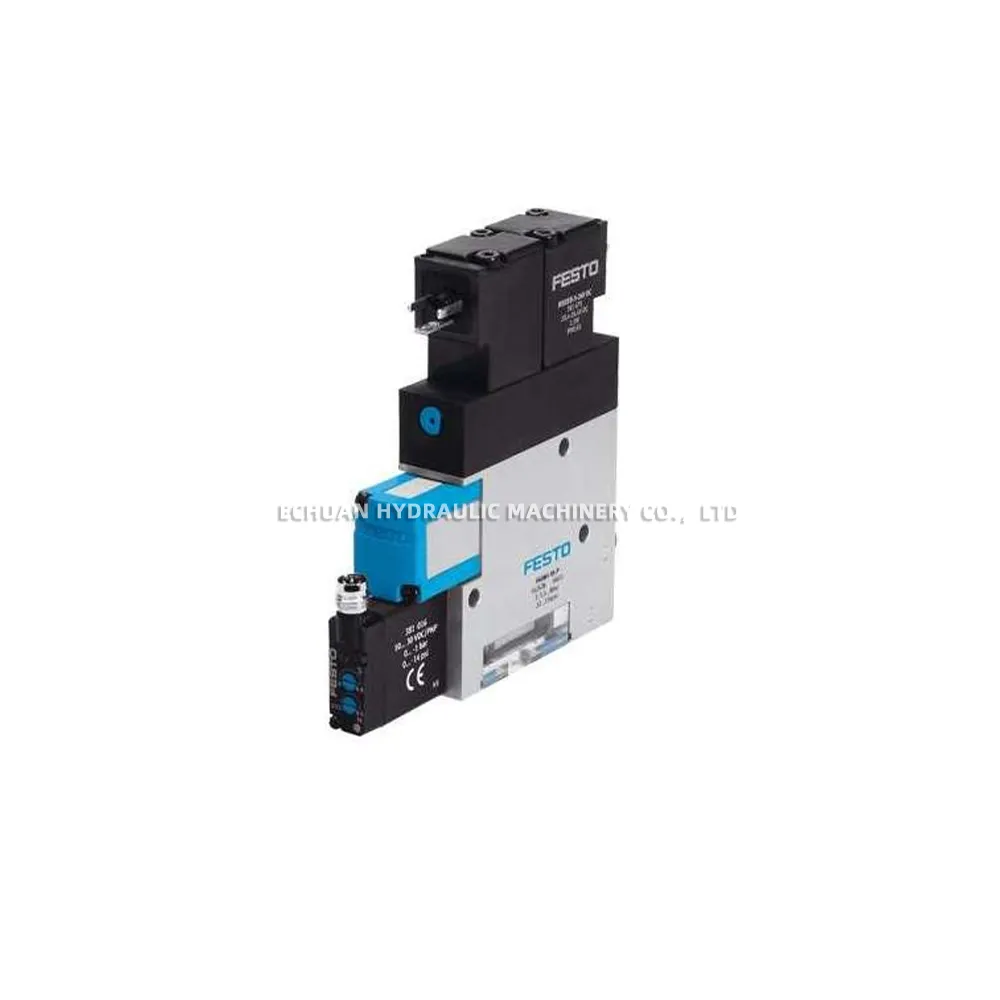

The Festo VADMI-200-LS-P is a high-performance, inline vacuum generator designed for demanding automation and handling applications. This compact unit integrates multiple functions, including a suction valve, an ejector pulse valve for rapid workpiece release, and a vacuum switch for system monitoring. Its robust design and high suction rate make it ideal for pick-and-place systems, robotics, and automated material handling where efficiency and reliability are paramount. The G1/4 connections and M12 electrical plug ensure easy and secure integration into existing pneumatic and control systems.
Technical Specifications:
- Nominal nozzle size: 2 mm
- Operating pressure: 1.5 bar to 8 bar
- Maximum vacuum: 85 %
- Maximum suction rate with respect to atmosphere: 157 l/min
- Pneumatic connection: G1/4
- Electrical connection: M12x1 plug, 4-pin
- Integrated functions: Ejector pulse valve, ON/OFF valve, vacuum switch (PNP)
Festo VADMI-200-LS-P
Festo VADMI-200-LS-P inline vacuum generator with 2.0mm nozzle, integrated solenoid valves, and PNP vacuum switch. Ideal for high-suction-rate automated handling and pick-and-place applications.
| Brand | Festo |
|---|---|
| Model | VADMI-200-LS-P |
| Category | Other products |
