Product Description

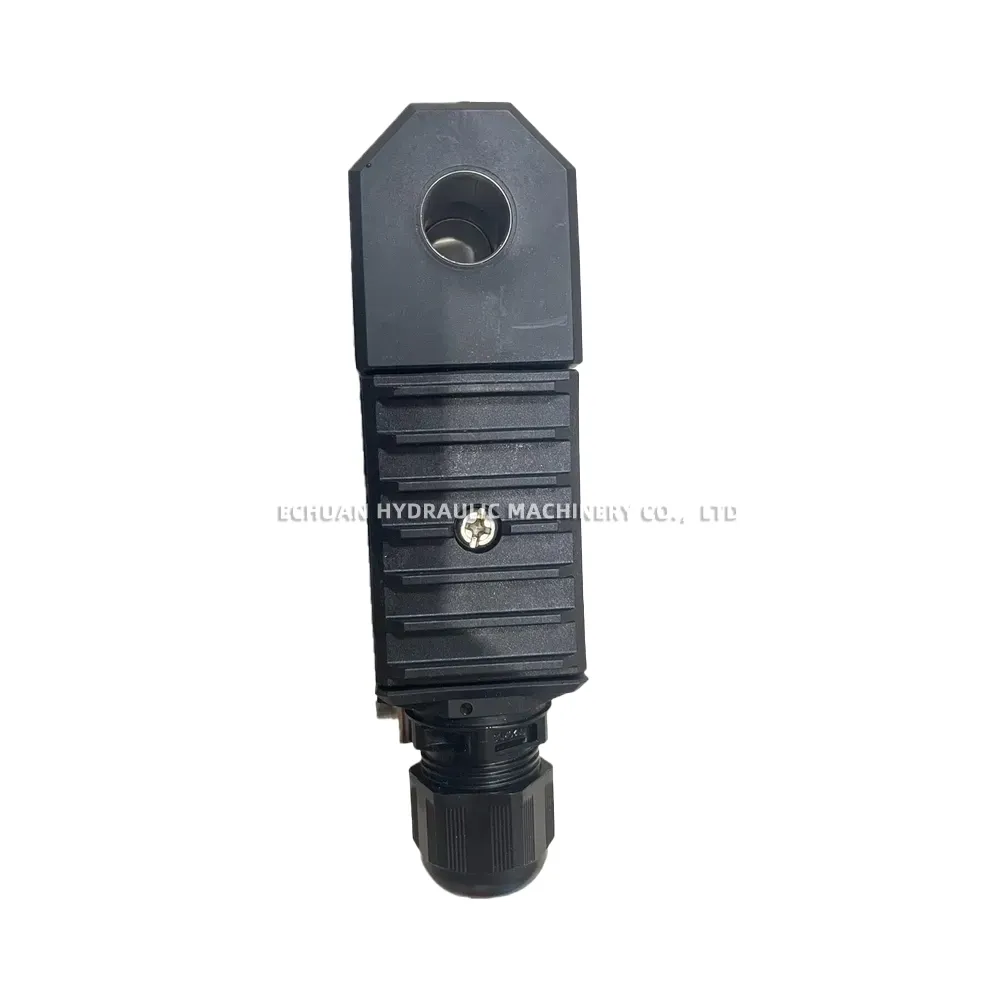

Festo VOFC-L-M32C-MH-FG14-F19 Vacuum On-Off Valve
The Festo VOFC-L-M32C-MH-FG14-F19 is a high-performance, electrically actuated vacuum on-off valve designed for reliable control in demanding industrial automation systems. Engineered as a 2/2-way, normally closed poppet valve, it provides fail-safe operation for precise vacuum management. This robust solenoid valve operates on a versatile 24V AC/DC supply and features a G1/4 pneumatic connection, making it an ideal solution for vacuum gripping, handling, and clamping applications where dependability is critical.
Technical Specifications:
- Model: VOFC-L-M32C-MH-FG14-F19
- Festo Part Number: 3344863
- Valve Function: 2/2-way, Monostable, Normally Closed
- Operating Voltage: 24 V AC (40-65 Hz) / 24 V DC
- Power Consumption: 1.8 W
- Operating Pressure: -0.95 … 0 bar
- Pneumatic Connection: G1/4
- Nominal Size: 14 mm
- Protection Class: IP65 (when assembled)

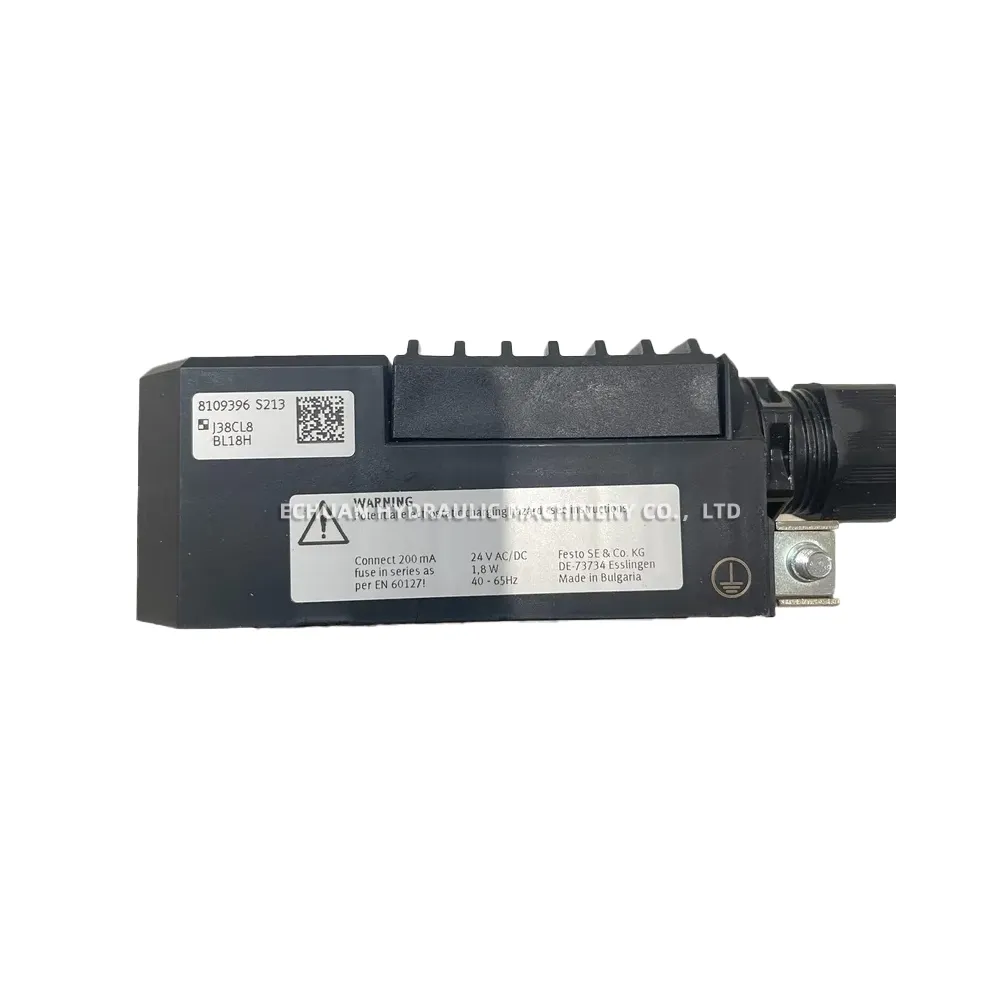

- Safety Note: Requires a 200 mA fuse in series as per EN 60127.
Festo VOFC-L-M32C-MH-FG14-F19 Vacuum On-Off Valve
Purchase the Festo VOFC-L-M32C-MH-FG14-F19 vacuum solenoid valve for reliable industrial automation. This 2/2-way, normally closed valve features a G1/4 connection and operates on 24V AC/DC power.
