Product Description

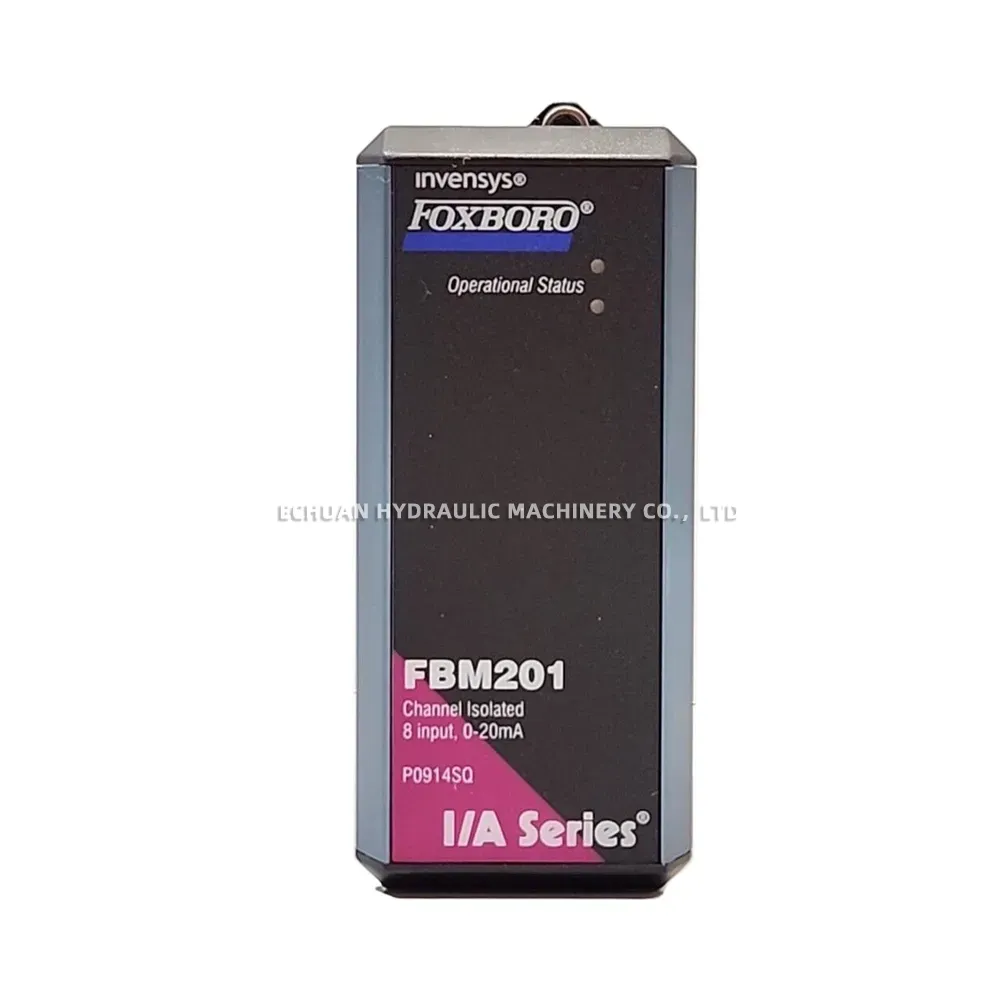

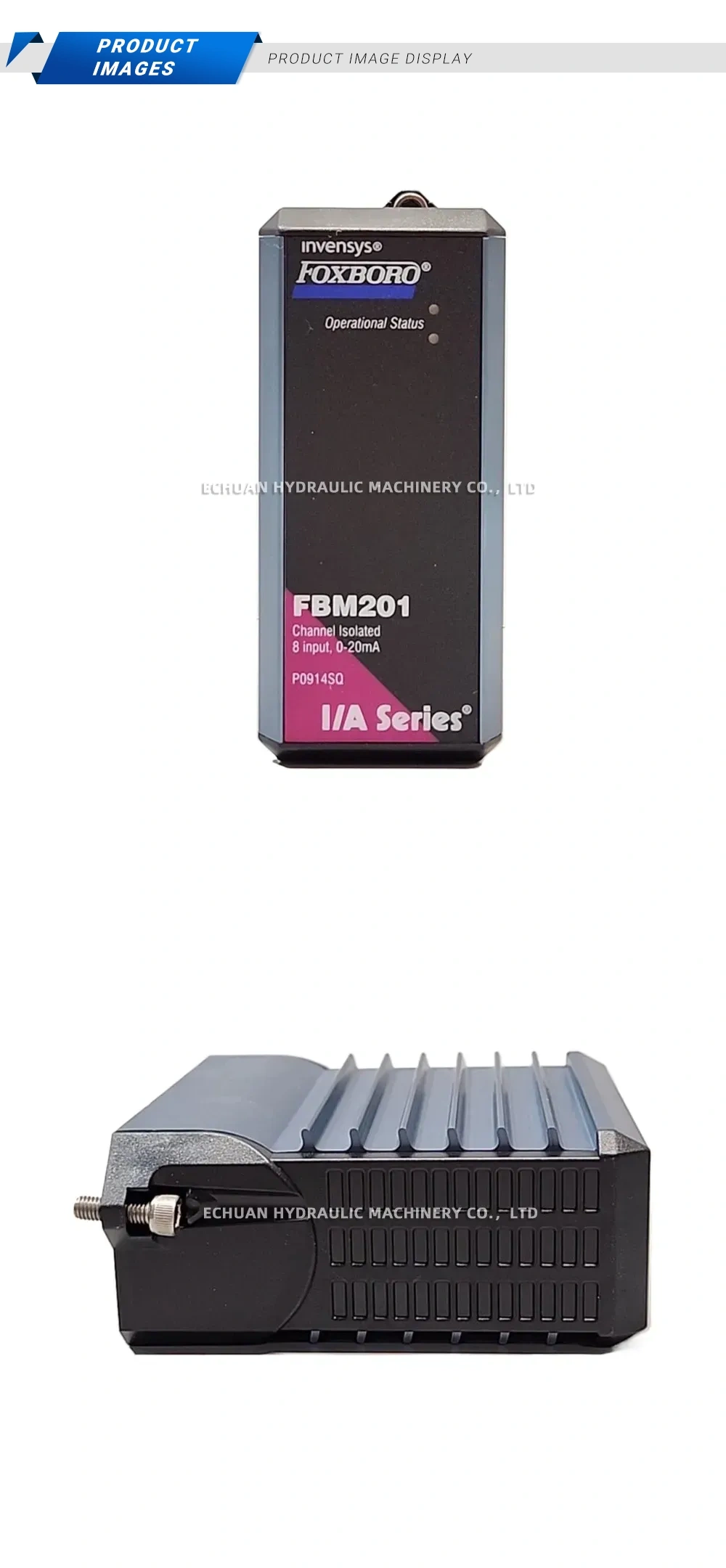

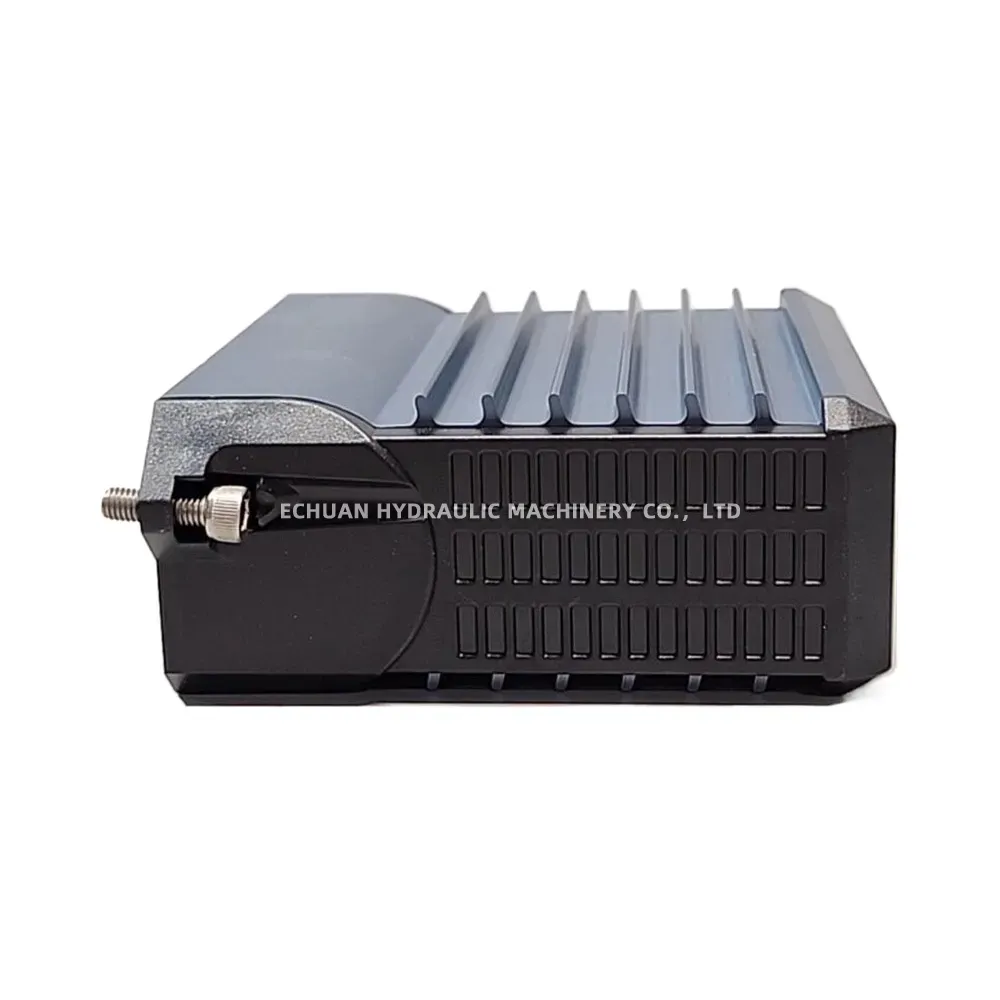

Foxboro FBM201 Field Bus Module
The Foxboro FBM201, part number P0914SQ, is a high-performance, channel-isolated analog input module for the Foxboro I/A Series system. It is specifically designed to interface with standard 0 to 20 mA DC analog signals from field devices such as transmitters and sensors. This module provides eight independent input channels, each galvanically isolated from the others and from ground, ensuring signal integrity and protecting the system from ground loop issues. The FBM201 converts the analog signals from field devices into digital values for use within the I/A Series control system, making it an essential component for reliable process monitoring and control in various industrial applications.
Technical Specifications:
- Model: FBM201
- Part Number: P0914SQ
- Input Channels: 8, independently isolated channels
- Input Signal Range: 0 to 20 mA DC
- System Compatibility: Foxboro I/A Series System
- A/D Conversion Resolution: 16-bit
- Isolation: Each channel is galvanically isolated from all other channels and earth (ground). Withstands 600 V ac or dc common mode voltage.
Foxboro FBM201 Field Bus Module
Shop the Foxboro FBM201 (P0914SQ) channel-isolated, 8-input analog module. Designed for the I/A Series system, it reliably processes 0-20mA signals for industrial process control.
