Product Description

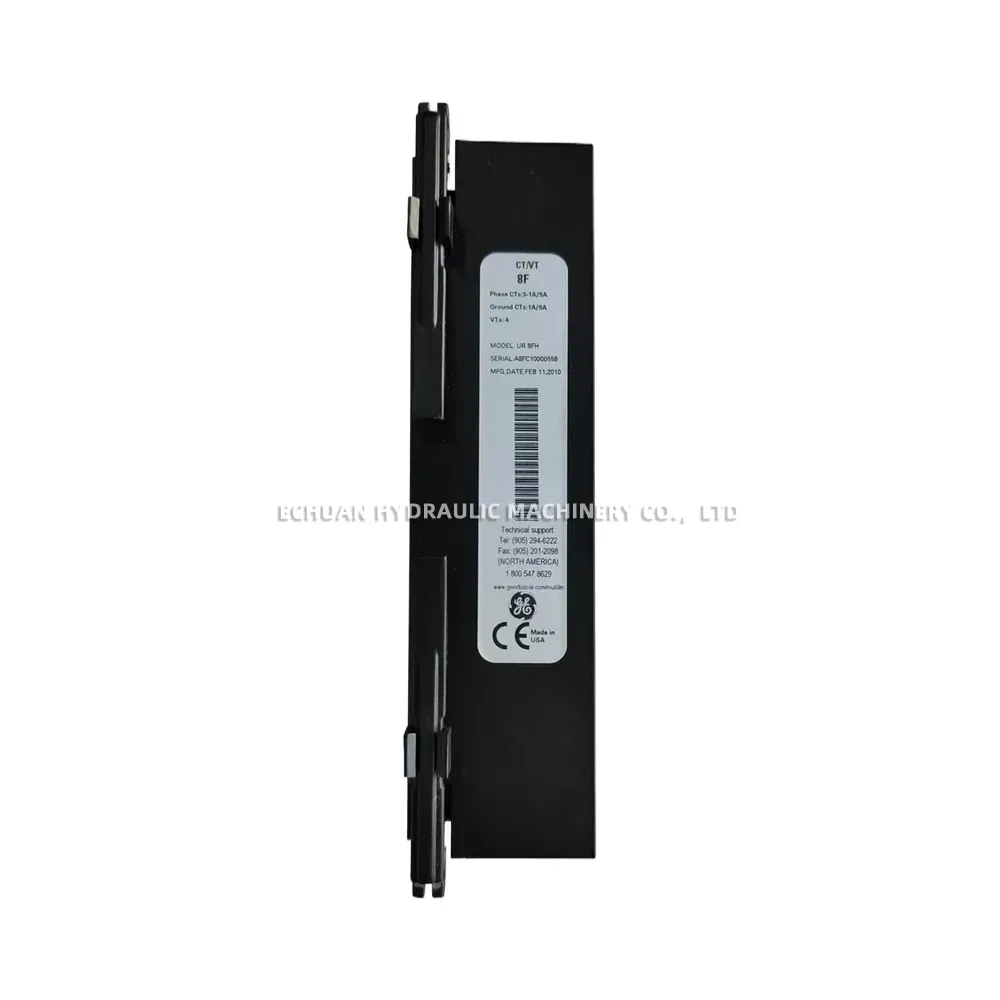

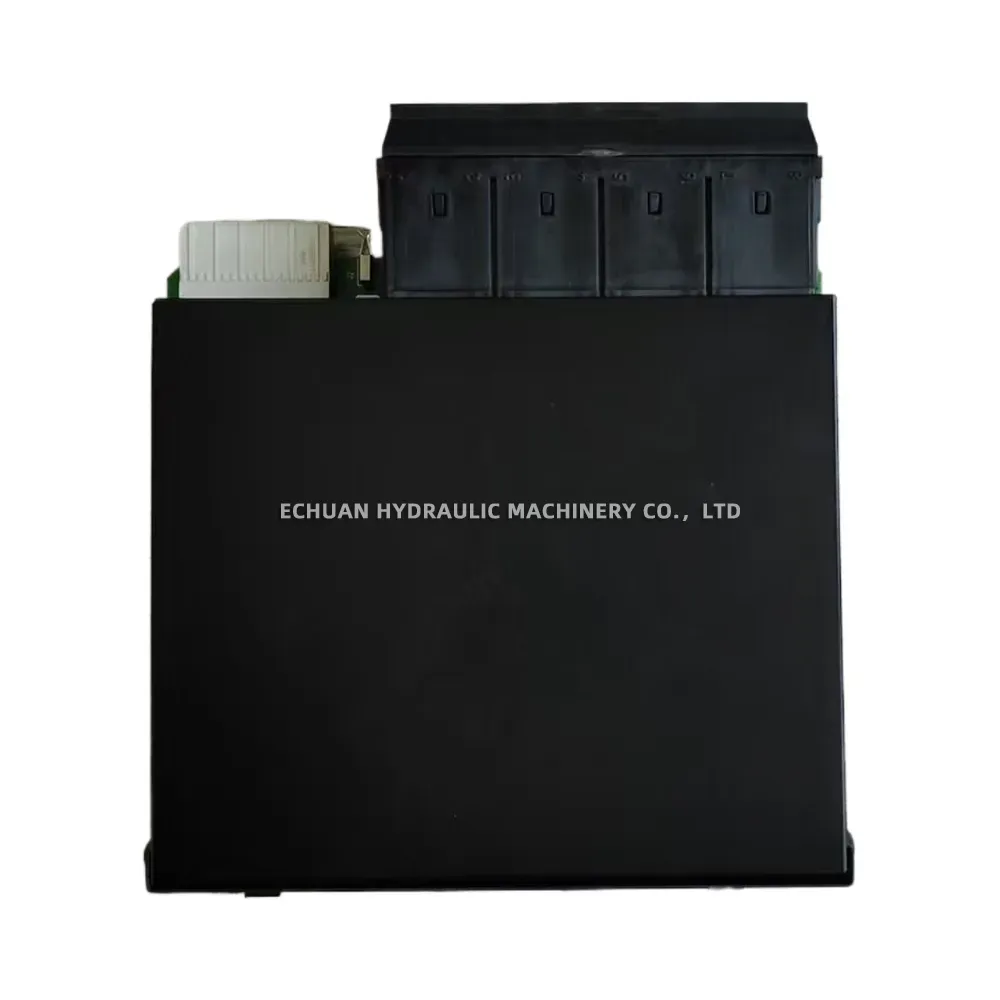

GE UR-8FH General purpose relays

The GE UR-8FH is a high-speed output relay module designed for the GE Multilin Universal Relay (UR) platform. This module provides eight fast-acting Form-C (SPDT) contacts, making it an essential component for critical protection and control applications where rapid response is paramount. With an operating time of less than 4 milliseconds, the UR-8FH ensures swift and reliable tripping for functions such as breaker failure protection, direct transfer trip (DTT) schemes, and system lockout operations. Its robust design and high-performance contacts enhance the overall speed and security of electrical protection systems, ensuring minimal disruption and equipment damage during fault conditions.

Technical Specifications:

  • Module Type: High-Speed Output Relay Module

  • Compatibility: GE Multilin Universal Relay (UR) Platform

  • Number of Outputs: 8 Form-C (SPDT) relays

  • Operating Time: < 4 ms

  • Contact Rating (AC Break): 10A at 120/240 VAC (Resistive)

  • Contact Rating (DC Break): 0.2A at 125 VDC (Inductive, L/R=40ms)

GE UR-8FH General purpose relays Description

GE UR-8FH General purpose relays

Discover the GE UR-8FH, a high-speed output relay module featuring 8 Form-C contacts for the Multilin UR platform. Engineered for rapid tripping in critical protection applications.
