Product Description

Gestra NRG 16-11S

The Gestra NRG 16-11S is a high-integrity compact level electrode designed for precise water level detection in steam boilers, pressurized hot water installations, condensate tanks, and feedwater systems. It operates on the conductive measurement principle and is used as a water level limiter (for high or low water levels) and a level controller for pump management. Its robust construction ensures reliable performance and safety in high-pressure and high-temperature environments. The NRG 16-11S is designed for use with Gestra level controllers (e.g., NRS 1-…) and level limiters (e.g., NRR 1-…), forming a complete, type-approved system for efficient and safe plant operation.

Technical Specifications:

  • Model: NRG 16-11S

  • Application: Water level limiting and control in steam and hot water plants.

  • Nominal Pressure: PN 40

  • Max. Service Pressure: 32 bar at 238 °C

  • Process Connection: Screwed G 3/4 A, ISO 228

  • Materials: Body: P250GH (1.0460), Electrode rod: Stainless steel 1.4571

  • Protection Class: IP 65

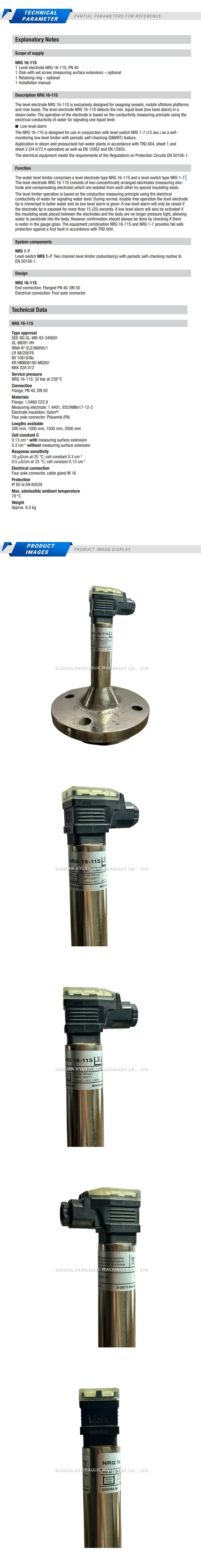

Gestra NRG 16-11S Description

Gestra NRG 16-11S

Shop the Gestra NRG 16-11S compact level electrode, designed for reliable water level detection and control in steam boilers up to PN 40. Ensures safe and efficient plant operation.

BrandGestra
ModelNRG 16-11S
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/gestra-nrg-16-11s
