Product Description

Gestra NRG16-11S

The Gestra NRG16-11S is a high-integrity level electrode designed for reliable water level detection in steam boilers and pressurized hot water installations. It functions as a water level limiter for both high (HW) and low (LW) water levels. The NRG16-11S is built for safety-critical applications, operating on the principle of conductivity measurement to signal the presence of water. Its robust construction ensures durability and long service life in demanding industrial environments. This electrode is designed to be used in conjunction with Gestra level switches (such as NRS 1-51, NRS 1-50) to form a complete, self-monitoring safety system compliant with relevant industry standards, including SIL 3 requirements.

Technical Specifications:

  • Nominal Pressure: PN 63

  • Max. Service Pressure: 60 bar g at 275 °C (580 psig at 527 °F)

  • Mechanical Connection: Screwed G 3/4 A, ISO 228

  • Materials: Body & Electrode rod: 1.4571 (Stainless Steel), Electrode insulation: PTFE

  • Standard Electrode Lengths: 500 mm, 1000 mm, 1500 mm, 2000 mm (custom lengths available)

  • Application: High/Low level alarm and water level limiter in steam boilers and hot water plants.

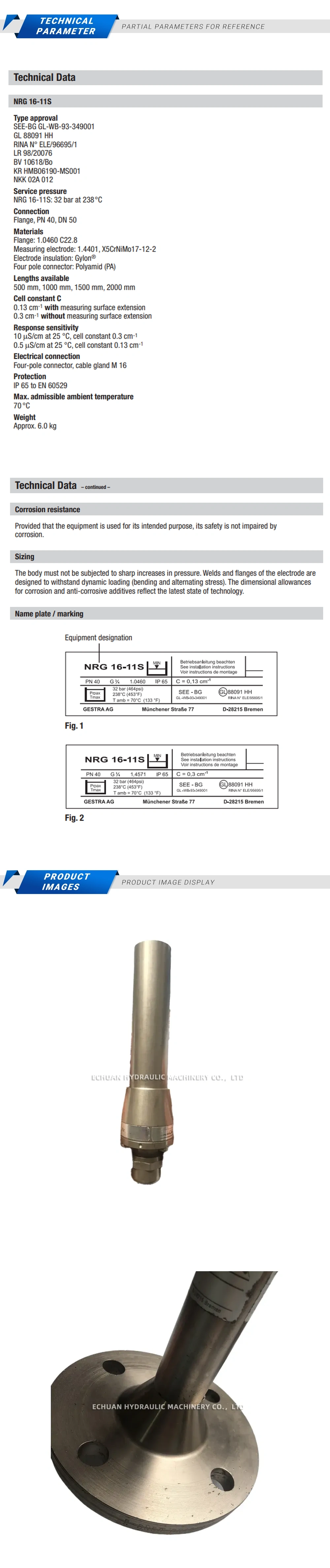

Gestra NRG16-11S Description

Gestra NRG16-11S

Gestra NRG16-11S level electrode for reliable high and low water level limiting in steam boilers. PN 63 rated, features a G 3/4 A connection, and is suitable for SIL 3 applications.
