Product Description

Gestra NRS2-3b

The Gestra NRS 2-3b is a high-integrity level switch designed for reliable monitoring of conductive liquid levels, primarily in steam boilers, condensate tanks, and feedwater tanks. It functions as a high-level alarm, preventing overfilling, or as a low-level limiter to protect against dry-firing. The switch operates on the conductivity measurement principle, utilizing a level electrode to detect the liquid’s presence. Featuring self-monitoring capabilities and a robust design, the NRS 2-3b ensures safe and efficient plant operation in demanding industrial applications, meeting stringent safety standards for boiler automation.

Technical Specifications:

  • Supply Voltage: 230 V AC, 50/60 Hz (other voltages such as 24V, 115V are available)

  • Power Consumption: Approx. 3 VA

  • Function: High Level Alarm or Low Level Limiter

  • Output Contacts: Two voltage-free change-over contacts, 8A 250V AC

  • Switching Point: Adjustable for electrical conductivity > 0.5 µS/cm at 25 °C

  • Protection Class: IP 65 to EN 60529

  • Permissible Ambient Temperature: -20 °C to +70 °C

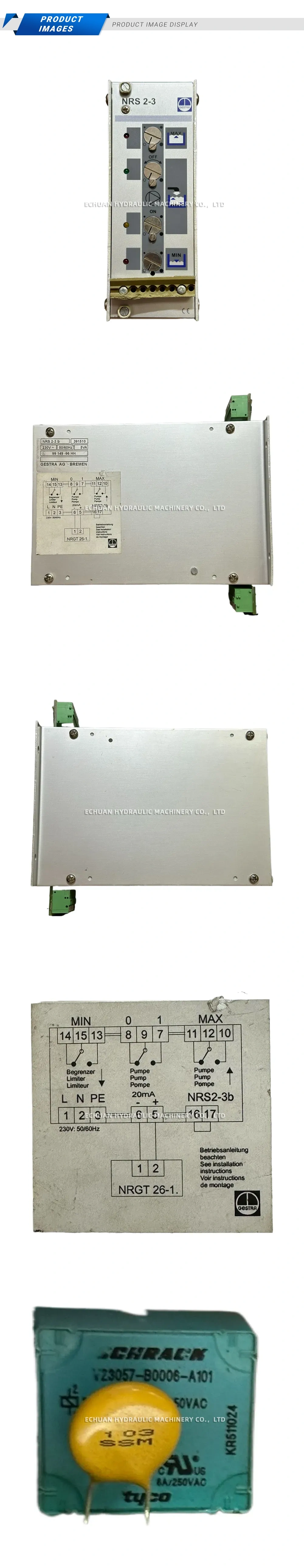

Gestra NRS2-3b Description

Gestra NRS2-3b

Gestra NRS 2-3b level switch for reliable high-level alarm and low-level limiting in steam boilers and hot water systems. Monitors conductive liquids for enhanced plant safety.
