Product Description
Gestra TRS5-6

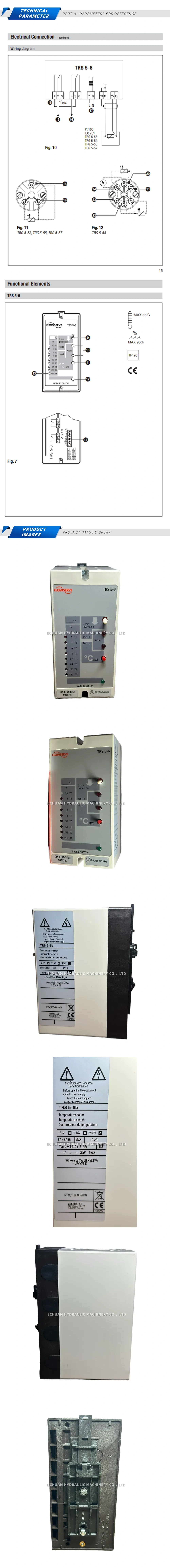

The Gestra TRS5-6 is a high-performance temperature switch designed for precise temperature monitoring and control in a wide range of industrial applications. It is particularly effective in steam and condensate systems, for monitoring steam traps, or for controlling heat-tracing systems. The TRS5-6 utilizes a Pt 100 resistance thermometer input for exceptional accuracy and reliability. Its robust IP65-rated housing ensures dependable operation even in harsh industrial environments. With an adjustable setpoint and a clear LED status indicator, this temperature switch provides a simple yet effective solution for process temperature management and safety applications.
Technical Specifications:
- Model: TRS 5-6
- Function: Temperature Switch / Controller
- Supply Voltage: 24 V DC/AC, 115 V AC, 230 V AC
- Switching Range: 0 °C to 200 °C (32 °F to 392 °F)
- Sensor Input: Pt 100 resistance thermometer (2-wire or 3-wire)
- Output: One potential-free change-over contact
- Protection Class: IP 65
- Safety Integrity Level (SIL): SIL 2 (certified by TÜV)
Gestra TRS5-6
Discover the Gestra TRS5-6, a reliable and accurate industrial temperature switch for monitoring and controlling steam systems and heat tracing. Features a Pt 100 sensor input and SIL 2 rating.
