Product Description
G&L Motion Control MMC-SD-12.0-460-D AC Servo Drive
The G&L Motion Control MMC-SD-12.0-460-D is a heavy-duty, high-performance industrial AC servo drive engineered for precise motion control in demanding automation environments. Operating on a versatile 200-460VAC 3-phase input, this drive delivers a robust 12.0 kW of power output, ensuring reliable operation across a wide spectrum of industrial applications. Manufactured in the U.S.A., it features a continuous output FLA of 27.5 (0-PK) and a peak FLA of 55.0 (0-PK), providing the necessary torque and stability for high-load machinery. Fully compliant with CE standards and UL US Listed, the MMC-SD-12.0-460-D guarantees rigorous safety and exceptional durability for your factory floor.

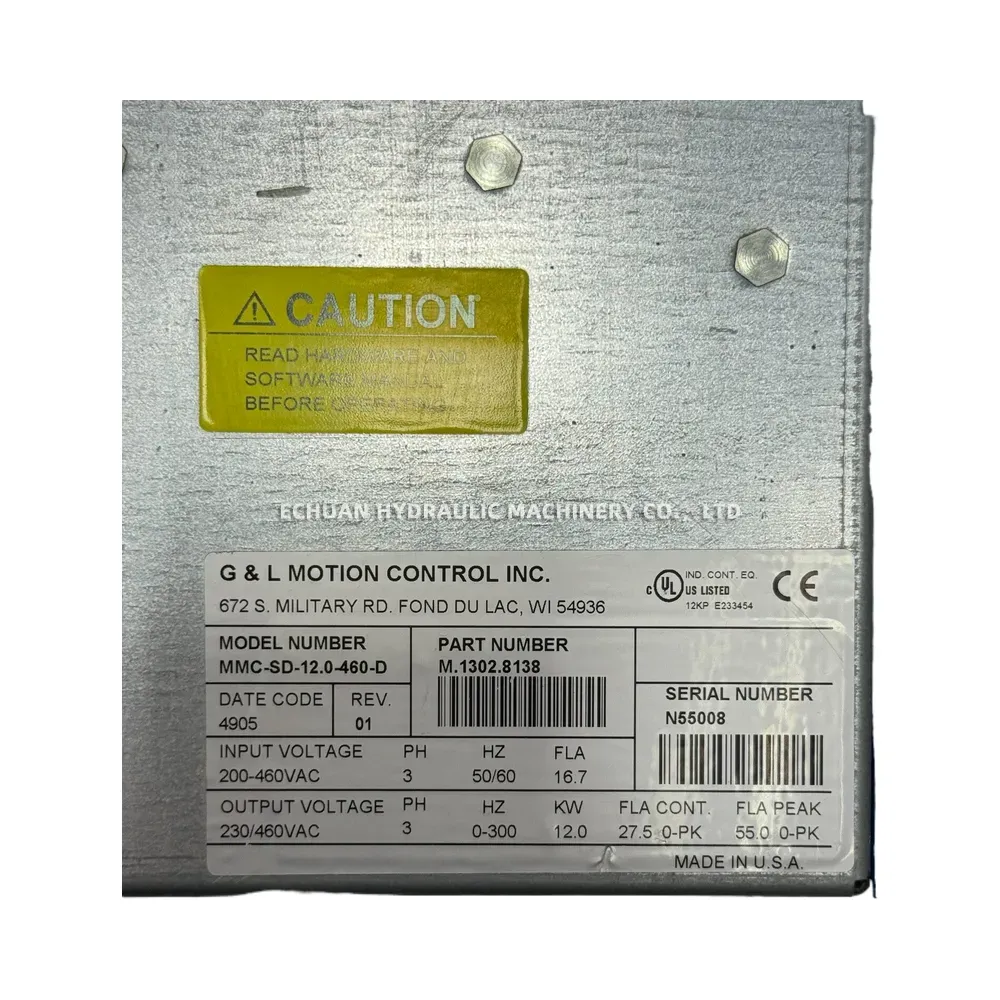

Technical Specifications:
- Brand: G&L Motion Control
- Model Number: MMC-SD-12.0-460-D
- Part Number: M.1302.8138
- Power Rating: 12.0 kW
- Input Specifications: 200-460VAC, 3 Phase, 50/60Hz, 16.7 FLA
- Output Specifications: 230/460VAC, 3 Phase, 0-300Hz
- Continuous Output Current: 27.5 FLA (0-PK)
- Peak Output Current: 55.0 FLA (0-PK)
- Certifications: UL US Listed (12KP E233454), CE
- Country of Origin: Made in U.S.A.
G&L Motion Control MMC-SD-12.0-460-D AC Servo Drive
Optimize your automation systems with the G&L Motion Control MMC-SD-12.0-460-D AC Servo Drive (Part No. M.1302.8138). This industrial-grade 12.0 kW drive features a 200-460VAC 3-phase input, 27.5 continuous FLA, and 55.0 peak FLA for precision control and high-torque performance. UL and CE certified.
| Brand | G&L Motion Control |
|---|---|
| Model | MMC-SD-12.0-460-D |
| Part No. | 949811271329 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/gl-motion-control-mmc-sd-12-0-460-d-ac-servo-drive |
