Product Description
Hanshin Electronics MCS-100P-231V1.0A Marine Clock Front PCB

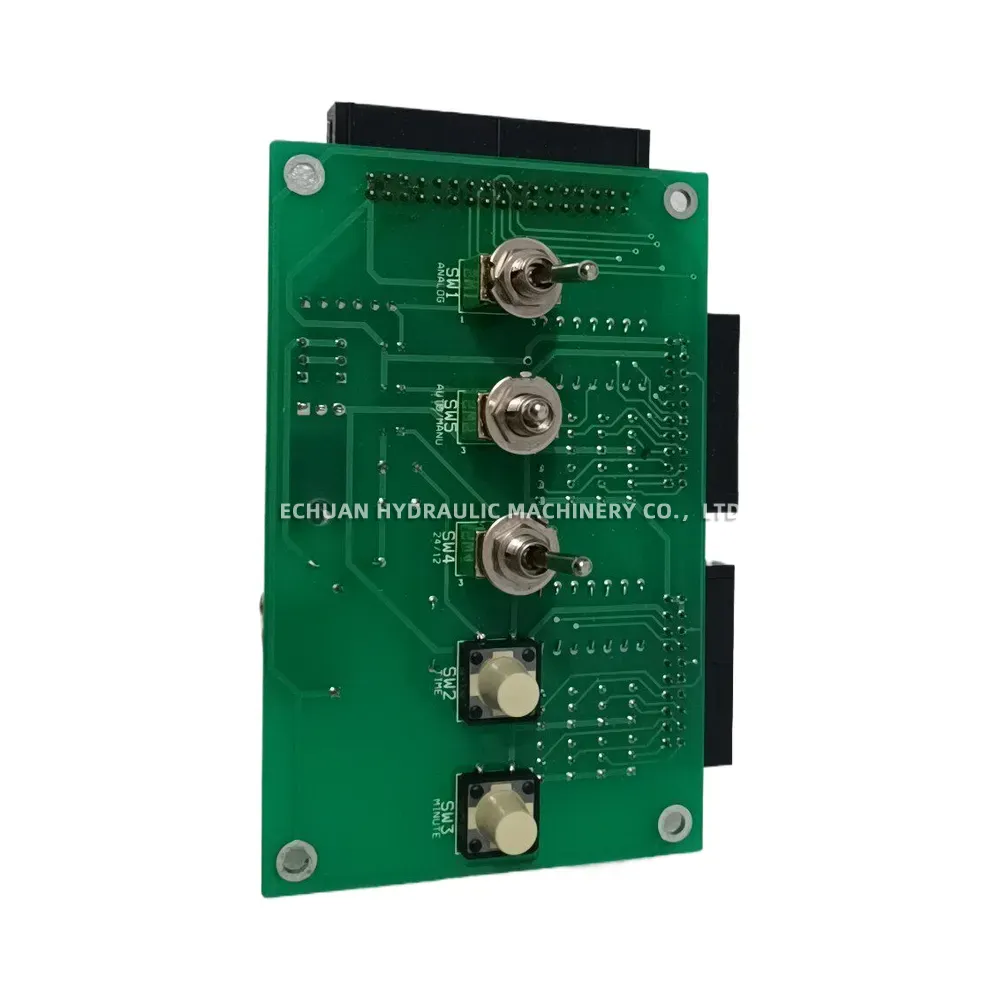

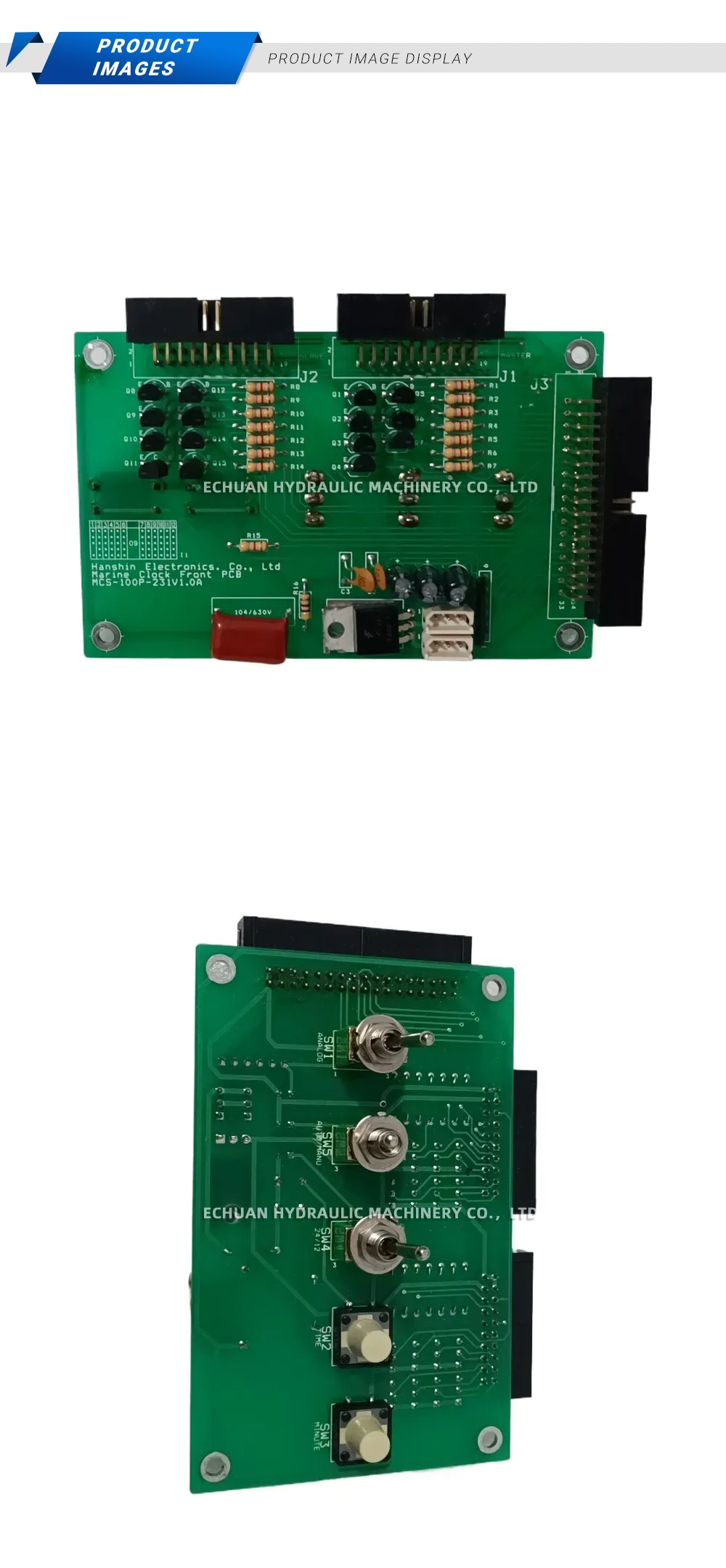

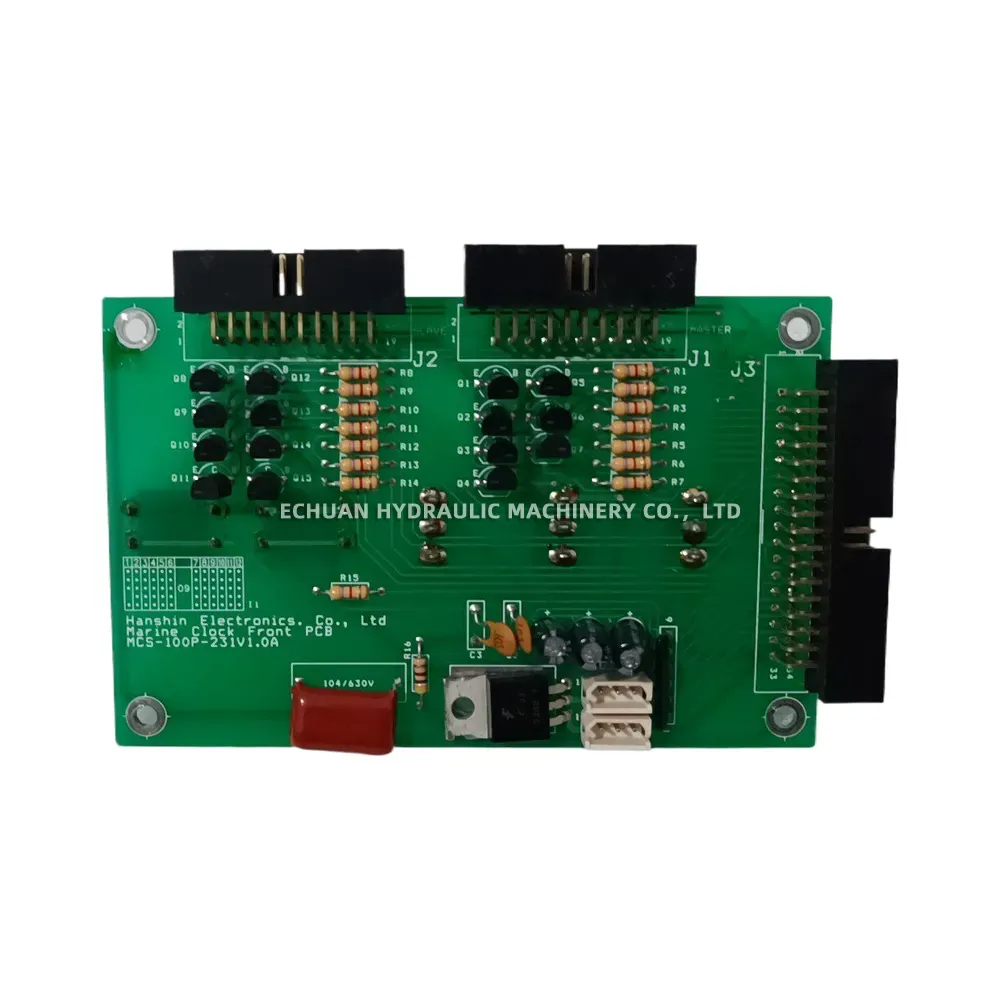

The Hanshin Electronics MCS-100P-231V1.0A is a genuine replacement front Printed Circuit Board (PCB) designed specifically for Hanshin marine clock systems. This essential component serves as the main user interface and control board, featuring multiple connectors (J1, J2, J3) for system integration. The board is populated with high-quality electronic components, including arrays of resistors, transistors, and a distinctive red 104/630V film capacitor, ensuring stable performance in demanding marine environments. The reverse side is equipped with toggle switches and push buttons (SW1-SW5) for manual control and configuration, making it a critical part for maintaining the full functionality of your vessel’s timekeeping system.
Technical Specifications:
- Product Type: Marine Clock Front PCB
- Brand: Hanshin Electronics Co., Ltd
- Model Number: MCS-100P-231V1.0A
- Key Components: Pin headers (J1, J2, J3), toggle switches (SW1, SW4, SW5), push buttons (SW2, SW3), 104/630V film capacitor
- Application: Control and interface board for Hanshin marine clock systems
Hanshin Electronics MCS-100P-231V1.0A Marine Clock Front PCB
Genuine Hanshin Electronics MCS-100P-231V1.0A front PCB, an essential replacement control board for marine clock systems. Ensures reliable operation and user interface control.
