Product Description

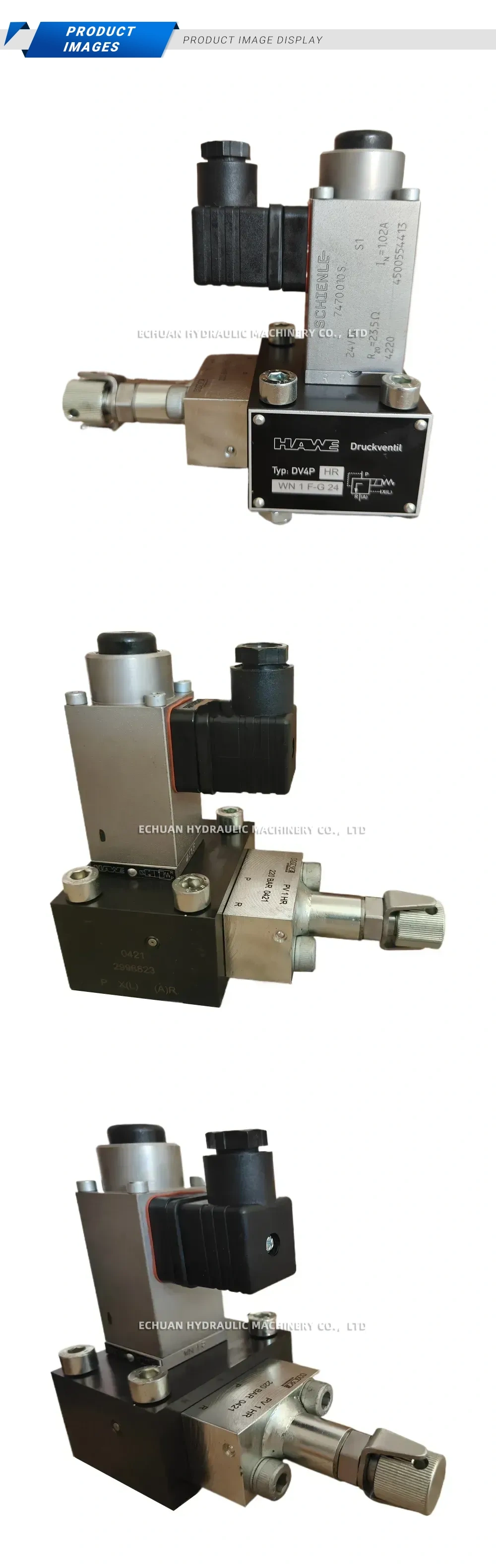

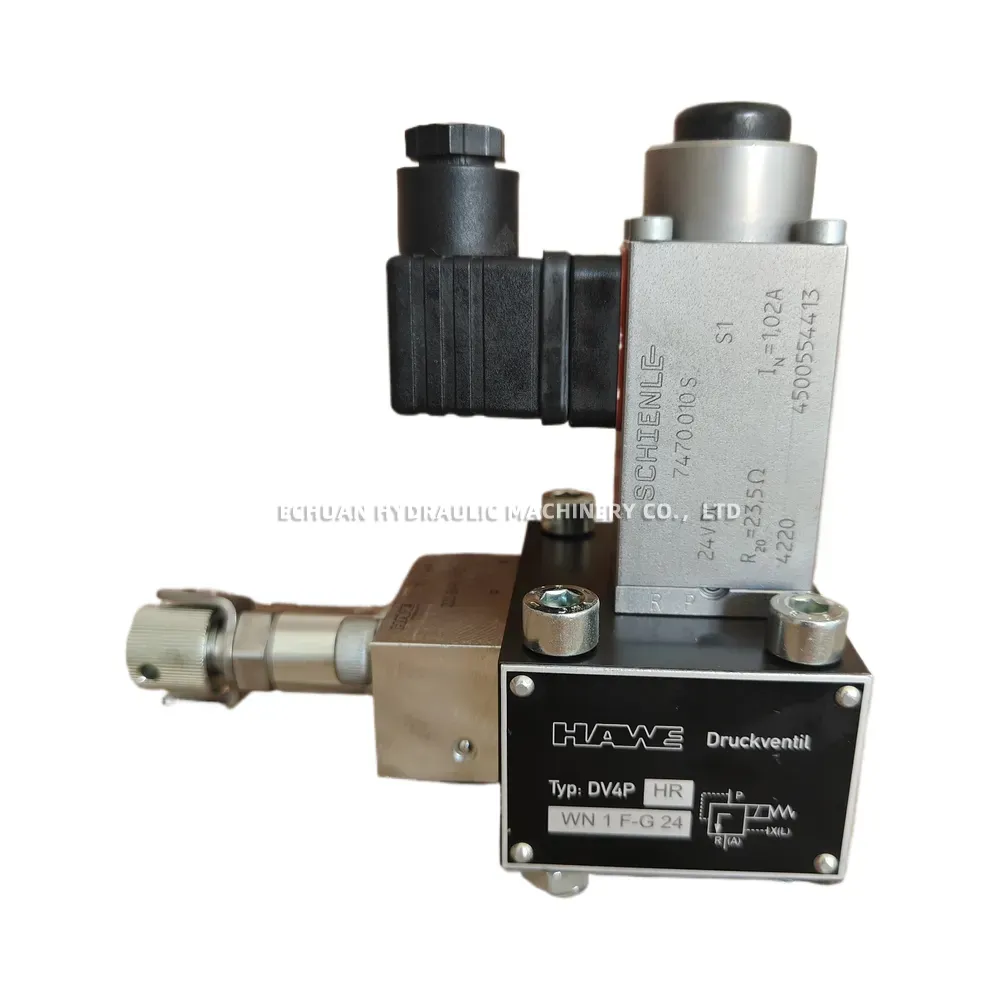

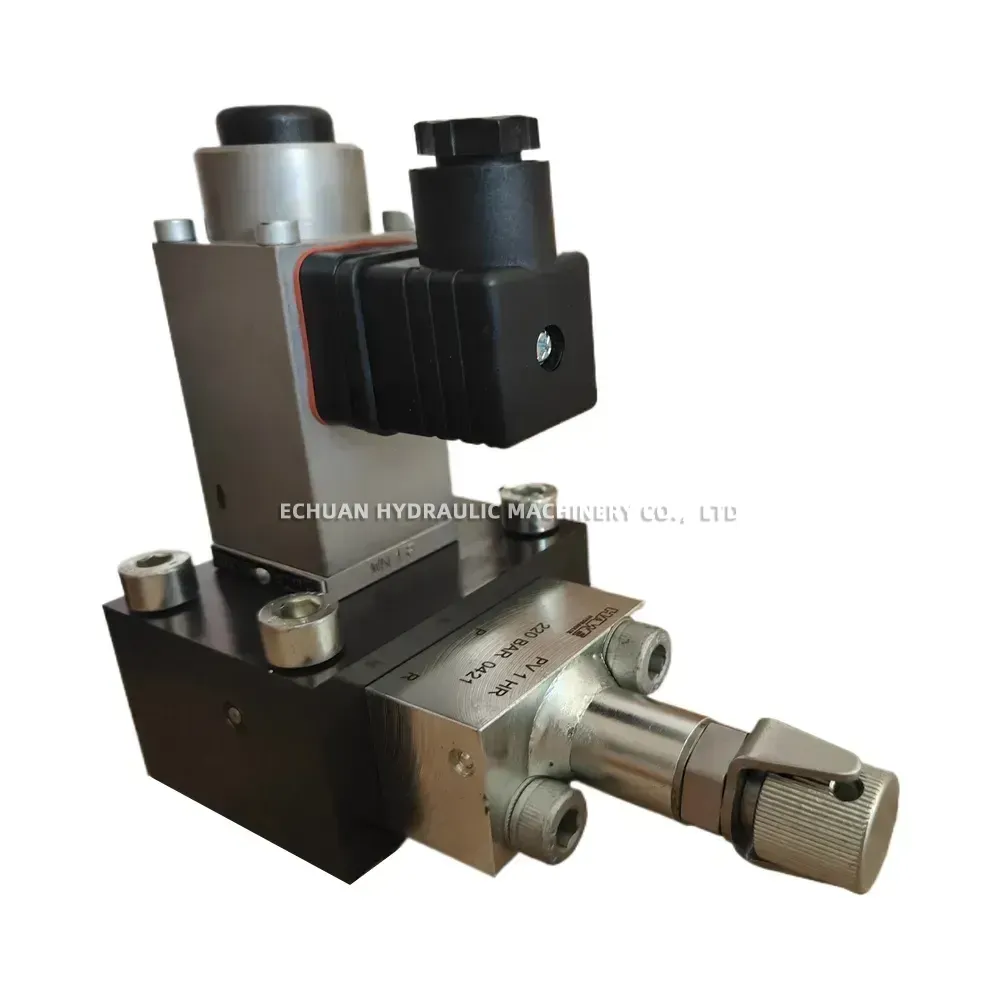

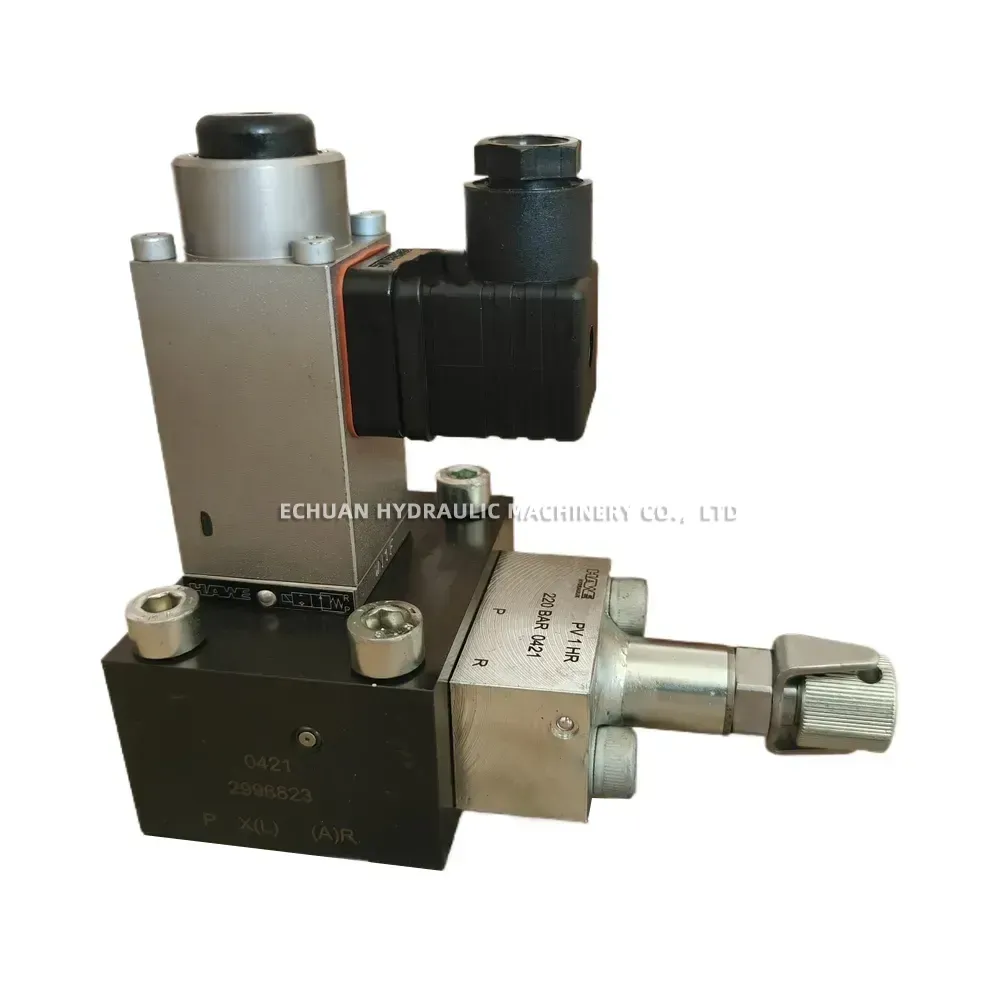

HAWE DV4P HR WN 1 F-G 24 Hydraulic Pressure Valve
The HAWE DV4P HR WN 1 F-G 24 is a highly reliable, solenoid-operated hydraulic pressure valve (Druckventil) engineered for precise pressure regulation in demanding industrial fluid power systems. This unit features a robust manifold block design secured by hex socket screws, ensuring a leak-free and durable installation. It is equipped with a high-quality 24 VDC Schienle solenoid coil designed for continuous operation (Duty Class S1). The integrated PV 1 HR pressure control section provides a maximum pressure rating of up to 220 bar. For optimal control, the valve includes a user-friendly, hand-adjustable pressure setting knob complete with a locking clamp to secure your system’s pressure limits safely.
Technical Specifications:
- Brand: HAWE Hydraulik
- Model: DV4P HR WN 1 F-G 24
- Valve Type: Solenoid-operated hydraulic pressure valve (Druckventil)
- Maximum Pressure Rating: 220 bar (Integrated PV 1 HR section)
- Operating Voltage: 24 VDC
- Solenoid Coil: Schienle 7470010S
- Coil Specifications: Duty class S1 (continuous), R20 = 23.5 Ω, IN = 1.02 A
- Port Markings: P, R, X(L), (A)R
- Adjustment Mechanism: Hand-adjustable pressure setting knob with locking clamp
- Mounting Type: Manifold block design
HAWE DV4P HR WN 1 F-G 24 Hydraulic Pressure Valve (Solenoid-operated Druckventil)
Shop the HAWE DV4P HR WN 1 F-G 24 solenoid-operated hydraulic pressure valve. Featuring a 24VDC Schienle coil, a 220 bar max pressure rating, and a hand-adjustable locking knob, this valve delivers precise and reliable fluid control for industrial hydraulic manifolds.
| Brand | HAWE |
|---|---|
| Model | DV4P HR WN 1 F-G 24 |
| Part No. | 1048767953351 |
| Category | Hydraulic valves |
