Product Description

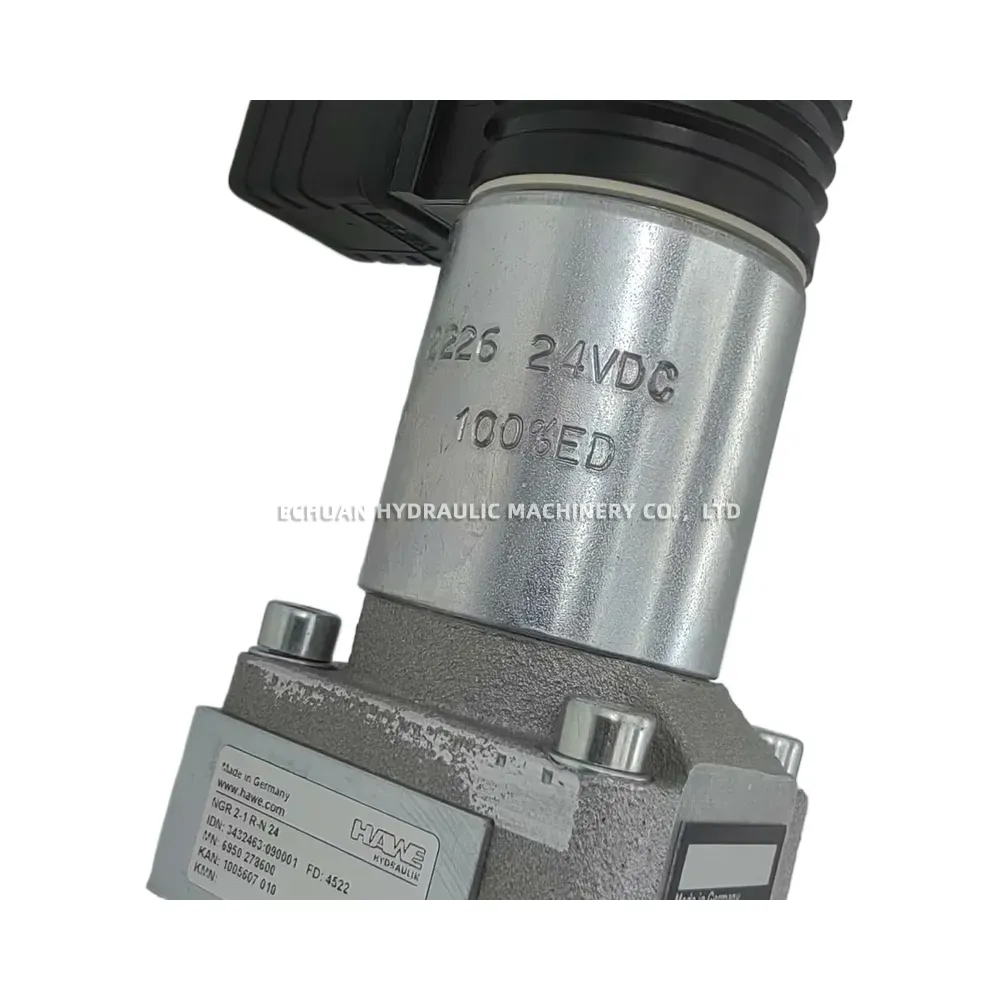

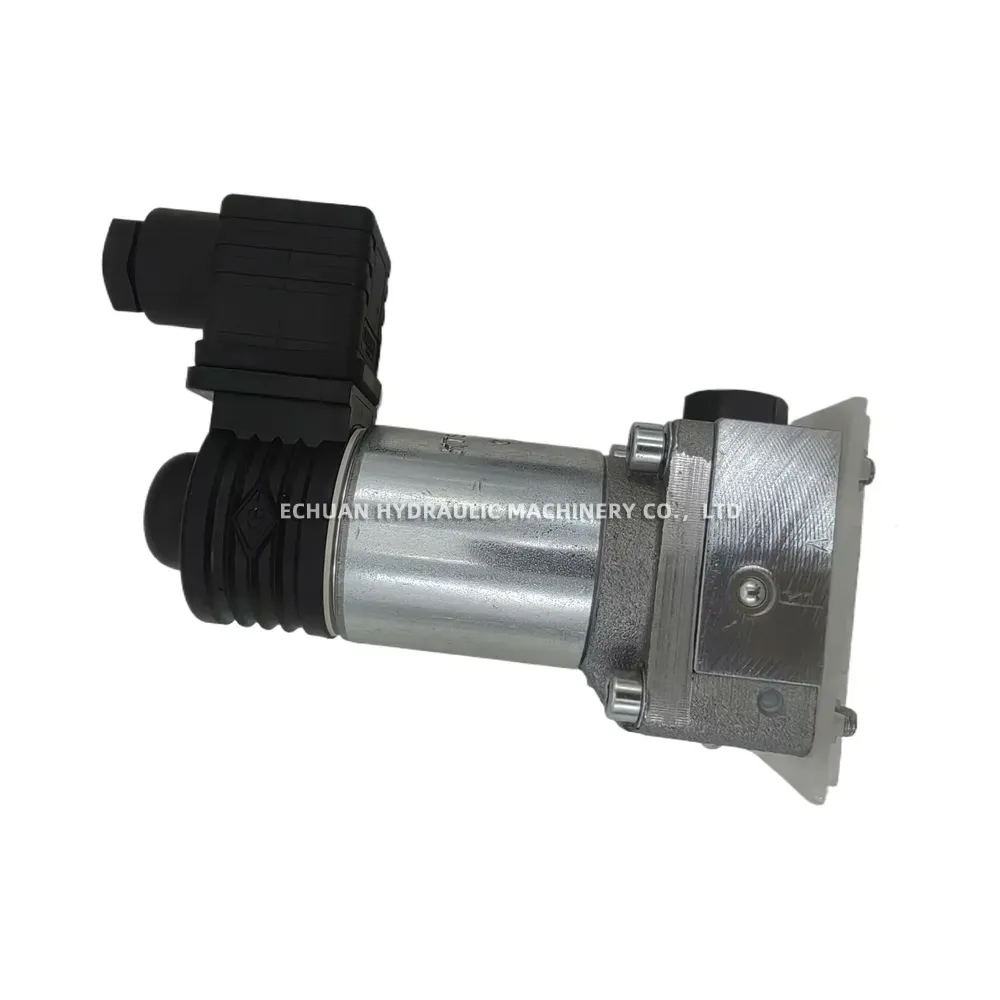

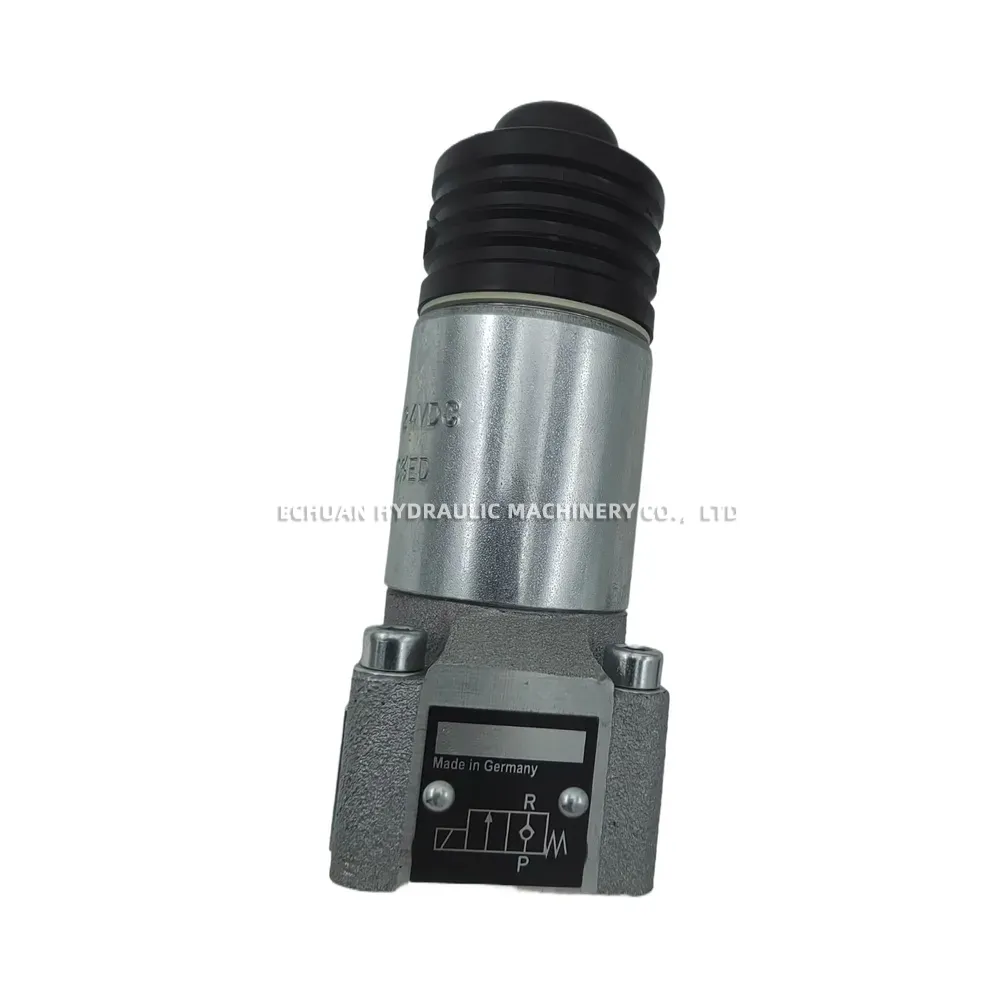

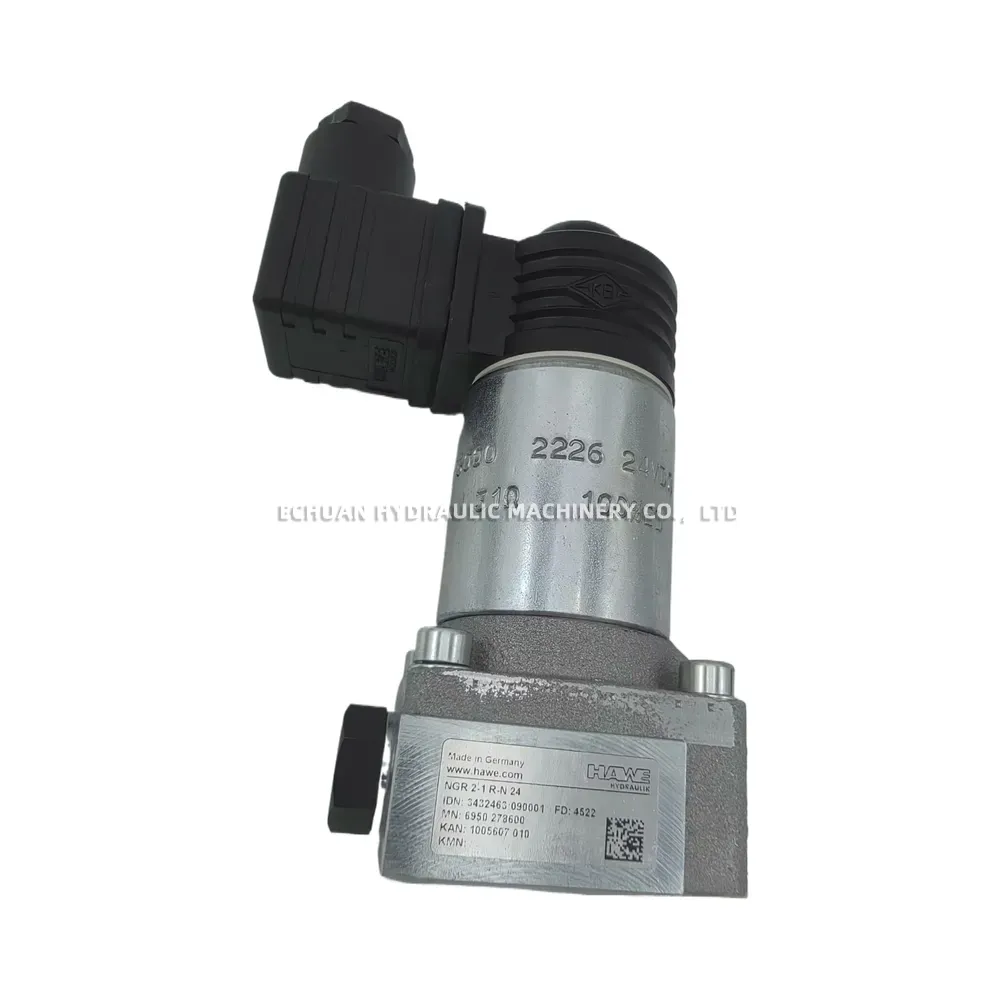

Hawe NGR2-1R-N24 Solenoid valve

The Hawe NGR2-1R-N24 is a high-performance, direct-acting 2/2-way seated solenoid valve designed for demanding hydraulic applications. Its poppet-type construction ensures zero-leakage shut-off, making it ideal for systems requiring precise load holding and safety functions. This screw-in cartridge valve operates at pressures up to 500 bar and is actuated by a reliable 24V DC solenoid. The integrated detented manual override (R-type) allows for secure manual operation during setup, testing, or in case of a power failure. Built with HAWE’s renowned quality, the NGR2-1R-N24 provides exceptional durability and performance for industrial and mobile hydraulic circuits.

Technical Specifications:

  • Type: 2/2-way seated valve (poppet valve), normally closed

  • Actuation: Solenoid-operated with detented manual override

  • Max. Operating Pressure: 500 bar (7250 psi)

  • Max. Flow Rate: 25 lpm (6.6 gpm)

  • Solenoid Voltage: 24V DC

  • Connection Type: Screw-in cartridge (G 3/8 thread)

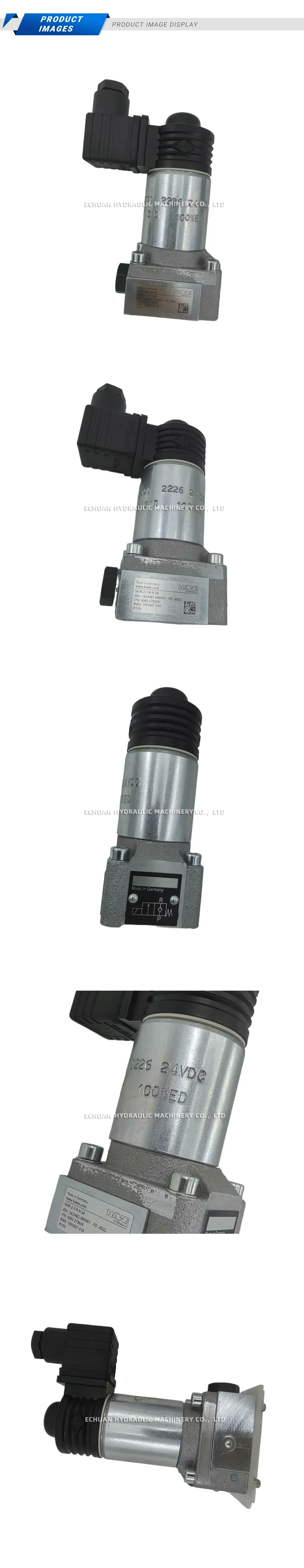

Hawe NGR2-1R-N24 Solenoid valve Description

Hawe NGR2-1R-N24 Solenoid valve

Discover the genuine Hawe NGR2-1R-N24 2/2-way seated solenoid valve. This high-pressure valve features a 24V DC coil, 500 bar rating, and detented manual override for reliable, leak-free control in hydraulic systems.
