Product Description

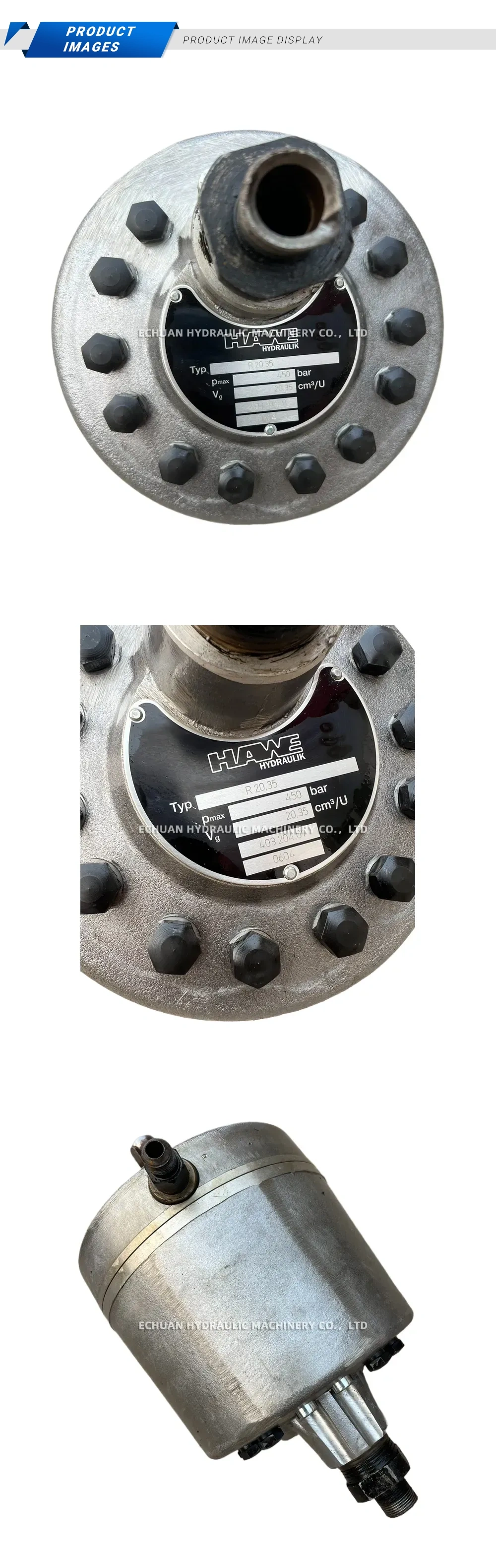

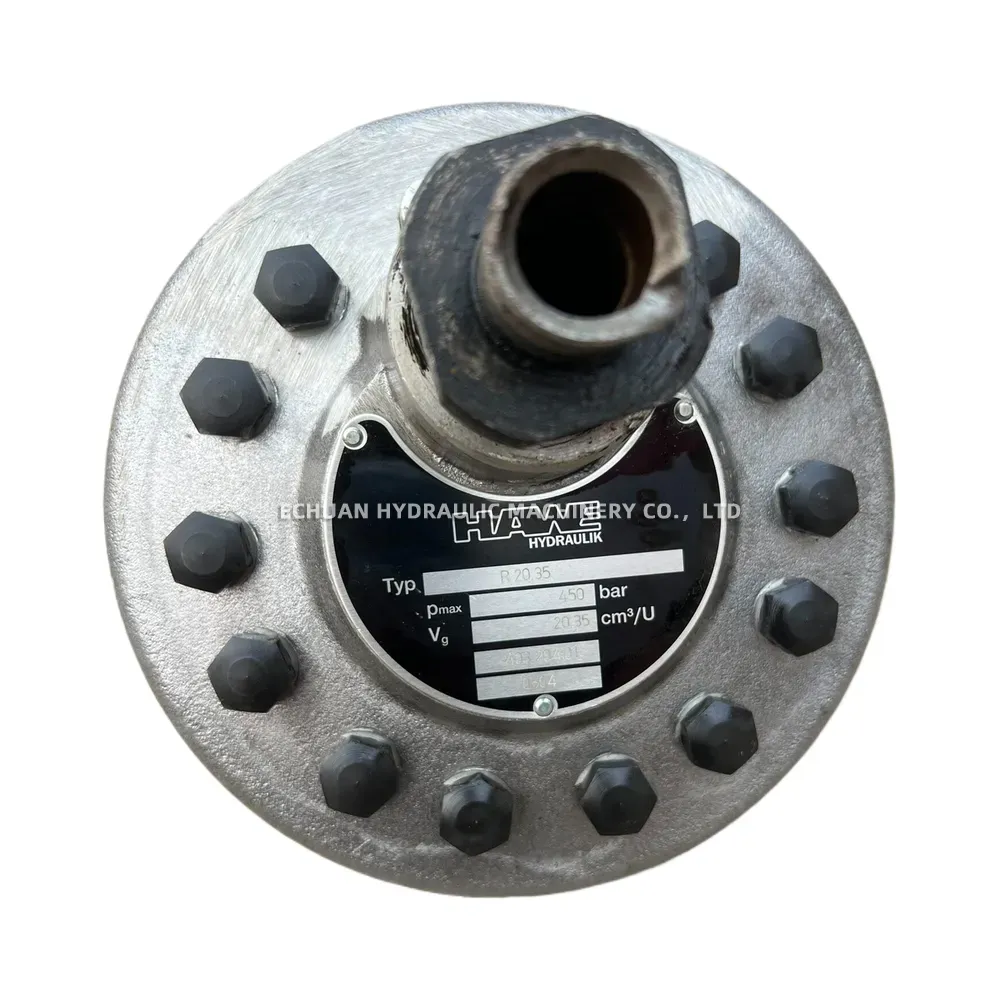

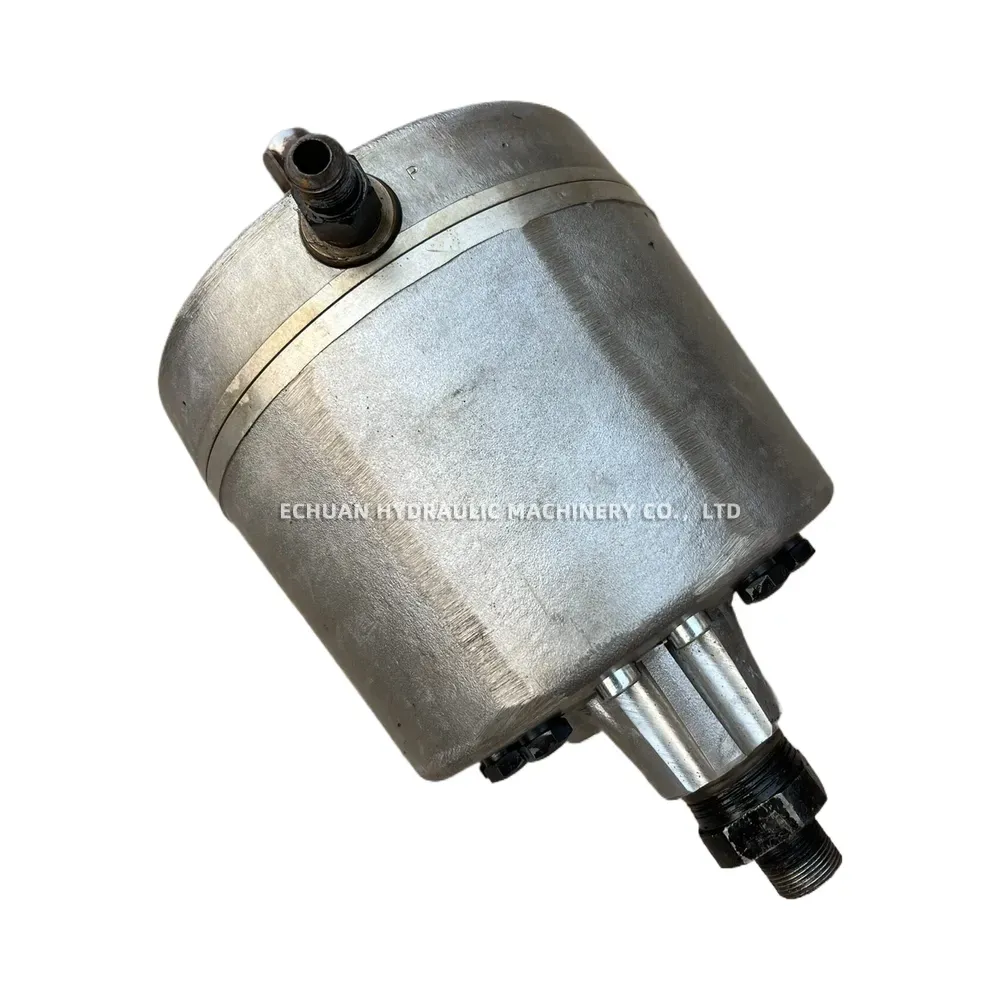

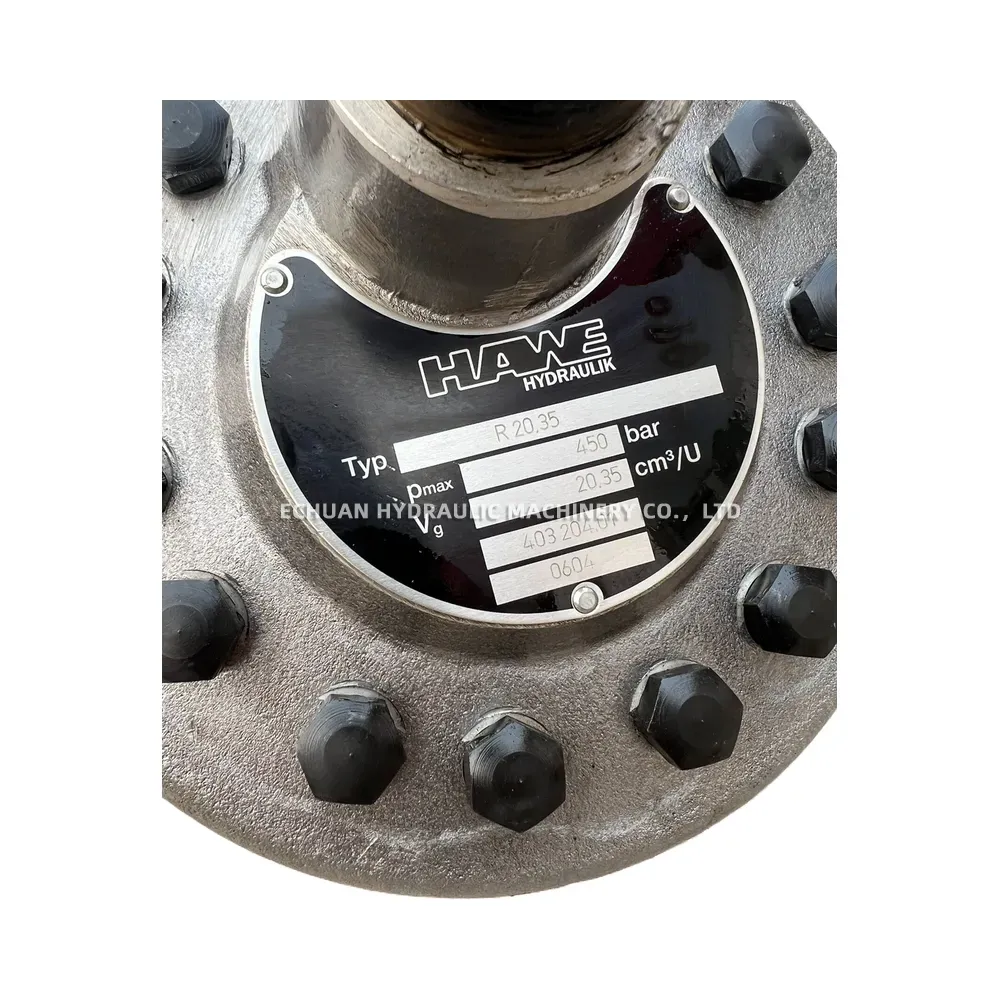

HAWE R 20.35 Hydraulic Radial Piston Pump
The HAWE R 20.35 is a high-performance hydraulic radial piston pump engineered for demanding industrial and mobile applications. Manufactured by HAWE Hydraulik, this R-series pump delivers exceptional reliability and efficiency, capable of sustaining a maximum operating pressure of 450 bar. It features a robust flange-mounted cylindrical housing with a hex bolt circle, ensuring secure installation, alongside a keyed drive shaft designed for precise direct coupling. With a geometric displacement of 20.35 cm³ per revolution and a radial hydraulic port connection, the R 20.35 provides consistent fluid power transmission and exact flow control for heavy-duty, high-pressure hydraulic systems.
Technical Specifications:
- Manufacturer: HAWE Hydraulik
- Model: R 20.35
- Pump Type: Radial Piston Pump
- Maximum Operating Pressure (pmax): 450 bar
- Geometric Displacement (Vg): 20.35 cm³/rev
- Housing Design: Flange-mounted cylindrical housing
- Drive Shaft: Keyed drive shaft for direct coupling
- Port Connection: Radial hydraulic port connection
HAWE R 20.35 Hydraulic Radial Piston Pump
Upgrade your hydraulic systems with the HAWE R 20.35 Hydraulic Radial Piston Pump. Delivering a maximum pressure of 450 bar and a displacement of 20.35 cm³/rev, this durable, flange-mounted pump ensures reliable, high-pressure fluid power for demanding industrial applications.
