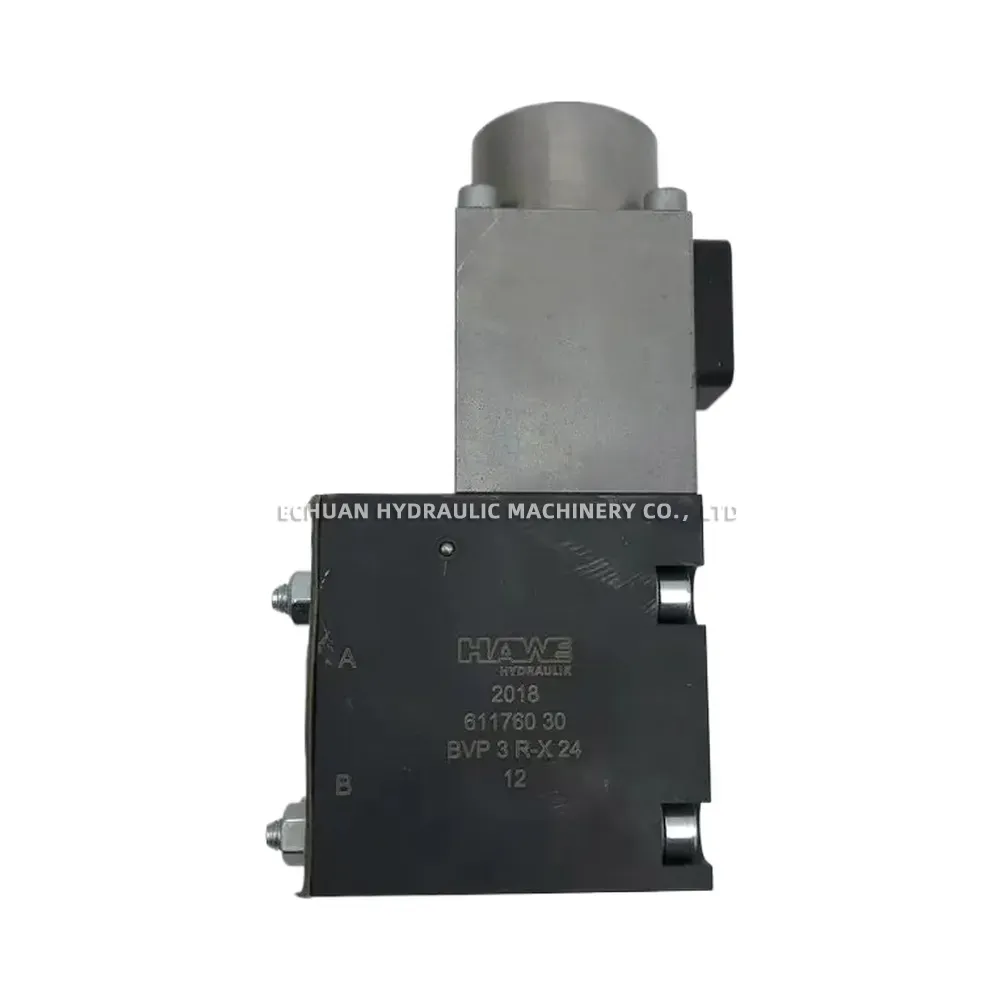

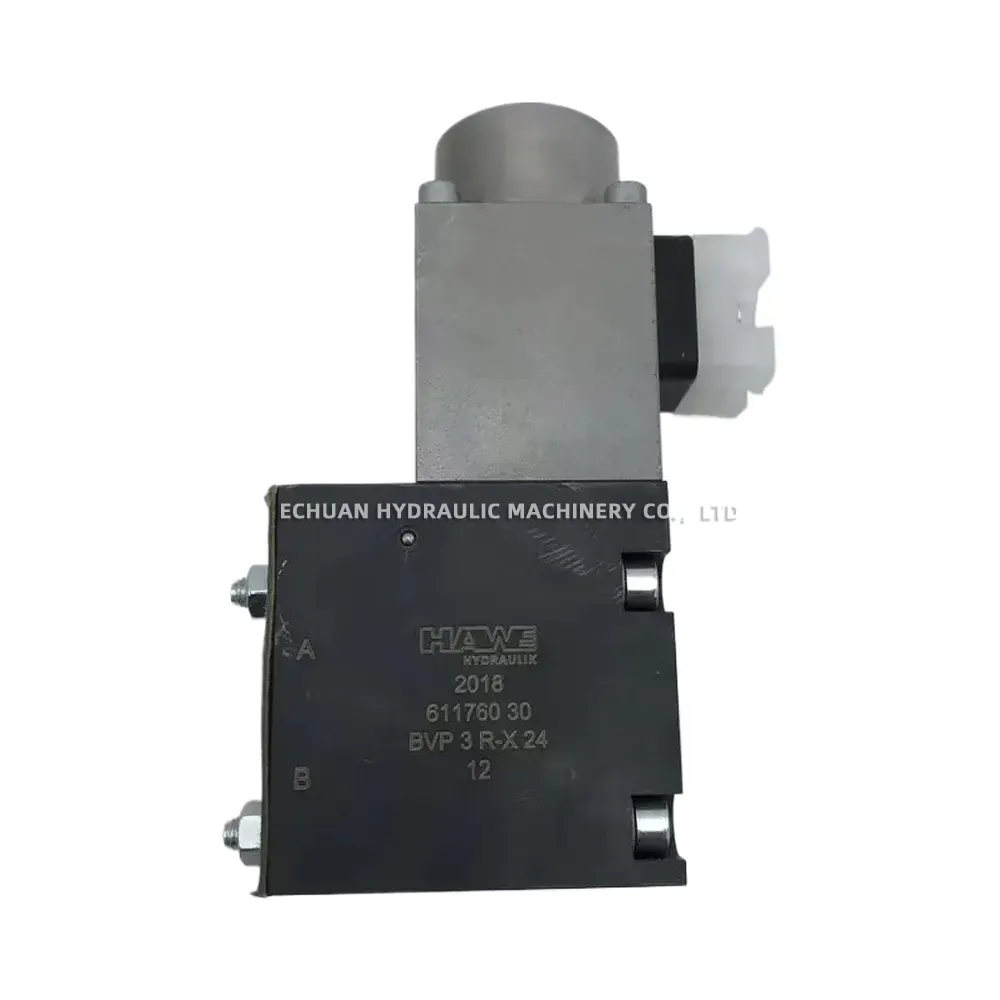

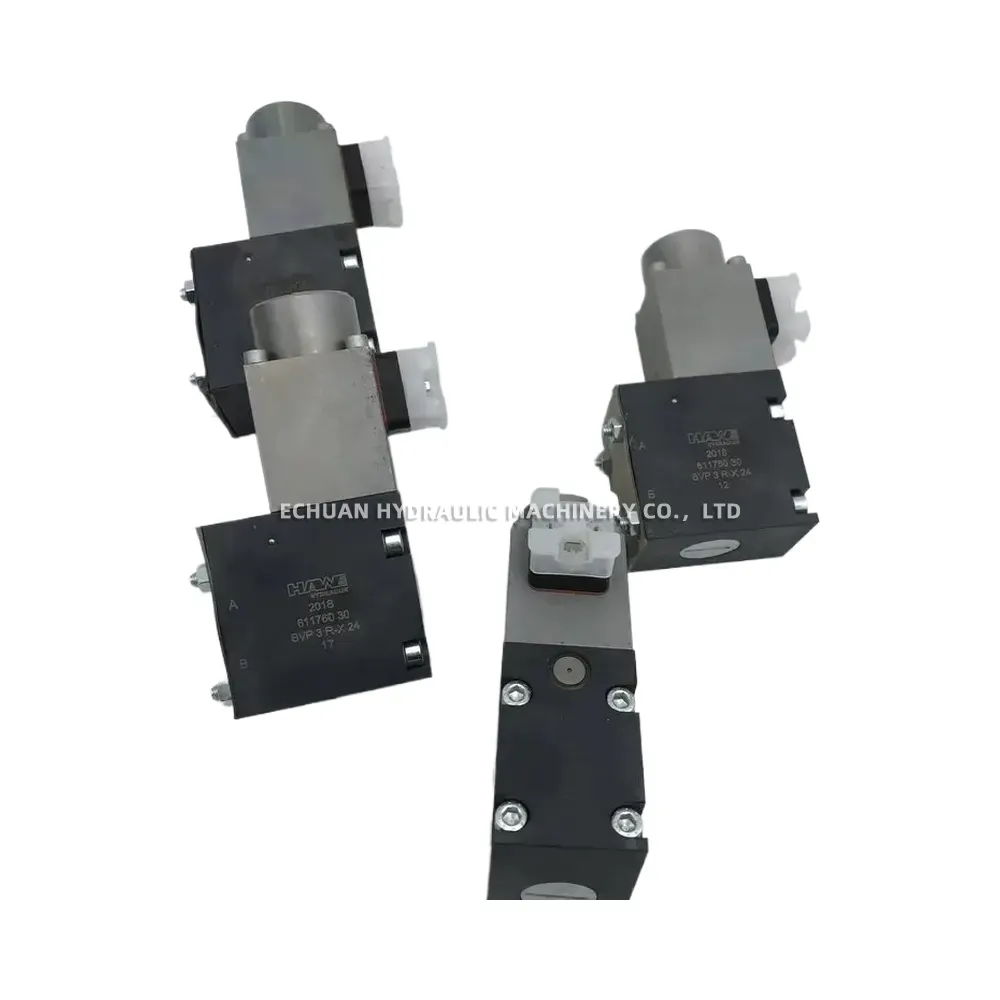

HAWE / SCHIENLE BVP 3 R-X 24 Hydraulic Solenoid Directional Seated Valve
The HAWE BVP 3 R-X 24 is a premium-quality directional seated valve designed for reliable and leak-free control of hydraulic fluids. Manufactured by HAWE Hydraulik, this cone-seated valve ensures zero-leakage in the closed state, making it highly efficient for maintaining pressure in demanding hydraulic circuits. It is equipped with a robust SCHIENLE solenoid actuator (Model 7405 015/1) operating at 24V DC. Rated for continuous operation (S1 duty cycle), this valve is perfectly suited for both industrial and mobile hydraulic applications where precision, durability, and safety are paramount.
Technical Specifications:
- Brand: HAWE Hydraulik / SCHIENLE
- Model: BVP 3 R-X 24
- Valve Type: Directional Seated Valve (Leak-free design)

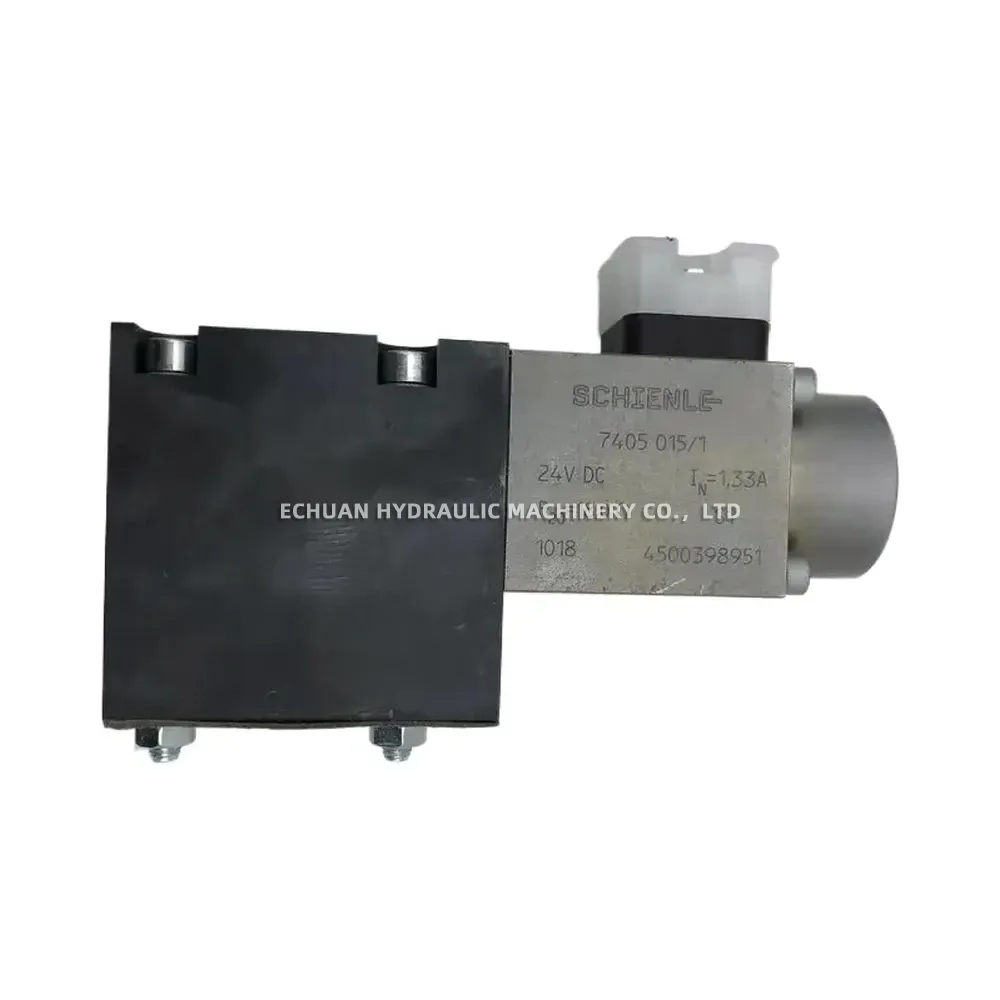

- Solenoid Coil Model: SCHIENLE 7405 015/1
- Operating Voltage: 24 V DC
- Nominal Current (I_N): 1.33 A
- Resistance (R_20): 18.0 Ω
- Duty Cycle: S1 (Continuous operation)
- Hydraulic Ports: A and B
HAWE / SCHIENLE BVP 3 R-X 24 Hydraulic Solenoid Directional Seated Valve
Shop the HAWE BVP 3 R-X 24 Hydraulic Solenoid Directional Seated Valve. Featuring a 24V DC SCHIENLE actuator (7405 015/1), this leak-free directional valve delivers reliable, continuous performance (S1) for industrial and mobile hydraulic systems.
| Brand | HAWE / SCHIENLE |
|---|---|
| Model | BVP 3 R-X 24 |
| Part No. | 986199353974 |
| Category | Hydraulic valves |
