Product Description

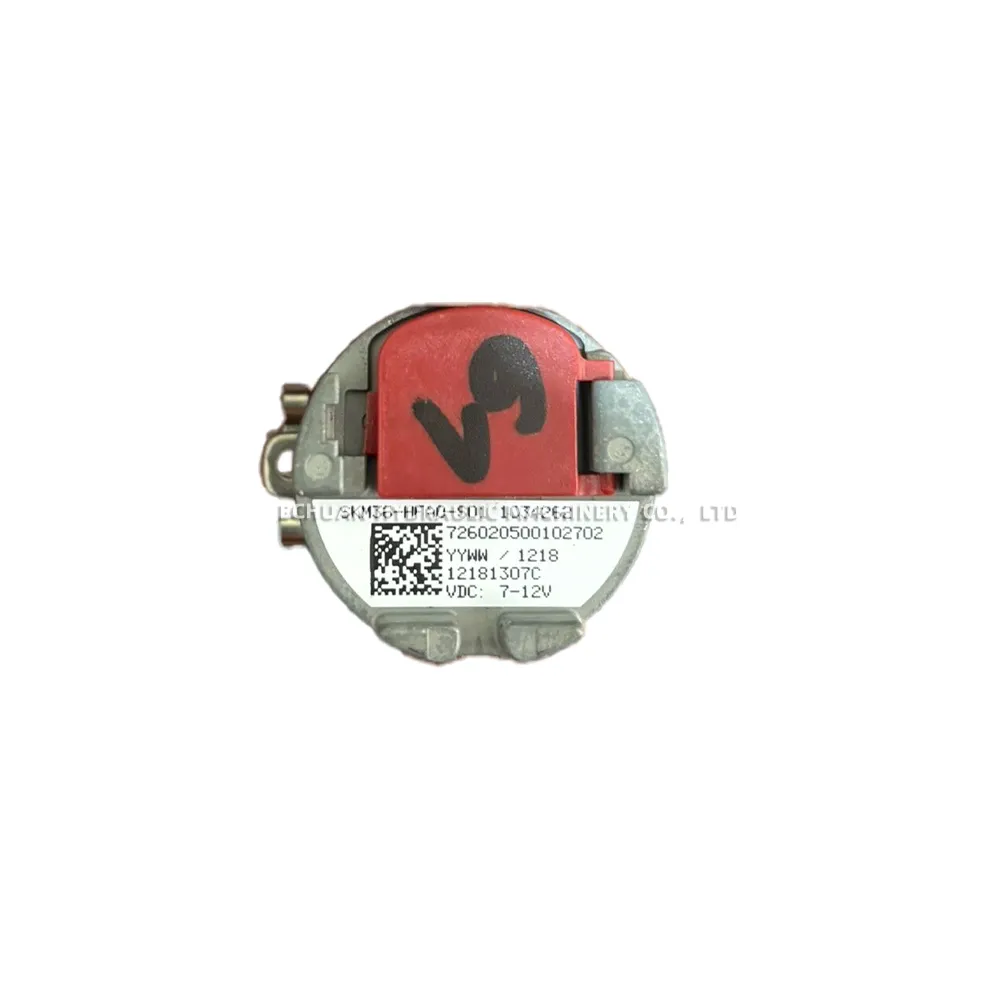

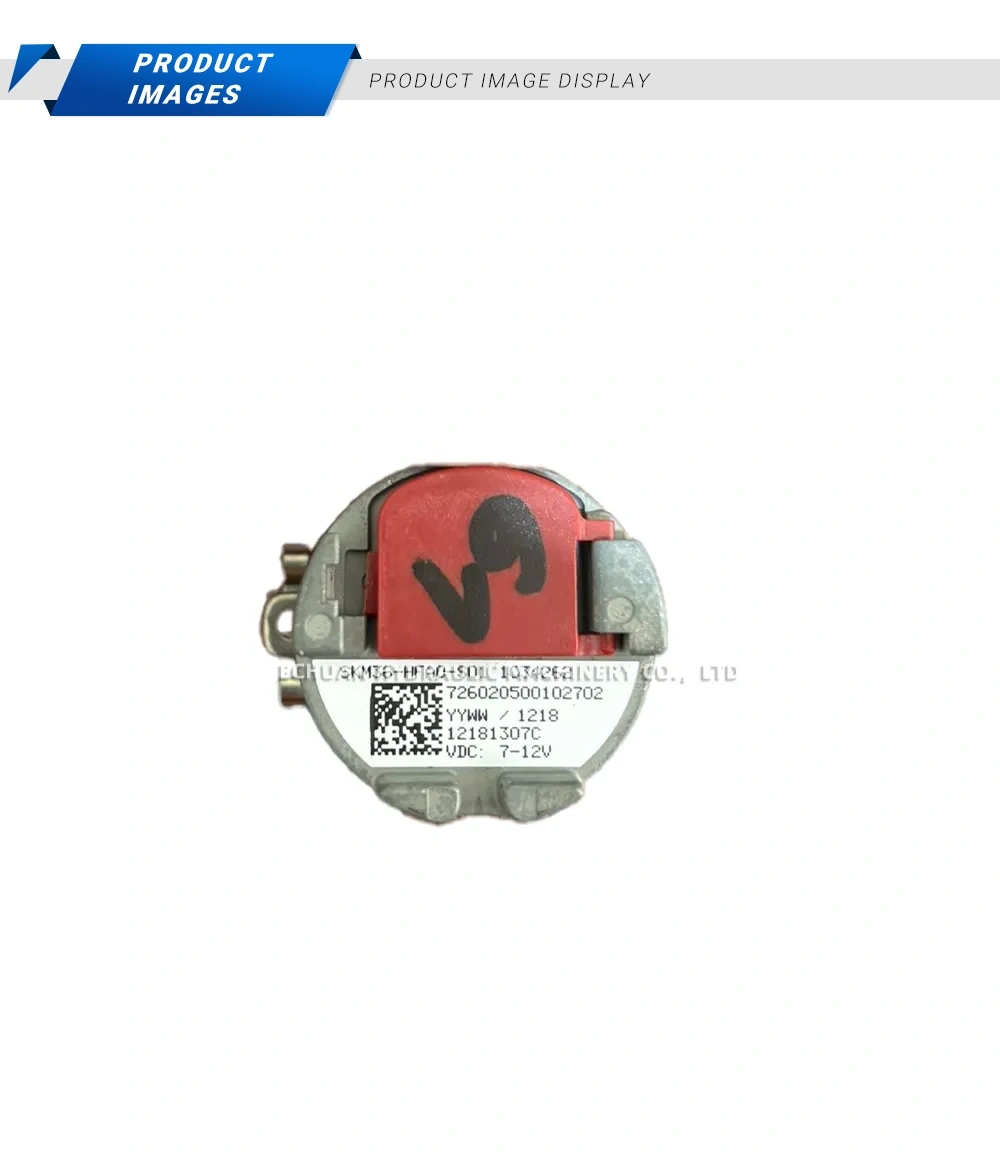

Hengstler SKM36-HFA0-S01 Rotary Encoder
The Hengstler SKM36-HFA0-S01 is a compact and robust absolute rotary encoder module designed for high-performance motor feedback applications. Part of the acclaimed SKM36 series, this encoder utilizes the reliable HIPERFACE® interface, providing both analog sine/cosine signals for dynamic control and an absolute position value. Its small 36mm footprint and bearingless design make it ideal for integration into servo motors where space is critical. Engineered for precision and durability, the SKM36-HFA0-S01 delivers accurate position and speed data, ensuring optimal performance in demanding industrial automation environments.
Technical Specifications:
- Model: SKM36-HFA0-S01
- Part Number: 1034262
- Encoder Type: Absolute Rotary Encoder Module (Bearingless)
- Interface: HIPERFACE®
- Resolution: 1024 Sine/Cosine Periods per Revolution
- Operating Voltage: 7 V DC – 12 V DC
- Max. Operating Speed: 12,000 rpm
- Operating Temperature: -20 °C to +115 °C
Hengstler SKM36-HFA0-S01 Rotary Encoder
Shop the Hengstler SKM36-HFA0-S01 (P/N 1034262), a compact 36mm absolute rotary encoder module with a HIPERFACE® interface, designed for high-precision motor feedback systems.
