Product Description

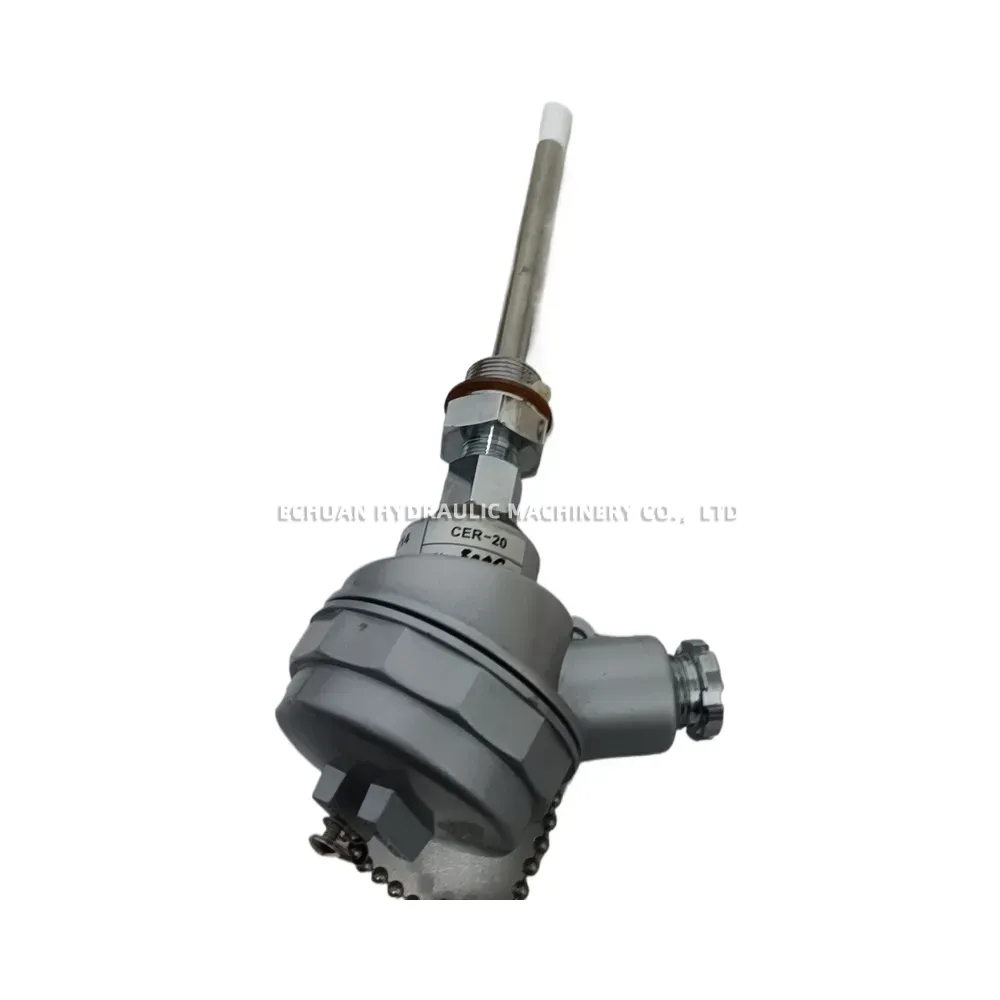

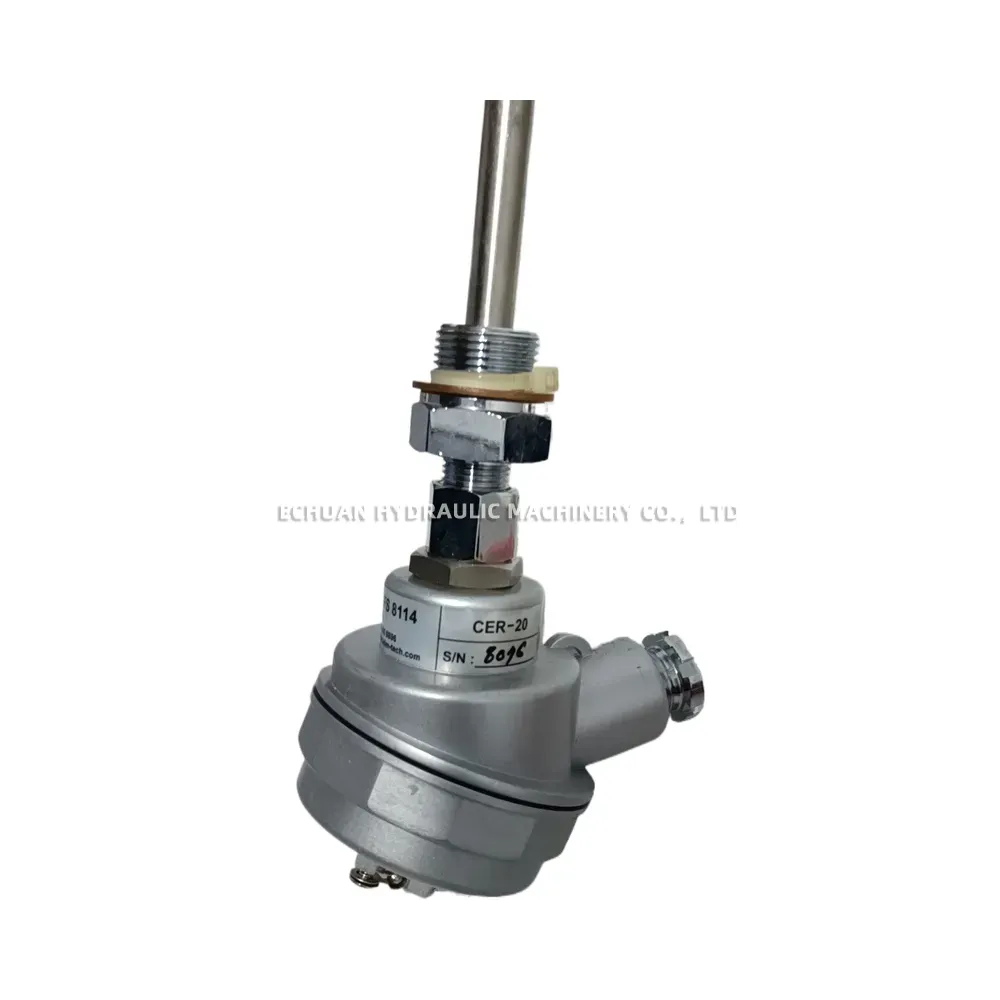

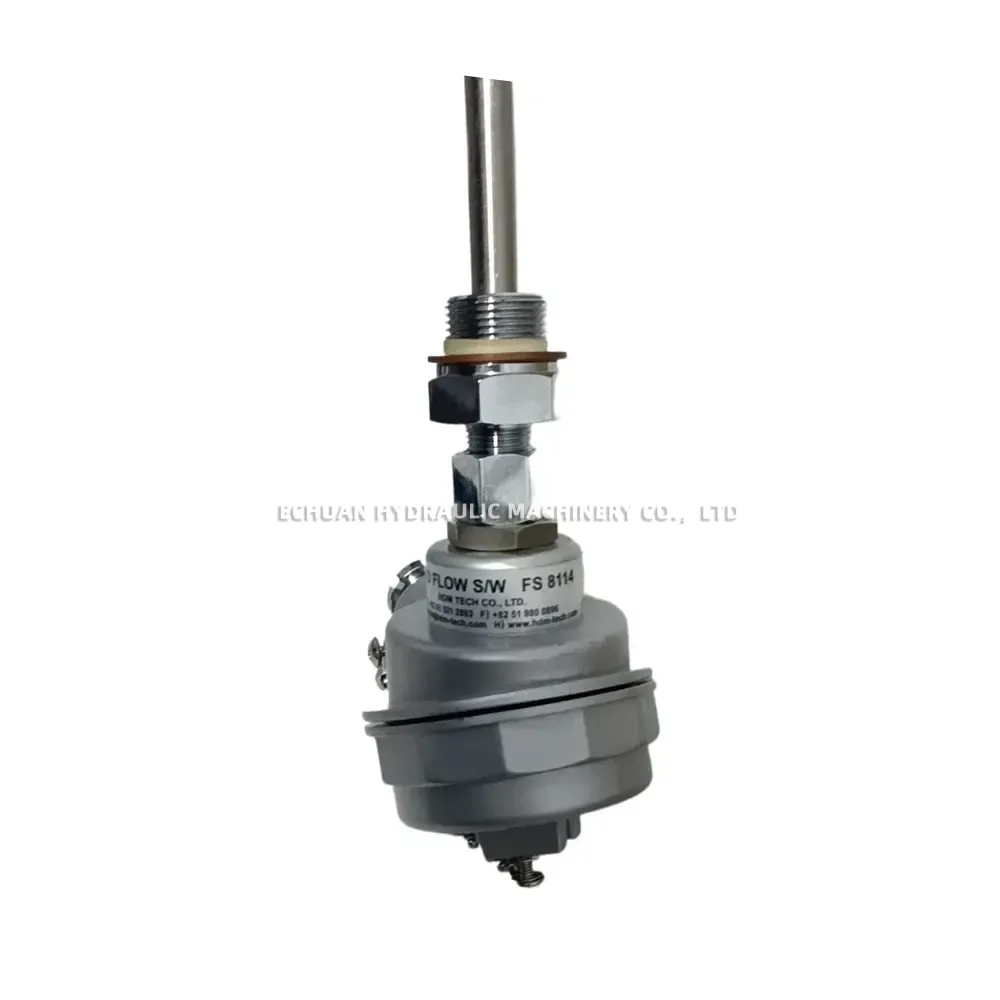

HGM Tech FS 8114 Flow Switch

The HGM Tech FS 8114 is a robust and reliable industrial flow switch designed for monitoring the flow of liquids and gases in pipelines. Operating on the calorimetric (thermal dispersion) principle, it provides highly sensitive detection with no moving parts, ensuring a long service life and minimal maintenance. The unit features a durable stainless steel probe and a rugged aluminum housing (IP65 rated) to withstand harsh industrial environments. With an adjustable setpoint and a clear LED status indicator, the FS 8114 is ideal for applications such as pump dry-run protection, coolant circulation monitoring, and process flow control.

Technical Specifications:

  • Model: FS 8114 (CER-20 Configuration)

  • Operating Principle: Calorimetric / Thermal Dispersion

  • Power Supply: AC 110/220V 50/60Hz or DC 24V

  • Output: Relay Contact (SPDT 5A / 250VAC)

  • Process Connection: Threaded R(PT) 1/2″ (or other sizes as specified)

  • Wetted Parts Material: Stainless Steel (SUS304 / SUS316)

  • Enclosure Protection: IP65

  • Maximum Operating Pressure: 30 kg/cm²

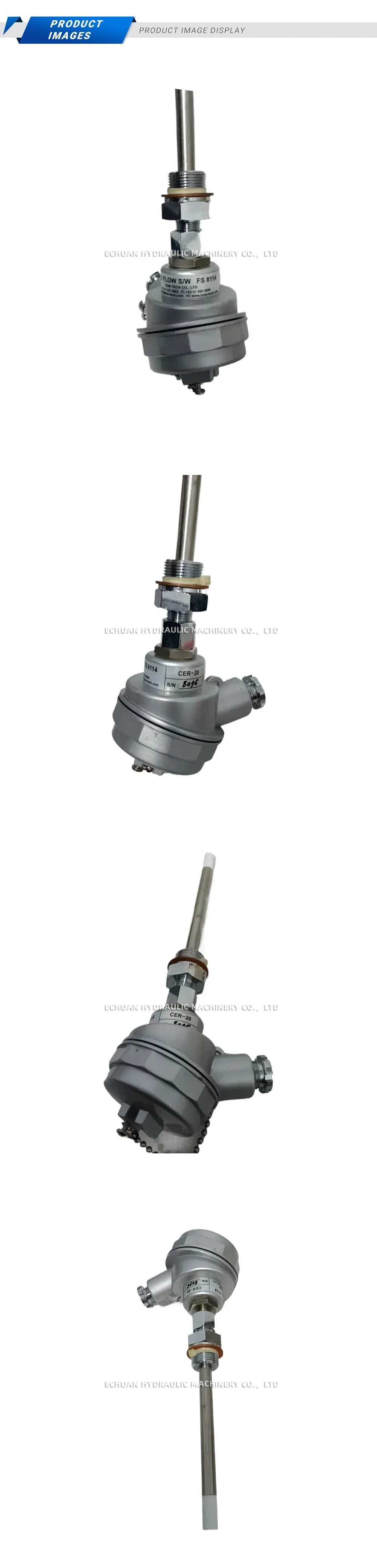

HGM Tech FS 8114 Flow Switch Description

HGM Tech FS 8114 Flow Switch

Discover the HGM Tech FS 8114, a robust industrial calorimetric flow switch for reliable liquid and gas flow monitoring. Features a durable stainless steel probe, relay output, and an IP65-rated housing for demanding environments.

BrandHGM Tech
ModelFS 8114
Part No.1039668110928
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/hgm-tech-fs-8114-flow-switch
