Product Description
Hirschmann OZD PROFI 12M G12 Fiberoptic Module Profibus
The Hirschmann OZD PROFI 12M G12 is a robust industrial fiber optic module designed to ensure reliable data transmission in Profibus networks. It expertly converts electrical Profibus signals into optical signals, making it ideal for extending network distances and providing immunity to electromagnetic interference in harsh industrial environments. With support for versatile network topologies including bus, line, star, and a redundant ring configuration, this module offers exceptional flexibility and network uptime. Its rugged design, wide operating temperature range, and certifications for hazardous locations (Class I, Div. 2) make it a dependable choice for critical automation and control applications.
Technical Specifications:
- Network Protocol: Profibus up to 12 Mbit/s

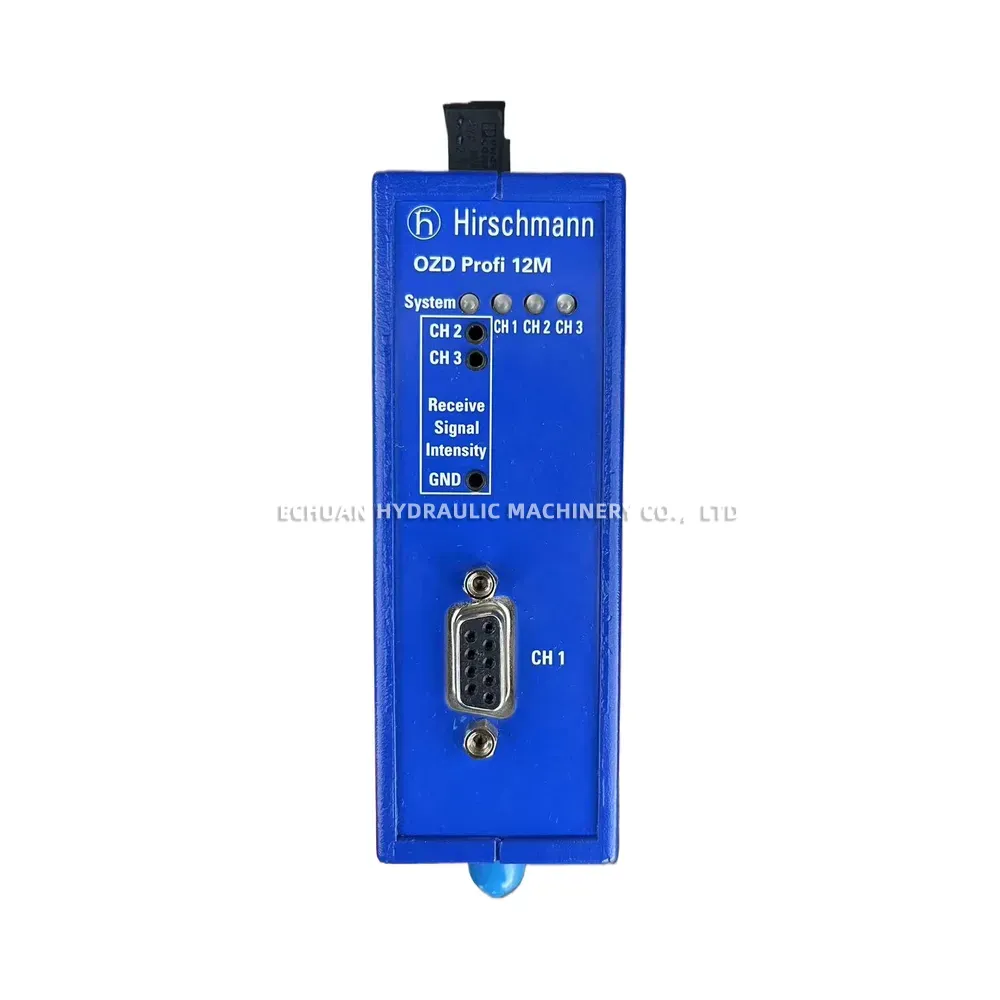

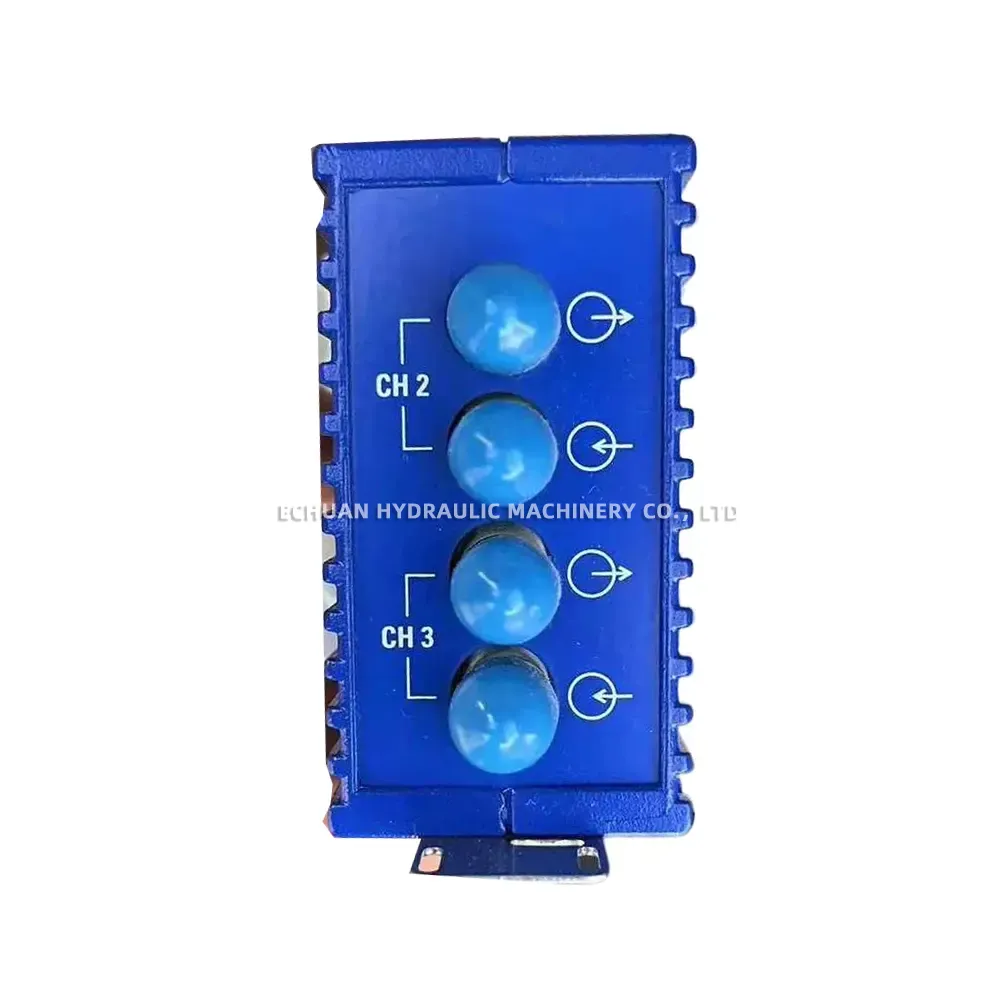

- Interfaces: 1 x Electrical (DB9 Connector, CH 1), 2 x Optical Fiber (BFOC/ST Connectors, CH 2, CH 3)

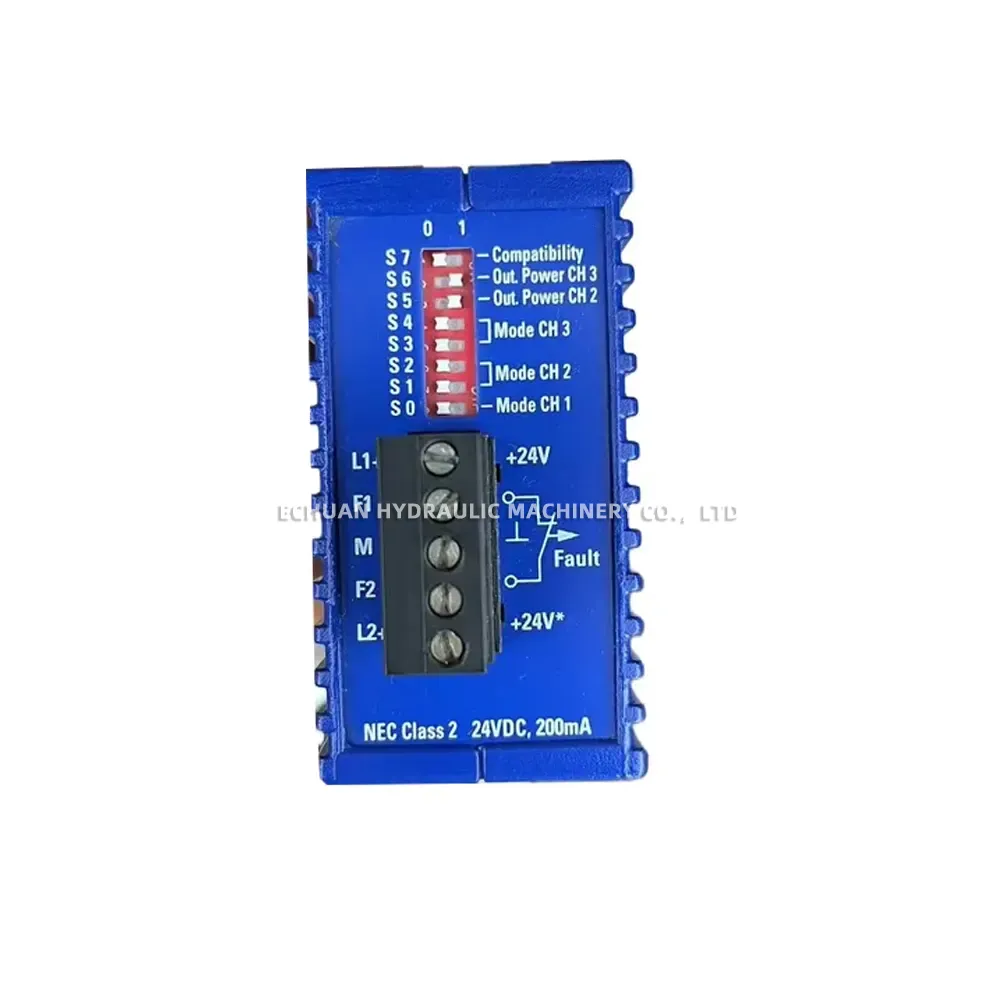

- Power Supply: 24VDC, 200mA (NEC Class 2)
- Operating Temperature: 0°C to +60°C

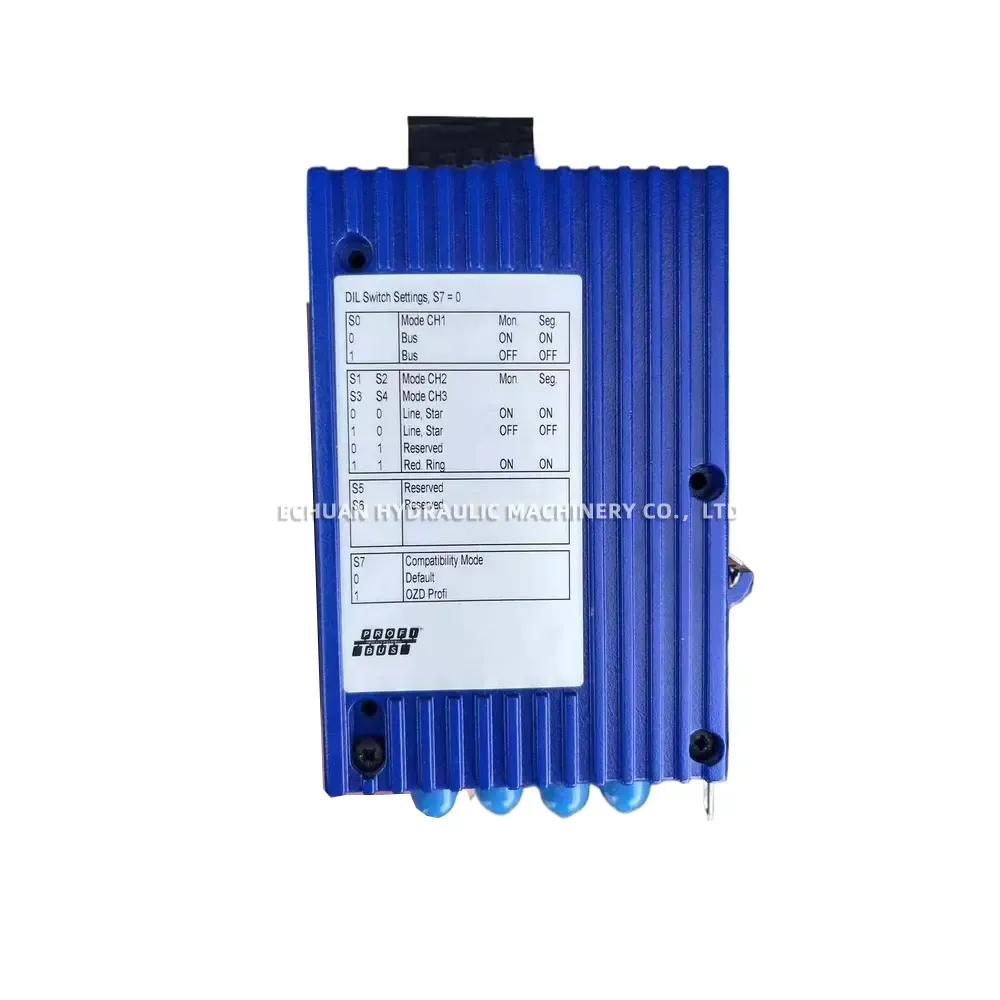

- Supported Topologies: Configurable for Line, Bus, Star, and Redundant Ring
- Features: Fault relay output for network monitoring

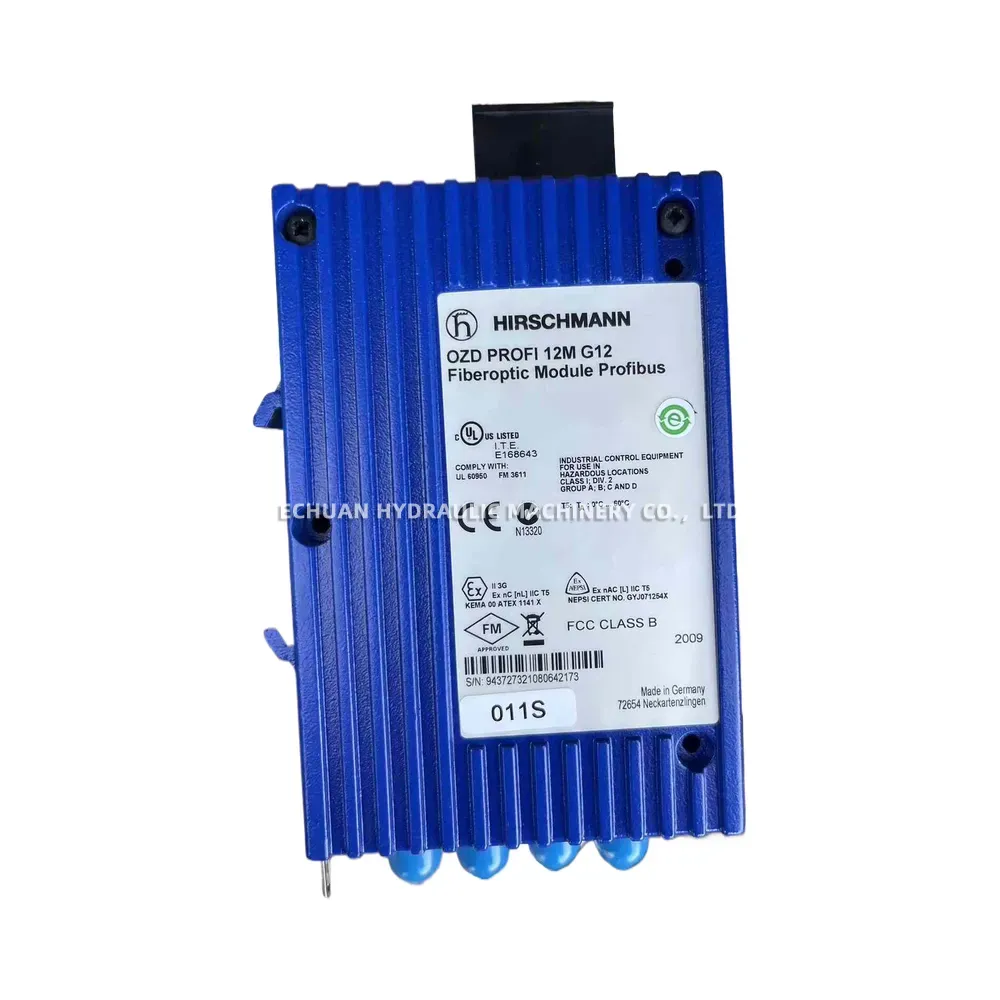

- Certifications: UL 60950, FM 3611, Class I Div. 2 (Groups A, B, C, D), ATEX, CE
Hirschmann OZD PROFI 12M G12 Fiberoptic Module Profibus
Discover the Hirschmann OZD PROFI 12M G12, a reliable industrial fiber optic repeater for Profibus networks. Converts electrical to optical signals, supports redundant ring topology, and is certified for hazardous locations.
