Product Description

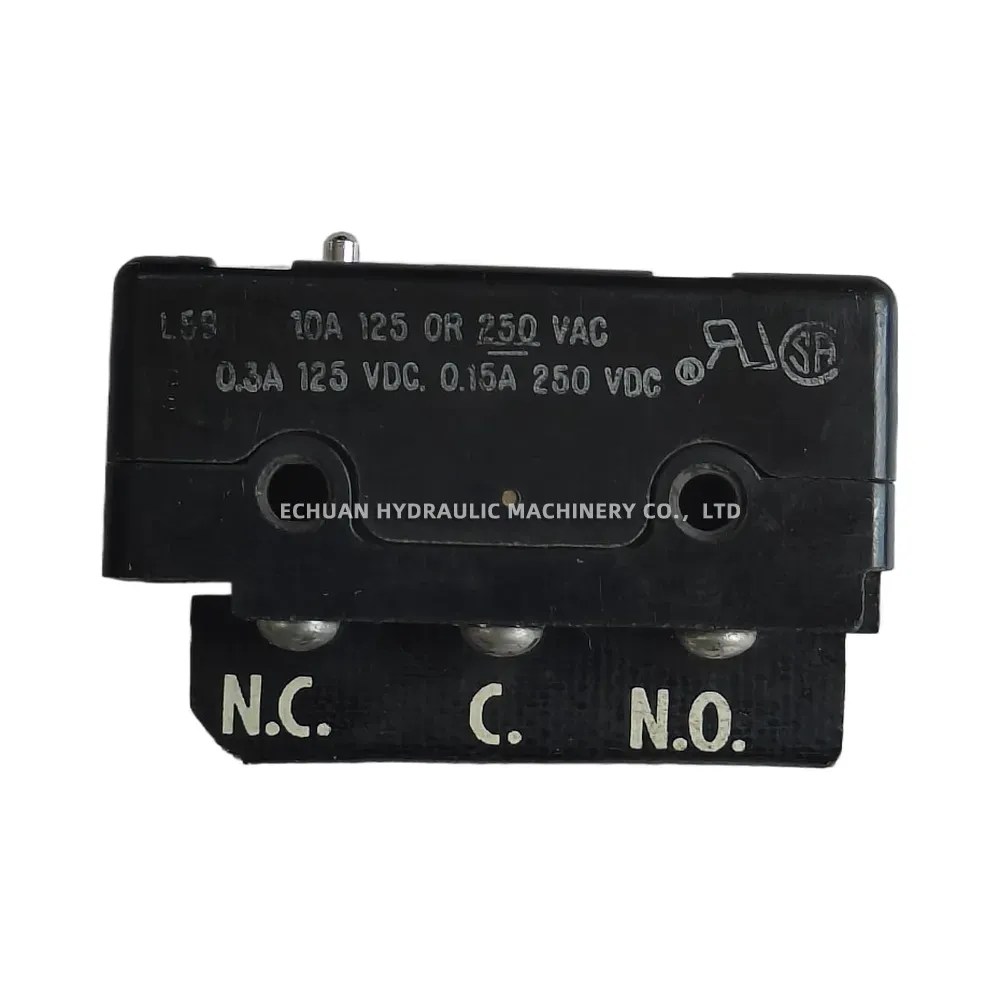

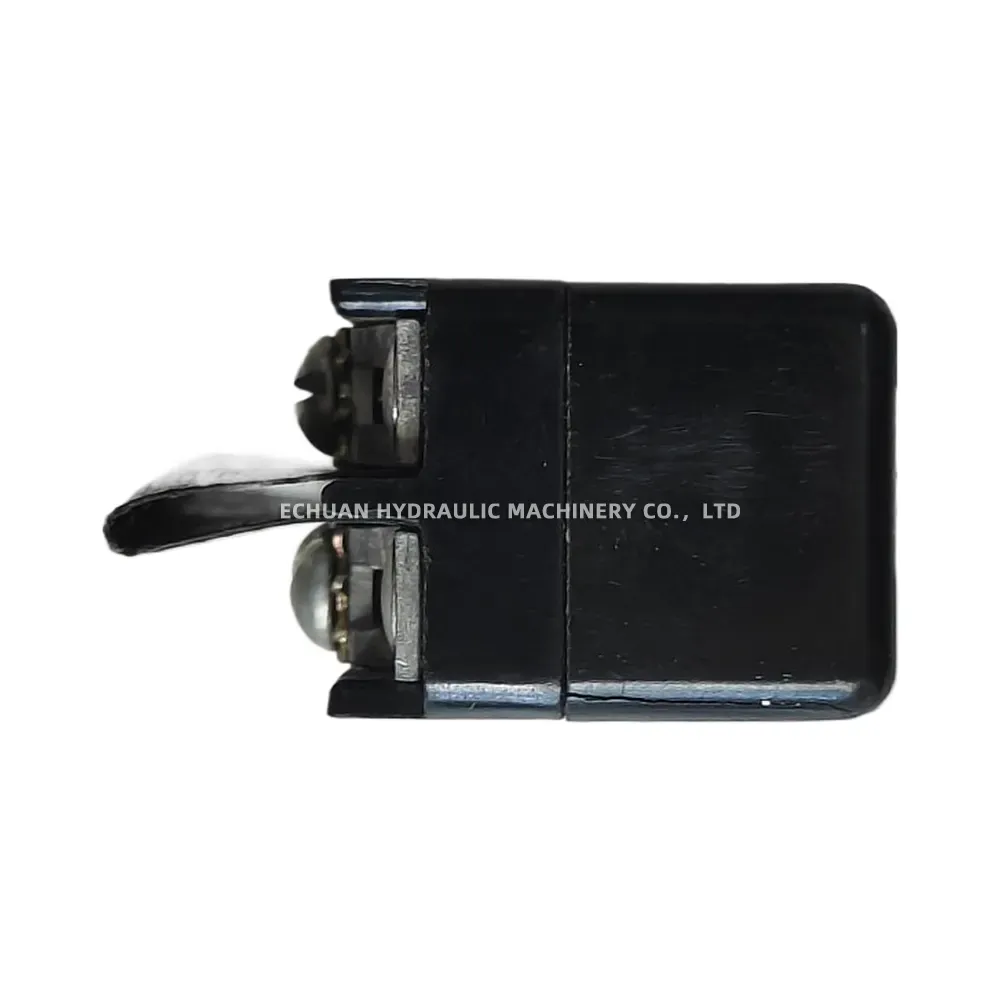

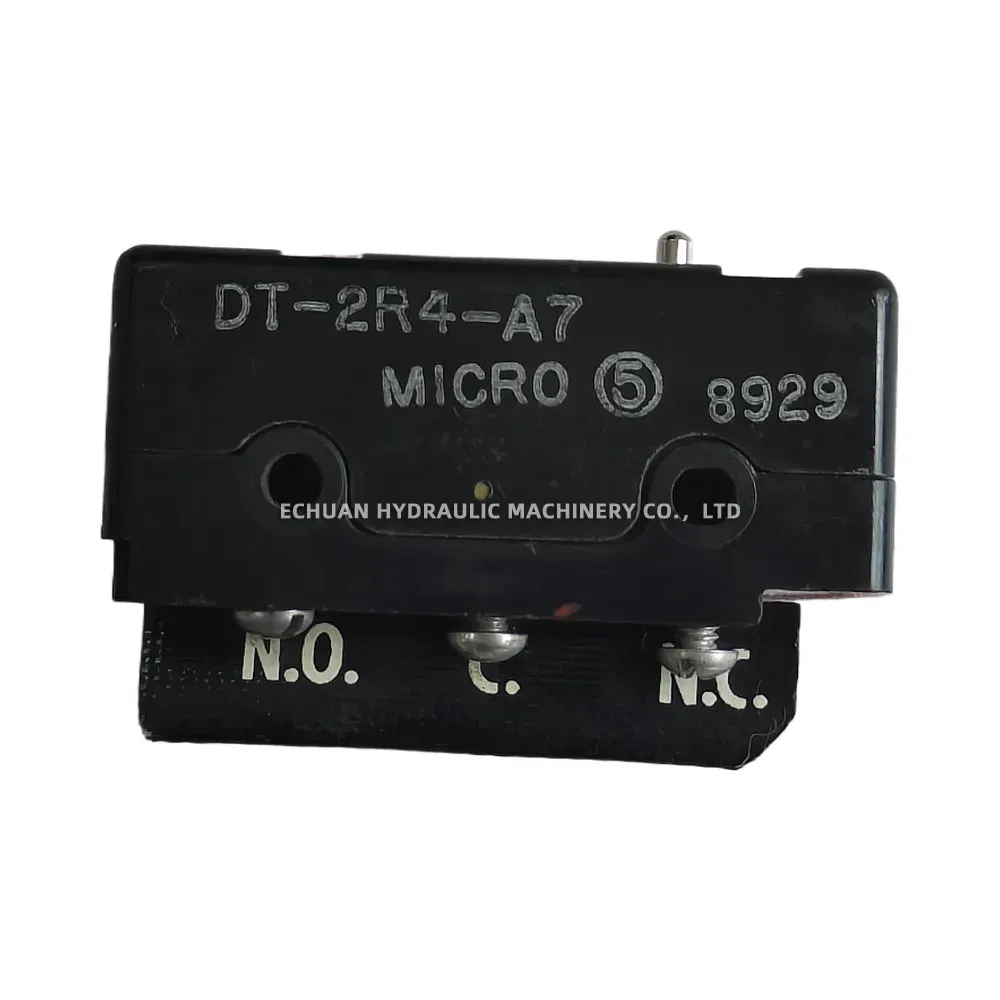

Honeywell DT-2R4-A7
The Honeywell DT-2R4-A7 is a high-quality subminiature basic switch from the DT Series, engineered for reliability and long life in a compact package. It features a single-pole, double-throw (SPDT) circuitry with a pin plunger actuator, making it suitable for a wide range of applications that require precise and dependable switching. With a robust current rating of 10 A at 250 VAC and quick-connect terminals, this switch ensures both high performance and ease of installation in various industrial and commercial equipment.
Technical Specifications:
- Switch Type: Subminiature Basic Switch
- Circuitry: SPDT (Single Pole Double Throw)
- Current Rating: 10 A at 250 VAC
- Actuator: Pin Plunger
- Termination: 4.75 mm x 0.51 mm [0.187 in x 0.020 in] Quick Connect
- Operating Force (OF): 2.22 N [8.0 oz] maximum
- Operating Temperature: -55 °C to 85 °C [-67 °F to 185 °F]
- Approvals: UL, CSA, ENEC
Honeywell DT-2R4-A7

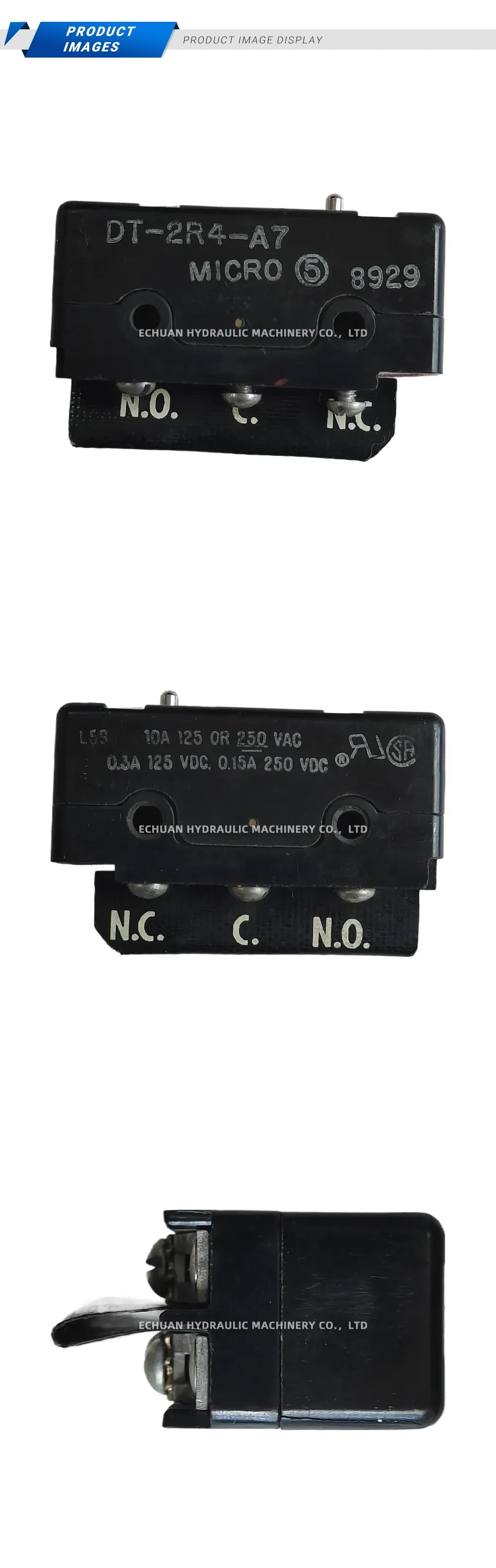

Honeywell DT-2R4-A7 subminiature basic switch featuring SPDT circuitry, a pin plunger actuator, and a 10A rating. Designed for compact and reliable applications with quick-connect terminals.
| Brand | Honeywell |
|---|---|
| Model | DT-2R4-A7 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/honeywell-dt-2r4-a7 |
