Product Description

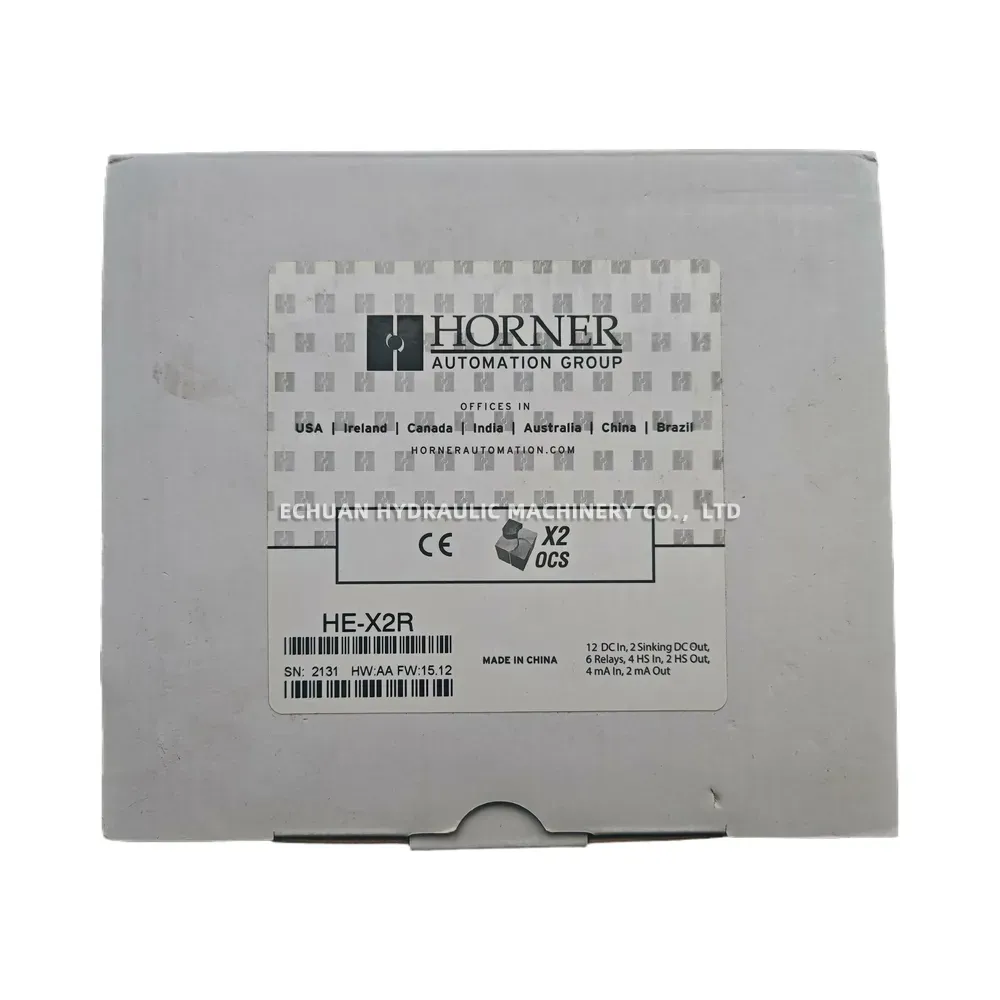

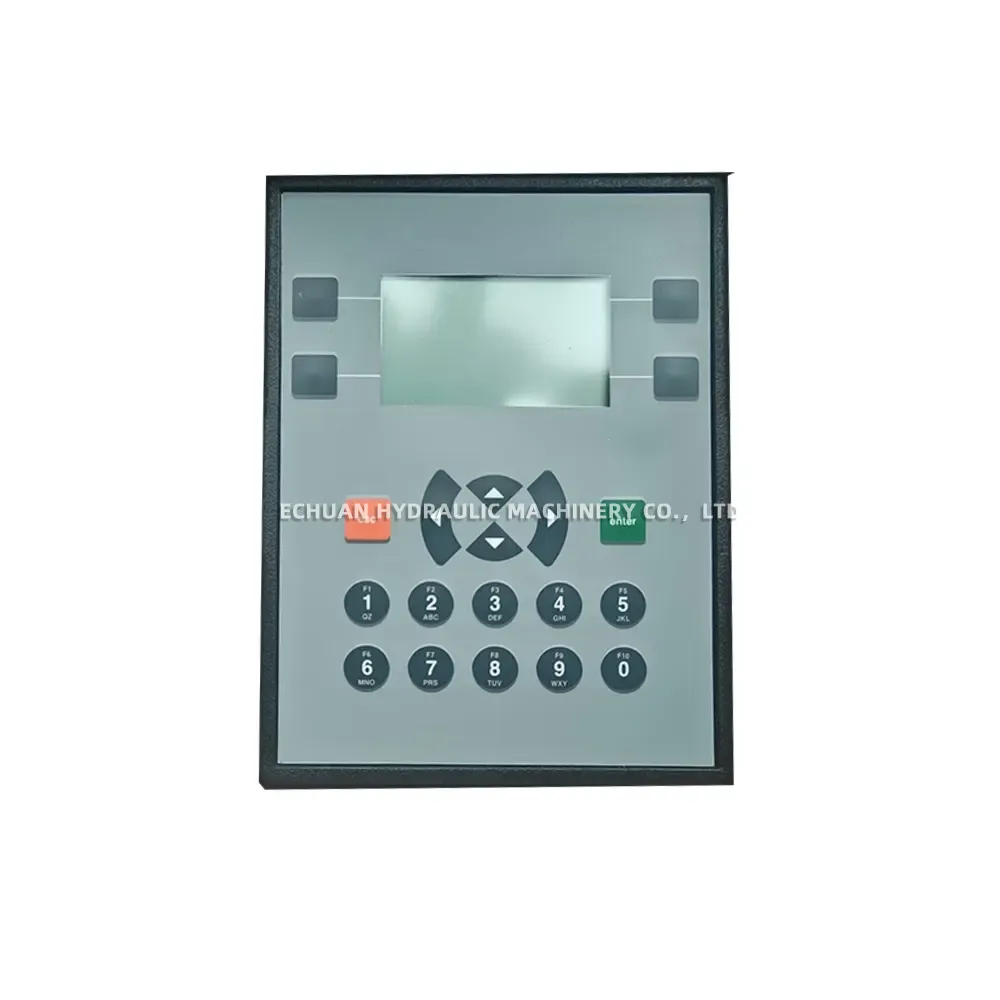

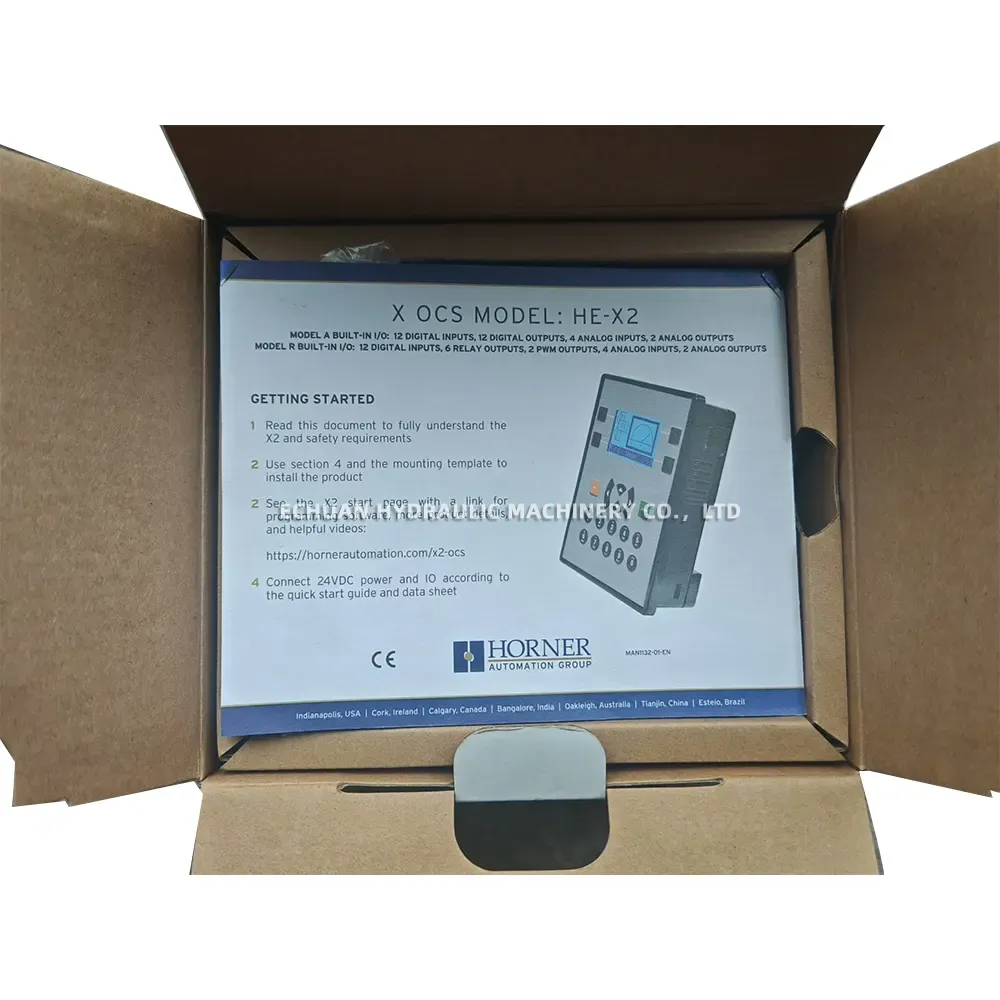

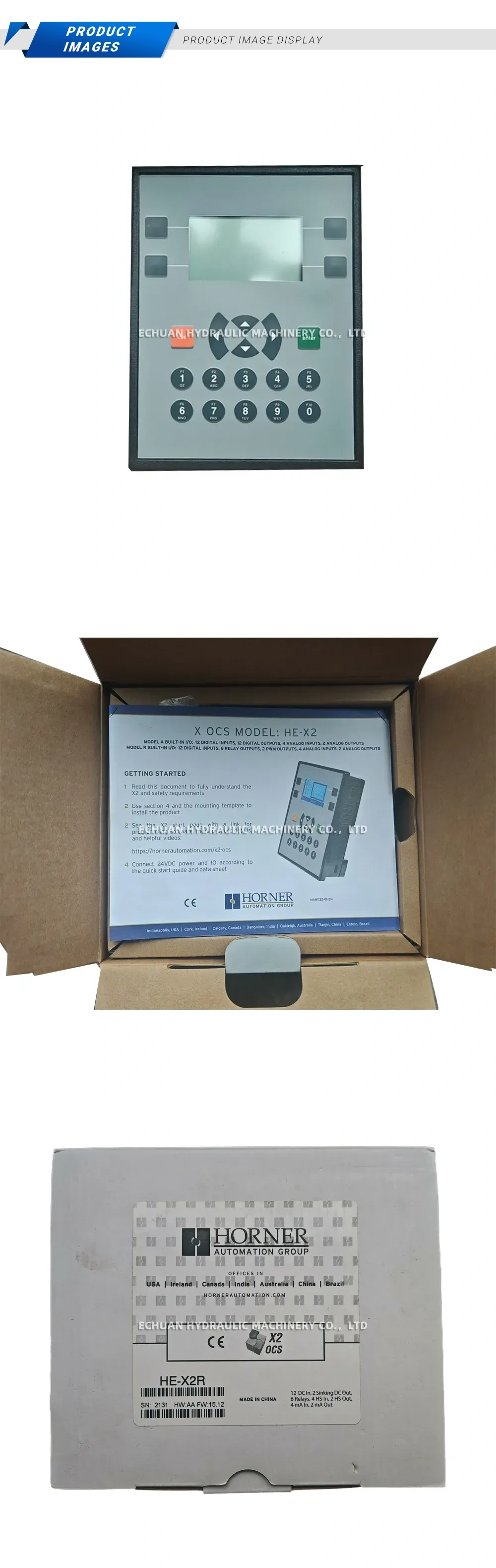

Horner Automation HE-X2R X2 OCS Controller
The Horner Automation HE-X2R is a powerful and compact All-in-One Controller (OCS) that integrates a logic controller, operator interface, and I/O into a single, robust unit. Part of the X-Series, the HE-X2R is designed for applications requiring advanced control in a small footprint. It features a high-visibility 2.2″ OLED screen and a 12-key tactile keypad for easy operation and monitoring. With a versatile mix of digital, high-speed, relay, and analog I/O, this controller provides a cost-effective and space-saving solution for a wide range of industrial automation and process control tasks.
Technical Specifications:
- Model: HE-X2R
- Display: 2.2″ Monochrome OLED Display
- Digital Inputs: 12 DC Inputs
- High-Speed Inputs: 4 channels (up to 100kHz)
- Digital Outputs: 2 Sinking DC Outputs, 6 Relay Outputs (2A)
- High-Speed Outputs: 2 channels (PWM/Pulse/Stepper)
- Analog Inputs: 4 channels, 0-20mA / 4-20mA (12-bit)
- Analog Outputs: 2 channels, 0-20mA / 4-20mA (12-bit)
- Communication Ports: RS-232/RS-485, CAN Port
- Programming Software: Cscape™
Horner Automation HE-X2R X2 OCS Controller
Discover the Horner Automation HE-X2R X2 OCS, a compact all-in-one controller featuring an integrated HMI, keypad, and a versatile mix of 12 DC inputs, 6 relay outputs, 2 DC outputs, and 4/2 analog I/O for efficient automation solutions.
