Product Description

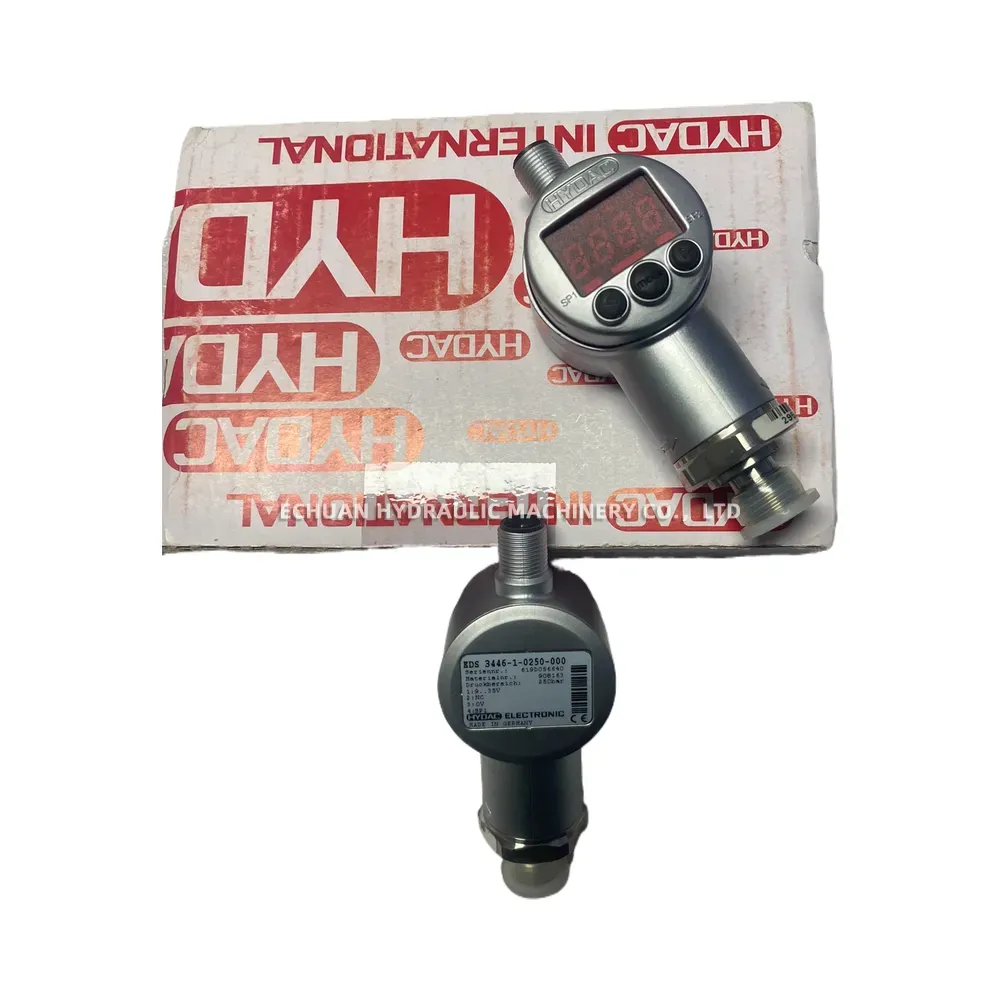

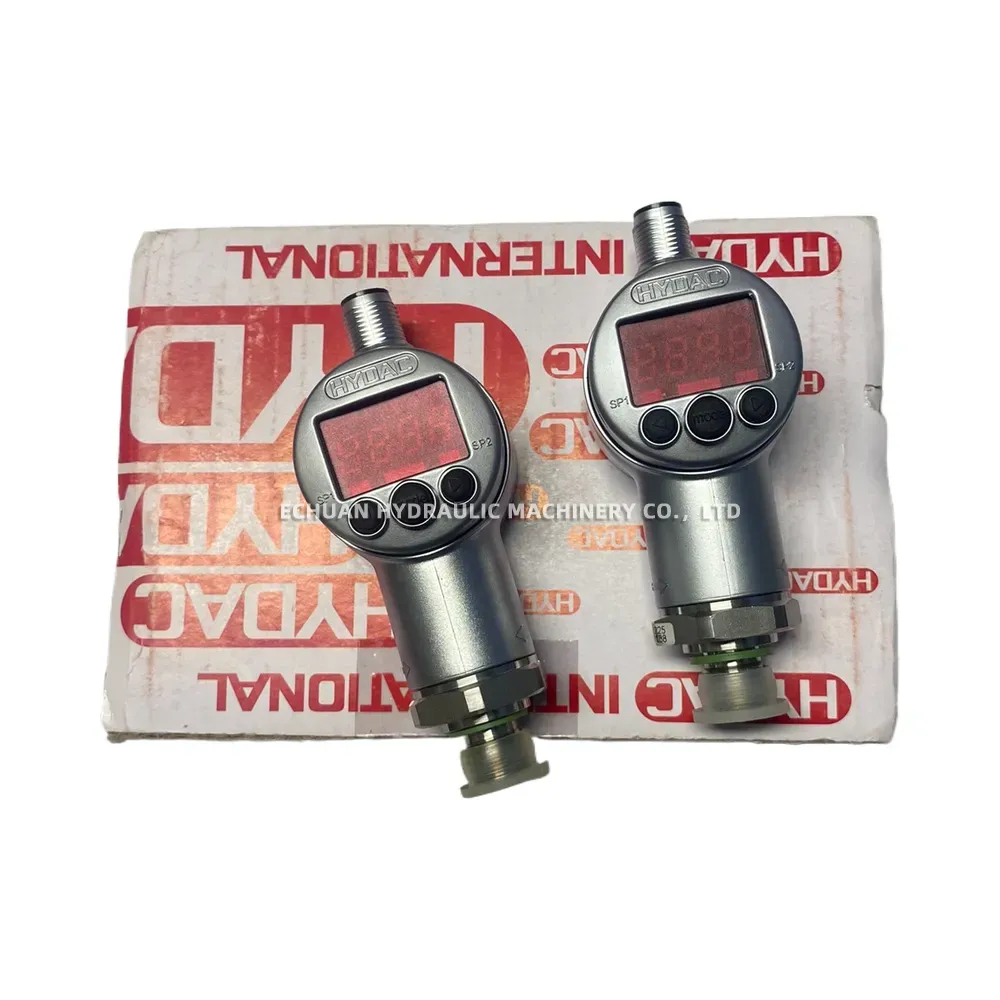

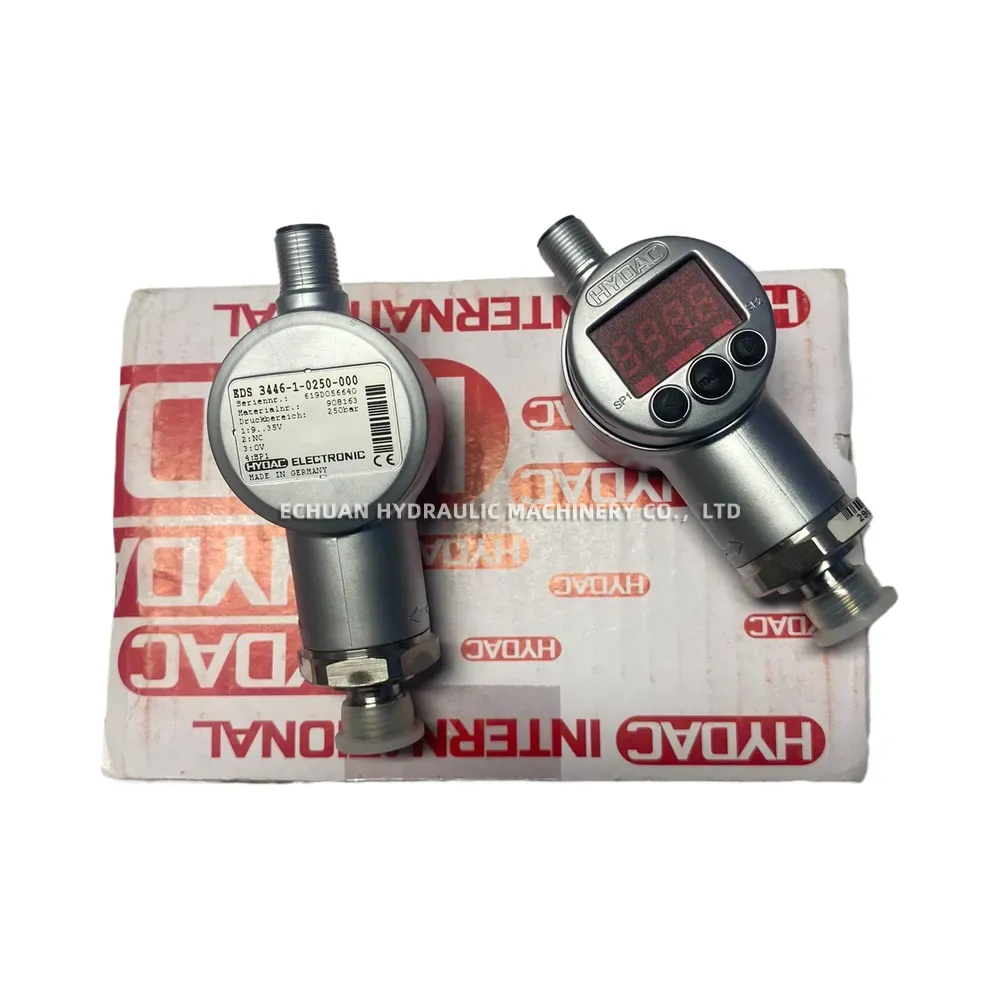

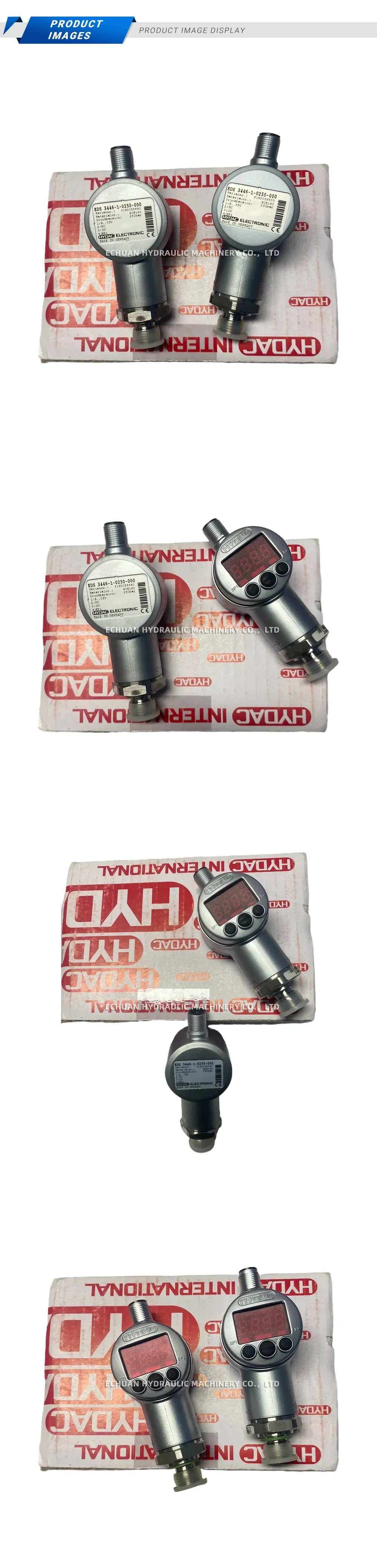

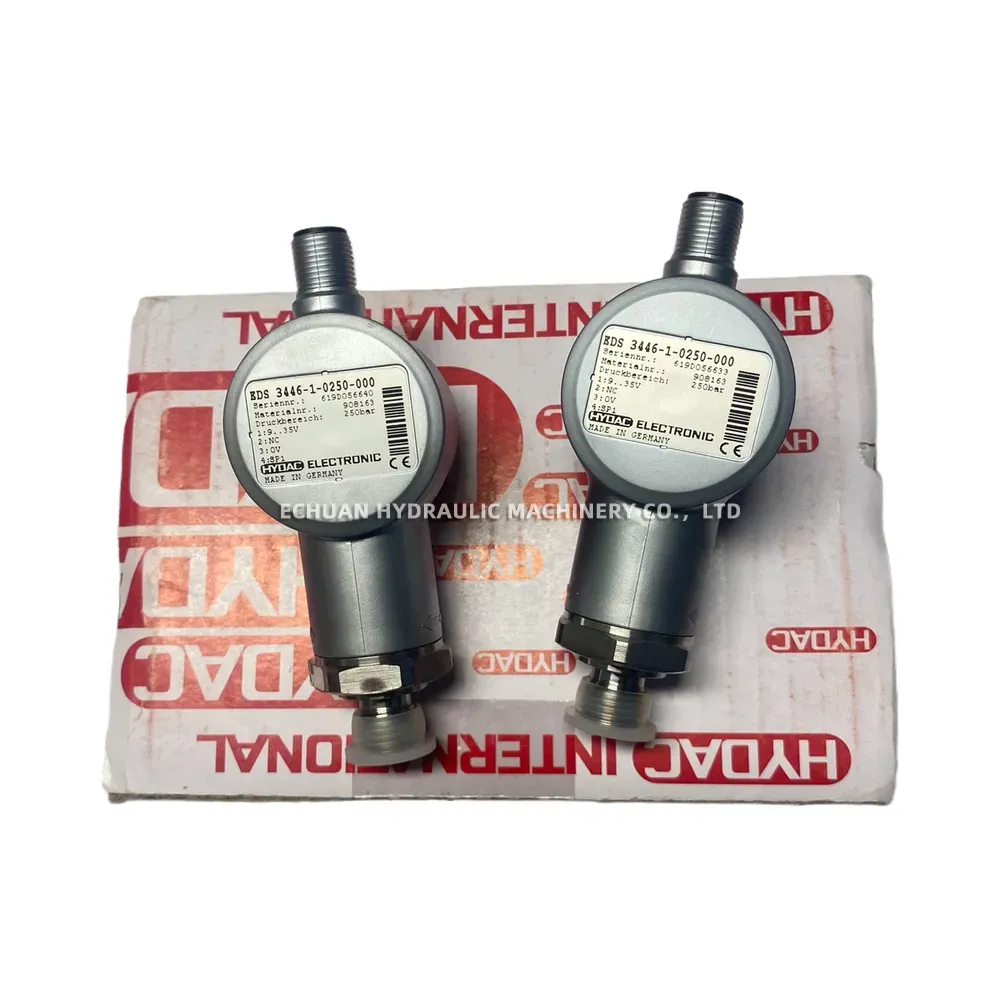

HYDAC BDS 3446-1-0250-000 Digital Pressure Sensor
The HYDAC BDS 3446-1-0250-000 is a high-performance digital pressure sensor engineered for demanding industrial environments. Manufactured in Germany by HYDAC Electronic, this highly reliable sensor provides precise pressure monitoring with a measuring range of up to 250 bar. It is constructed with a rugged metallic housing, featuring a threaded pressure connection and a secure electrical interface to ensure seamless integration into hydraulic and pneumatic systems. Operating on a versatile 9-36V DC supply voltage and equipped with programmable switching outputs (SP1), the BDS 3446-1-0250-000 delivers accurate and dependable control for optimal system safety and efficiency.
Technical Specifications:
- Brand: HYDAC
- Model: BDS 3446-1-0250-000
- Material Number: 908163
- Measuring Range (Druckbereich): 250 bar
- Supply Voltage: 9 – 36V DC
- Output: Programmable switching output (SP1)
- Pin Configuration: 1: 9..36V | 2: NC | 3: 0V | 4: SP1
- Country of Origin: Made in Germany
HYDAC BDS 3446-1-0250-000 Digital Pressure Sensor
Shop the genuine HYDAC BDS 3446-1-0250-000 digital pressure sensor (Material No. 908163). Features a 250 bar measuring range, 9-36V DC supply, and programmable SP1 output in a rugged metallic housing. Perfect for reliable industrial hydraulic and pneumatic pressure monitoring. Made in Germany.
