Product Description

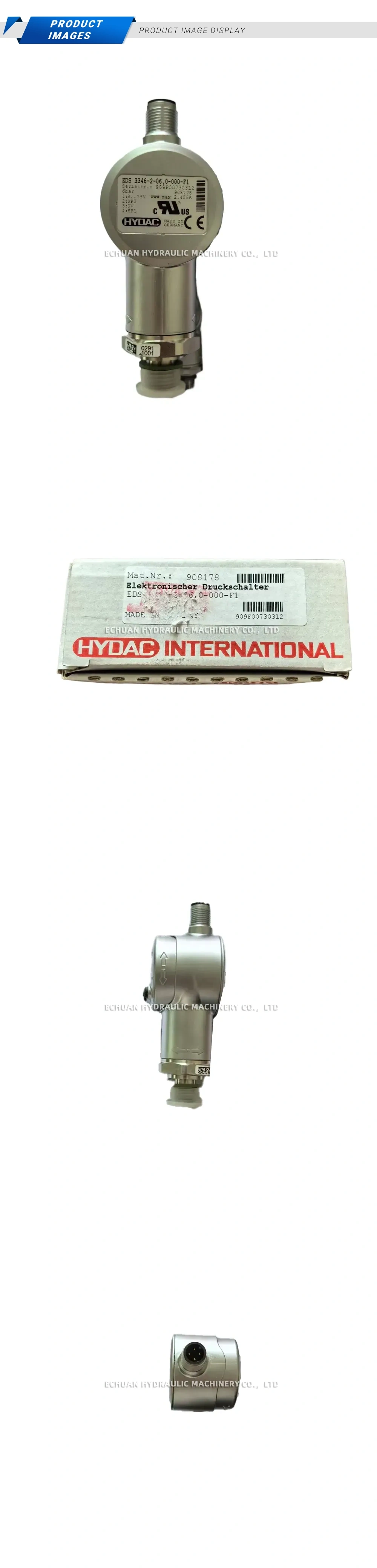

Hydac EDS 3346-2-06,0-000-F1
The Hydac EDS 3346 is a compact electronic pressure switch designed for reliable pressure monitoring in hydraulic and pneumatic systems. It features a robust stainless steel housing and a ceramic measuring cell with a thick-film strain gauge for high accuracy and long-term stability. This model is equipped with two PNP switching outputs and an integrated 3-digit digital display for easy reading of the system pressure. The switching points and hysteresis can be easily adjusted via the keypad, making it a versatile and user-friendly solution for industrial applications requiring precise pressure control and monitoring.
Technical Specifications:
- Pressure Range: 0 … 6 bar
- Output: 2 switching outputs, PNP
- Mechanical Connection: G1/4 A DIN 3852-E
- Electrical Connection: M12x1 connector, 4-pole
- Supply Voltage: 10 … 30 V DC
- IP Protection Class: IP 67
Hydac EDS 3346-2-06,0-000-F1
Buy the Hydac EDS 3346-2-06,0-000-F1, a compact electronic pressure switch with a 0-6 bar range, dual PNP outputs, a G1/4 A process connection, and an M12 connector. Ideal for precise pressure monitoring in industrial hydraulic and pneumatic systems.
