Product Description

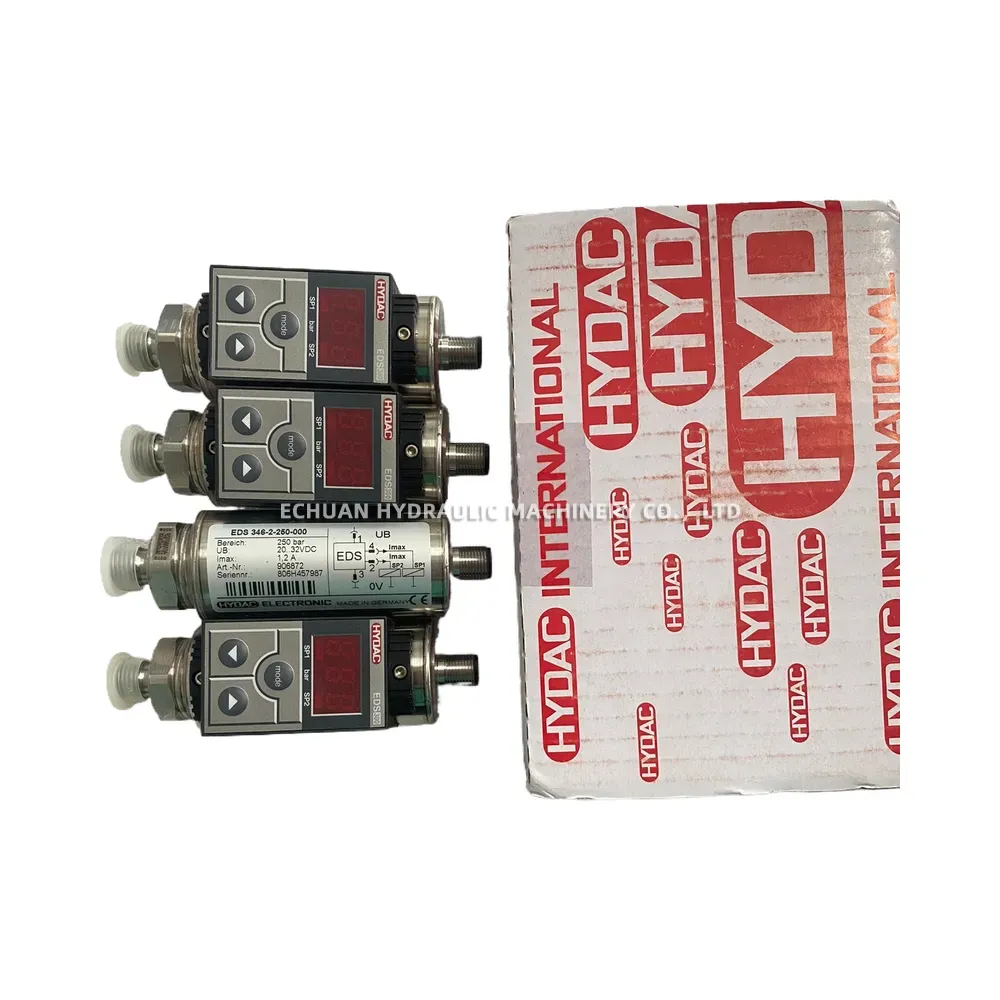

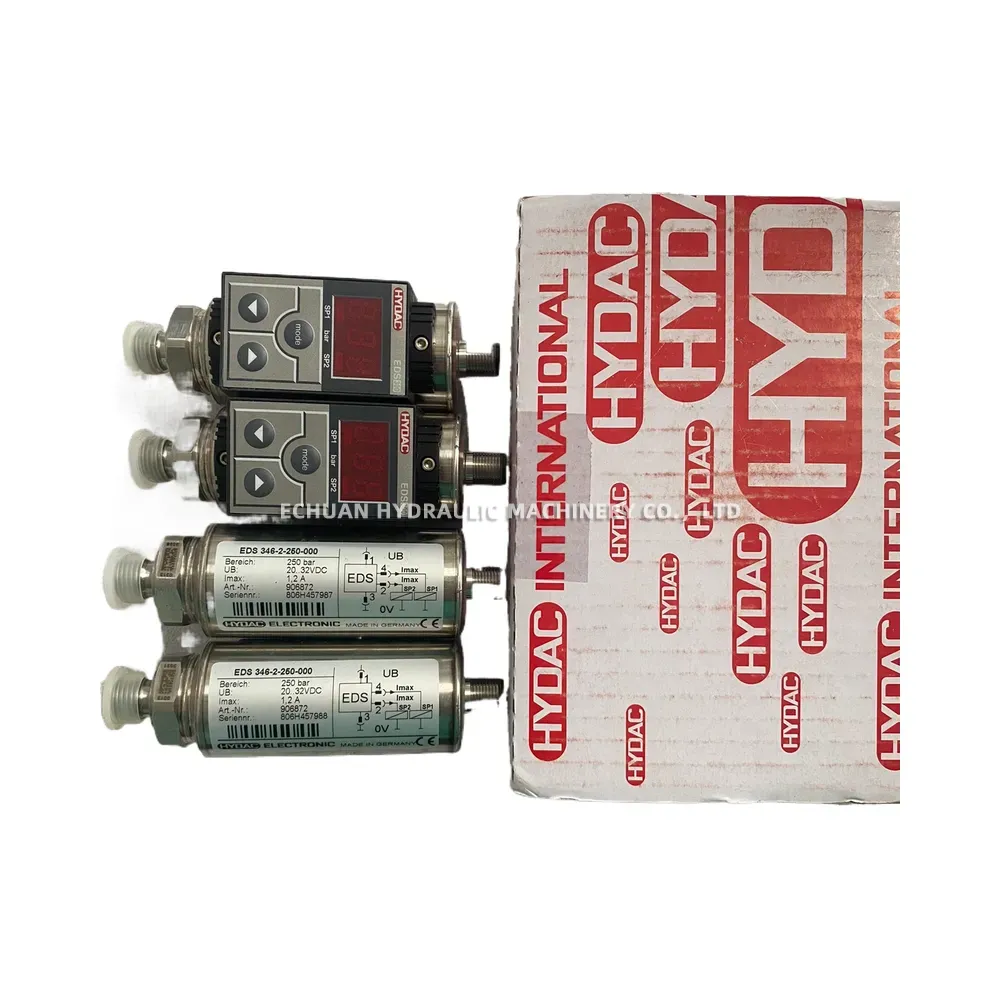

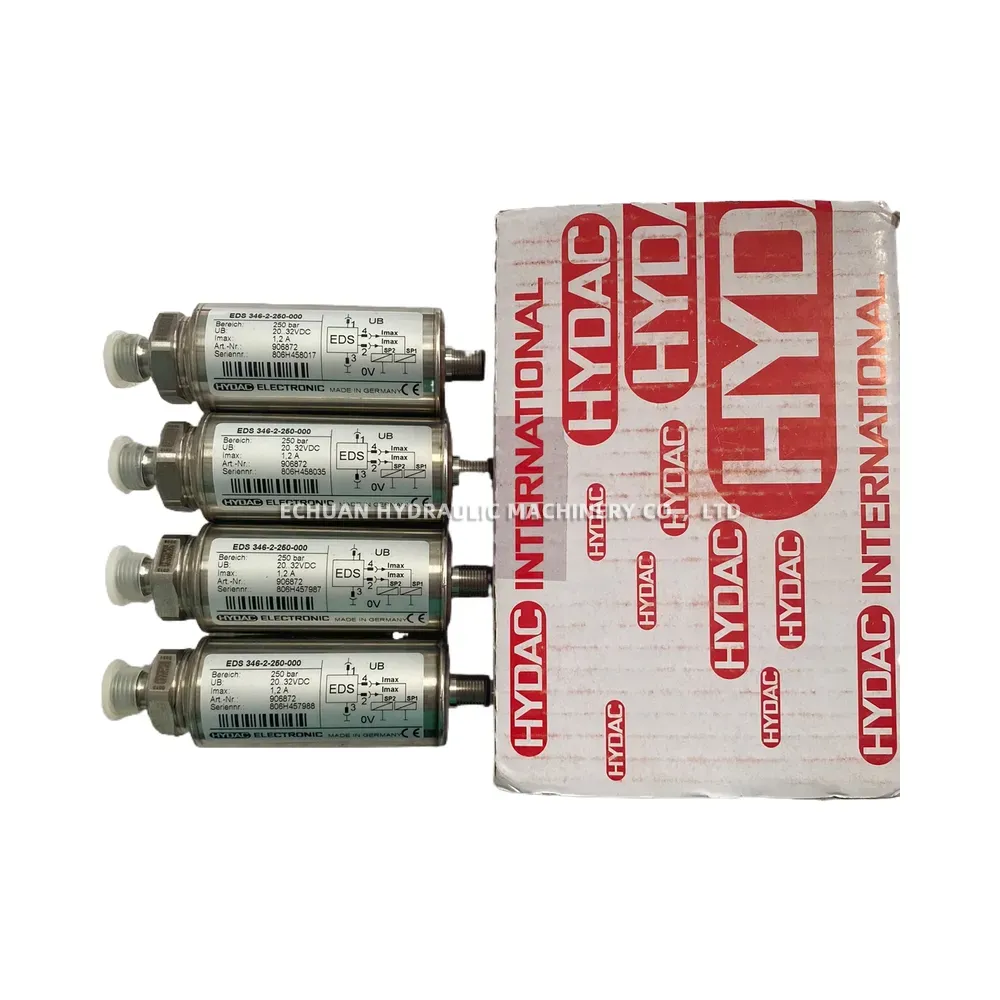

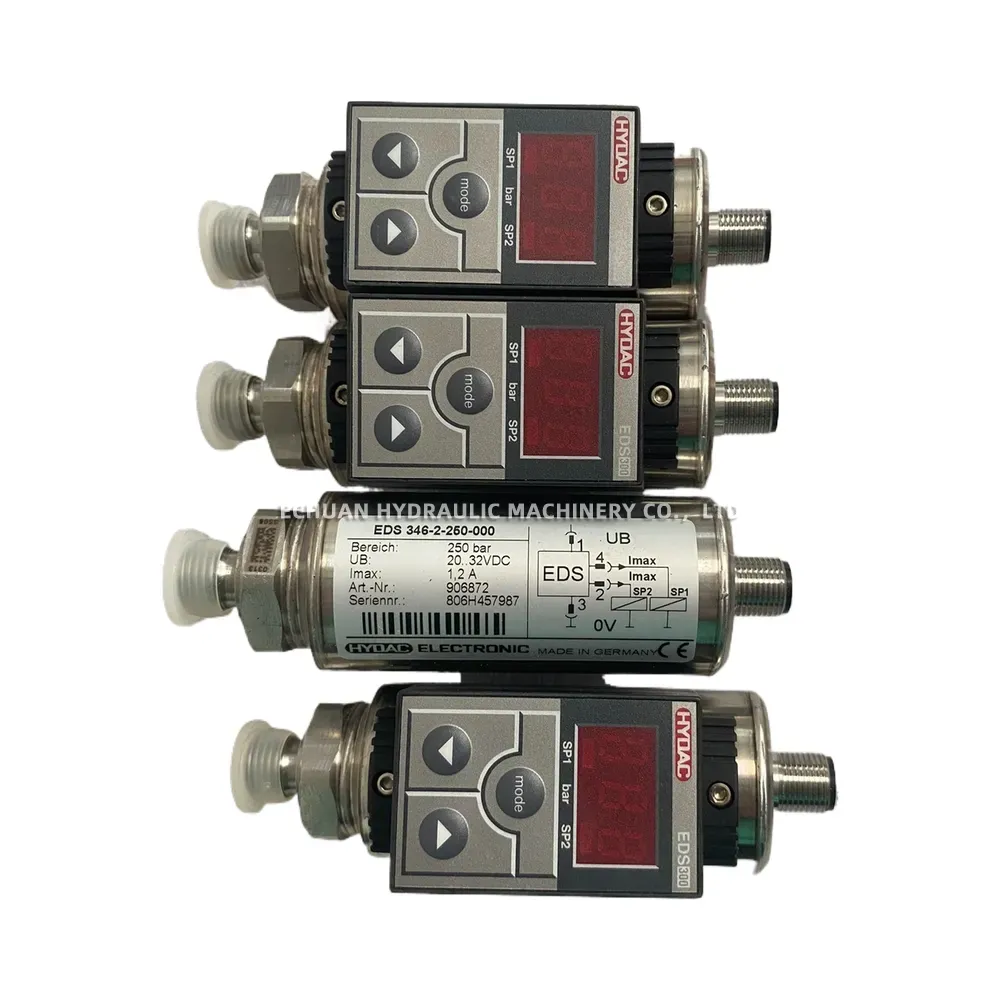

HYDAC EDS 346-2-250-000 Electronic Pressure Switch
The HYDAC EDS 346 is a compact electronic pressure switch featuring an integrated digital display for reliable pressure monitoring and control in hydraulic and pneumatic systems. This model belongs to the EDS 3000 series and offers two PNP switching outputs. The pressure range is set from 0 to 250 bar. Its robust design, combined with a rotatable 4-digit display and simple push-button programming, makes it suitable for various industrial applications requiring precise pressure detection and switching.

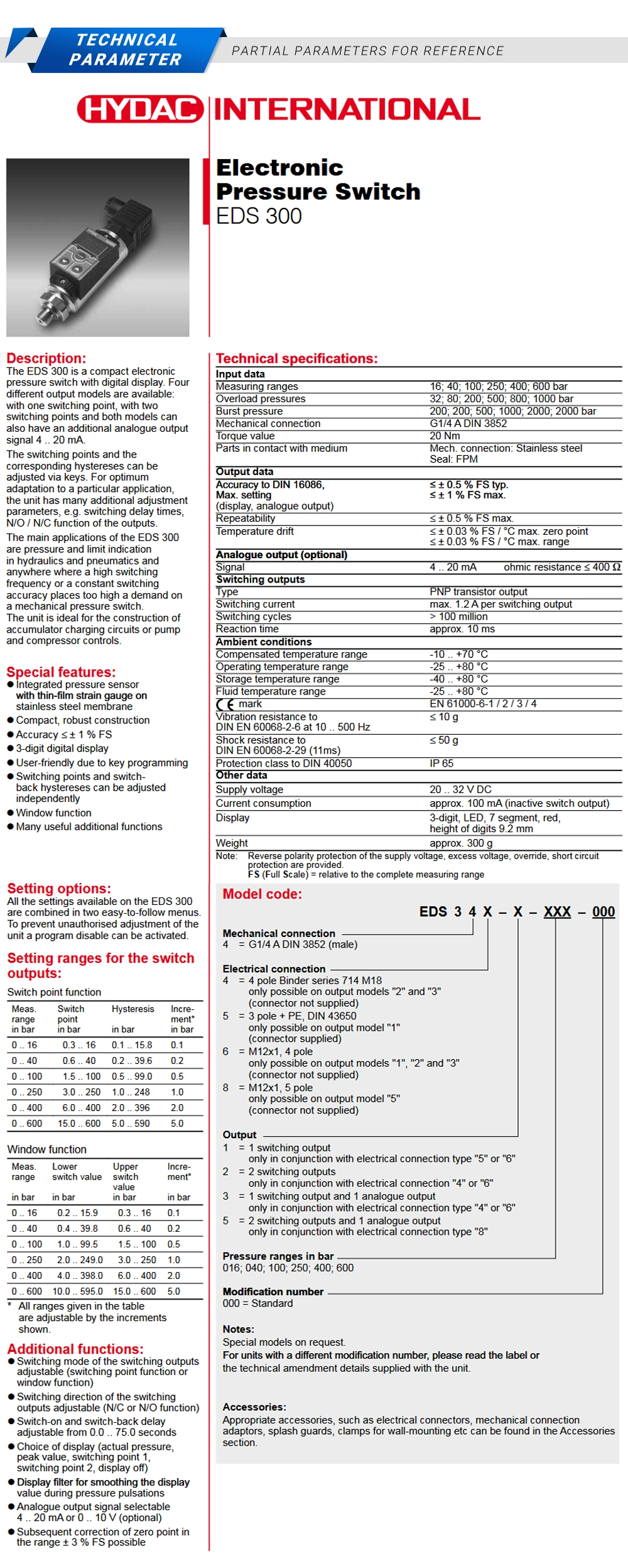

Technical Specifications:
- Product Series: EDS 3000
- Model Type: EDS 346
- Pressure Range: 0 … 250 bar
- Output Signal: 2 Switching Outputs (PNP Transistor)
- Mechanical Connection: G1/4 A DIN 3852 (Male Thread)
- Electrical Connection: M12x1 Connector, 4-pole
- Supply Voltage: 9 … 35 V DC
- Accuracy: ≤ ± 0.5 % FS typ., ≤ ± 1 % FS max.
- Display: 4-digit LED, rotatable
- IP Protection Class: IP67 (when mated with corresponding connector)
- Fluid Temperature Range: -25°C to +80°C
- Ambient Temperature Range: -25°C to +80°C
HYDAC EDS 346-2-250-000
Model:HYDAC EDS 346-2-250-000
| Brand | HYDAC |
|---|---|
| Model | EDS 346-2-250-000 |
| Part No. | HYDAC EDS 346-2-250-000 |
| Category | Other products |
