Product Description

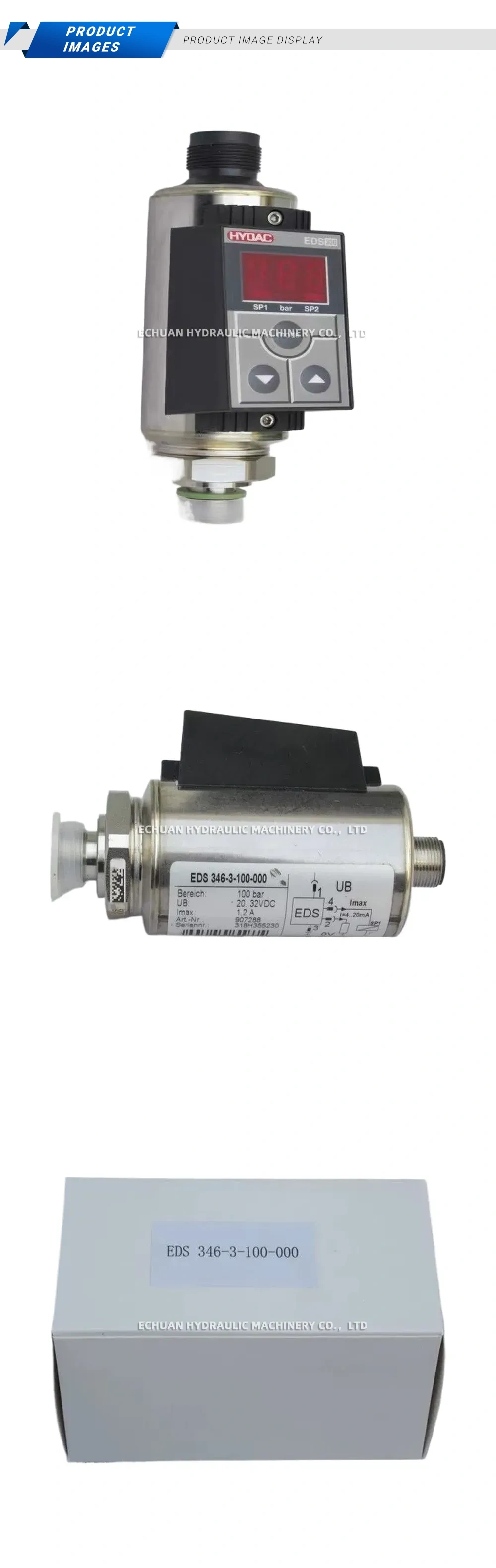

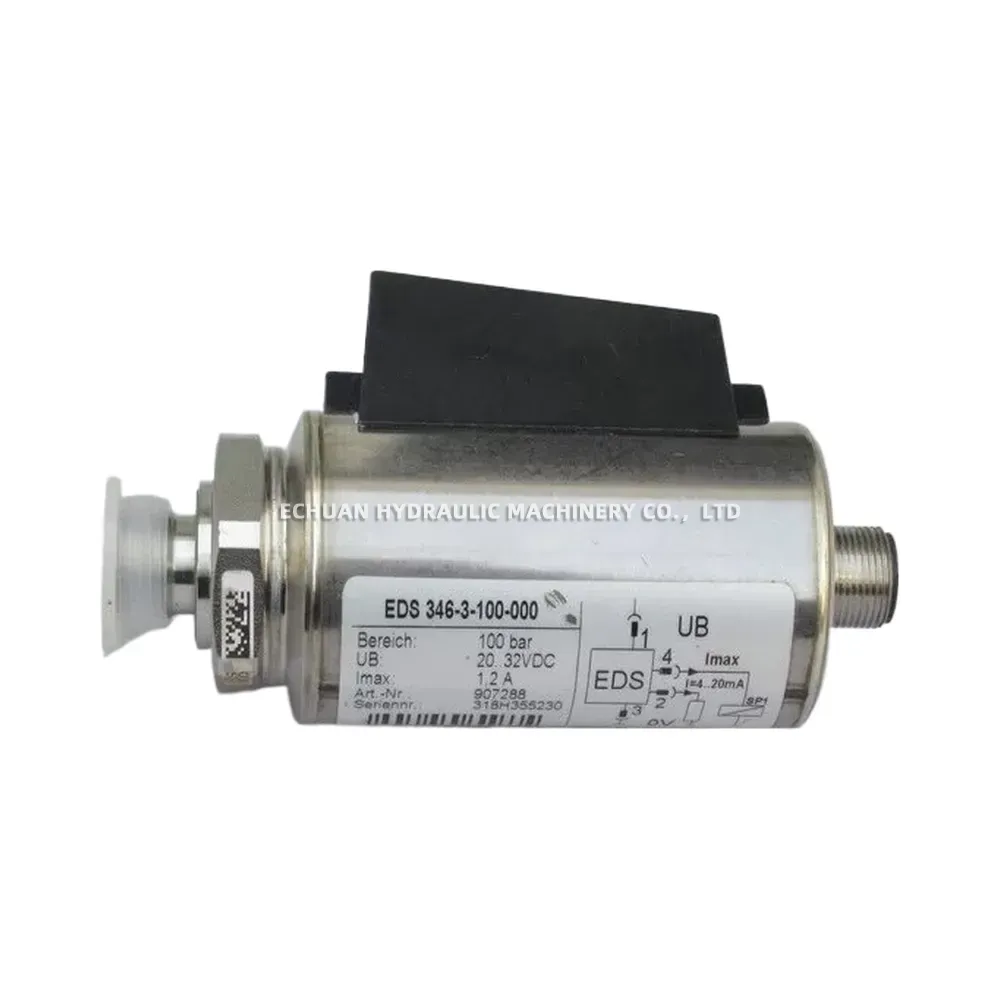

HYDAC EDS 346-3-100-000 Electronic Pressure Switch
The HYDAC EDS 346-3-100-000 is a compact and robust electronic pressure switch designed for superior performance in hydraulic and pneumatic applications. It features a bright, 4-digit LED display that provides a clear and immediate reading of the system pressure. With two independent PNP switching outputs and a scalable 4-20mA analog output, this device offers exceptional versatility for process control and system monitoring. The integrated keypad allows for easy and intuitive adjustment of set points and parameters directly on the unit, making it a user-friendly solution for precise pressure management in demanding industrial environments.
Technical Specifications:
- Model: EDS 346-3-100-000
- Pressure Range: 0 to 100 bar
- Supply Voltage: 20 … 32 VDC
- Output Signal: 2 PNP switching outputs and 1 analog output (4 … 20 mA)
- Max. Current per Output: 1.2 A
- Article Number: 907288
HYDAC EDS 346-3-100-000 Electronic Pressure Switch
Buy the HYDAC EDS 346-3-100-000 electronic pressure switch with a 100 bar range, digital display, dual PNP outputs, and a 4-20mA analog signal for reliable industrial pressure monitoring and control.
| Brand | HYDAC |
|---|---|
| Model | EDS 346-3-100-000 |
| Part No. | 994904980732 |
| Category | Hydraulic parts |
| Link | https://www.echuan-hydraulic.com/product/hydac-eds-346-3-100-000-electronic-pressure-switch |
